AN29.10-P-0002CW Retrofit Pedal Pads

AN29.10-P-0002CW Retrofit Pedal Pads
- MODEL 204.0## /2## (except 204.075 /077 /275 /277) 1# except CODE (950) AMG sport package

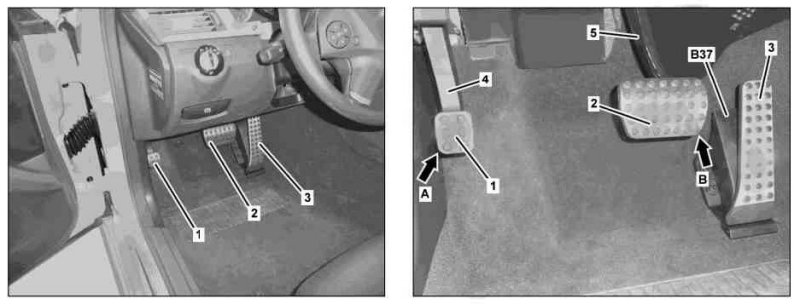

Shown on vehicle with transmission 722

1 Stainless steel pedal support
2 Stainless steel pedal support
3 Stainless steel pedal support
4 Parking brake pedal
5 Brake pedal

B37 Accelerator pedal sensor
