Air Injection Pump: Service and Repair

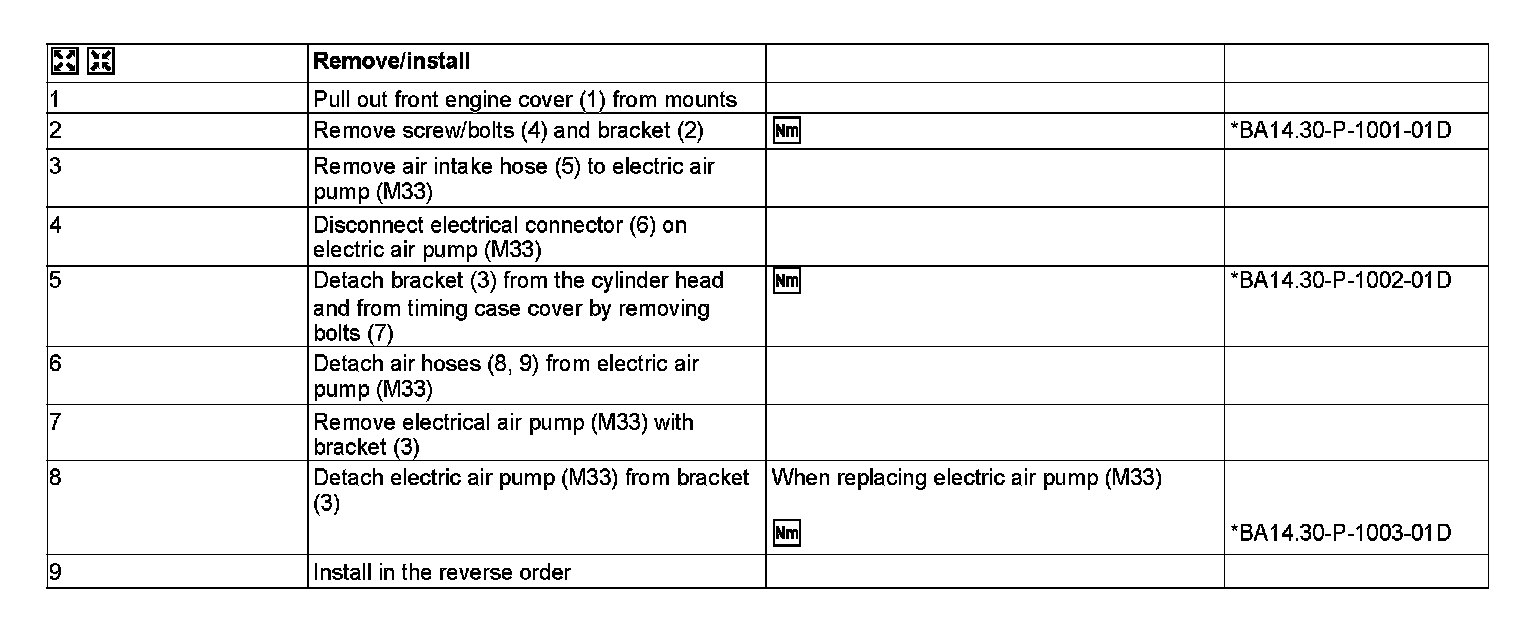

AR14.30-P-7251CV Remove/Install Air Pump
ENGINES 272 (except 272.982) in MODEL 204
ENGINES 272, 273 (except 272.982 /984) in MODEL 207

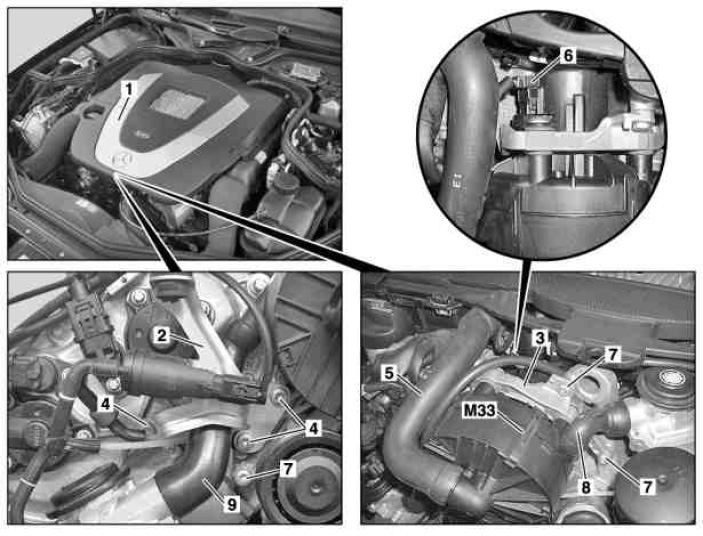

1 Front engine cover
2 Engine cover bracket
3 Bracket
4 Screw/bolts
5 Air intake hose
6 Electrical connector
7 Bolts
8,9 Air hose

M33 Electric air pump
