Air Diverter Valve: Service and Repair

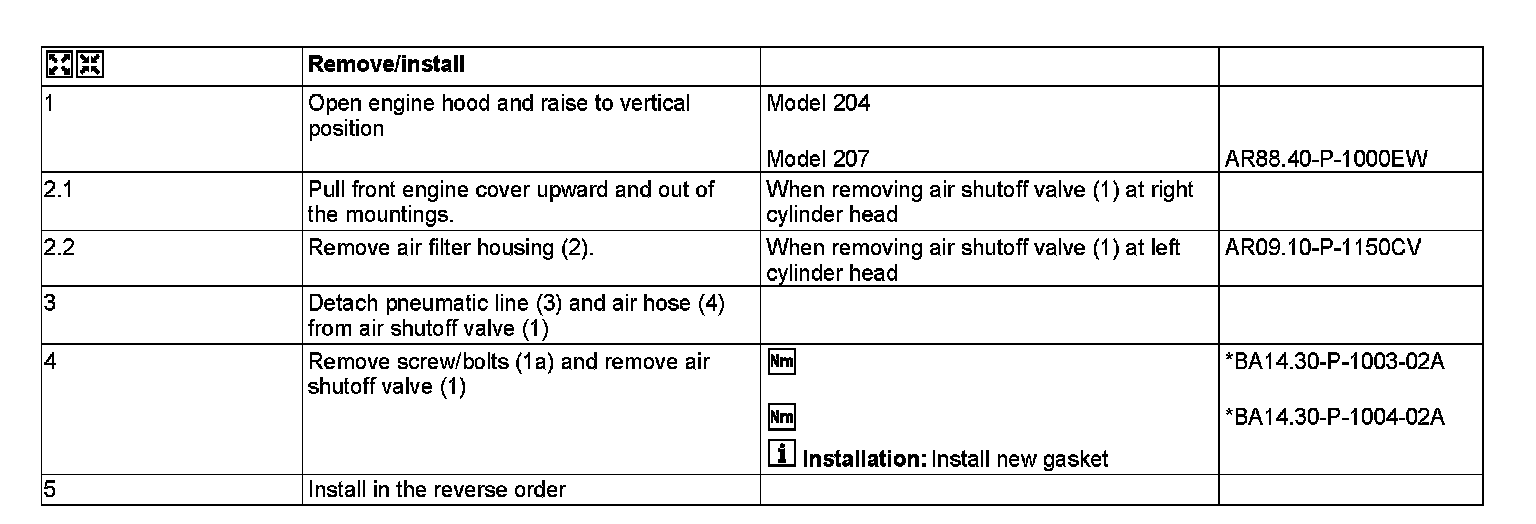

AR14.30-P-7200CV Remove/Install Air Shutoff Valve
ENGINES 272 (except 272.982) in MODEL 204
ENGINES 272, 273 (except 272.982 /984) in MODEL 207

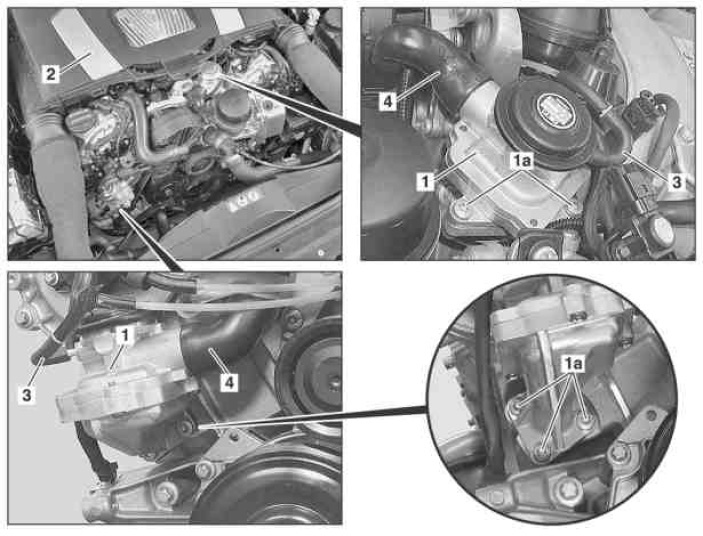

1 Air shutoff valve
1a Screw/bolts
2 Air cleaner housing
3 Pneumatic line
4 Air hose
