AR05.20-P-7201CVE Remove/Install Camshaft Adjusters

AR05.20-P-7201CVE Remove/Install Camshaft Adjusters
ENGINES 272 in MODEL 204
On intake camshaft
ENGINES 272, 273 in MODEL 207
On intake camshafts

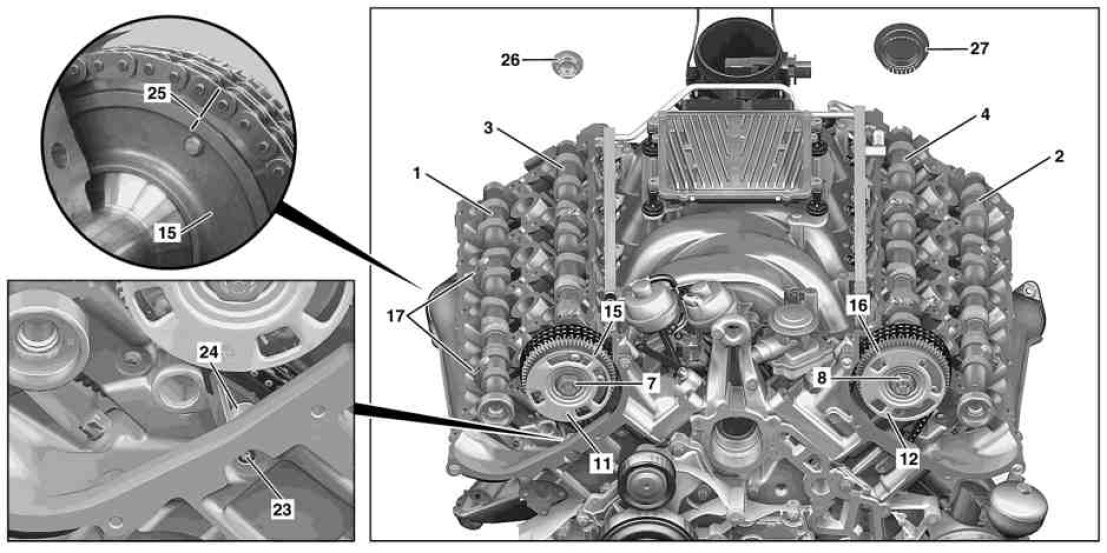

1,2 Exhaust camshaft
3,4 Intake camshaft
7,8 Center valve of intake camshaft
11,12 Pulse wheel for intake camshaft
15,16 Camshaft adjuster for intake camshaft
24 Tensioning rail
25 Color coding
26,27 Cap





15 Camshaft adjuster for intake camshaft

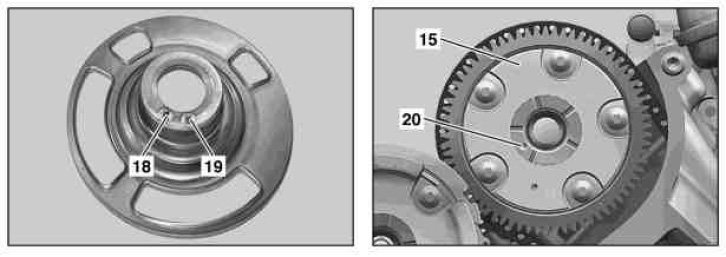

18 Dowel pin
19 Pin
20 Bore in camshaft adjuster

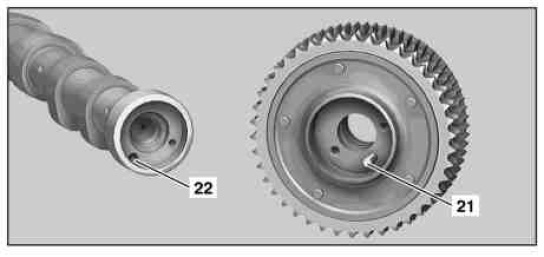

21 Dowel pin in camshaft adjuster
22 Fitted bore for intake camshaft
