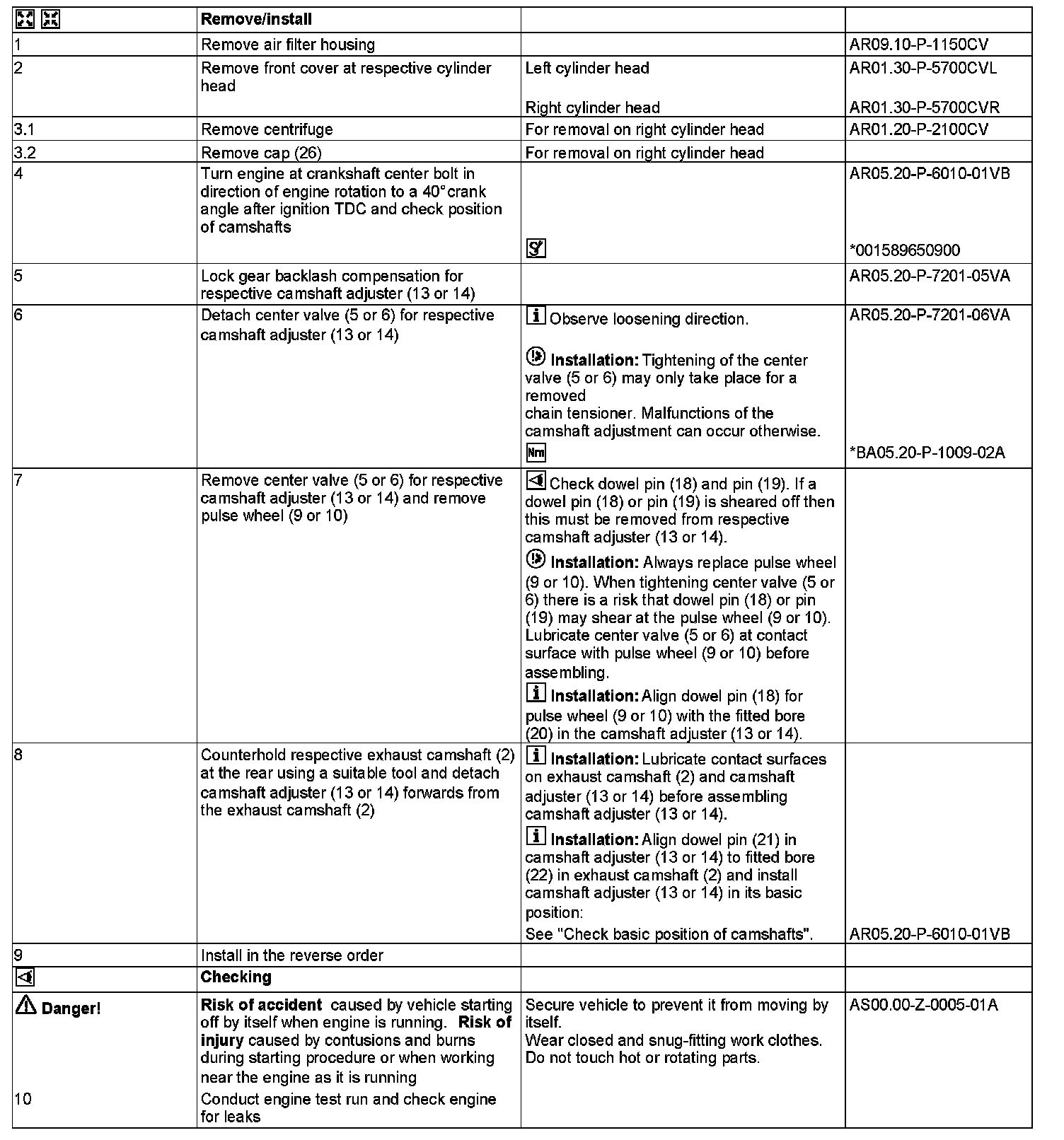

AR05.20-P-7201CVA Remove/Install Camshaft Adjusters

AR05.20-P-7201CVA Remove/Install Camshaft Adjusters
ENGINES 272 in MODEL 204
On exhaust camshafts
ENGINES 272, 273 in MODEL 207
On exhaust camshafts

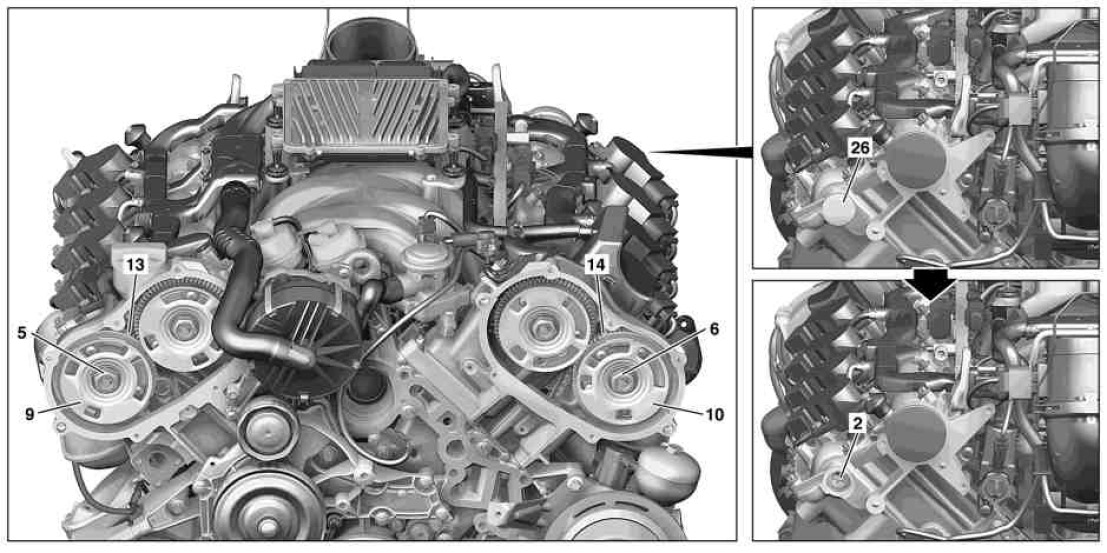

2 Exhaust camshaft
5,6 Center valve of exhaust camshaft
9,10 Pulse wheel of exhaust camshaft
13,14 Camshaft adjuster of exhaust camshaft
26 Cap

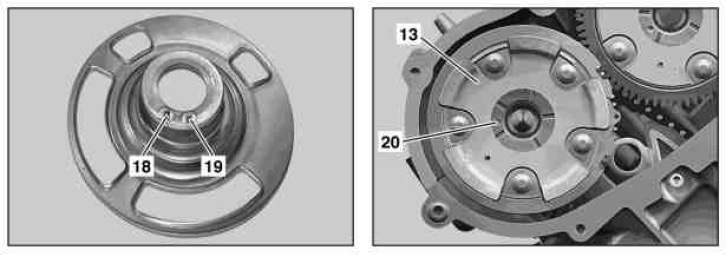

13 Camshaft adjuster of exhaust camshaft
18 Dowel pin
19 Pin
20 Bore in camshaft adjuster

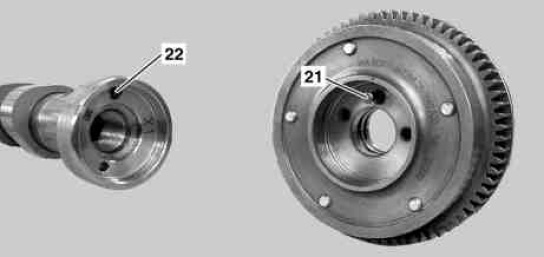

21 Dowel pin in camshaft adjuster
22 Fitted bore on exhaust camshaft











001 589 65 09 00
Wrench socket
