Electronic Throttle Actuator: Service and Repair



AR07.51-P-1401CV Remove/Install Throttle Valve Actuator

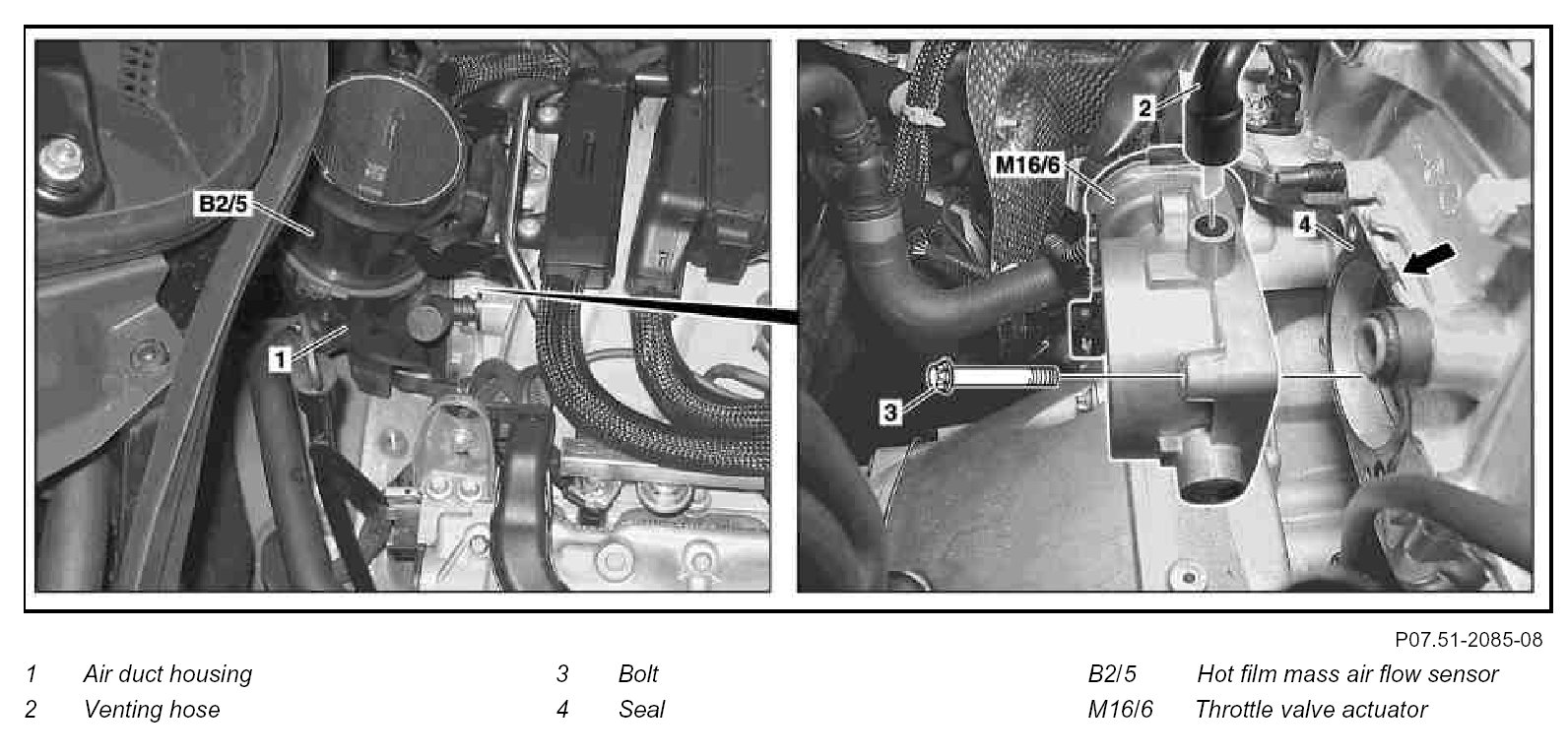

Component Identification:

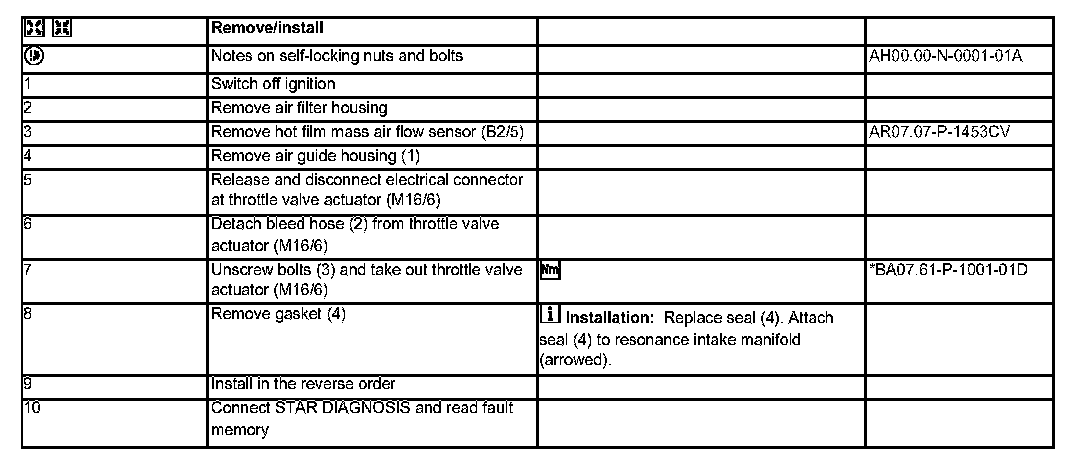

Steps 1 - 10:

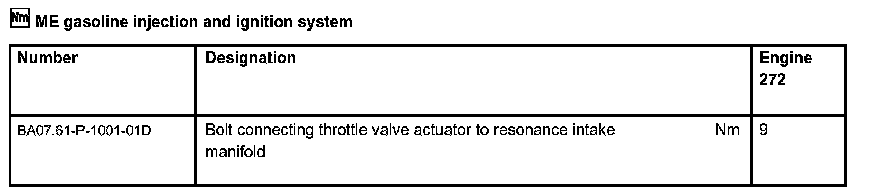

ME Gasoline Injection And Ignition System:
