Home >> Mercedes Benz >> 2012 >> C 300 4MATIC (204.081) V6-3.0L (272.948) >> Repair and Diagnosis >> Maintenance >> Hoses >> Power Steering Line/Hose >> Service and Repair >> AR46.25-P-3015CV Remove/Install Hydraulic Line of Power Steering Return Lines of Power Steering

AR46.25-P-3015CV Remove/Install Hydraulic Line of Power Steering Return Lines of Power Steering



AR46.25-P-3015CV Remove/install hydraulic line of power steering
- return lines of power steering

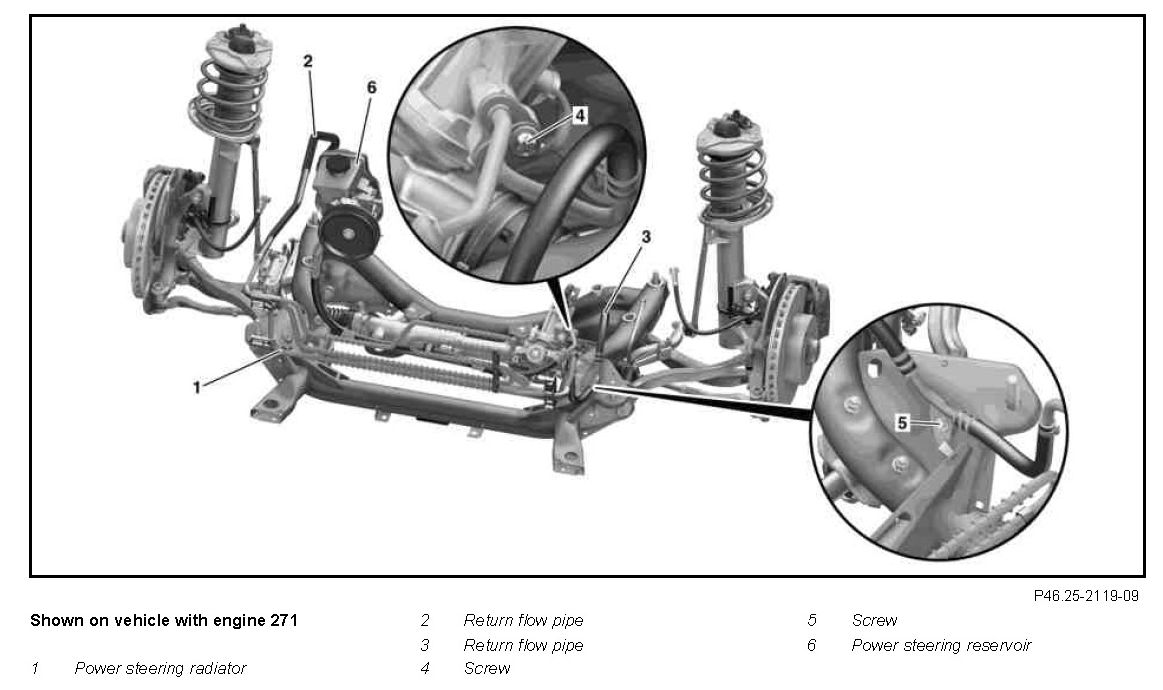

Component Identification:

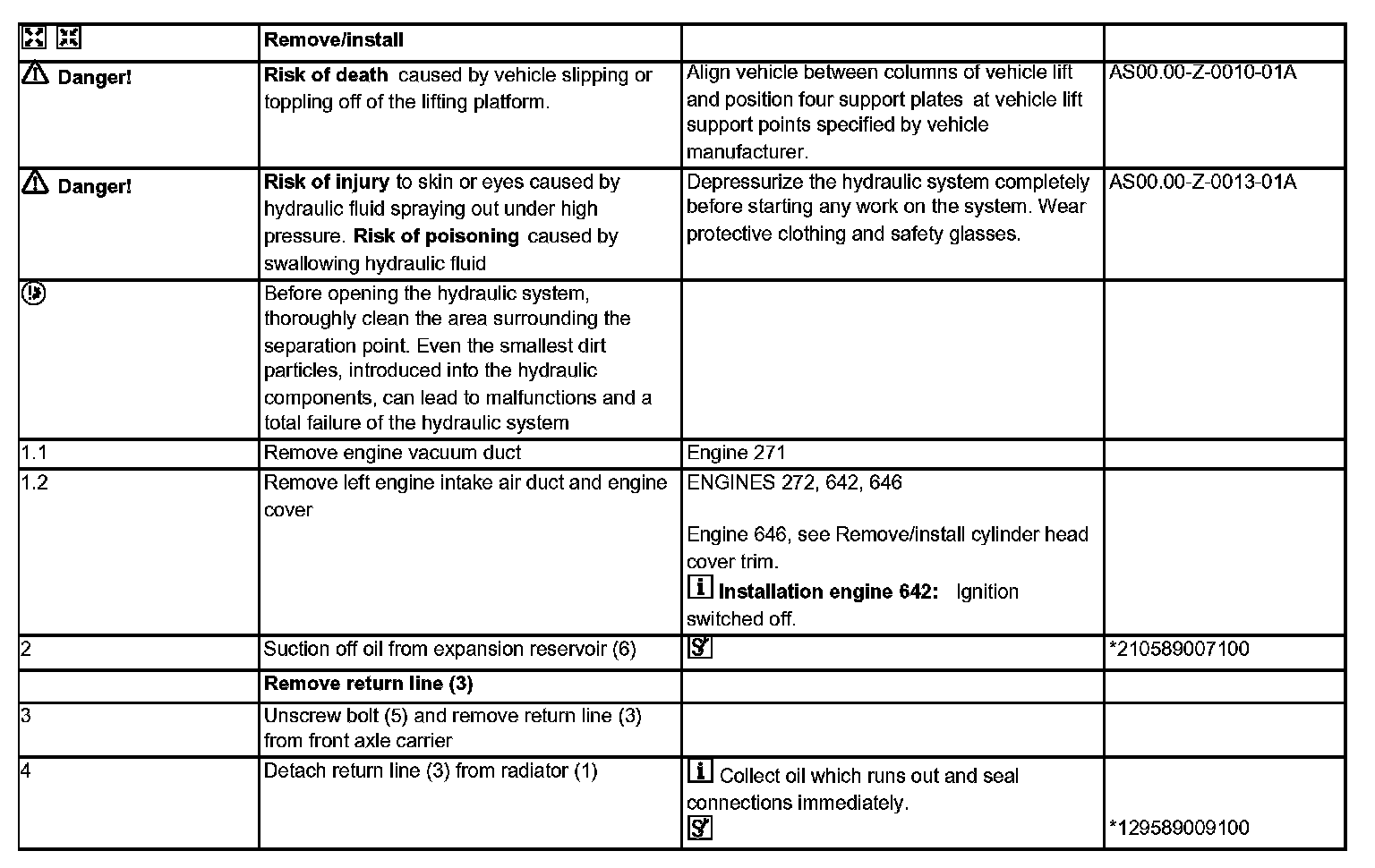

Remove/install Steps 1.1-4:

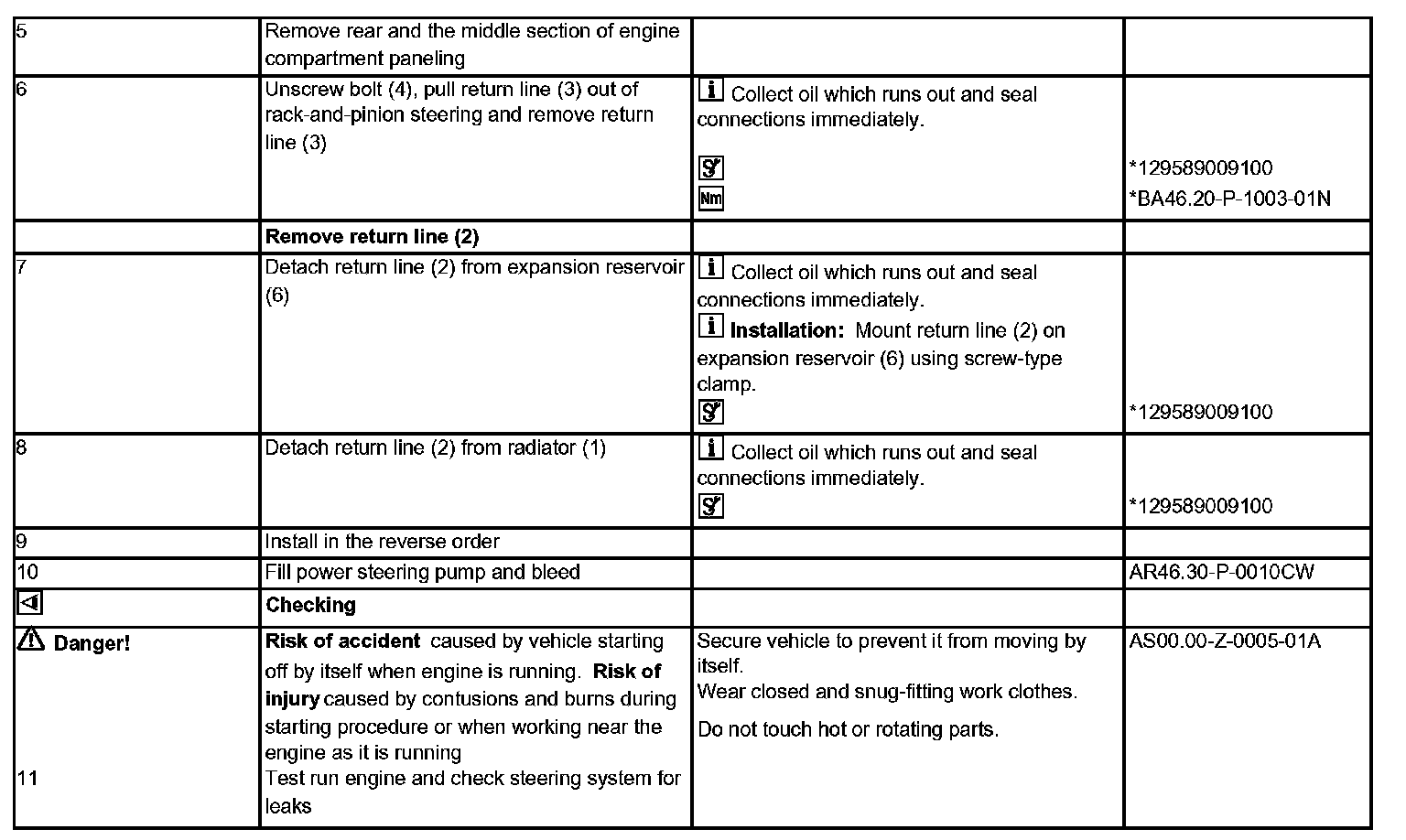

Remove/install Steps 5-11:

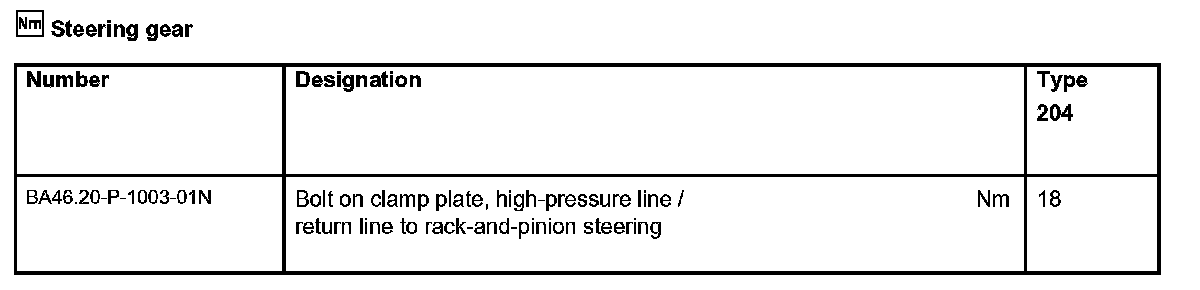

Steering gear:

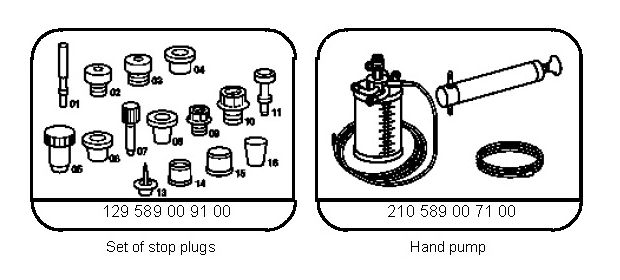

Special Tools:
