Headlamp Bulb: Service and Repair
AR82.10-P-1201CW Remove/Install Bulbs Of
Headlamp
Unit

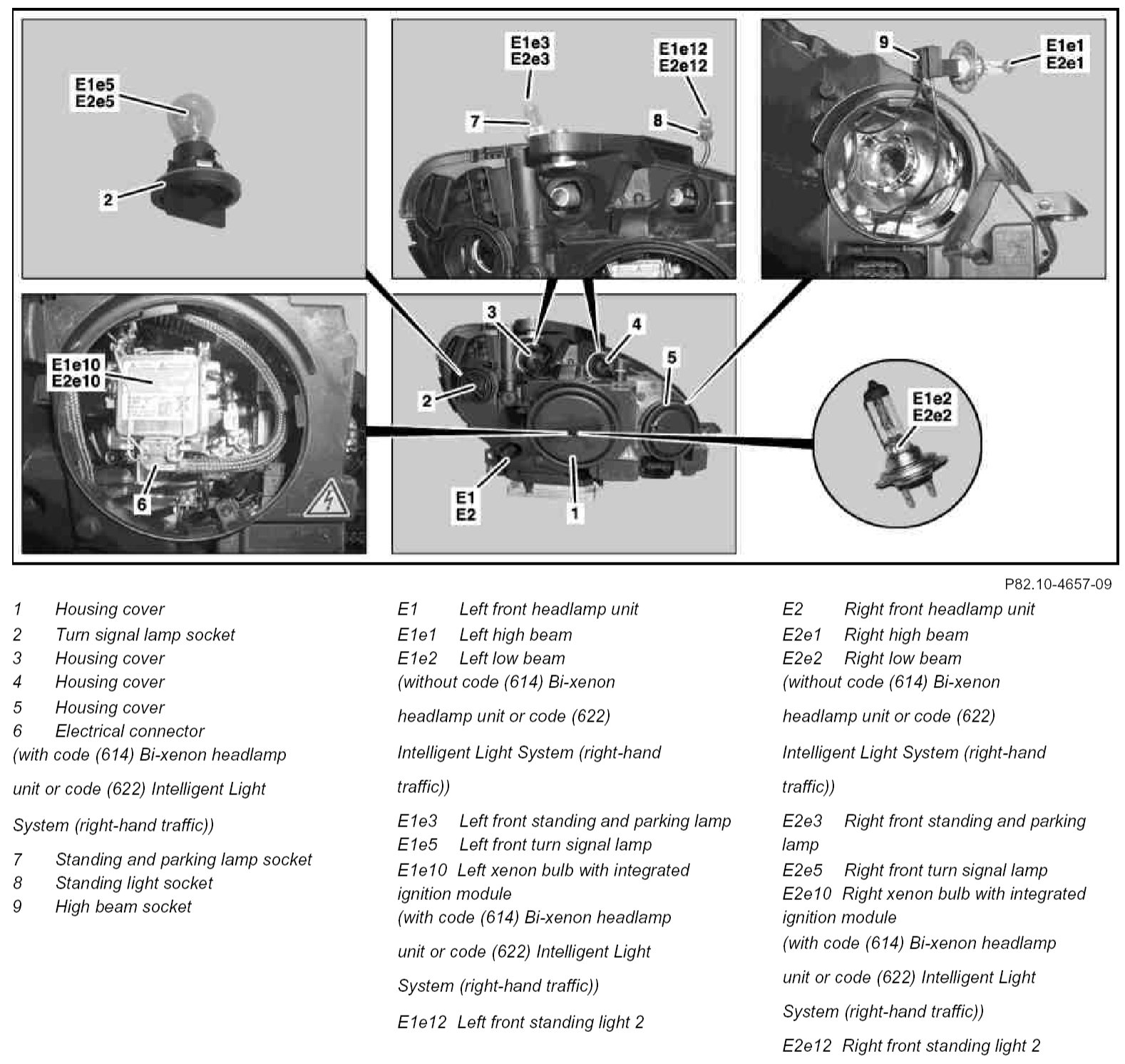

Component Identification:

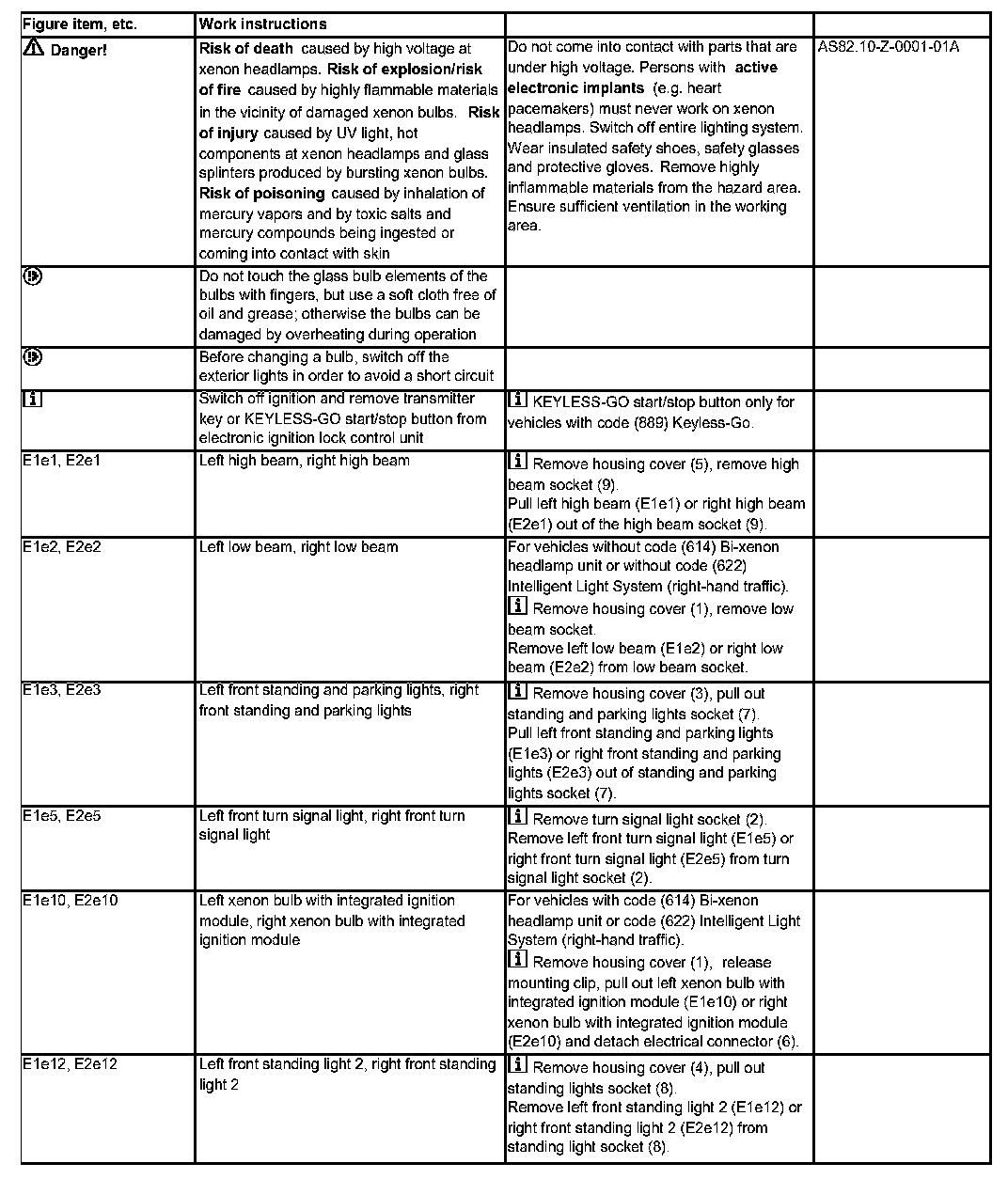

Steps E1e1 - E2e12:
