Part 1

GF82.10-P-0003CE Exterior Lights, Function
MODEL 204.0 /2 as of model year 2009 /YoM 08
MODEL 204.3
MODEL 204.9

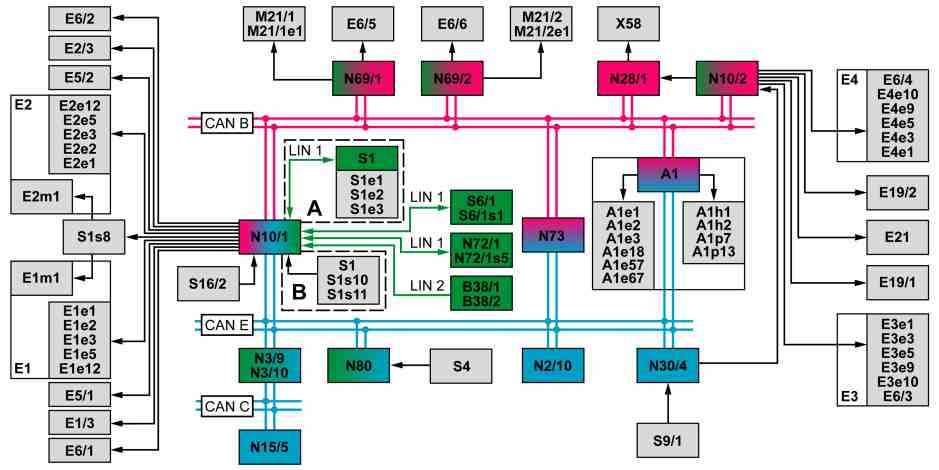

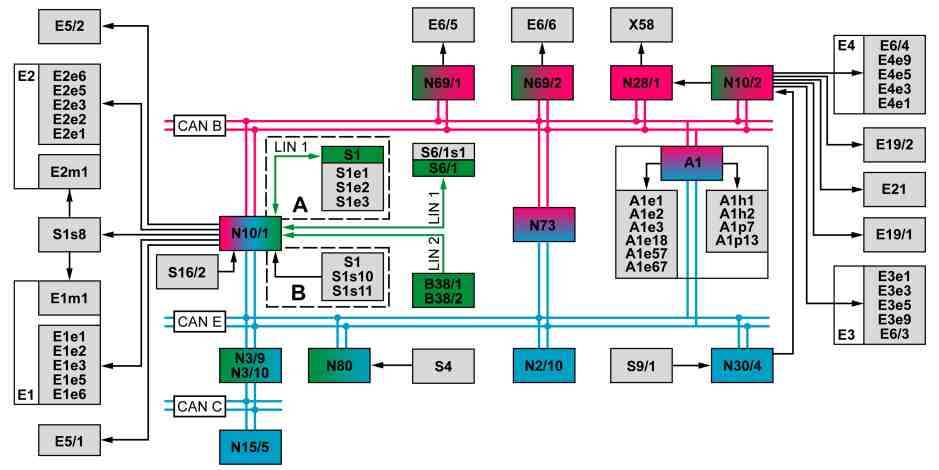

Model 204.0/2/3 without code (614) Bi- xenon headlamp unit and without code (618) Bi-xenon headlamp and without code (615) Bi-xenon headlamp unit with integrated curve illumination and without code (616) Bi-xenon headlamp unit with integrated asymmetric curve illumination and without code (621) Intelligent Light System (left-hand traffic) and without code (622) Intelligent Light System (right-hand traffic)
A1 Instrument cluster
A1e1 Left turn signal indicator light
A1e2 Right turn signal indicator light
A1e3 High beam indicator lamp
A1e18 Rear fog light indicator lamp (as of 1.6.09)
A1e57 Front fog lamp indicator lamp (as of 1.6.09 up to 30.11.09 and as of 1.12.09)
A1e67 Low beam indicator lamp
A1h1 Warning buzzer
A1h2 Turn signal light function check, acoustic
A1p7 Travel distance display (in model 204.0/2/3 (except 204.077/277/377) without code (442) Comfort multifunction steering wheel)
A1p13 Multifunction display (with code (442) Comfort multifunction steering wheel, model 204.077/277/377) Light sensor (without code (345) Rain sensor)
B38/2 Rain/light sensor (with code (345) rain sensor)
E1 Left front headlamp unit
E1e1 Left main beam
E1e2 Left low beam
E1e3 Left front side lamp and parking lamp
E1e5 Left front turn signal lamp
E1e12 Left front standing light 2 (in model 204.0/2 up to 28.2.11)
E1m1 Left headlamp range adjustment actuator motor
E1/3 Left daytime running lights headlamp (as of 1.3.11)
E2 Right front headlamp unit
E2e1 Right main beam
E2e2 Right low beam
E2e3 Right front side light and parking light
E2e5 Right front turn signal light
E2e12 Right front standing light 2 (in model 204.0/2 up to 28.2.11)
E2m1 Right headlamp range adjustment actuator motor
E2/3 Right daytime running lights headlamp (as of 1.3.11)
E3 Left rear lamp unit
E3e1 Left rear turn signal lamp
E3e3 Left backup lamp
E3e5 Left rear fog lamp
E3e9 Left stop lamp and taillamp and parking lamp
E3e10 Inner left stop lamp and taillamp
E4 Right rear lamp unit
E4e1 Right rear turn signal lamp
E4e3 Right backup lamp
E4e5 Right rear fog lamp
E4e9 Right stop lamp and taillamp and parking lamp Inner right brake light and taillight
E5/1 Left front fog lamp (up to 30.11.09 and as of 1.12.09)
E5/2 Right front fog lamp (up to 30.11.09 and as of 1.12.09)
E6/1 Left front side marker lamp (with code (460) Canada version or with code (494) USA version) Right front side marker lamp (with code (460) Canada version or with code (494) USA version)
E6/3 Left rear side marker lamp
E6/4 Right rear side marker lamp
E6/5 Left outside mirror turn signal lamp
E6/6 Right outside mirror turn signal lamp
E19/1 Left license plate lamp
E19/2 Right license plate lamp
E21 Center stop lamp
M21/1 Left outside mirror
M21/1e1 Left outside mirror ambient lamp (as of 1.3.11)
M21/2 Right outside mirror
M21/2e1 Right outside mirror ambient lamp (as of 1.3.11)
N2/10 Supplemental restraint system control unit
N3/9 CDI control unit (with diesel engine)
N3/10 ME-SFI [ME] control unit (with gasoline engine)
N10/1 Front SAM control unit with fuse and relay module
N10/2 Rear SAM control unit with fuse and relay module
N15/5 Electronic selector lever module control unit (with transmission 722)
N28/1 Trailer recognition control unit (with code (550) Trailer hitch)
N30/4 Electronic Stability Program control unit
N69/1 Left front door control unit
N69/2 Right front door control unit
N72/1 Upper control panel control unit
N72/1s5 Hazard warning system button (as of 1.3.11)
N73 Electronic ignition switch control unit
N80 Steering column module control unit
S1 Exterior lights switch
S1e1 Front fog lamp indicator lamp (up to 31.5.09)
S1e2 Rear fog light indicator lamp (up to 31.5.09)
S1e3 Standing light indicator lamp (up to 31.5.09)
S1s8 Headlamp range controller
S1s10 Rear fog light button (as of 1.6.10)
S1s11 Front fog lamp button (as of 1.6.10)
S4 Combination switch
S6/1 Instrument panel switch group
S6/1s1 Hazard warning flasher switch (up to 28.2.11)
S9/1 Stop lamp switch
S16/2 Backup lamp switch (with transmission 711, 716)
X58 Trailer socket (with code (550) Trailer hitch)
CAN B Interior CAN
CAN C Drive train CAN
CAN E Chassis CAN
LIN 1 Instrument panel LIN
LIN 2 Wiper/inside rearview mirror LIN
A Vehicles up to 31.5.10
B Vehicles as of 1.6.10

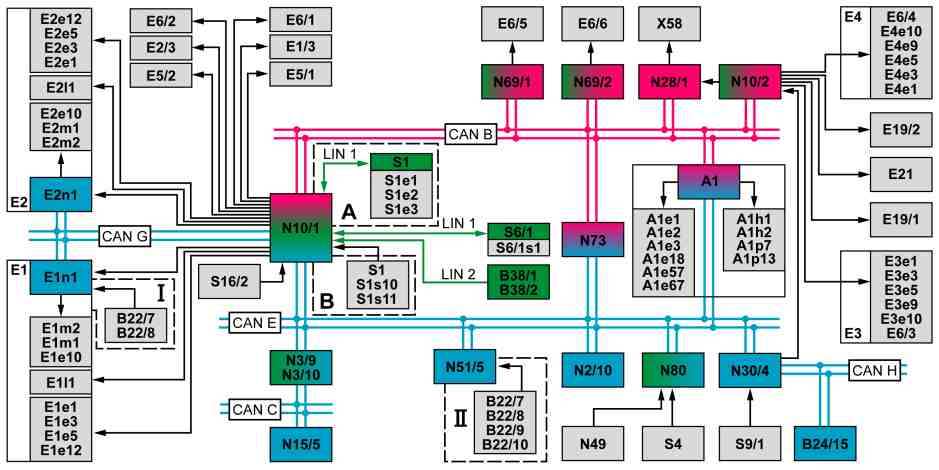

Model 204.0/2 up to 28.2.11 with code (614) Bi-xenon headlamp unit or code (618) Bi-xenon headlamp or code (615) Bi-xenon headlamp unit with integrated curve illumination or code (616) Bi-xenon headlamp unit with integrated asymmetric curve illumination or code (621) Intelligent Light System (left-hand traffic) or code (622) Intelligent Light System (right-hand traffic)
A1 Instrument cluster
A1e1 Left turn signal indicator light
A1e2 Right turn signal indicator light
A1e3 High beam indicator lamp
A1e18 Rear fog light indicator lamp (as of 1.6.09)
A1e57 Front fog lamp indicator lamp (without code (621) Intelligent Light System (left-hand traffic) and without code (622) Intelligent Light System (right-hand traffic))
A1e67 Low beam indicator lamp
A1h1 Warning buzzer
A1h2 Turn signal light function check, acoustic
A1p7 Travel distance display (in model 204.0/2 (except 204.077/277) without code (442) Comfort multifunction steering wheel)
A1p13 Multifunction display (with code (442) Comfort multifunction steering wheel, model 204.077/277)
B22/7 Left rear level sensor
B22/8 Left front level sensor
B22/9 Right front level sensor (with code (483) ADVANCED AGILITY package)
B22/10 Right rear level sensor (with code (483) ADVANCED AGILITY package)
B24/15 Yaw rate, lateral and longitudinal acceleration sensor Light sensor (without code (345) Rain sensor)
B38/2 Rain/light sensor (with code (345) rain sensor)
E1 Left front headlamp unit
E1e1 Left main beam
E1e3 Left front side lamp and parking lamp
E1e5 Left front turn signal lamp
E1e10 Left xenon bulb with integrated ignition module
E1e12 Left front standing light 2
E1l1 Left high beam solenoid
E1m1 Left headlamp range adjustment actuator motor
E1m2 Left active curve illumination actuator motor
E1n1 Left xenon lamp control unit
E1/3 Left daytime running lights headlamps (as of 1.12.09 with code (621) Intelligent Light System (left-hand traffic) or code (622) Intelligent Light System (right-hand traffic))
E2 Right front headlamp unit
E2e1 Right main beam
E2e3 Right front side light and parking light
E2e5 Right front turn signal light
E2e10 Right xenon bulb with integrated ignition module
E2e12 Right front standing light 2
E2l1 Right high beam solenoid
E2m1 Right headlamp range adjustment actuator motor
E2m2 Right active curve illumination actuator motor
E2n1 Right xenon light control unit
E2/3 Right daytime running lights headlamps (as of 1.12.09 with code (621) Intelligent Light System (left-hand traffic) or code (622) Intelligent Light System (right-hand traffic))
E3 Left rear lamp unit
E3e1 Left rear turn signal lamp
E3e3 Left backup lamp
E3e5 Left rear fog lamp
E3e9 Left stop lamp and taillamp and parking lamp
E3e10 Inner left stop lamp and taillamp
E4 Right rear lamp unit
E4e1 Right rear turn signal lamp
E4e3 Right backup lamp
E4e5 Right rear fog lamp
E4e9 Right stop lamp and taillamp and parking lamp
E4e10 Inner right brake light and taillight
E5/1 Left front fog lamp (up to 30.11.09 and as of 1.12.09 without code (621) Intelligent Light System (left-hand traffic) and without code (622) Intelligent Light System (right- hand traffic))
E5/2 Right front fog lamp (up to 30.11.09 and as of 1.12.09 without code (621) Intelligent Light System (left-hand traffic) and without code (622) Intelligent Light System (right- hand traffic))
E6/1 Left front side marker lamp (with code (460) Canada version or with code (494) USA version)
E6/2 Right front side marker lamp (with code (460) Canada version or with code (494) USA version)
E6/3 Left rear side marker lamp
E6/4 Right rear side marker lamp
E6/5 Left outside mirror turn signal lamp
E6/6 Right outside mirror turn signal lamp
E19/1 Left license plate lamp
E19/2 Right license plate lamp
E21 Center stop lamp
N2/10 Supplemental restraint system control unit
N3/9 CDI control unit (with diesel engine)
N3/10 ME-SFI [ME] control unit (with gasoline engine)
N10/1 Front SAM control unit with fuse and relay module
N10/2 Rear SAM control unit with fuse and relay module
N15/5 Electronic selector lever module control unit (with transmission 722)
N28/1 Trailer recognition control unit (with code (550) Trailer hitch)
N30/4 Electronic Stability Program control unit
N49 Steering angle sensor
N51/5 Adaptive damping system control unit (with code (483) ADVANCED AGILITY package)
N69/1 Left front door control unit
N69/2 Right front door control unit
N73 Electronic ignition switch control unit
N80 Steering column module control unit
S1 Exterior lights switch
S1e1 Front fog lamp indicator lamp (up to 31.5.09)
S1e2 Rear fog light indicator lamp (up to 31.5.09)
S1e3 Standing light indicator lamp (up to 31.5.09)
S1s10 Rear fog light button (as of 1.6.10)
S1s11 Front fog lamp button (as of 1.6.10 without code (621) Intelligent Light System (left-hand traffic) and without code (622) Intelligent Light System (right- hand traffic) or with code (498) Japan version)
S4 Combination switch
S6/1 Instrument panel switch group
S6/1s1 Hazard warning flasher switch
S9/1 Stop lamp switch
S16/2 Backup lamp switch (with transmission 711, 716)
X58 Trailer socket (with code (550) Trailer hitch)
CAN B Interior CAN
CAN C Drive train CAN
CAN E Chassis CAN
CAN G Front end CAN
CAN H Vehicle dynamics CAN
LIN 1 Instrument panel LIN
LIN 2 Wiper/inside rearview mirror LIN
A Vehicles up to 31.5.10
B Vehicles as of 1.6.10
I without code (483) ADVANCED AGILITY package
II With code (483) ADVANCED AGILITY package

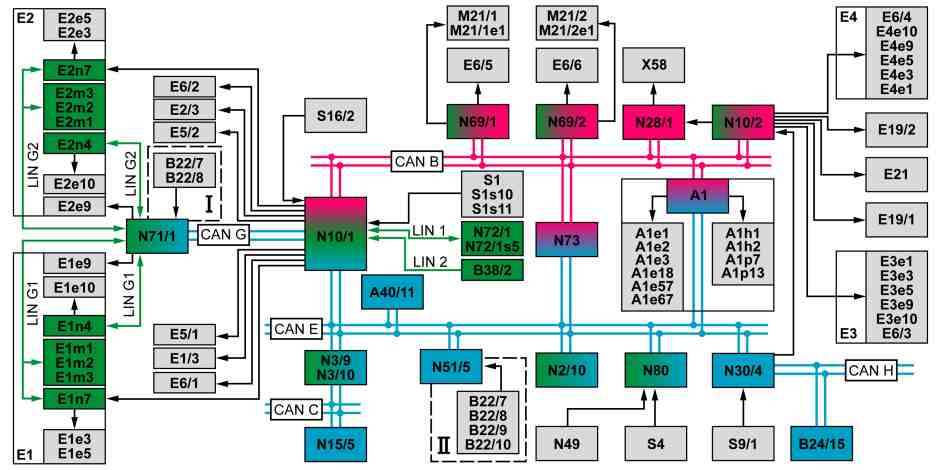

Model 204.0/2 as of 1.3.11 and model 204.3 with code (615) Bi-xenon headlamp unit with integrated curve illumination or code (616) Bi-xenon headlamp unit with integrated asymmetric curve illumination code (621) Intelligent Light System (left-hand traffic) or code (622) Intelligent Light System (right-hand traffic)
A1 Instrument cluster
A1e1 Left turn signal indicator light
A1e2 Right turn signal indicator light
A1e3 High beam indicator lamp
A1e18 Rear fog lamp indicator lamp
A1e57 Front fog lamp indicator lamp (with code (614) Bi-xenon headlamp unit or code (618) Bi- xenon headlamp)
A1e67 Low beam indicator lamp
A1h1 Warning buzzer
A1h2 Turn signal light function check, acoustic
A1p7 Travel distance display (in model 204.0/2/3 (except 204.077/277/377) without code (442) Comfort multifunction steering wheel)
A1p13 Multifunction display (with code (442) Comfort multifunction steering wheel, model 204.077/277/377)
A40/11 Multifunction camera (with code (608) Adaptive Highbeam Assist)
B22/7 Left rear level sensor
B22/8 Left front level sensor
B22/9 Right front level sensor (with code (483) ADVANCED AGILITY package)
B22/10 Right rear level sensor (with code A1h1 Warning buzzer (483) ADVANCED AGILITY package)
B24/15 Yaw rate sensor for lateral and longitudinal acceleration (with code (233) DISTRONIC PLUS, code (237) Active Blind Spot Assist and/or code (238) Active Lane Keeping Assist and model 204.077/277/377)
B38/2 Rain/light sensor
E1 Left front headlamp unit
E1e3 Left front side lamp and parking lamp
E1e5 Left front turn signal lamp
E1e9 Left corner-illuminating fog lamp
E1e10 Left xenon bulb with integrated ignition module
E1m1 Left headlamp range adjustment actuator motor
E1m2 Left active curve illumination actuator motor
E1m3 Left light distribution actuator motor
E1n4 Left xenon light power supply module
E1n7 Left signal lamp actuation module LED
E1/3 Left daytime running lamps headlamp
E2 Right front headlamp unit
E2e3 Right front side light and parking light
E2e5 Right front turn signal light
E2e9 Cornering illumination, right
E2e10 Right xenon bulb with integrated ignition module
E2m1 Right headlamp range adjustment actuator motor
E2m2 Right active curve illumination actuator motor
E2m3 Right light distribution actuator motor
E2n4 Right xenon light power supply module
E2n7 Right signal lamp actuation module LED
E2/3 Right daytime running lamps headlamp
E3 Left rear lamp unit
E3e1 Left rear turn signal lamp
E3e3 Left backup lamp
E3e5 Left rear fog lamp
E3e9 Left stop lamp and taillamp and parking lamp
E3e10 Inner left stop lamp and taillamp
E4 Right rear lamp unit
E4e1 Right rear turn signal lamp
E4e3 Right backup lamp
E4e5 Right rear fog lamp
E4e9 Right stop lamp and taillamp and parking lamp
E4e10 Inner right brake light and taillight
E5/1 Left front fog lamp (without code (621) Intelligent Light System (left-hand traffic) and without code (622) Intelligent Light System (right-hand traffic))
E5/2 Right front fog lamp (without code (621) Intelligent Light System (left-hand traffic) and without code (622) Intelligent Light System (right-hand traffic))
E6/1 Left front side marker lamp (with code (460) Canada version or with code (494) USA version)
E6/2 Right front side marker lamp (with code (460) Canada version or with code (494) USA version)
E6/3 Left rear side marker lamp
E6/4 Right rear side marker lamp
E6/5 Left outside mirror turn signal lamp
E6/6 Right outside mirror turn signal lamp
E19/1 Left license plate lamp
E19/2 Right license plate lamp
E21 Center stop lamp
M21/1 Left outside mirror
M21/1e1 Left outside mirror ambient lamp
M21/2 Right outside mirror
M21/2e1 Right outside mirror ambient lamp
N2/10 Supplemental restraint system control unit
N3/9 CDI control unit (with diesel engine)
N3/10 ME-SFI [ME] control unit (with gasoline engine)
N10/1 Front SAM control unit with fuse and relay module
N10/2 Rear SAM control unit with fuse and relay module
N15/5 Electronic selector lever module control unit (with transmission 722)
N28/1 Trailer recognition control unit (with code (550) Trailer hitch)
N30/4 Electronic Stability Program control unit
N49 Steering angle sensor
N51/5 Adaptive damping system control unit (with code (483) ADVANCED AGILITY package)
N69/1 Left front door control unit
N69/2 Right front door control unit
N71/1 Headlamp control unit
N72/1 Upper control panel control unit
N72/1s5 Hazard warning system button
N73 Electronic ignition switch control unit
N80 Steering column module control unit
S1 Exterior lights switch
S1s10 Rear fog light button
S1s11 Front fog lamp button (with code (614) Bi-xenon headlamp unit or code (618) Bi-xenon headlamp)
S4 Combination switch
S9/1 Stop lamp switch
S16/2 Backup lamp switch (with transmission 711, 716)
X58 Trailer socket (with code (550) Trailer hitch)
CAN B Interior CAN
CAN C Drive train CAN
CAN E Chassis CAN
CAN G Front end CAN
CAN H Vehicle dynamics CAN
LIN 1 Instrument panel LIN
LIN 2 Wiper/inside rearview mirror LIN
LIN G1 Left headlamp LIN
LIN G2 Right headlamp LIN
I without code (483) ADVANCED AGILITY package
II With code (483) ADVANCED AGILITY package
