AR54.30-P-6015CW Remove/Install Instrument Cluster

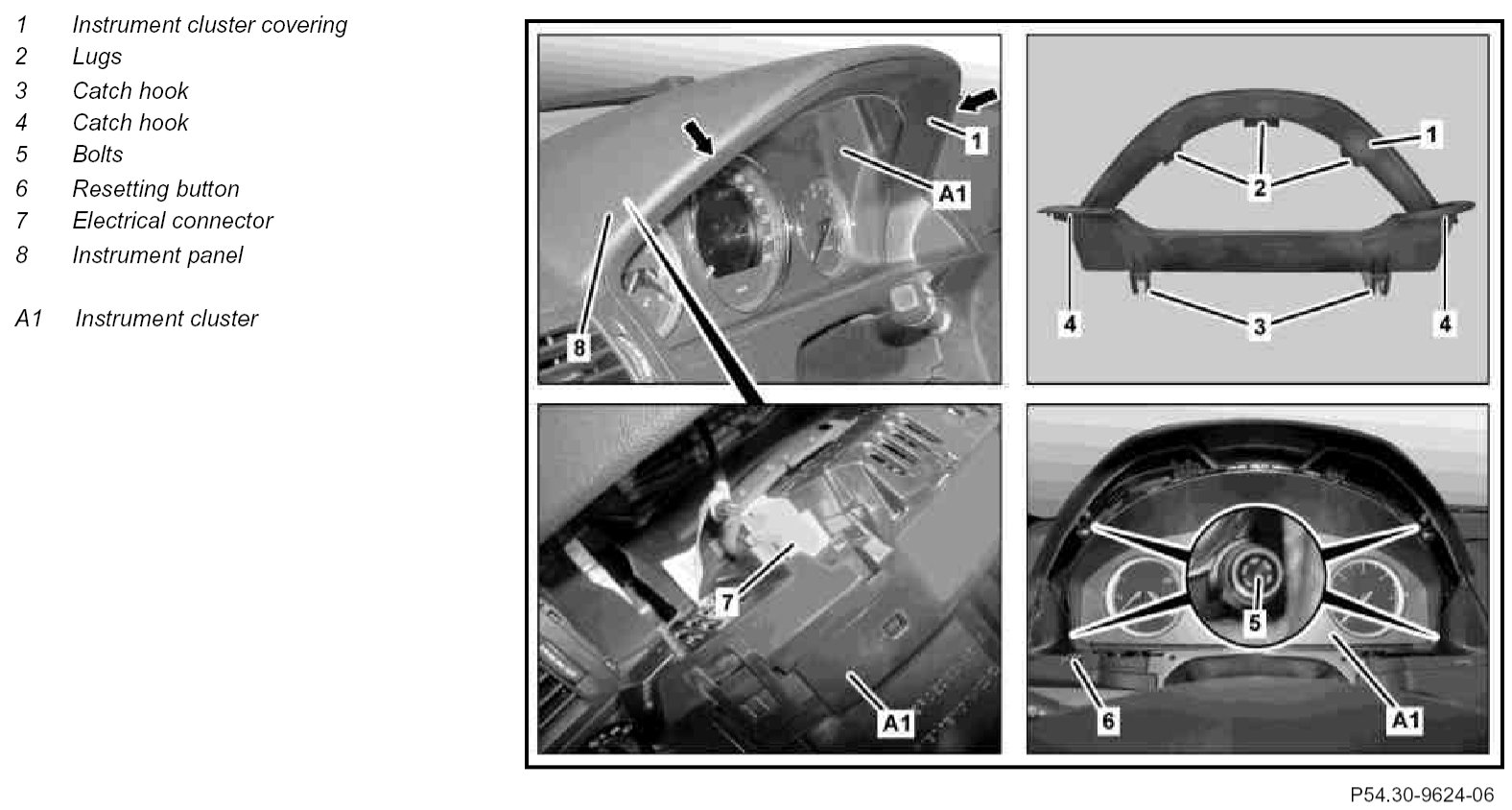

Component Identification:
Modification Notes:

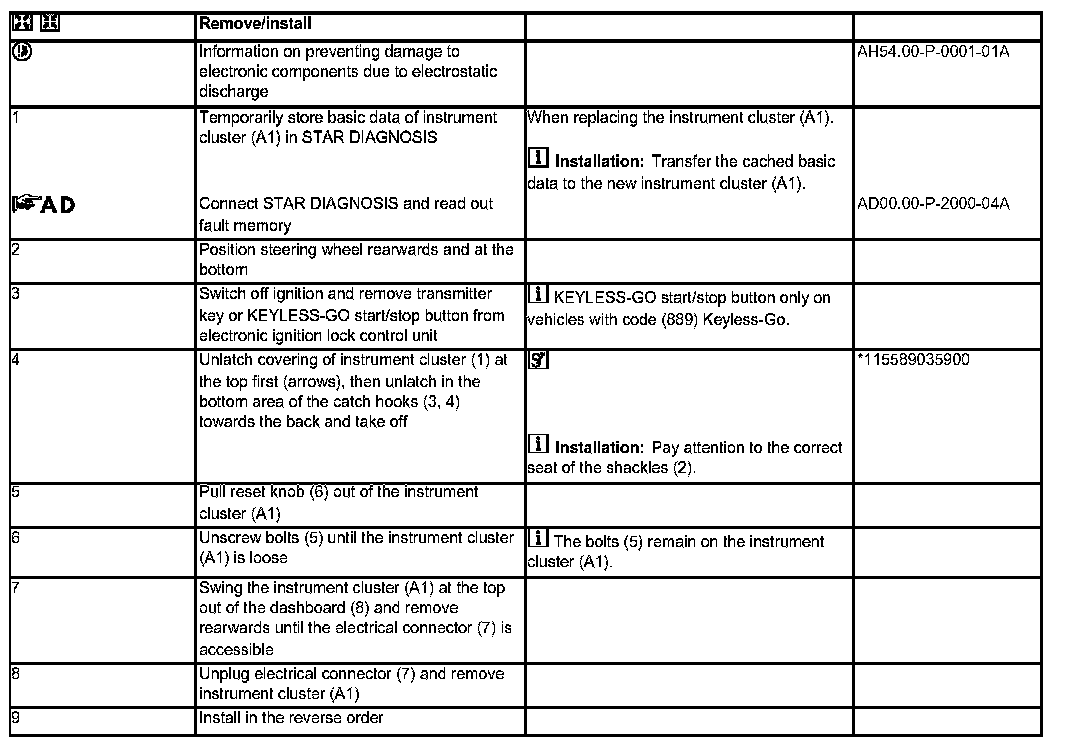

Steps 1 - 9:
Special Tools:
