FREE REPAIR MANUALS & LABOR GUIDES 1982-2013 Vehicles
Courtesy of Operation CHARM
:
Car repair manuals for everyone.
Home
>>
Mercedes Benz
>>
2012
>>
C 300 4MATIC (204.081) V6-3.0L (272.948)
>>
Repair and Diagnosis
>>
Heating and Air Conditioning
>>
Service Port HVAC
>>
Service and Repair
Service Port HVAC: Service and Repair
AR83.30-P-6523CW Remove/Install Valve Insert On Service Valve

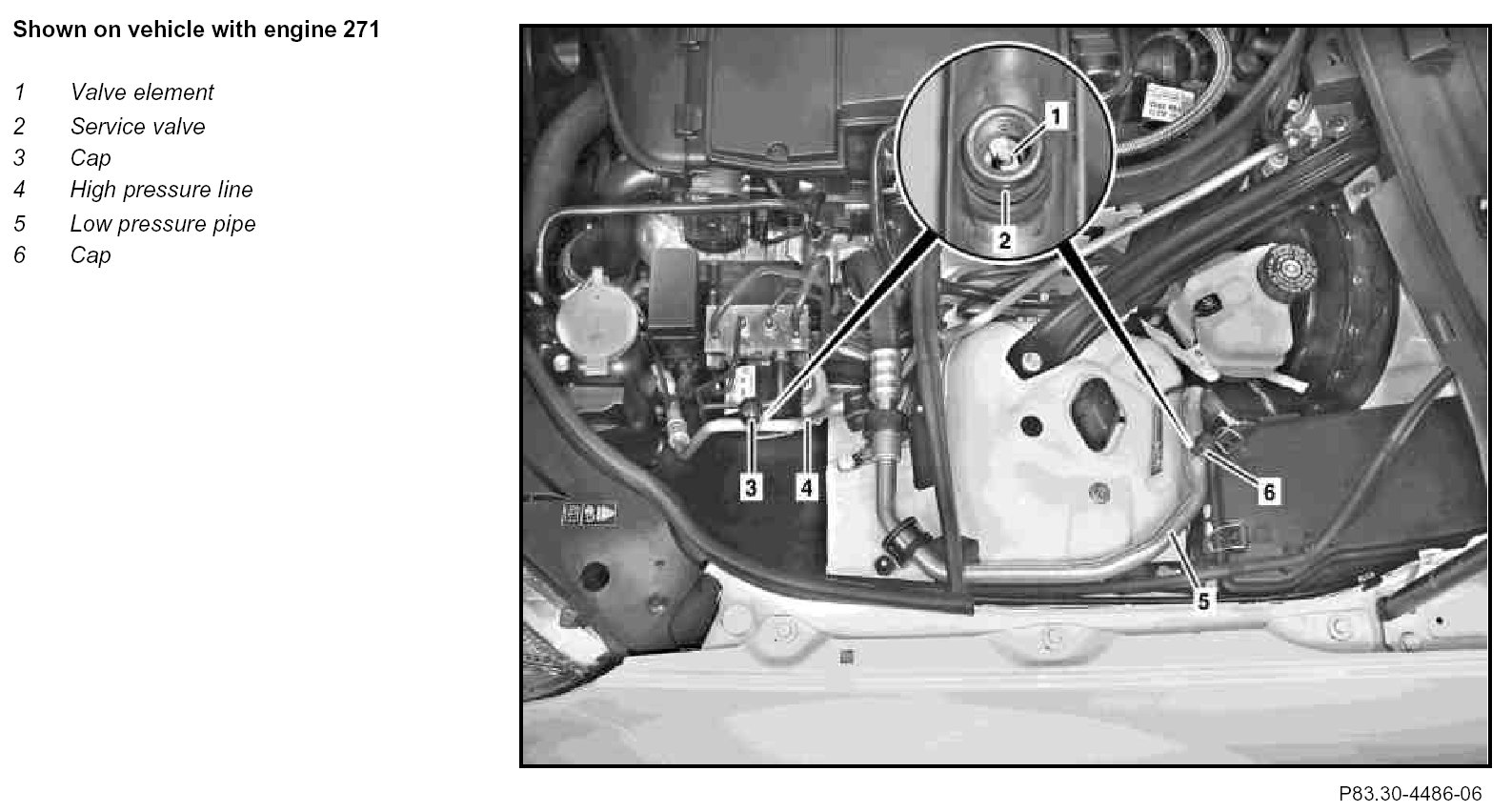

Component Identification:

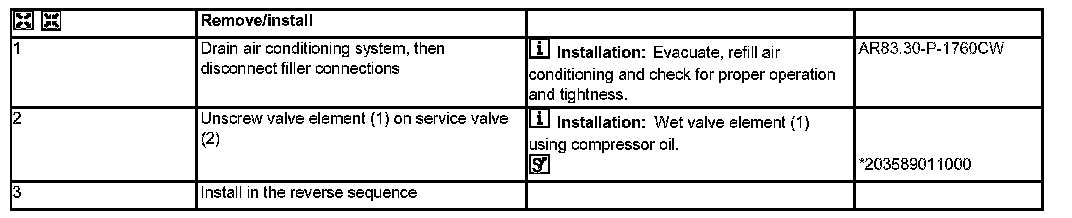

Steps 1 - 3:
Special Tools:
