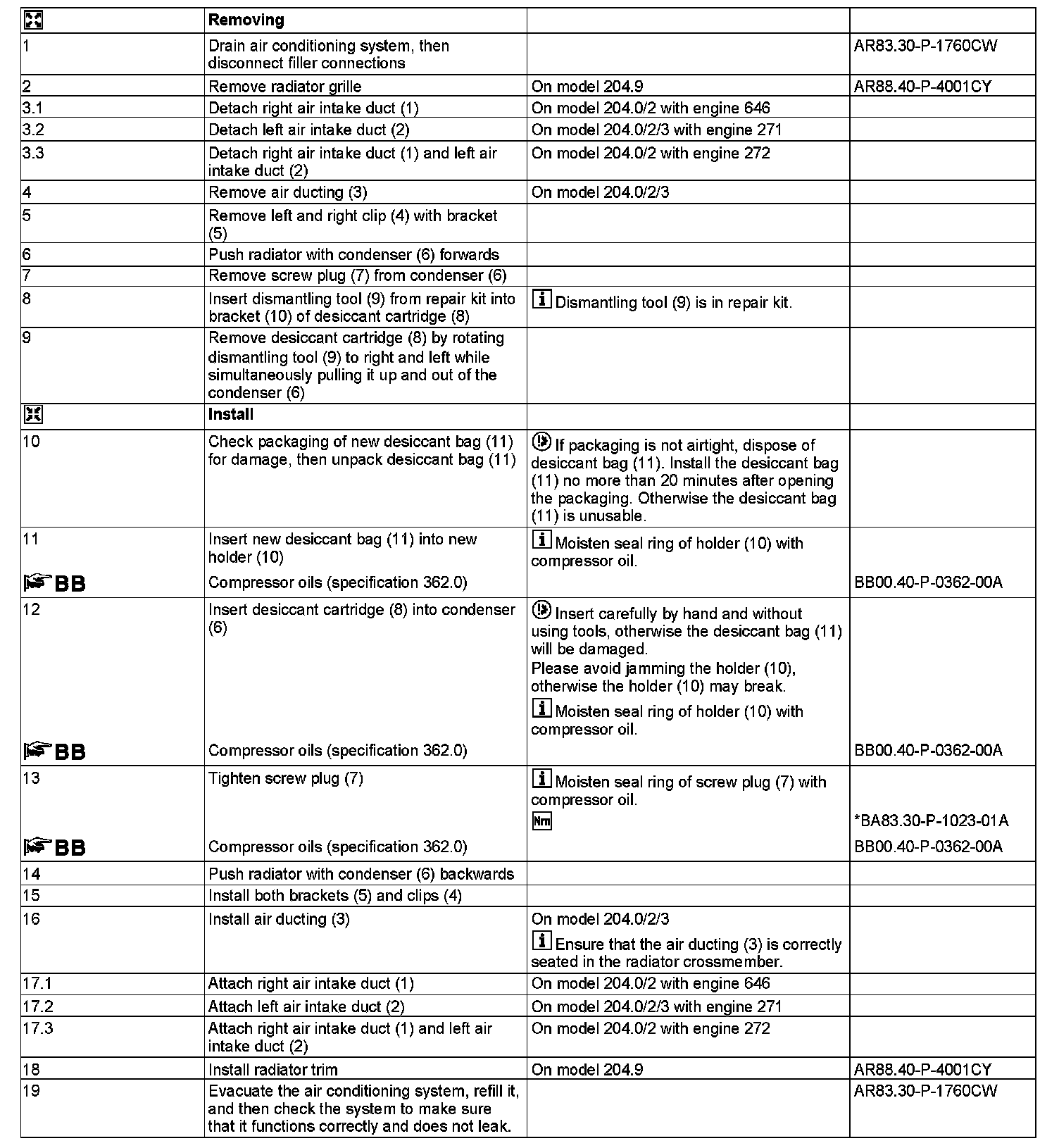

AR83.30-P-6521CW Remove/Install Desiccant Cartridge

AR83.30-P-6521CW Remove/Install Desiccant Cartridge
MODEL 204

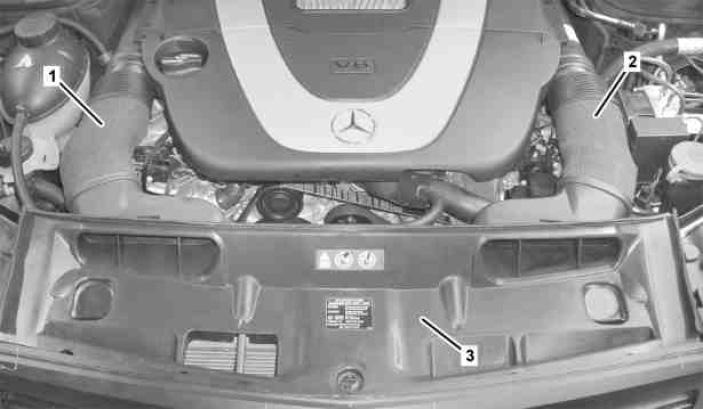

Shown on model 204.0 with engine 272
1 Air intake duct, right
2 Air intake duct, left
3 Air ducting

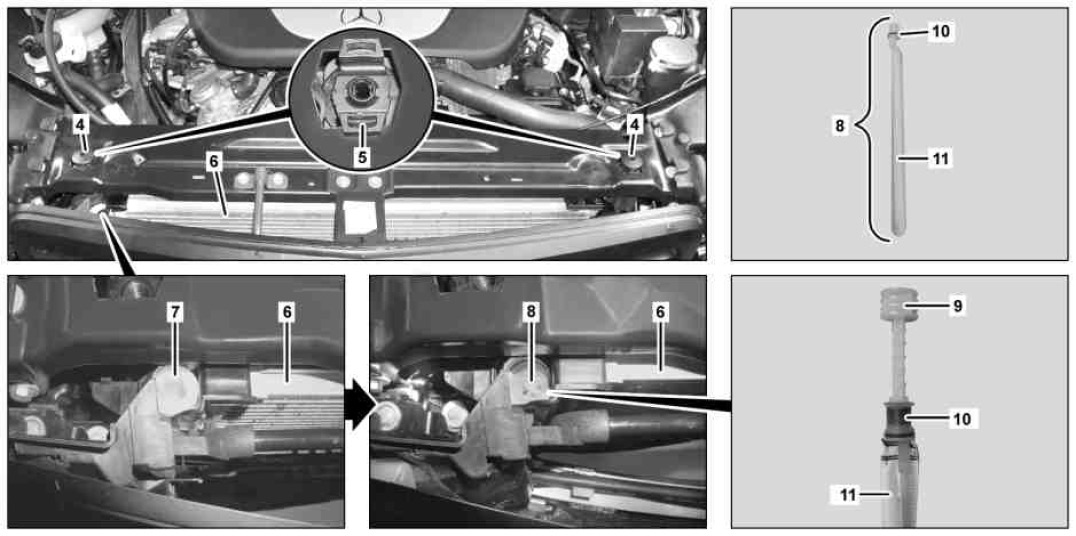

Shown on model 204.0 with engine 272
4 Clip
5 Bracket
6 Capacitor
7 Screw plug
8 Desiccant cartridge
9 Dismantling tool
10 Bracket
11 Desiccant bag
