FREE REPAIR MANUALS & LABOR GUIDES 1982-2013 Vehicles
Courtesy of Operation CHARM
:
Car repair manuals for everyone.
Home
>>
Mercedes Benz
>>
2012
>>
C 300 4MATIC (204.081) V6-3.0L (272.948)
>>
Repair and Diagnosis
>>
Heating and Air Conditioning
>>
Receiver Dryer
>>
Service and Repair
>>
AR83.30-P-6521CW Remove And Install Drier Cartridge
AR83.30-P-6521CW Remove And Install Drier Cartridge
AR83.30-P-6521CW Remove And Install Drier Cartridge

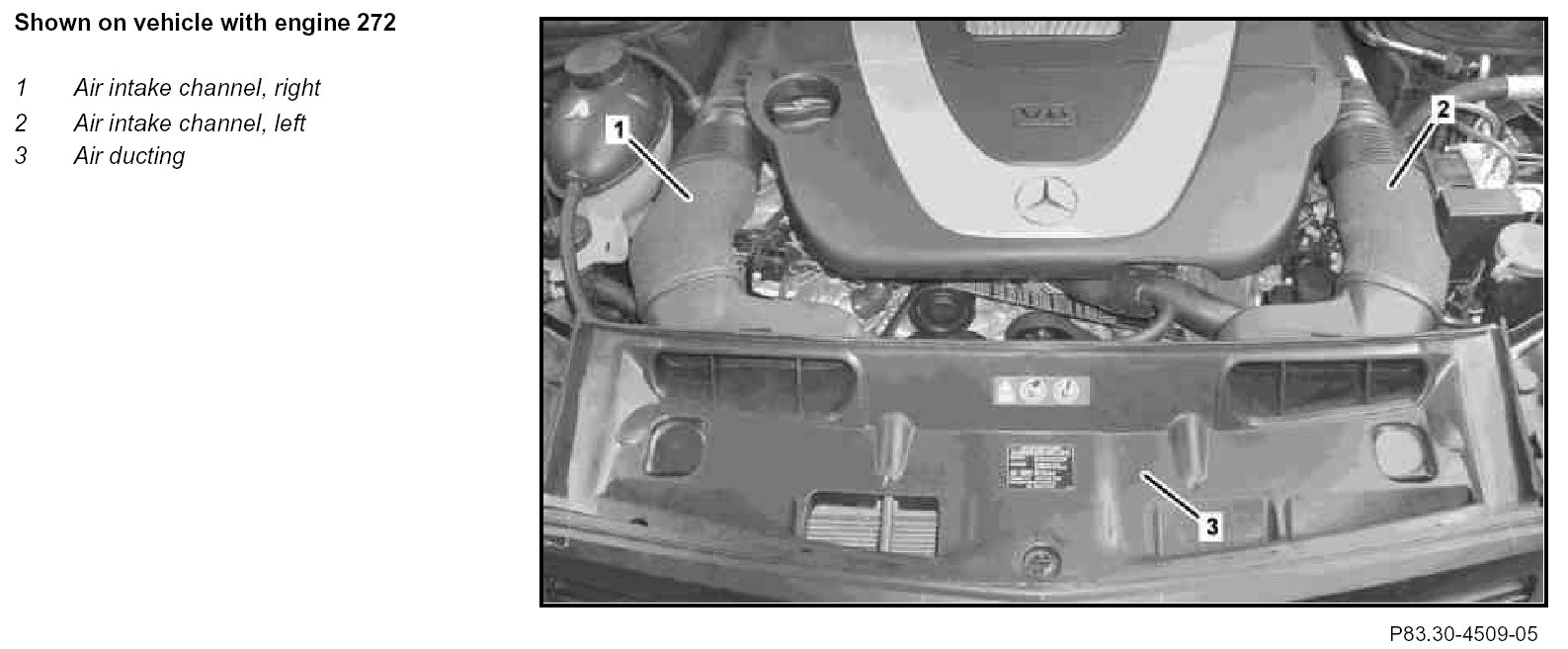

Component Identification:

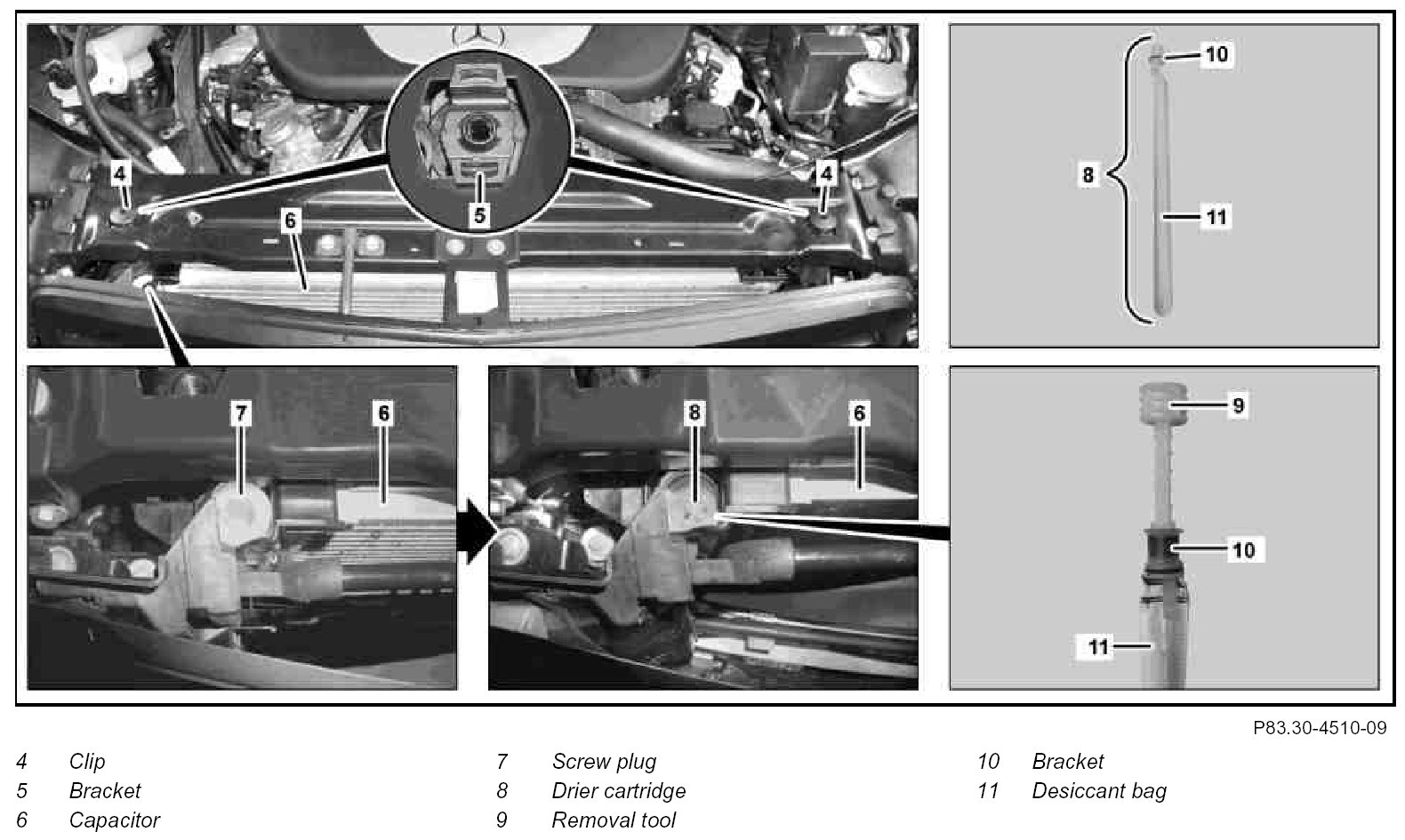

Component Identification:

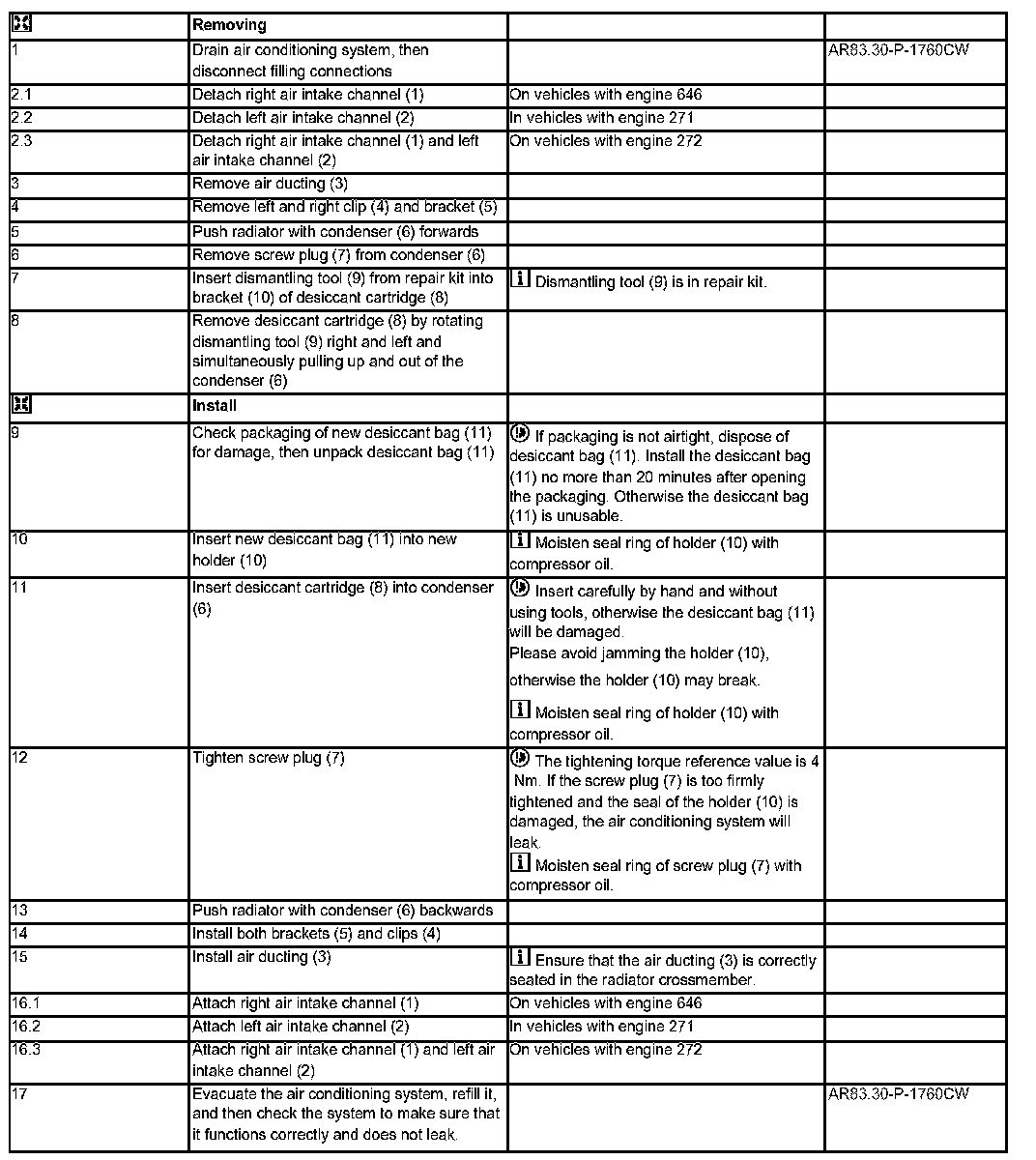

Steps 1 - 17:
