AR83.10-P-0100CW Air Recirculation Unit, Remove/Install
AR83.10-P-0100CW Air Recirculation Unit, Remove/Install
AR83.10-P-0100CW Air Recirculation Unit, Remove/install

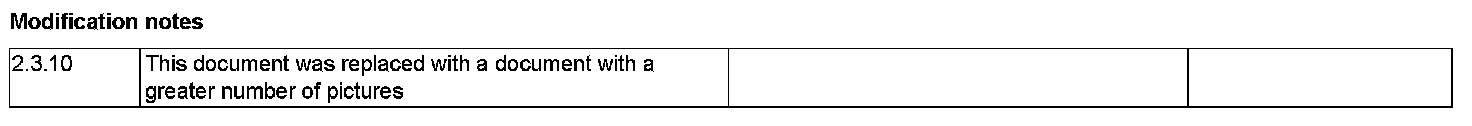

Modification notes
Modification Notes:

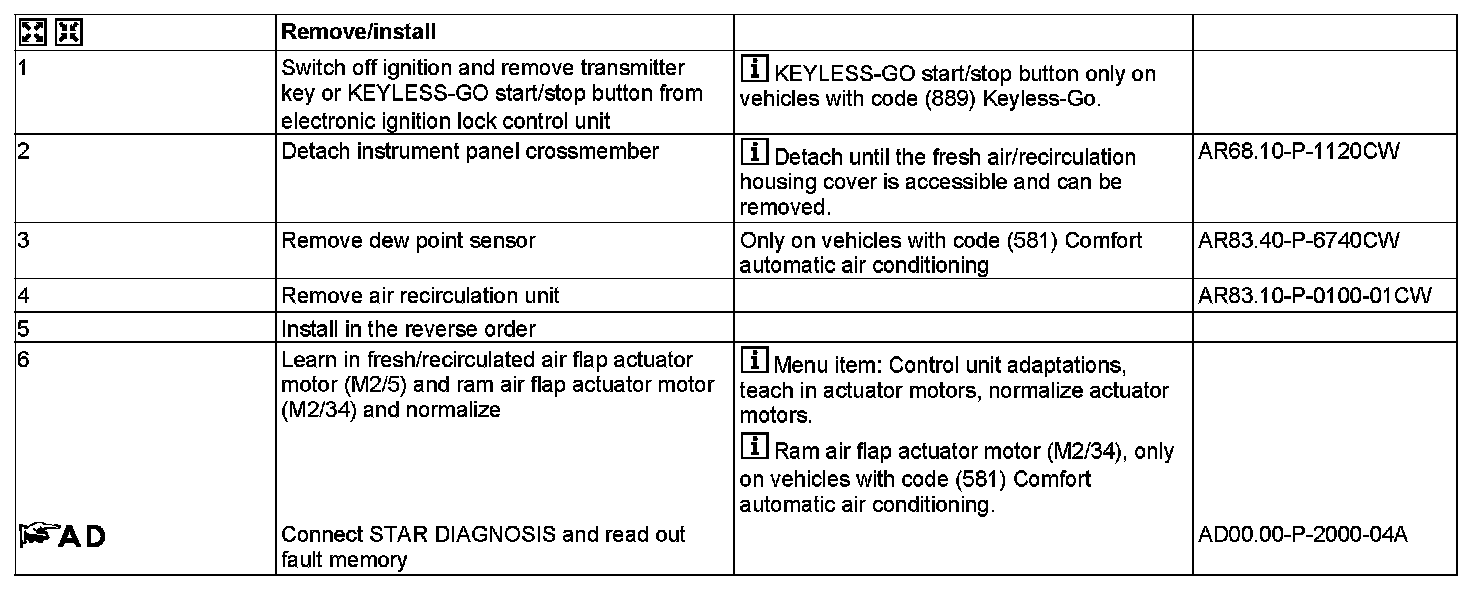

Steps 1-6:
