Exhaust Pipe: Service and Repair

AZ49.10-P-0002CW Retrofit AMG tailpipe
- except vehicles without screwed-on tailpipe

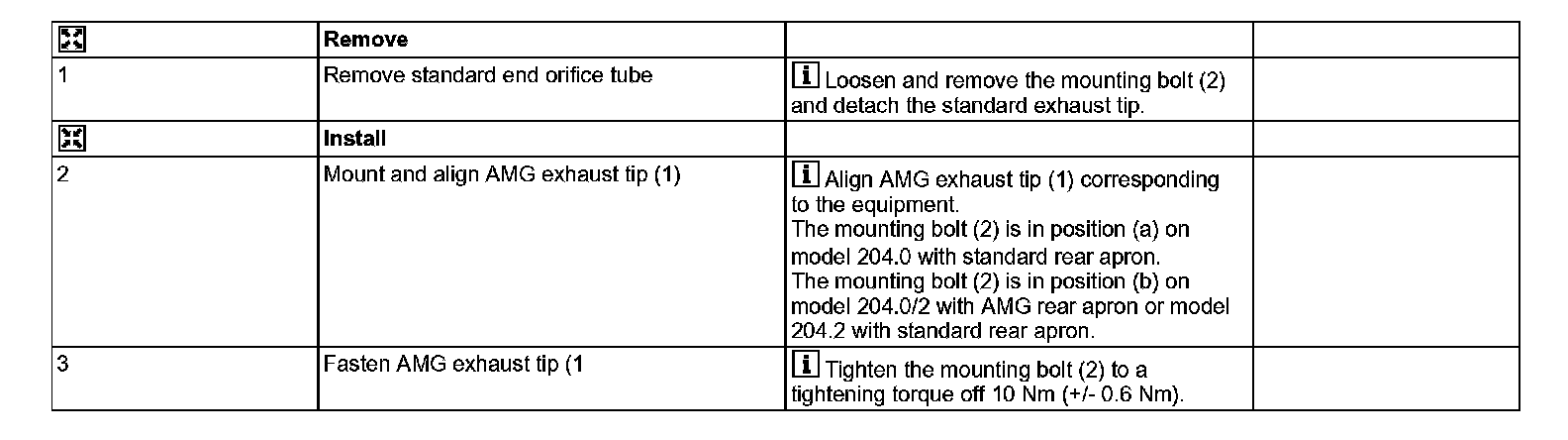

Steps 1-3:

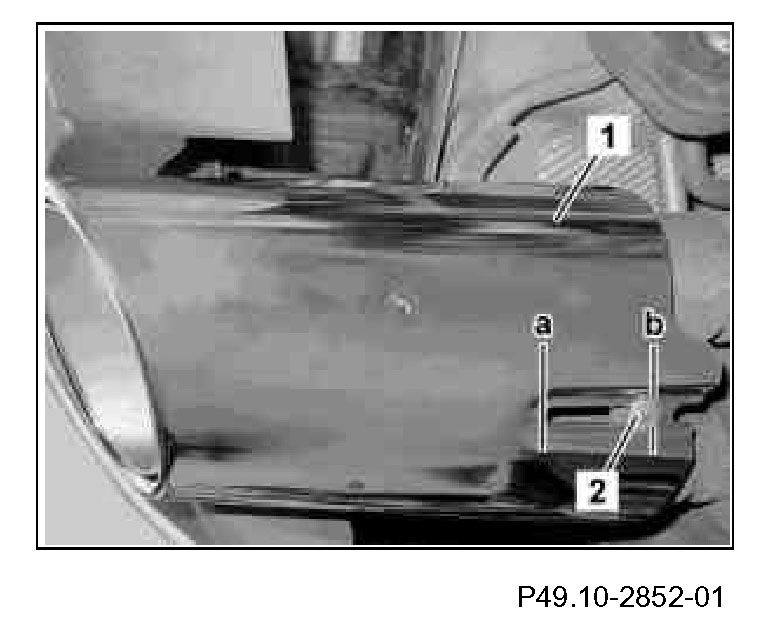

Shown on vehicle with 6-cylinder engine

The AMG exhaust tip (1) is pushed into the foremost position. The mounting bolt (2) is in position (a).

Position (a) applies to model 204.0 with standard rear apron.

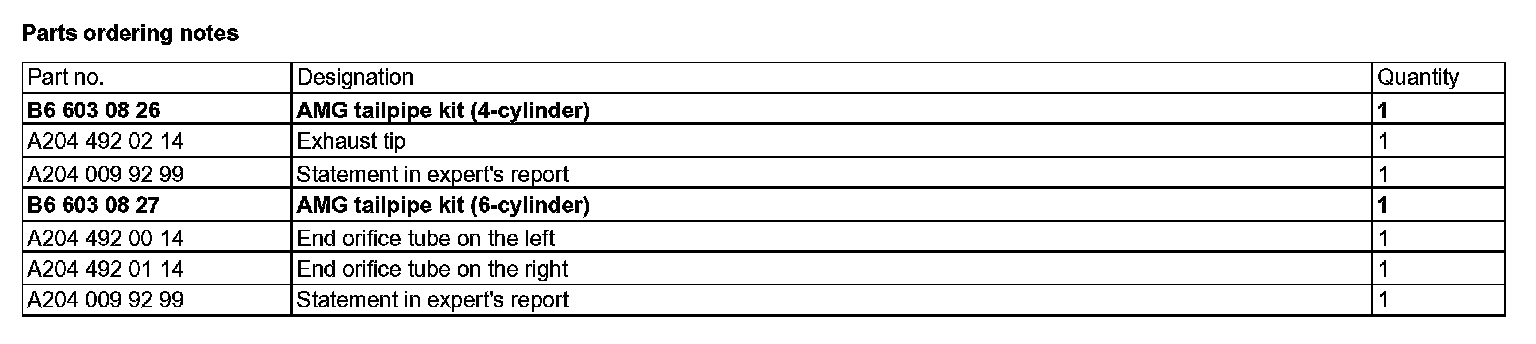

Parts ordering notes:

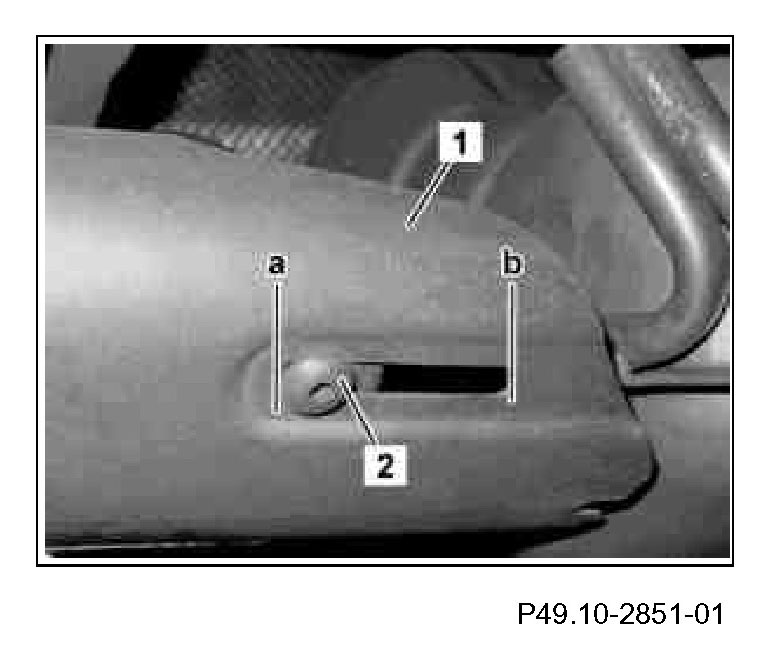

Shown on vehicle with 4-cylinder engine

The AMG exhaust tip (1) is pushed into the rearmost position. The mounting bolt (2) is in position (b).

Position (b) applies to model 204.0/2 with AMG rear apron or model 204.2 with standard rear apron.

Component Identification:

Component Identification:
