AR01.40-P-8000CV Remove/Install Timing Case Cover

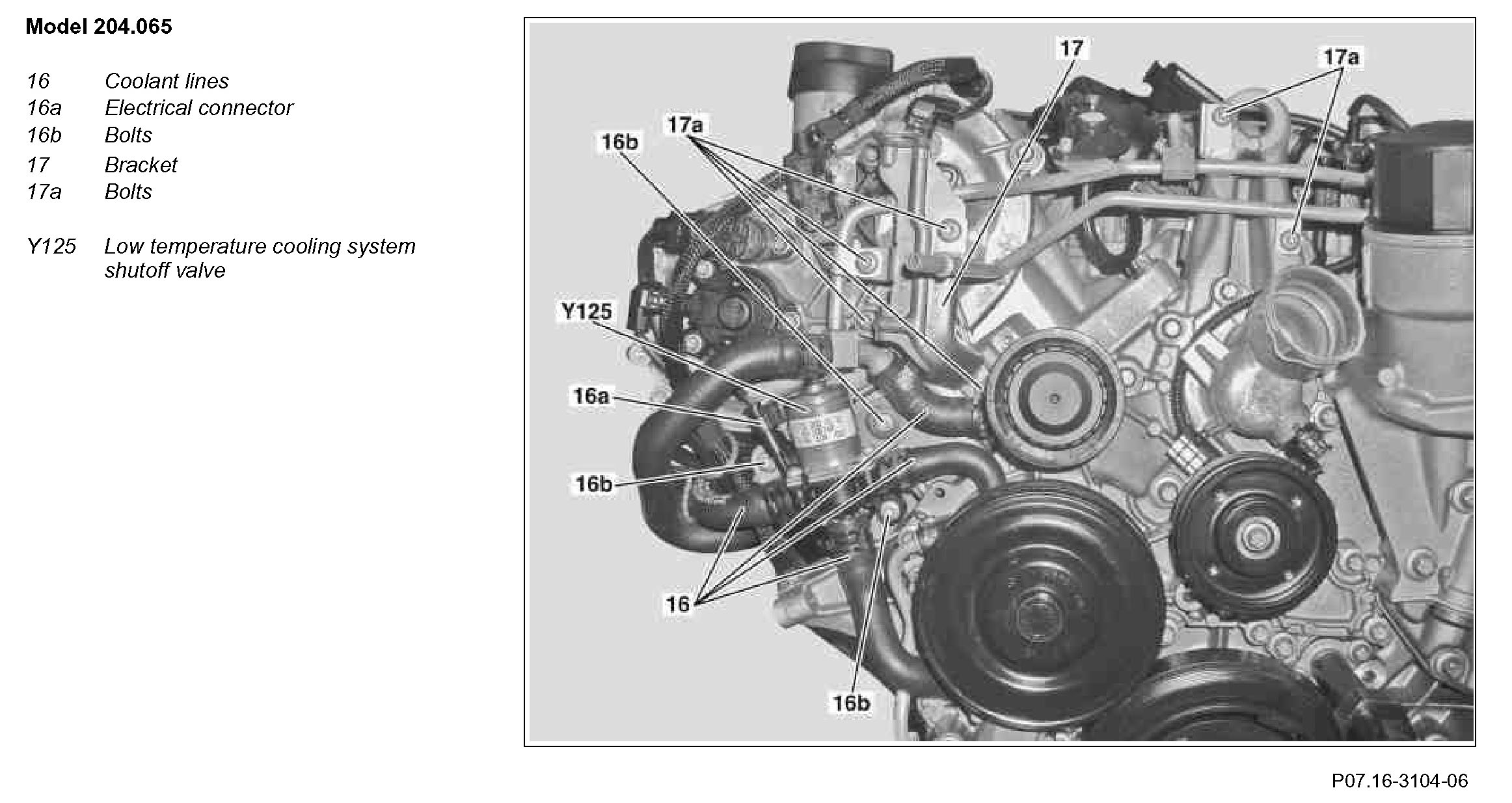

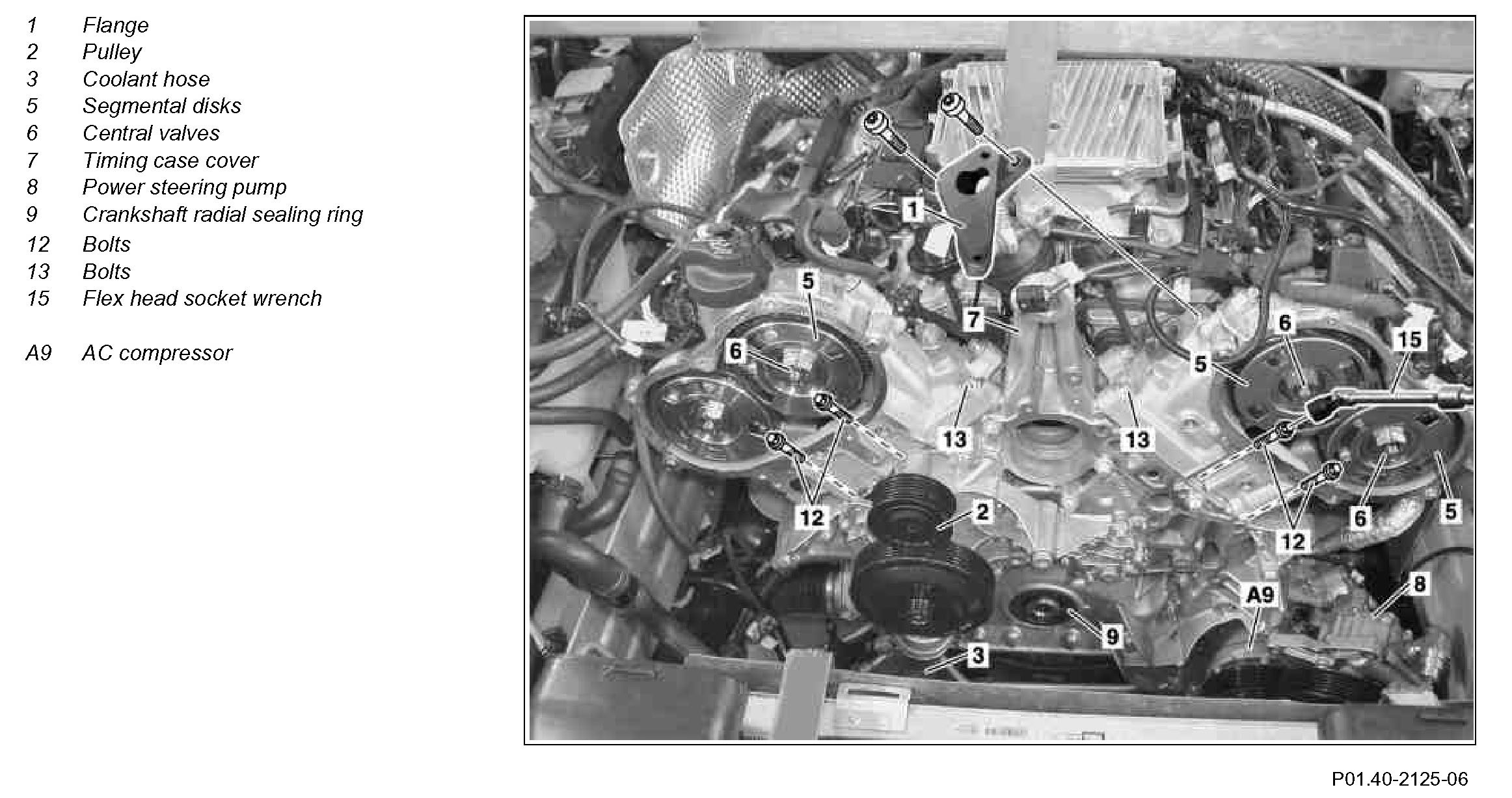

Component Identification:

Component Identification:

Steps 1-2:

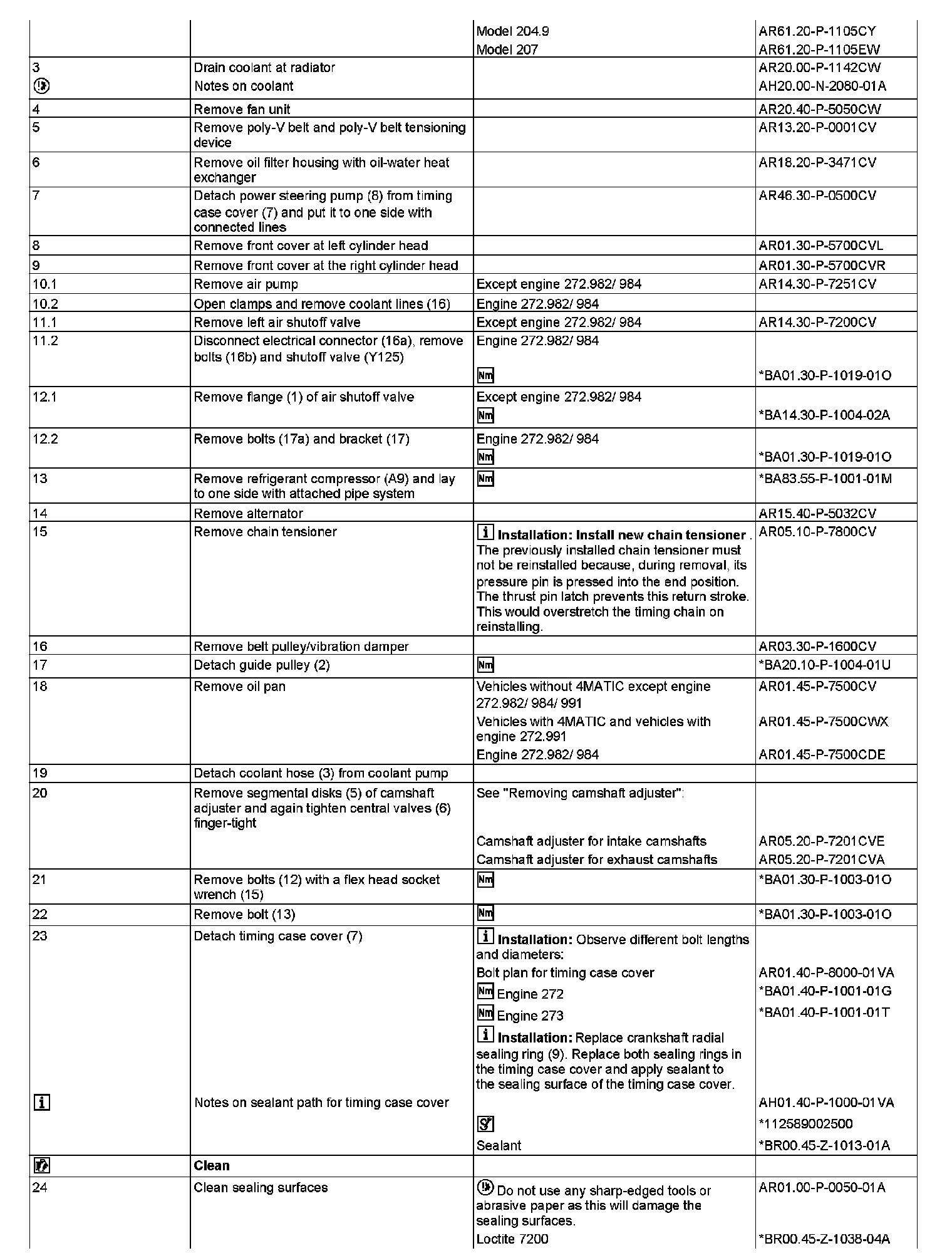

Steps 2 (Continued)-24:

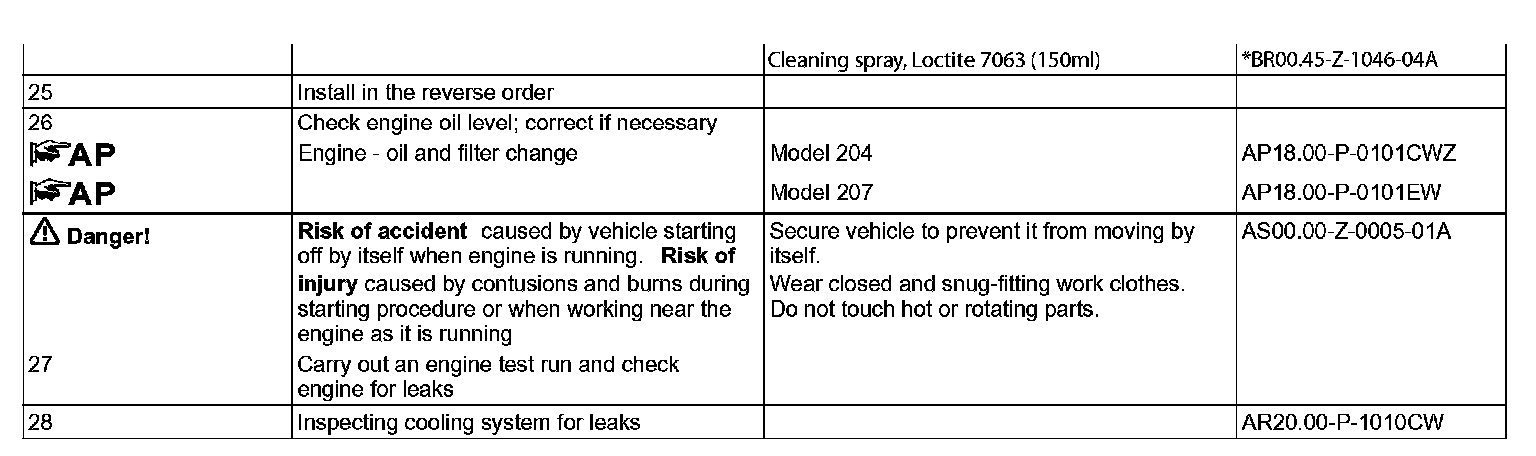

Steps 24 (Continued)-28:

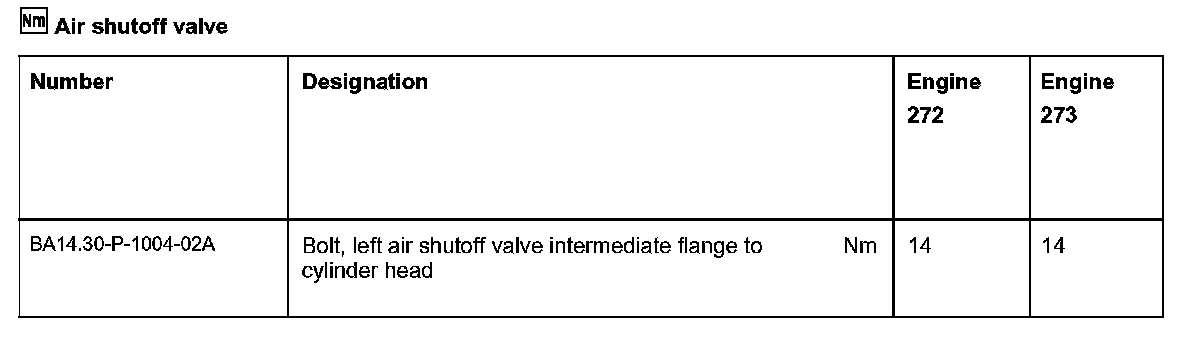

Air shutoff valve:

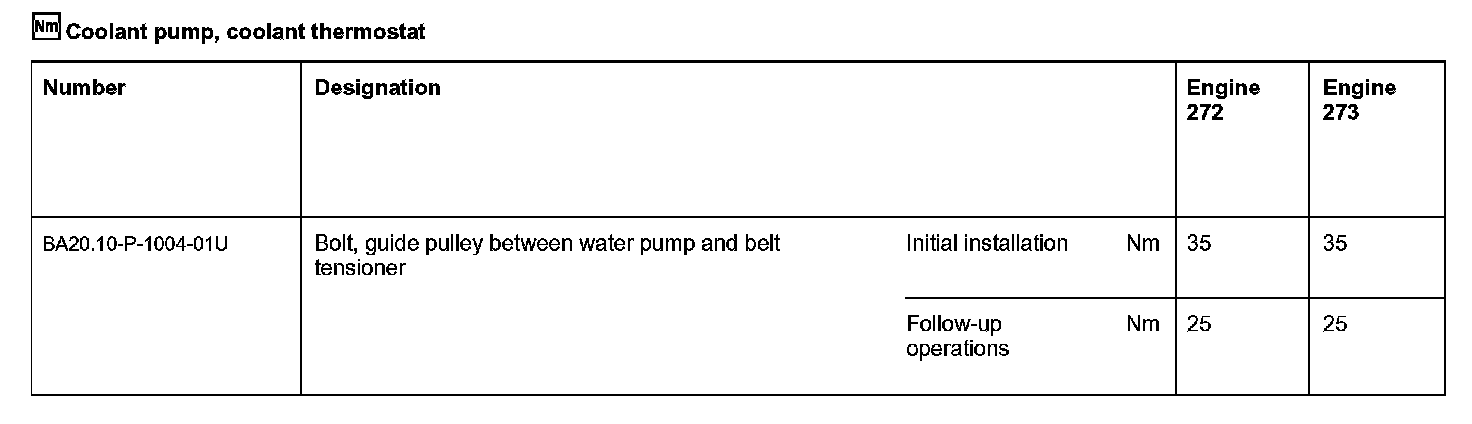

Coolant pump, coolant thermostat:

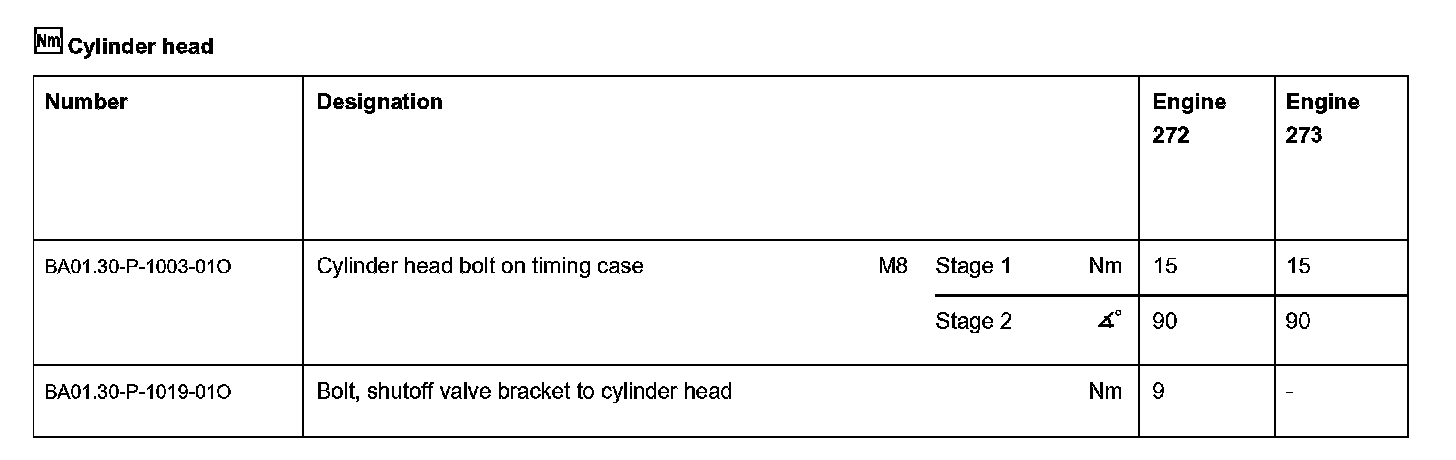

Cylinder head:

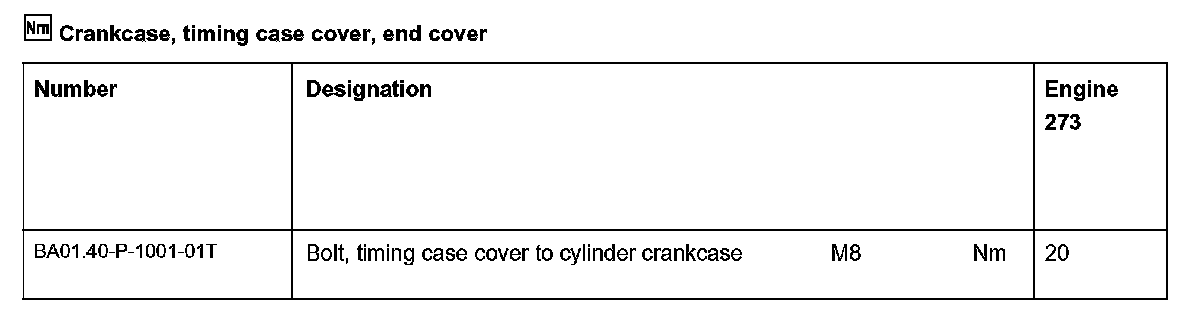

Crankcase, timing case cover, end cover:

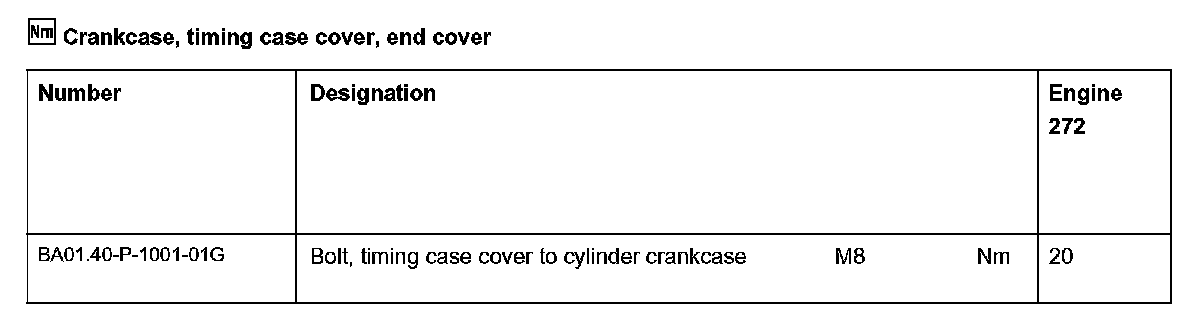

Crankcase, timing case cover, end cover:

Refrigerant compressor:

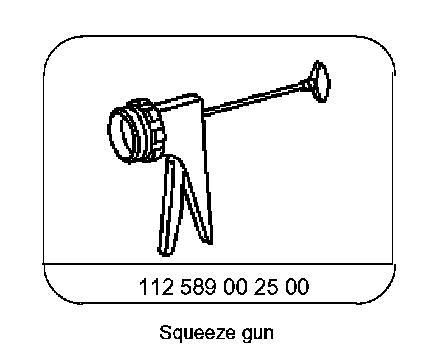

Special Tools:

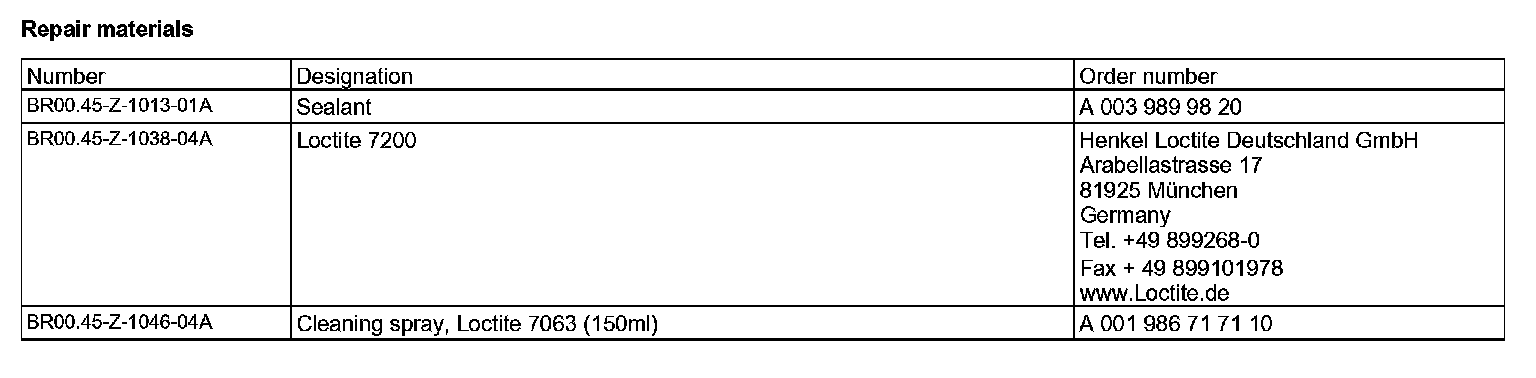

Repair materials:
