AR05.10-P-7601CV Replace Timing Chain



AR05.10-P-7601CV Replace timing chain

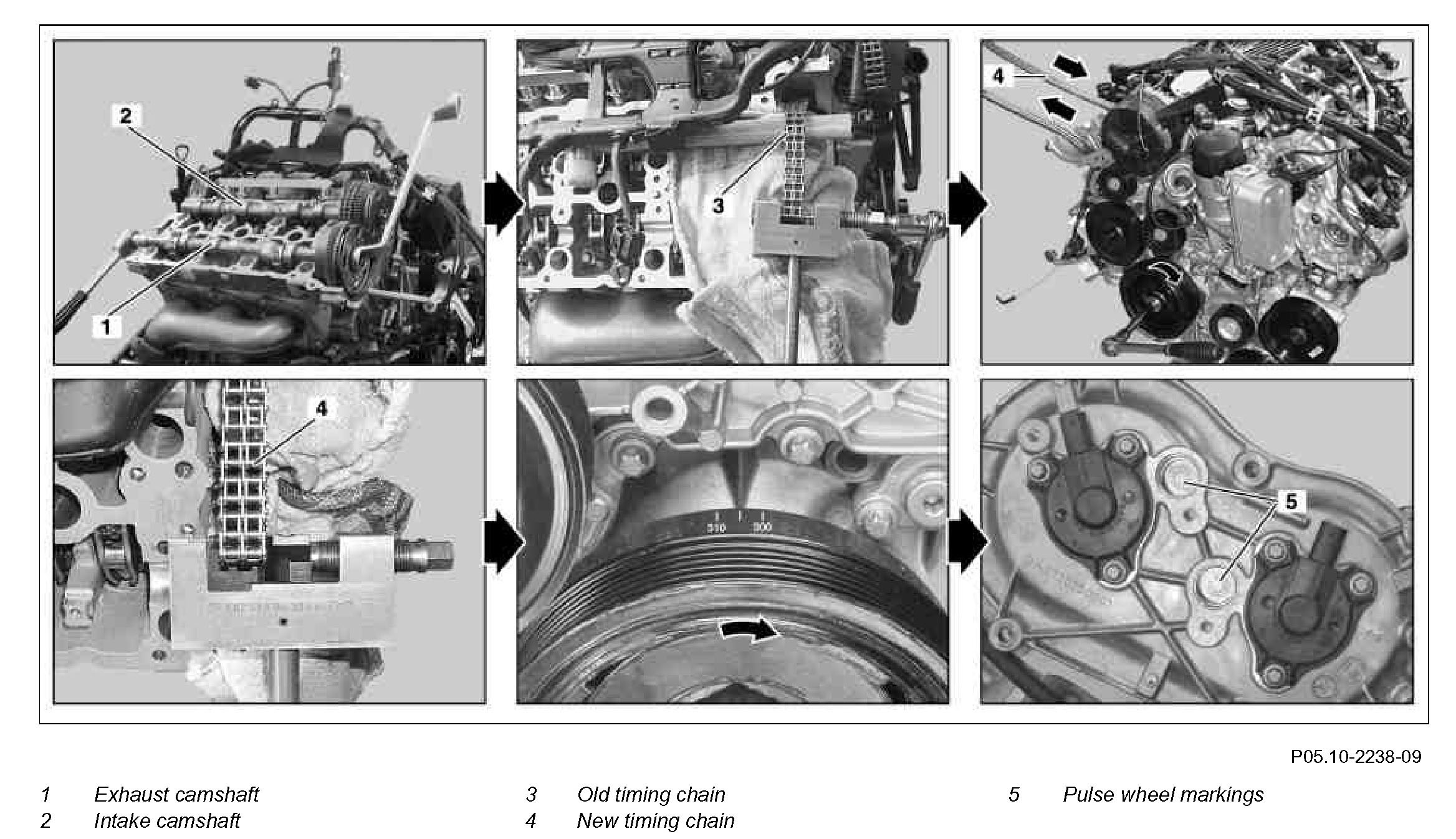

Component Identification:

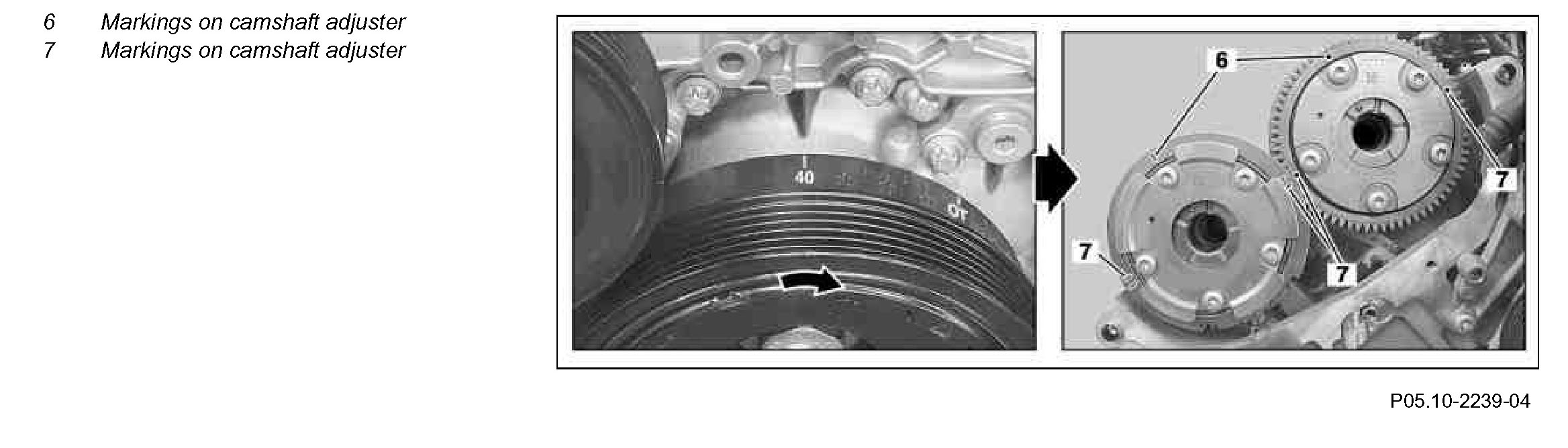

Component Identification:

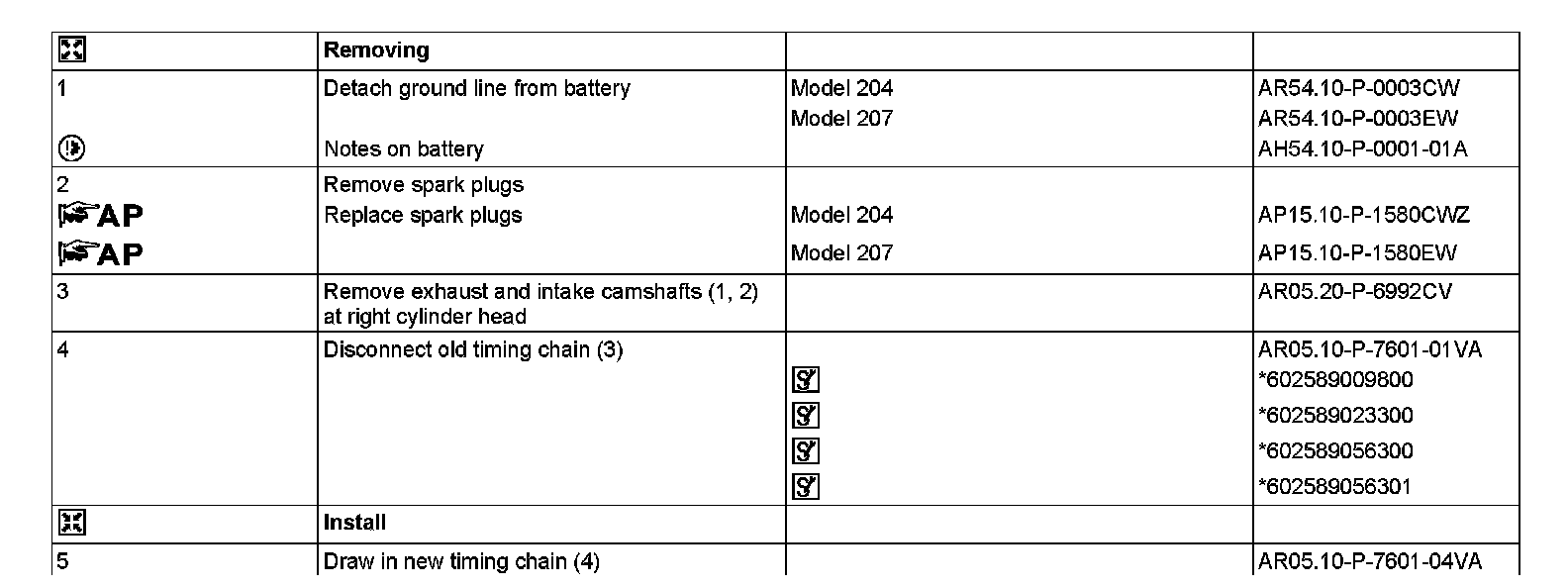

Steps 1-5:

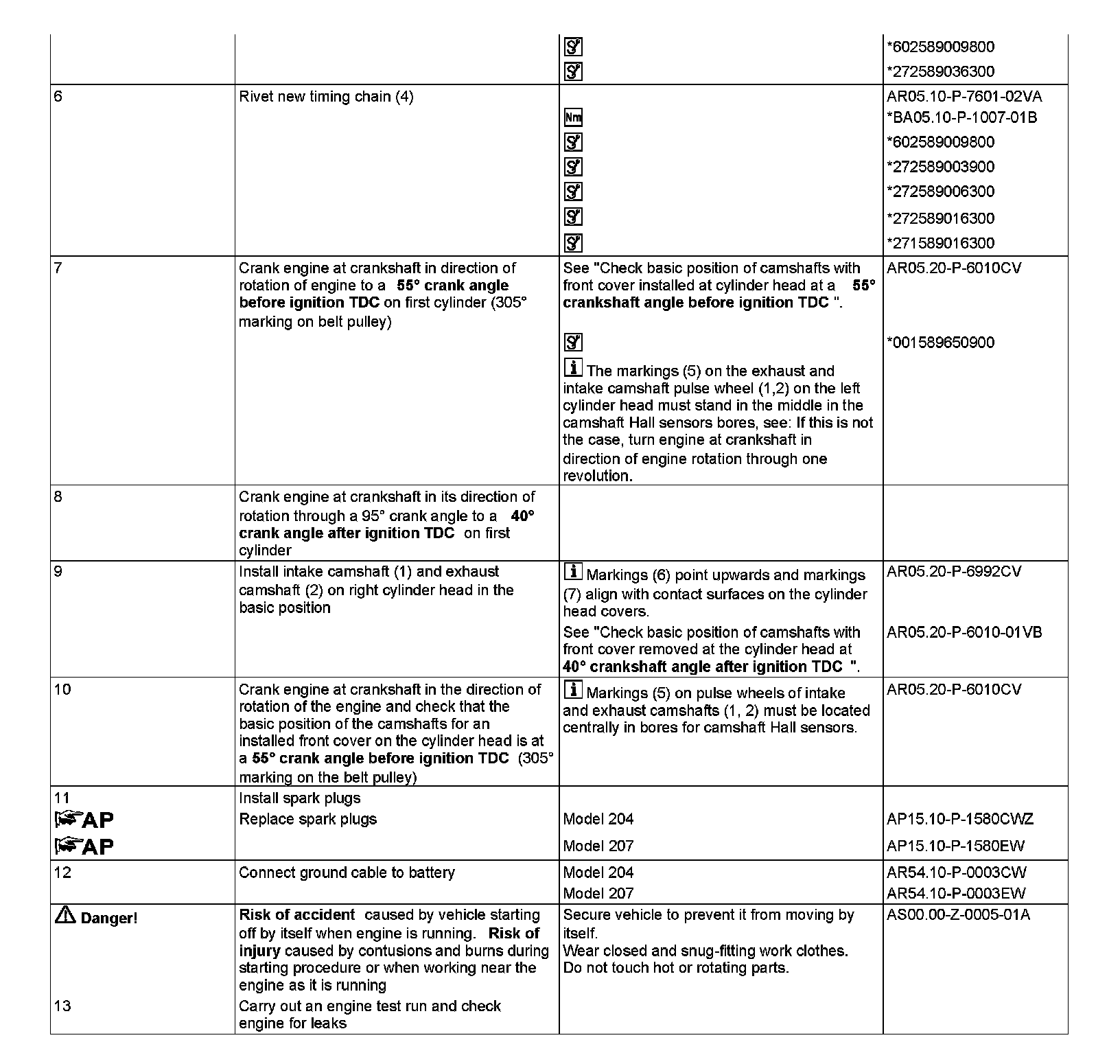

Steps 6-13:

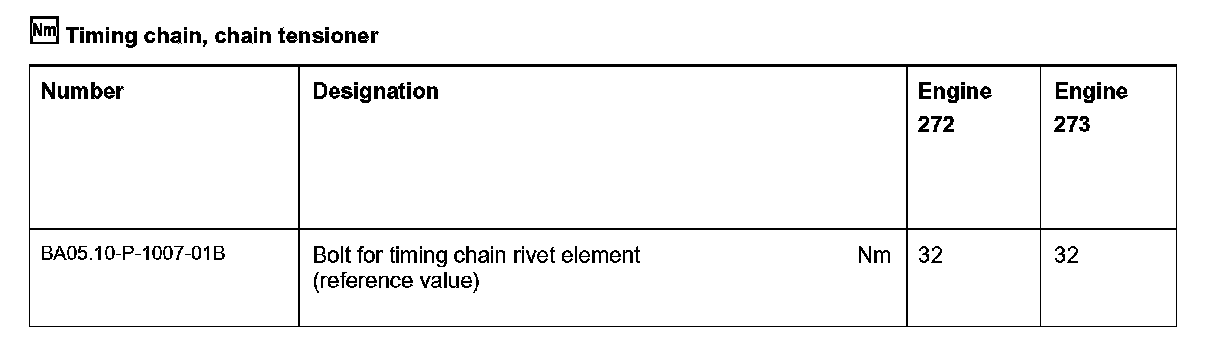

Timing chain, chain tensioner:

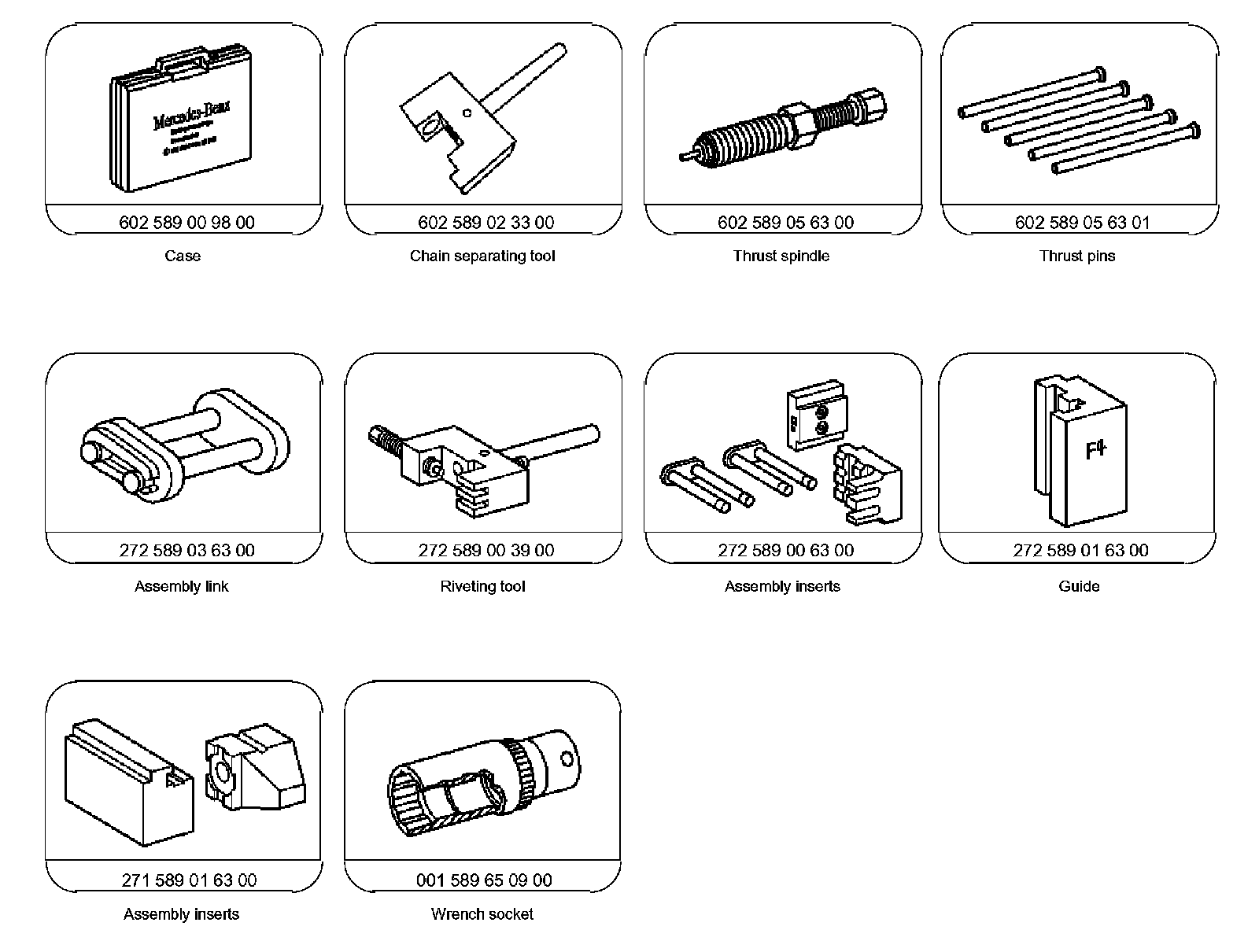

Special Tools:
