AR05.10-P-7601-04VA Drawing In Timing Chain



AR05.10-P-7601-04VA Drawing in timing chain

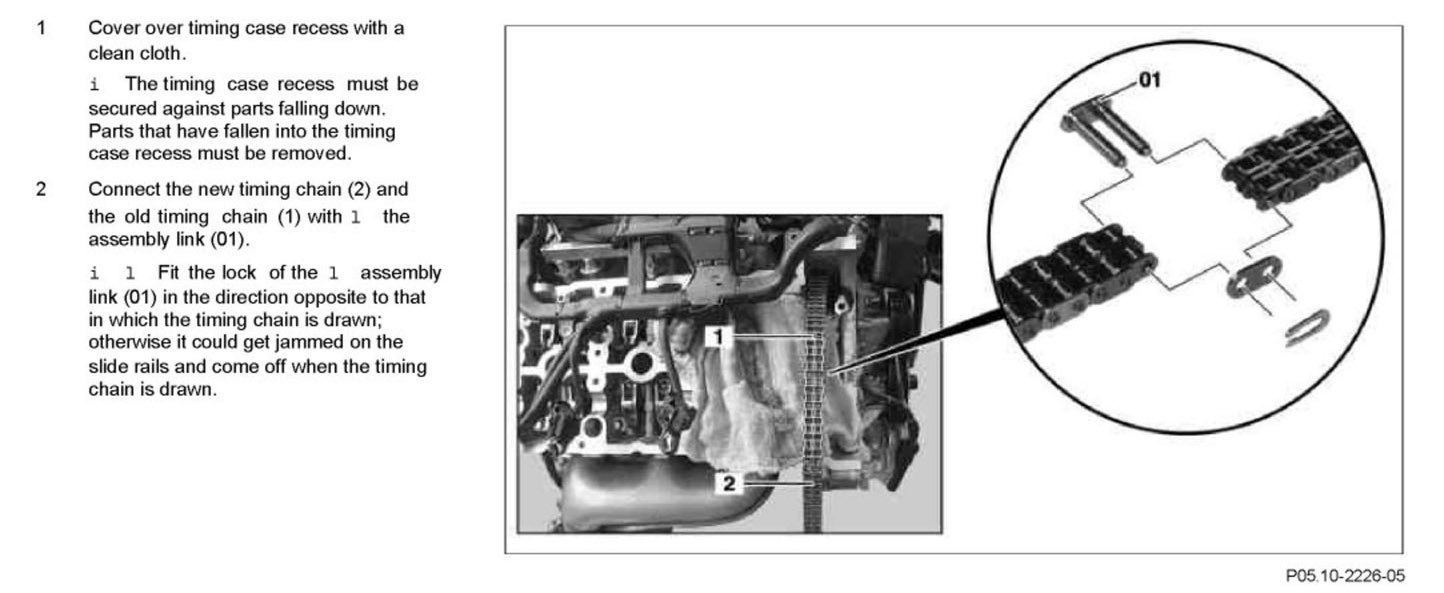

Steps 1 - 2:

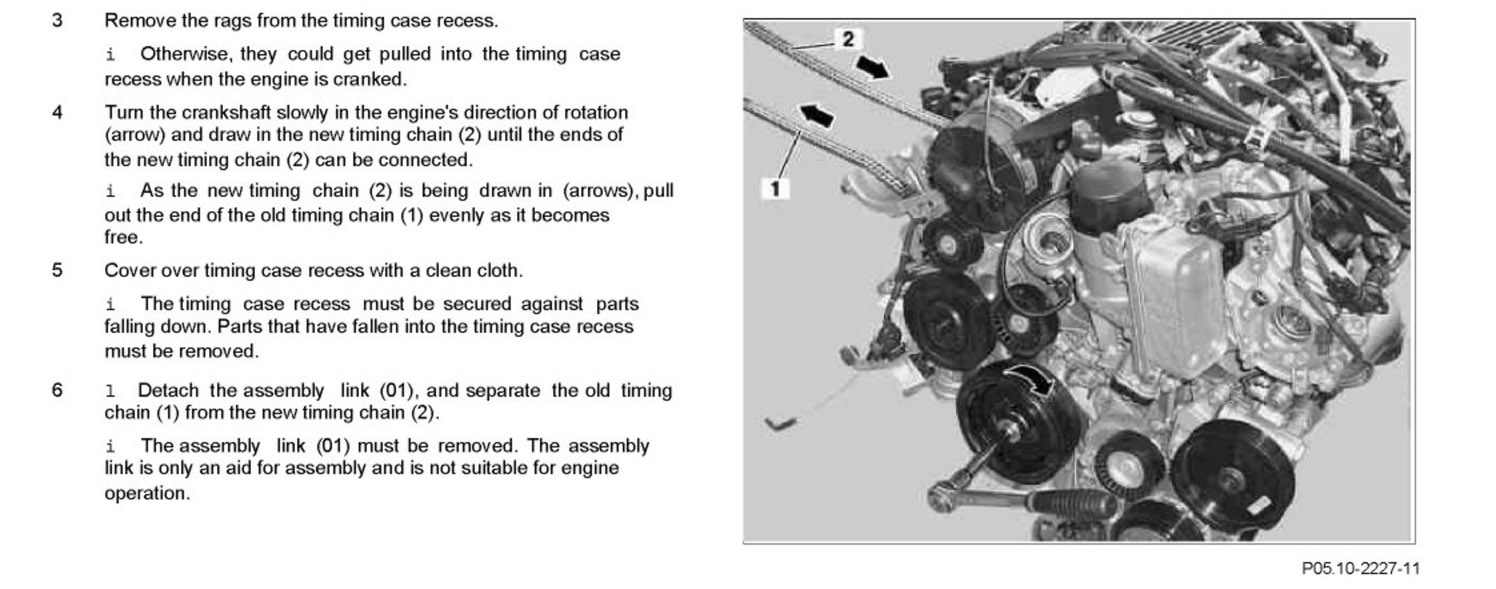

Steps 3 - 6:

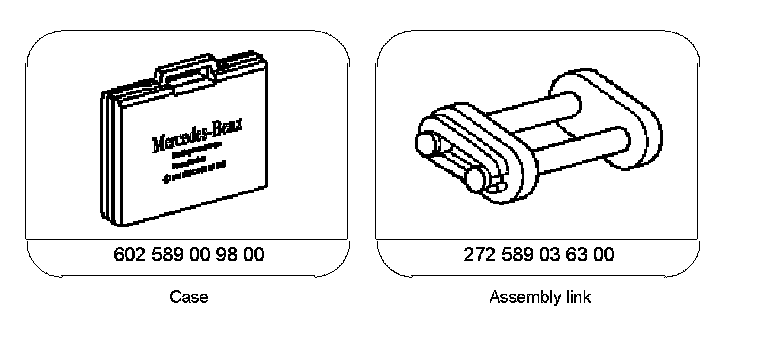

Special Tools:
