AR03.30-P-5000CWX Remove/Install Retaining Lock For Crankshaft Ring Gear



AR03.30-P-5000CWX Remove/install retaining lock for crankshaft ring gear

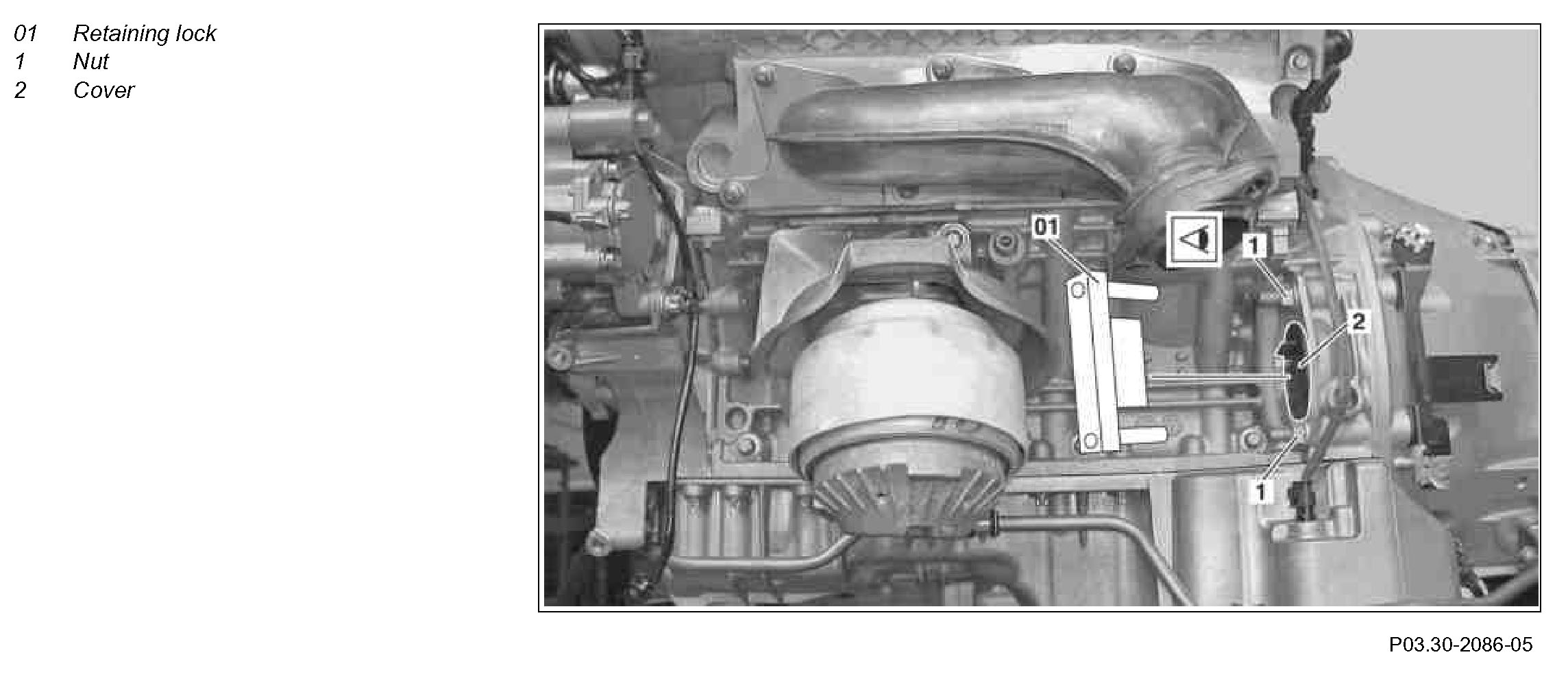

Component Identification:

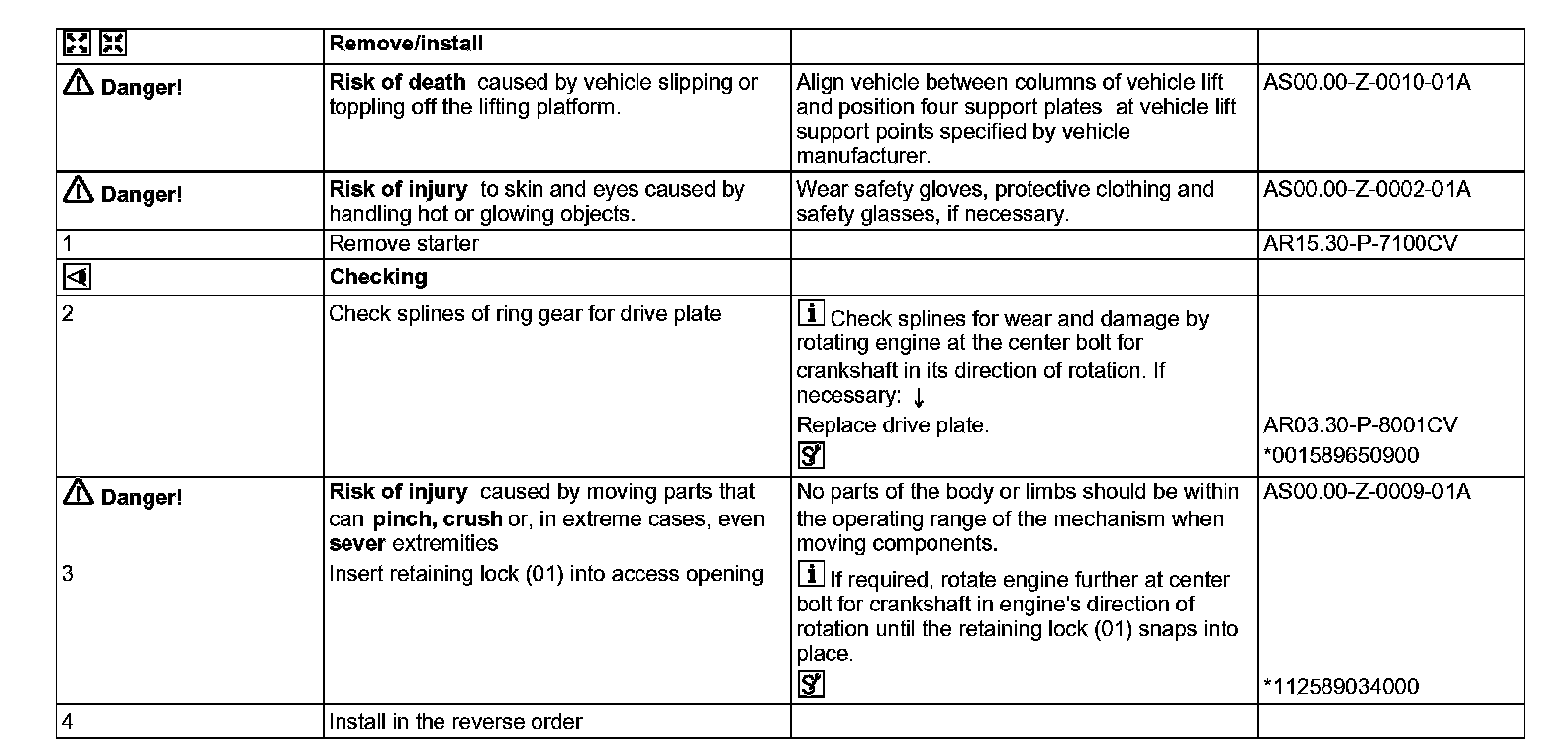

Steps 1-4:

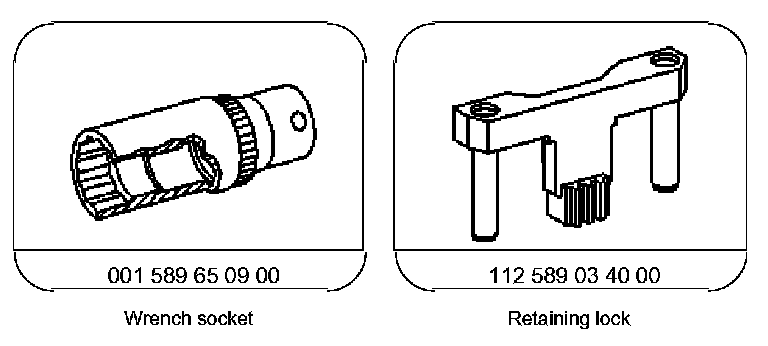

Special Tools:
