AR01.10-P-2500CWX Remove/Install Engine With Front Axle Carrier

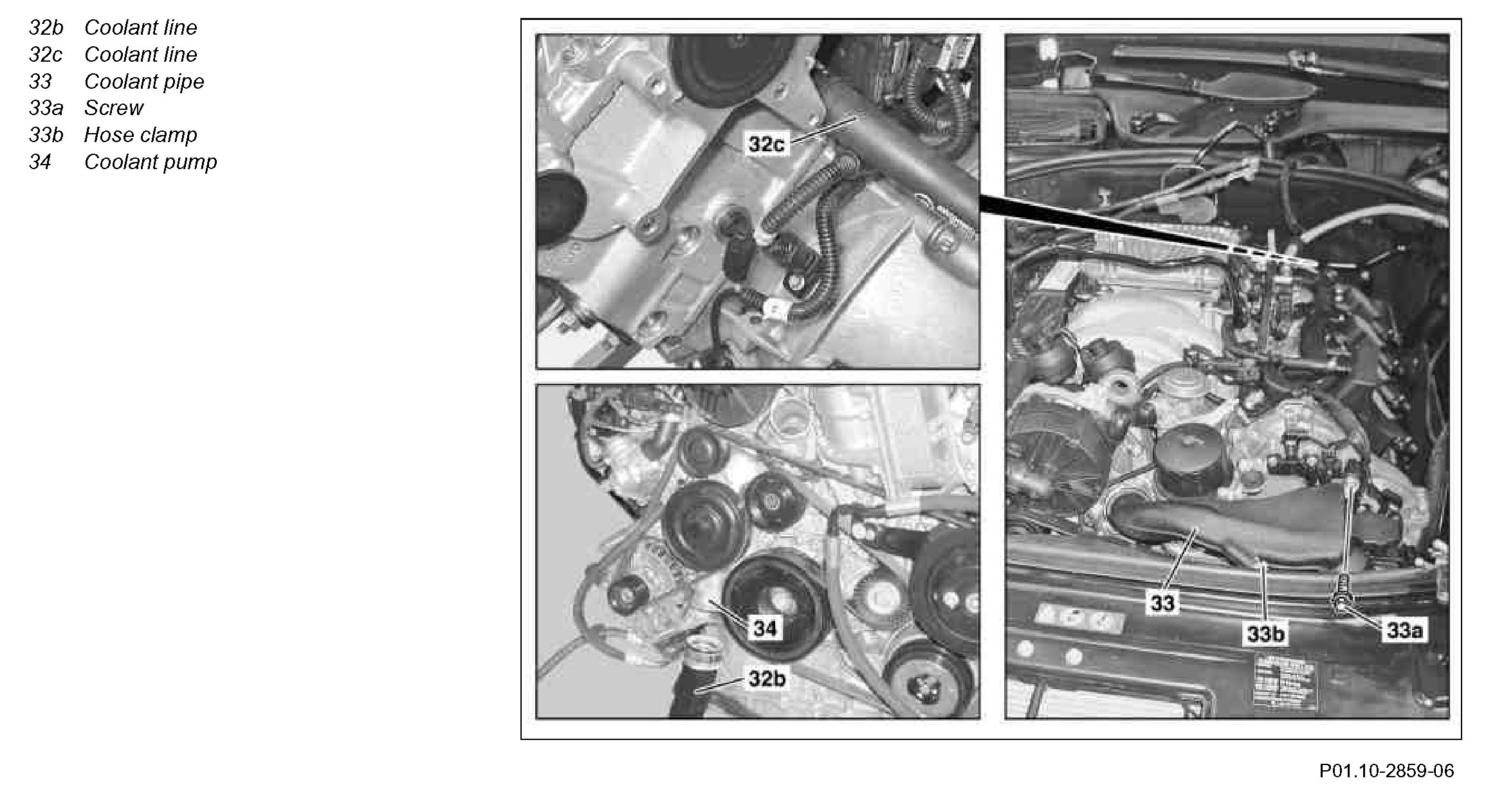

Component Identification:

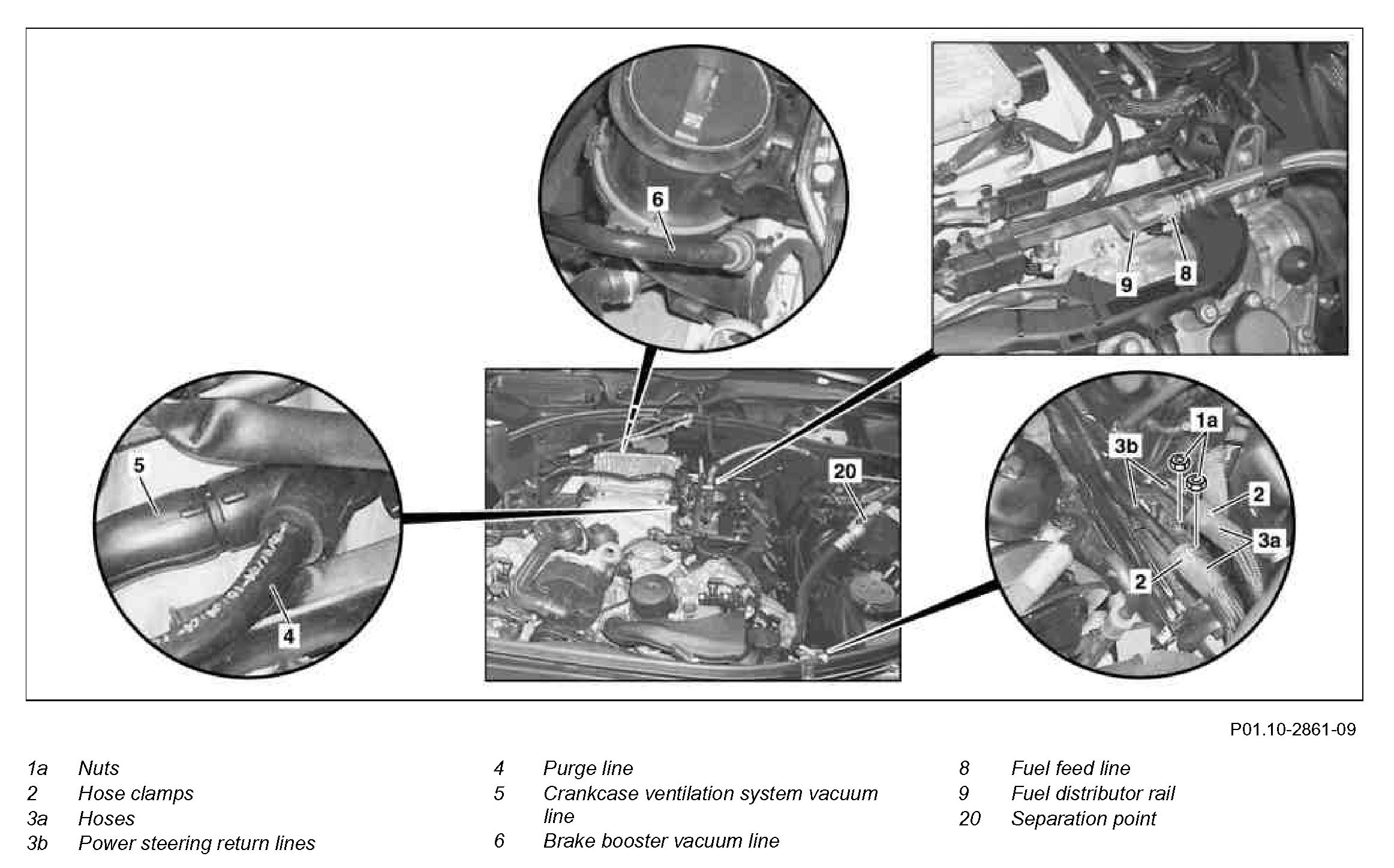

Component Identification:

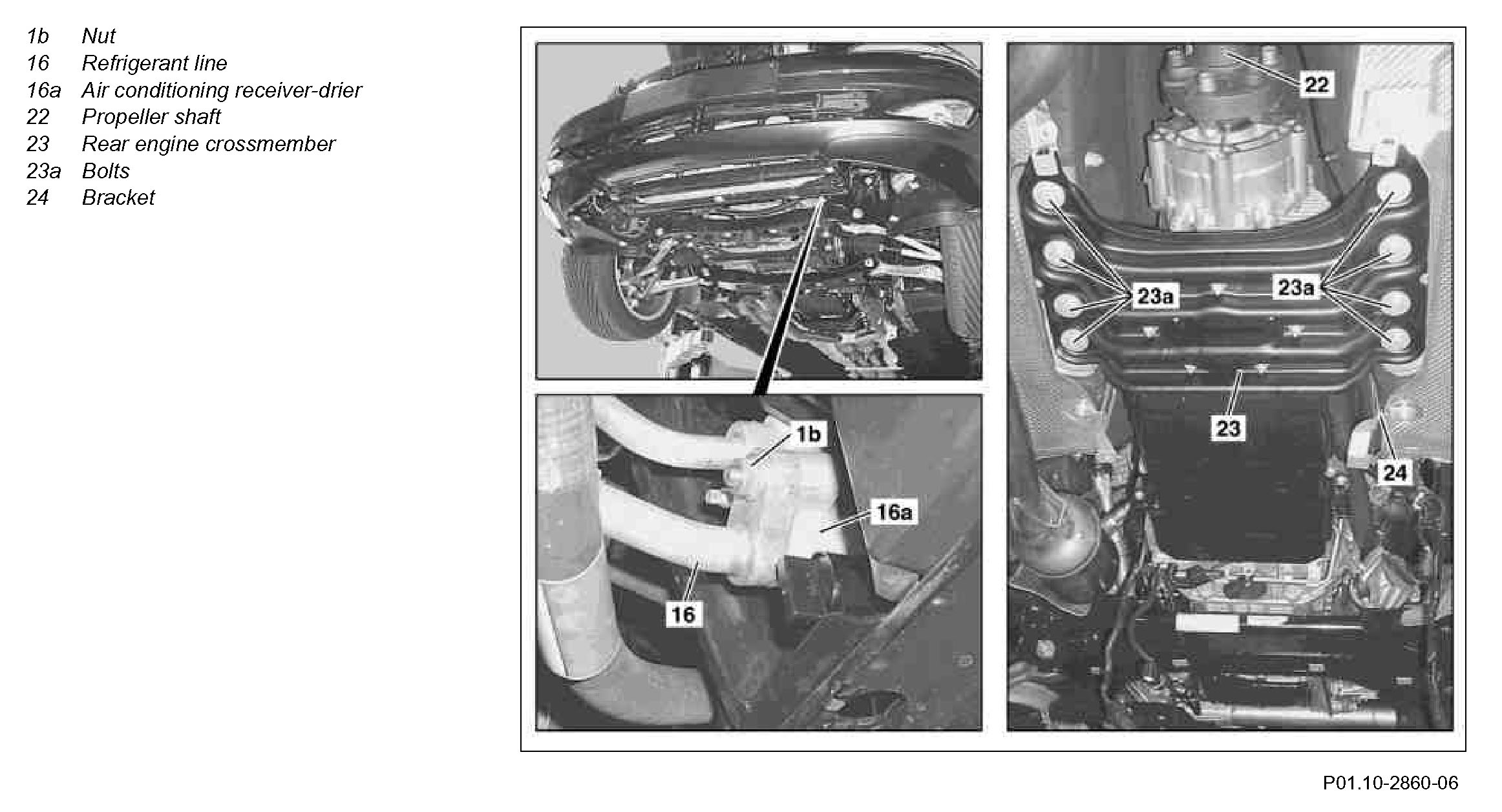

Component Identification:

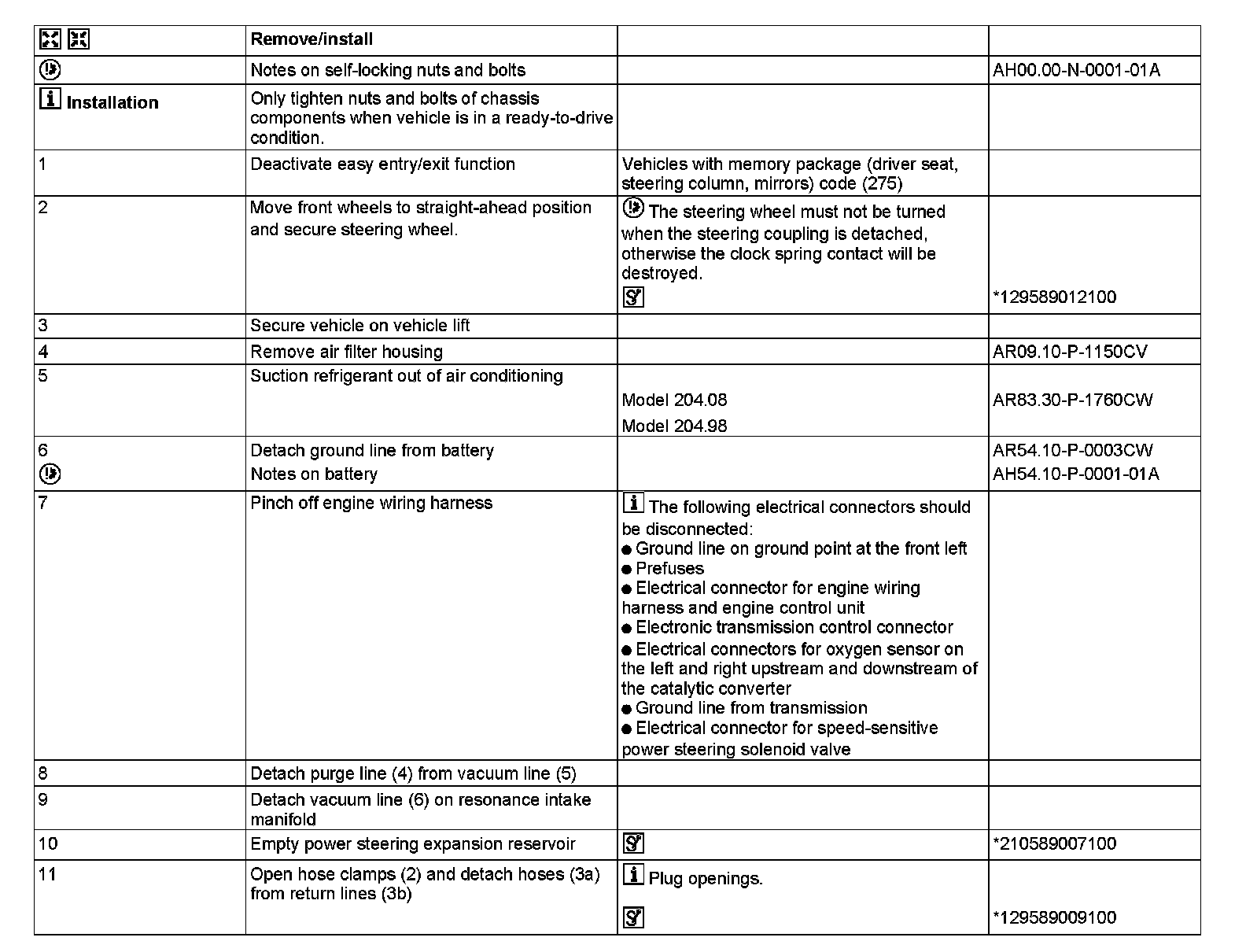

Steps 1-11:

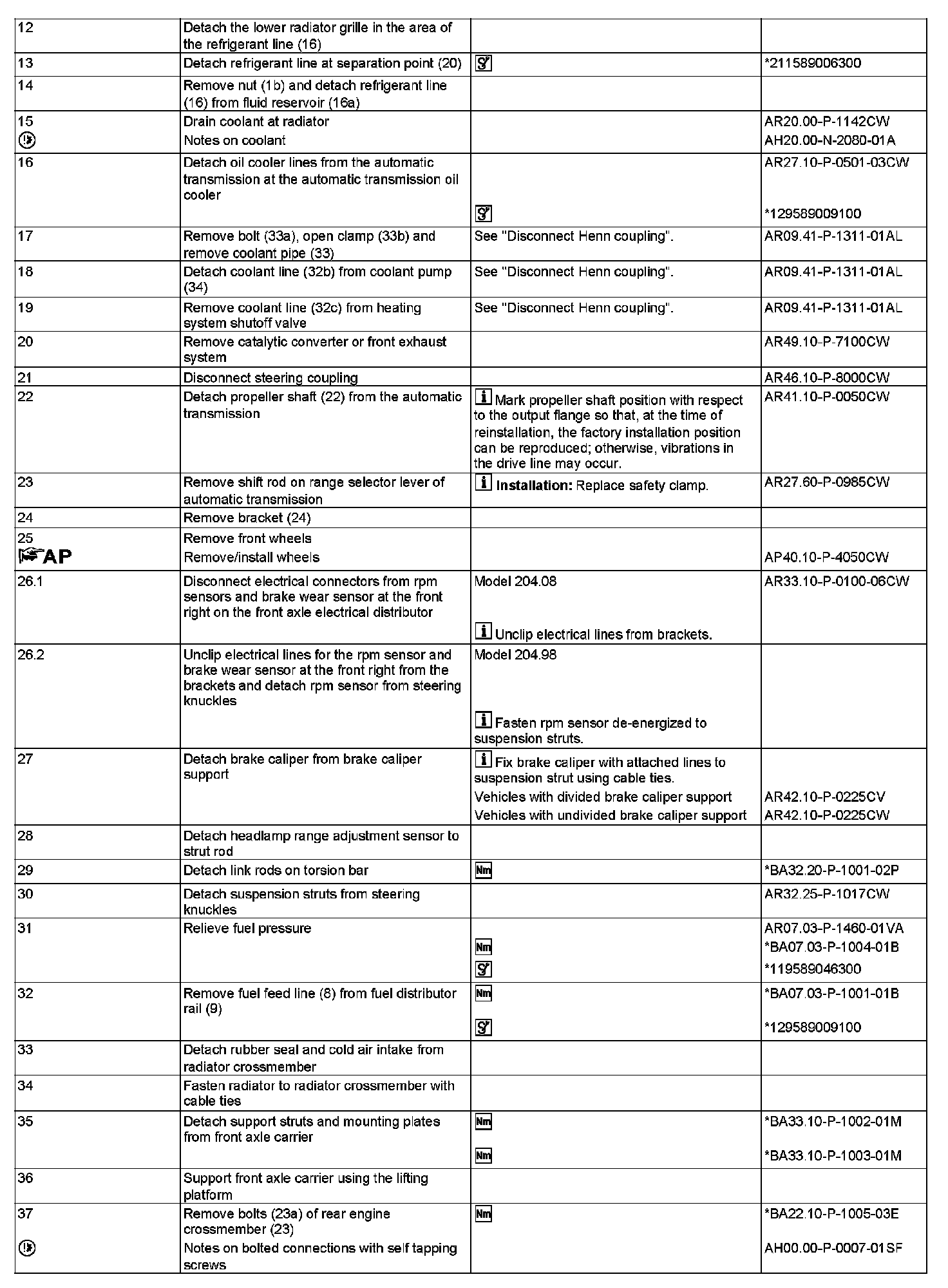

Steps 12-37:

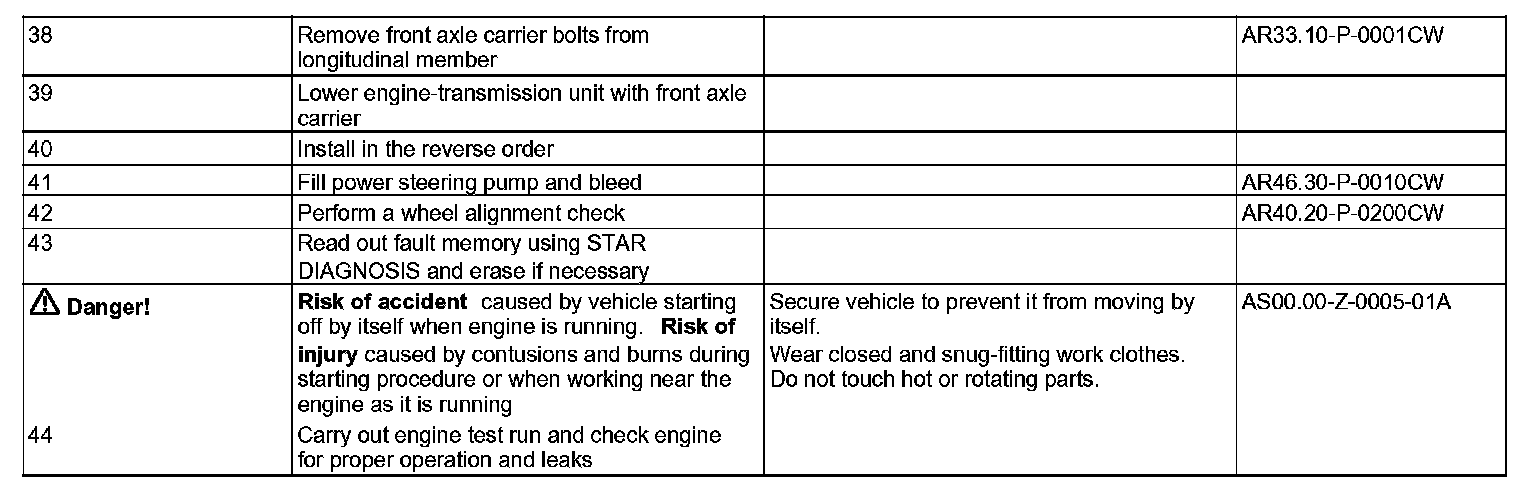

Steps 38-44:

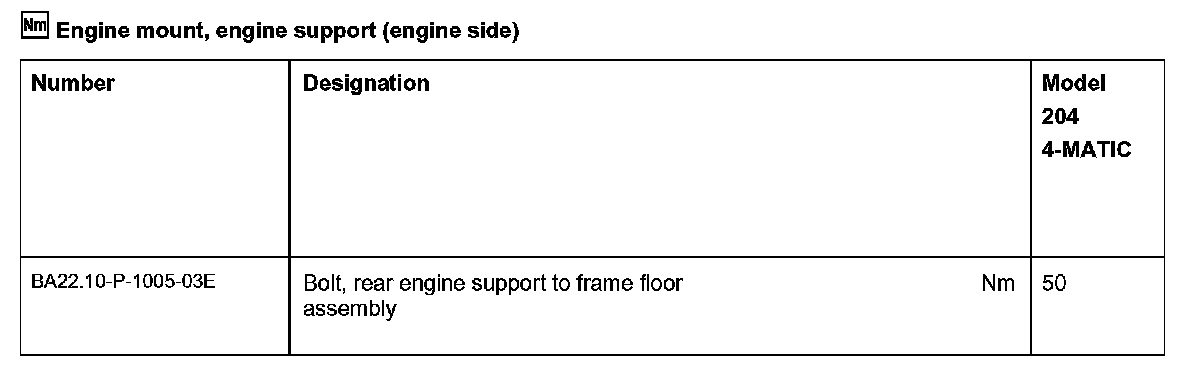

Engine mount, engine support (engine side):

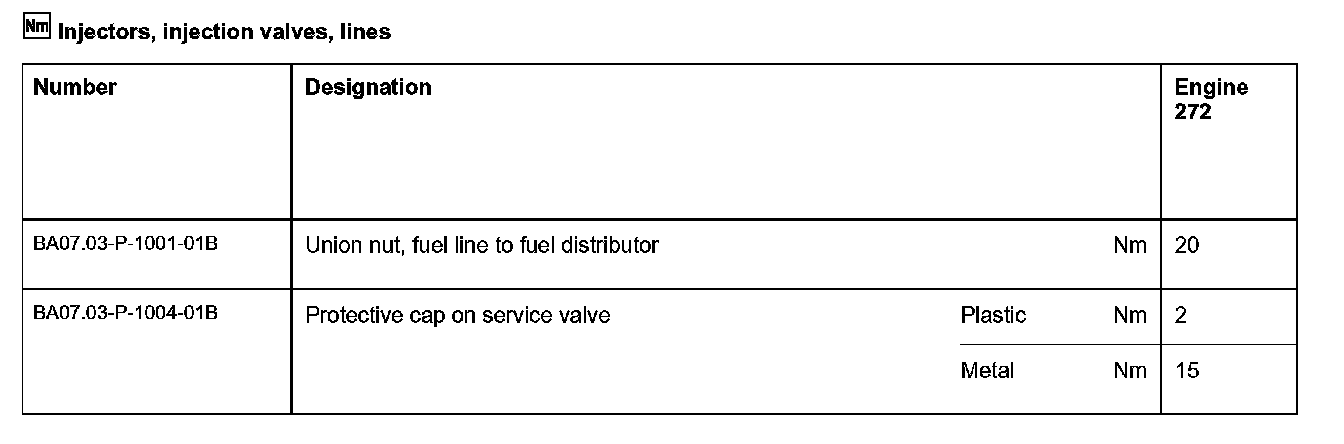

Injectors, injection valves, lines:

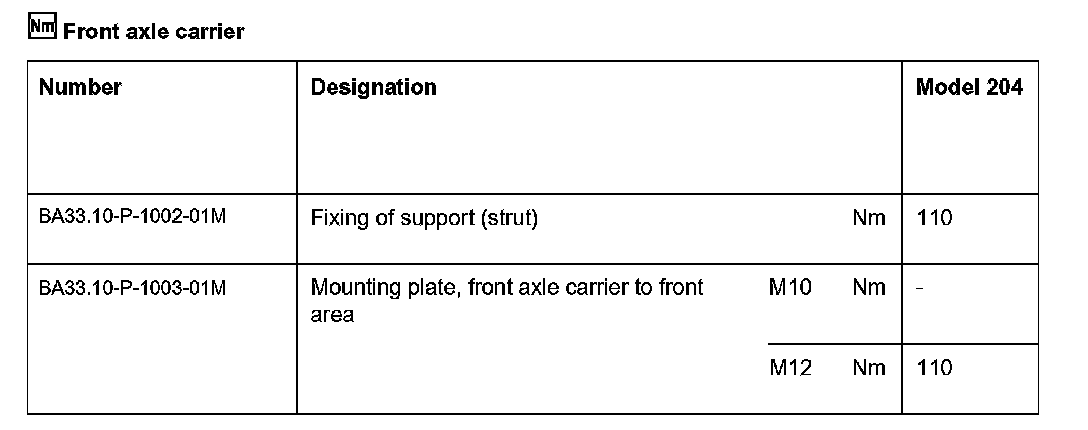

Front axle carrier:

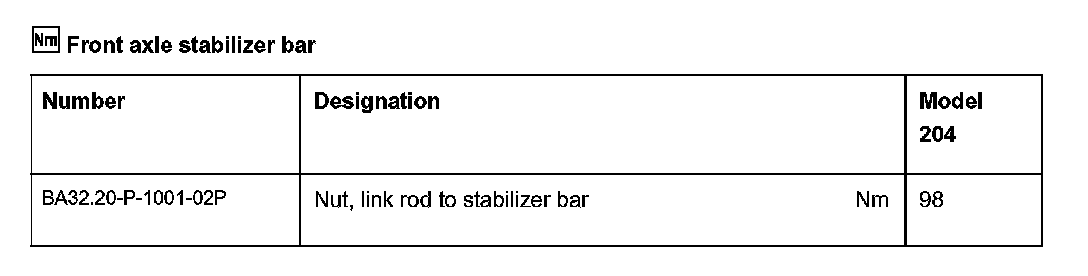

Front axle stabilizer bar:

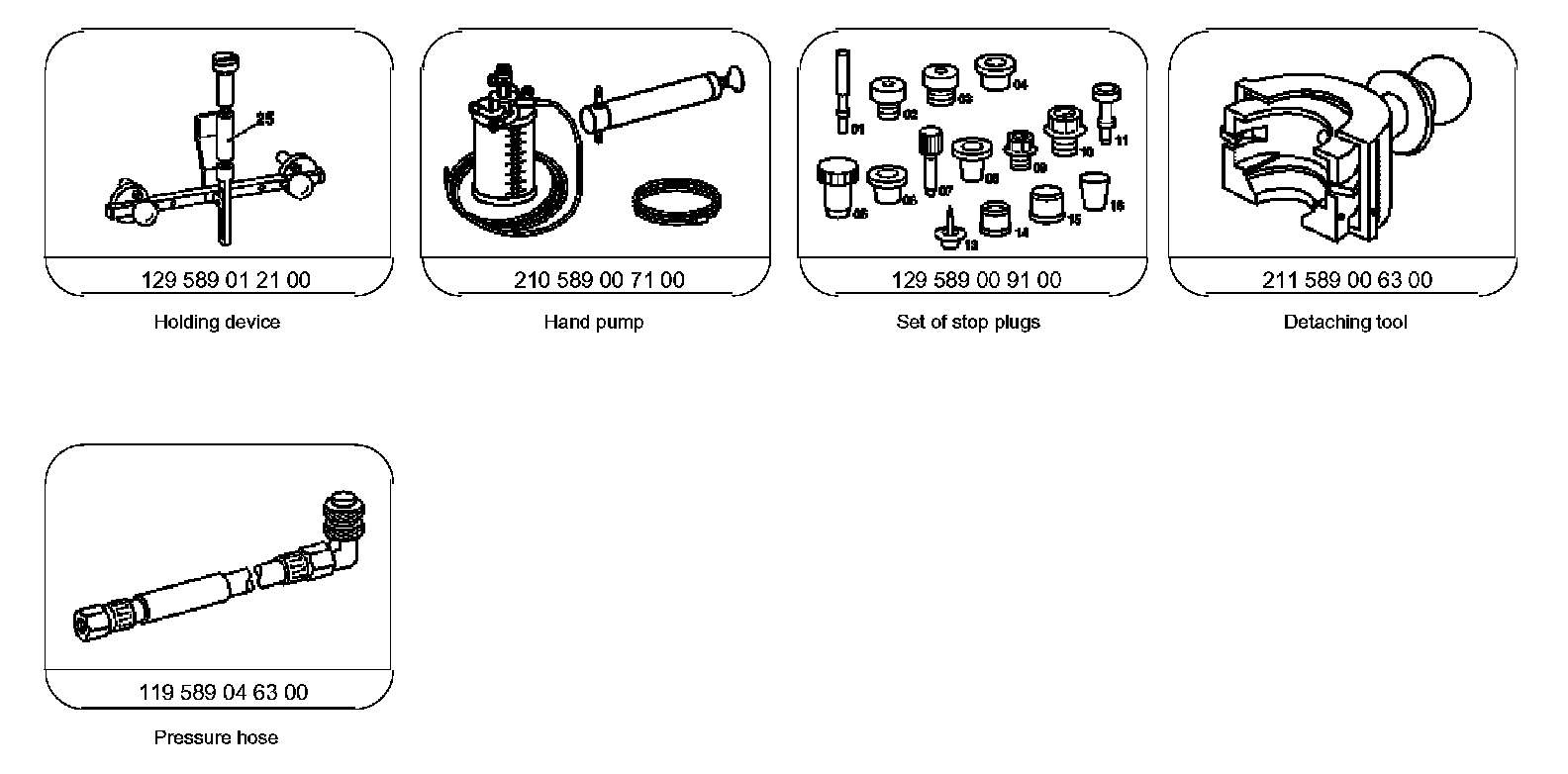

Special Tools:
