Rear Crankshaft Main Bearing Seal: Service and Repair
AR03.20-P-3063CV Replace rear crankshaft radial sealing ring

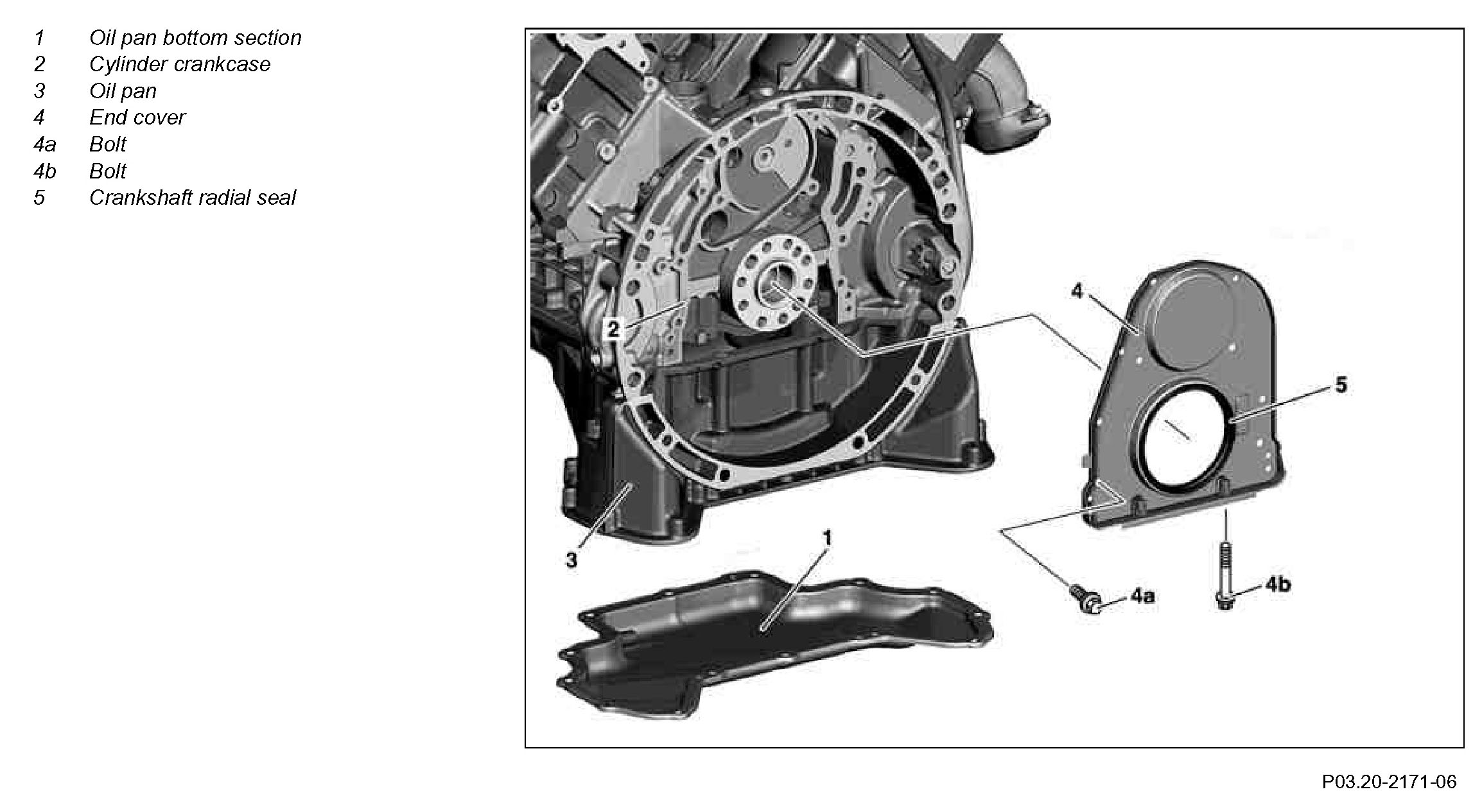

Component Identification:

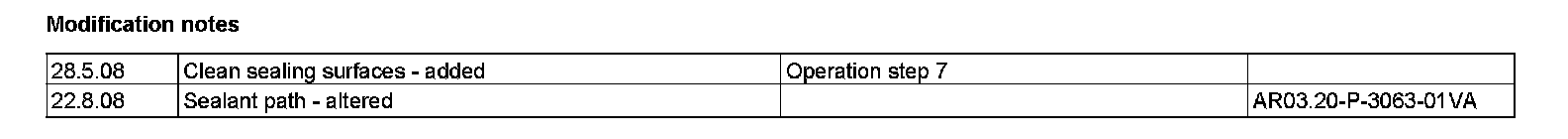

Modification notes:

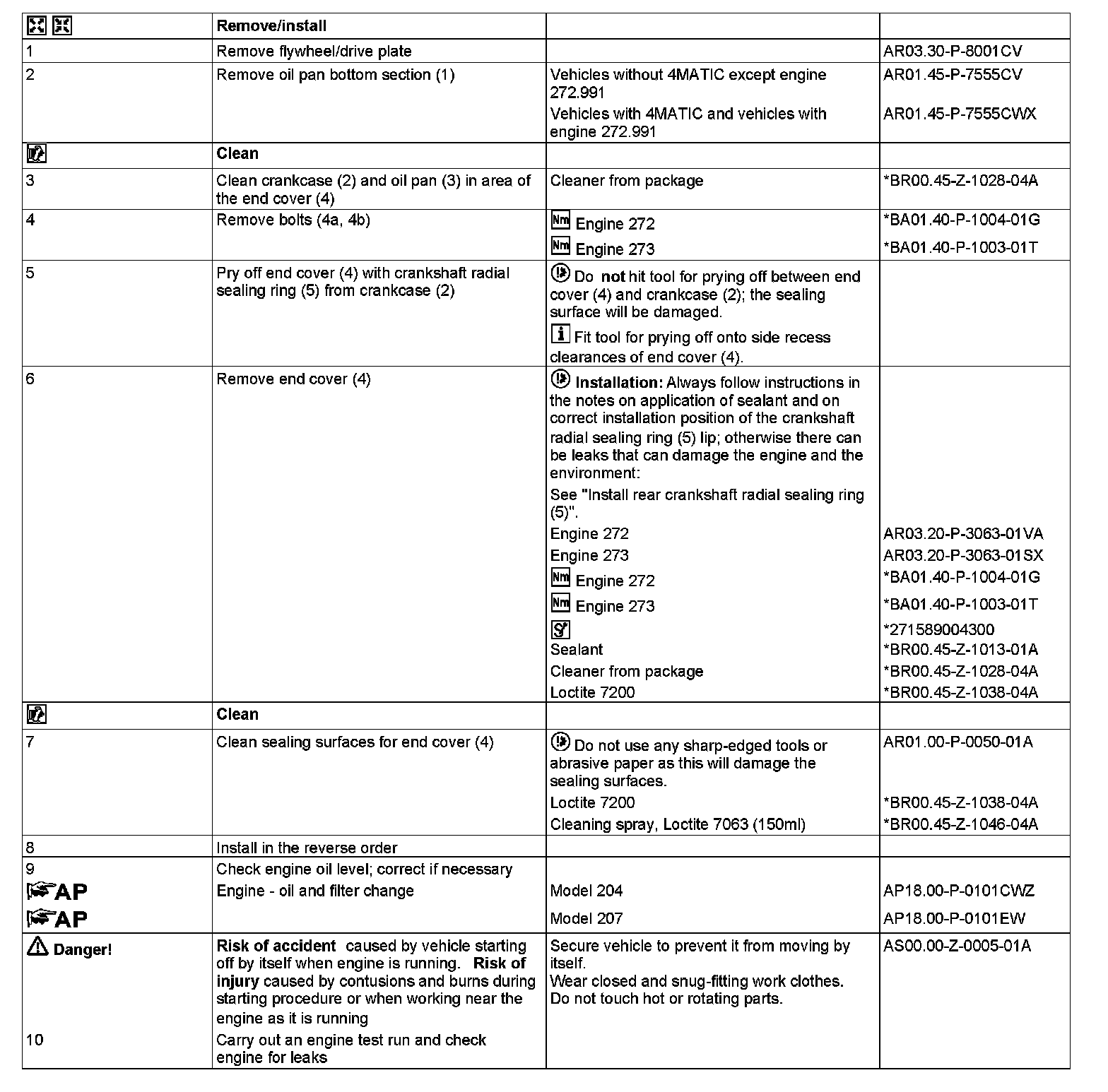

Steps 1-10:

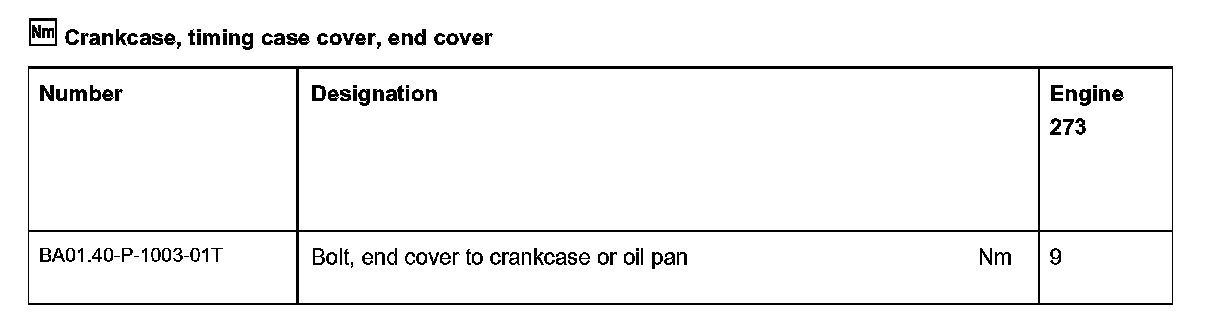

Crankcase, timing case cover, end cover:

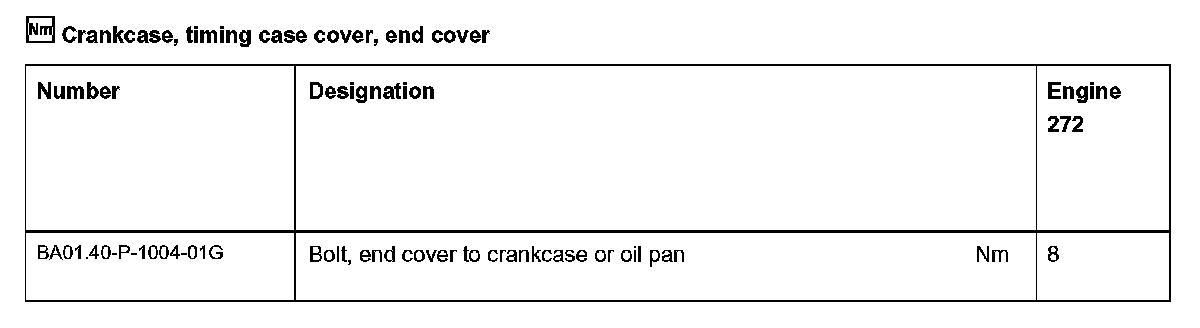

Crankcase, timing case cover, end cover:

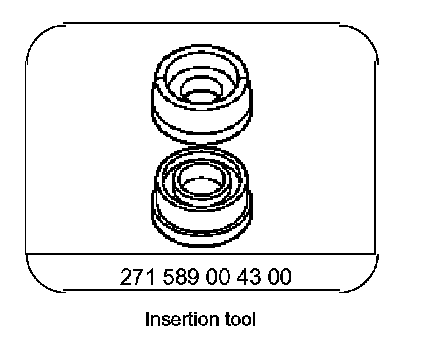

Special Tools:

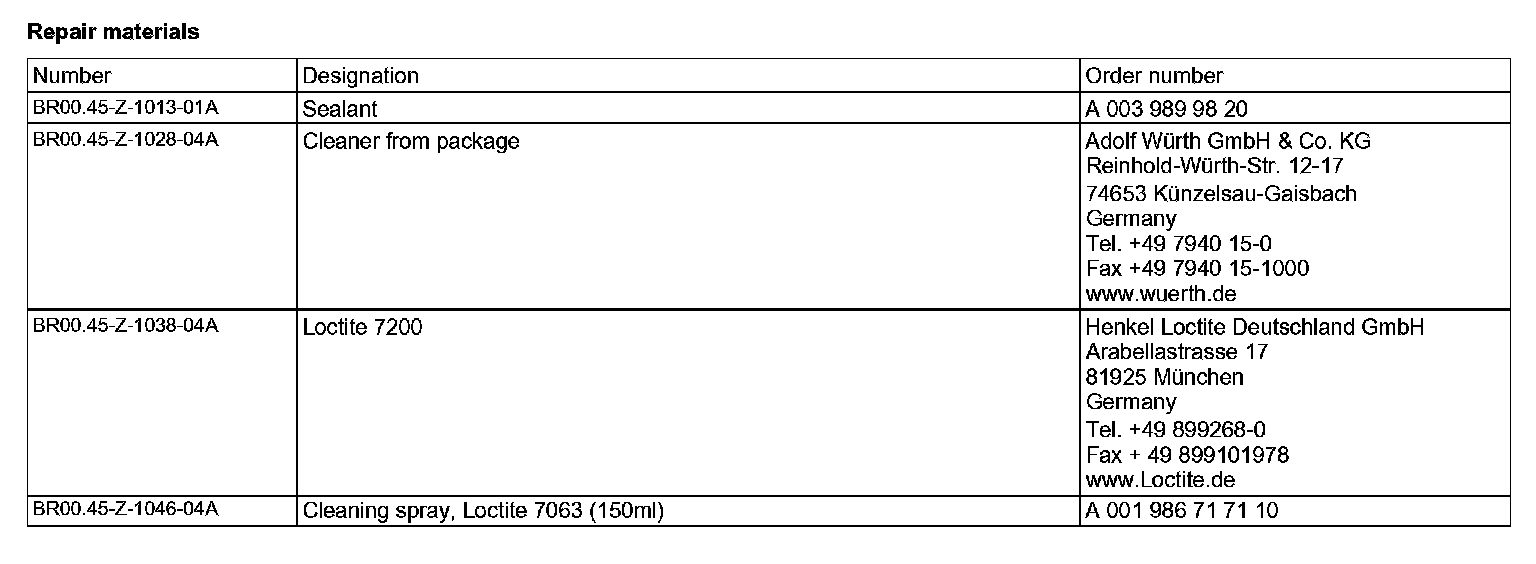

Repair materials:
