AR03.20-P-3000CV Replace Front Crankshaft Radial Sealing Ring



AR03.20-P-3000CV Replace front crankshaft radial sealing ring

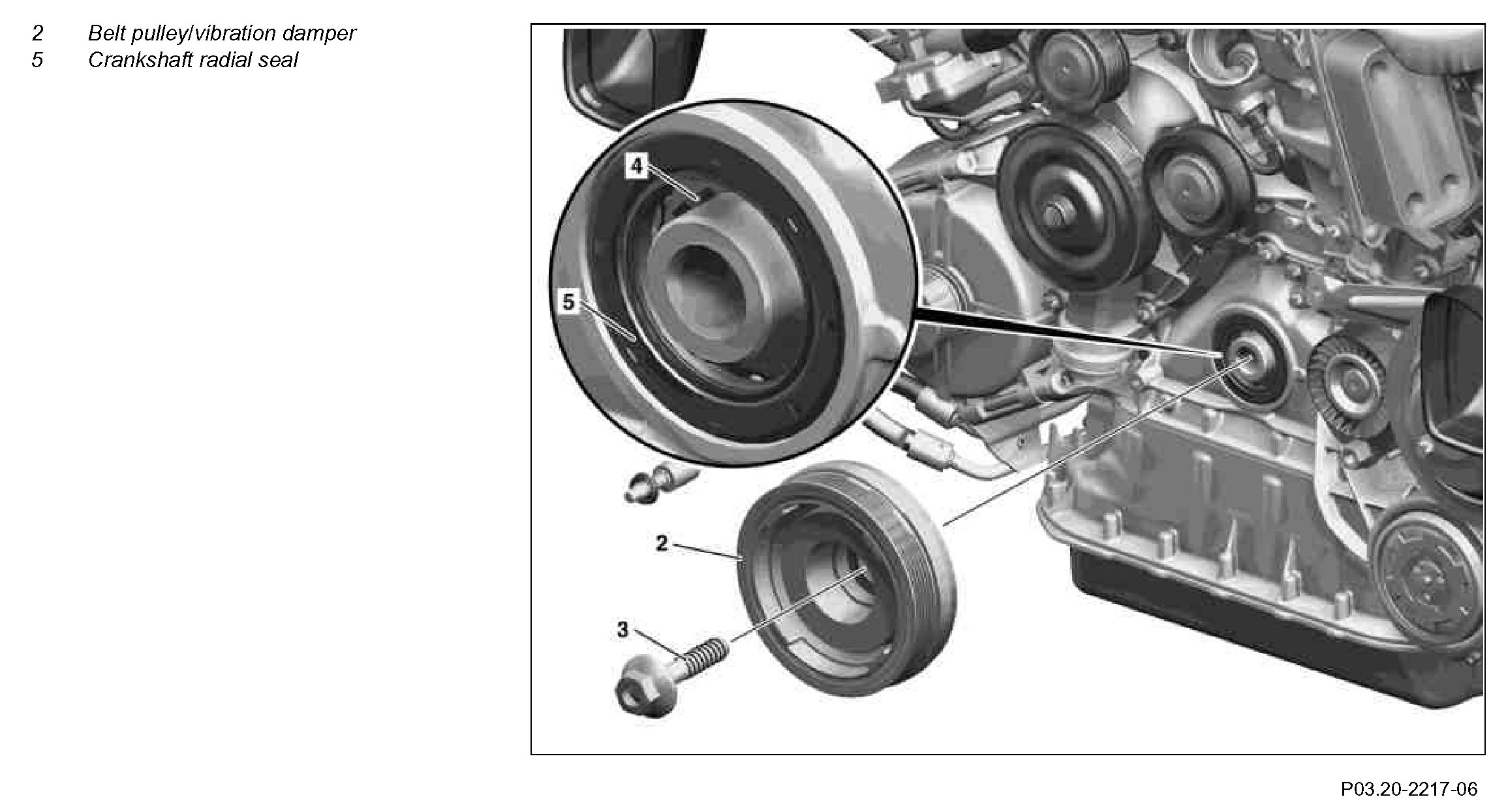

Component Identification:

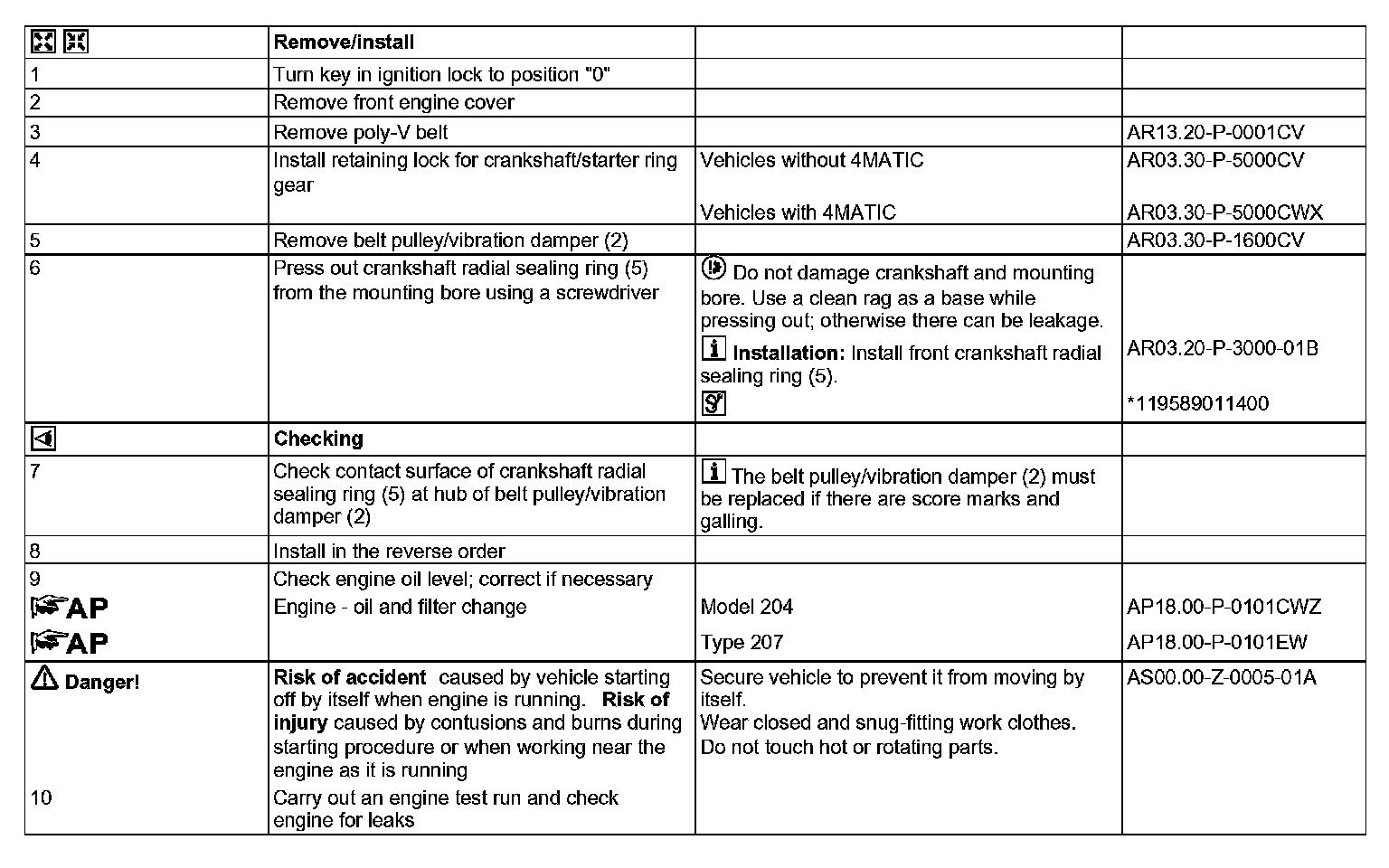

Steps 1-10:

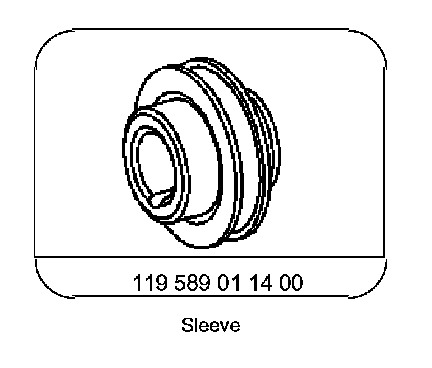

Special Tools:
