AP18.00-P-0101CWZ Engine oil and filter change

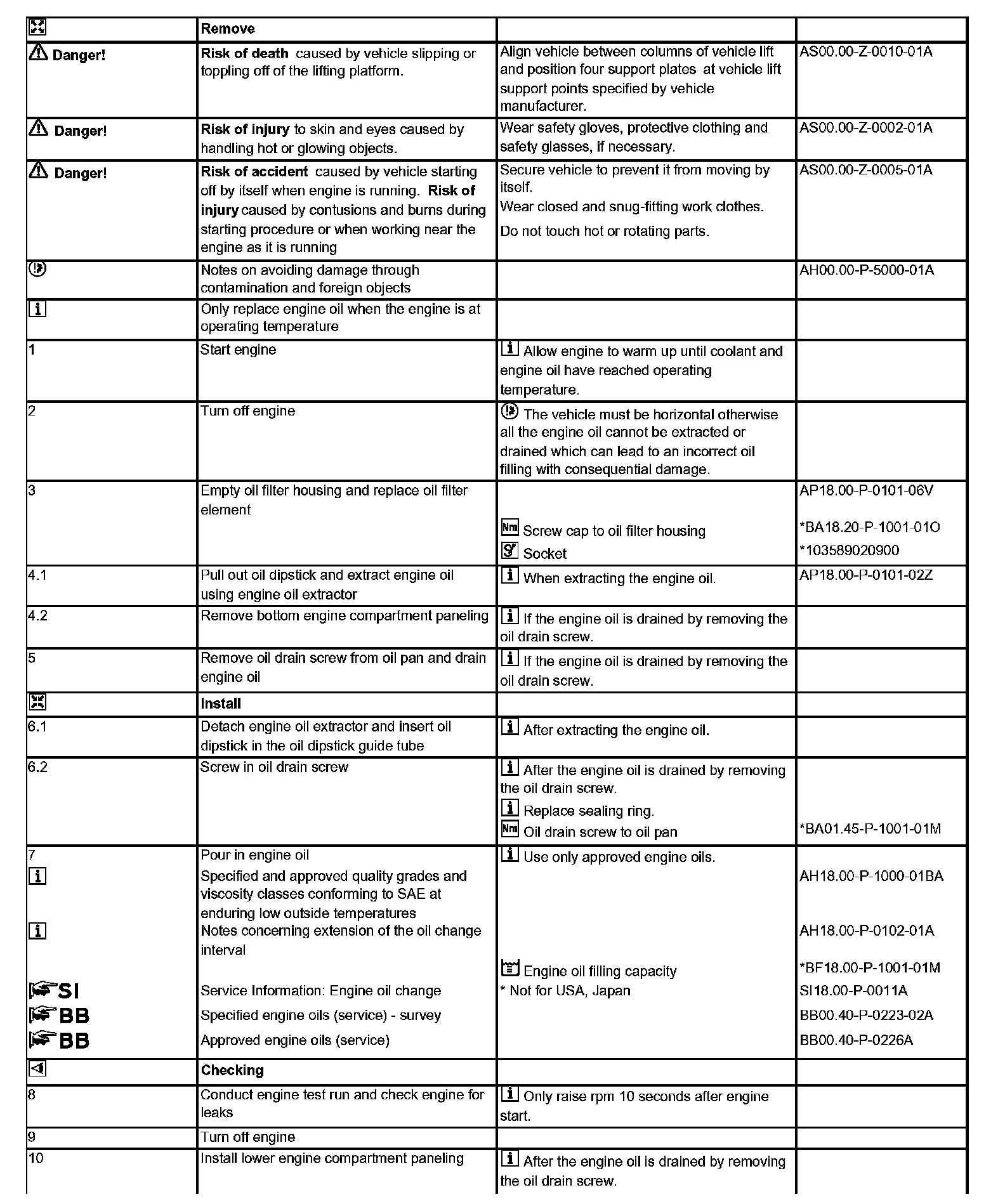

Remove/install Steps 1-10:

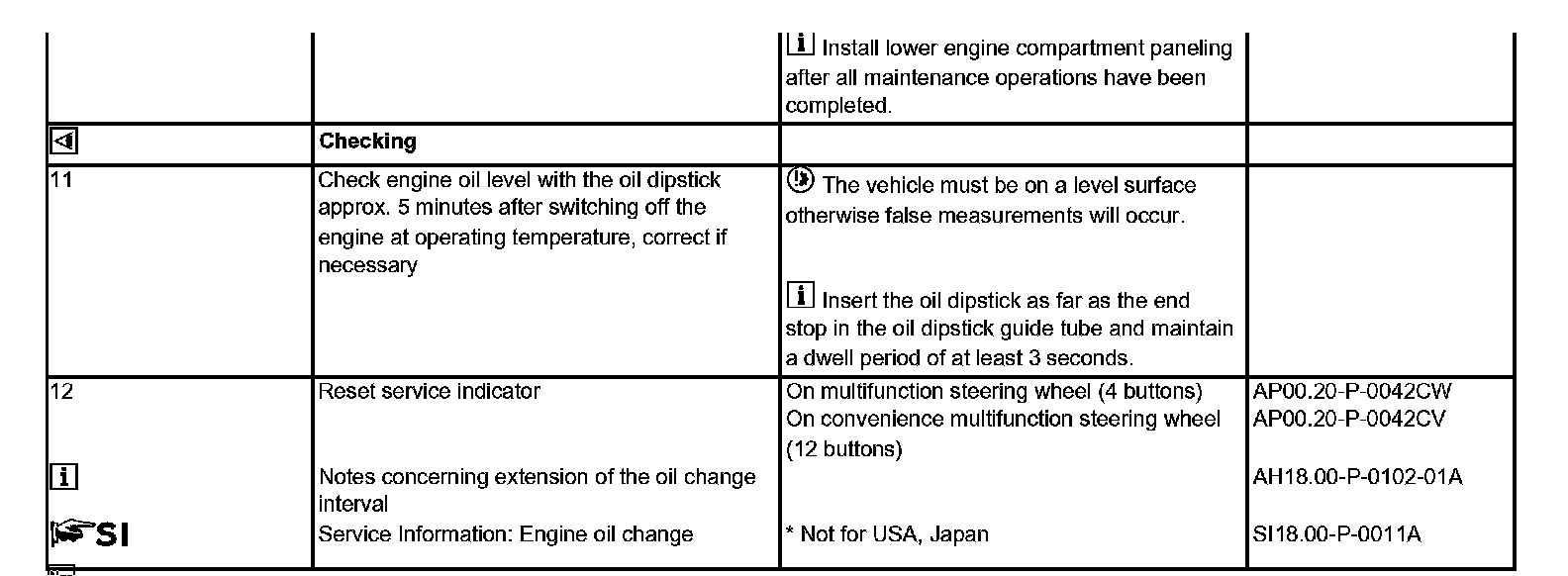

Remove/install Steps 10 (Continued)-12:

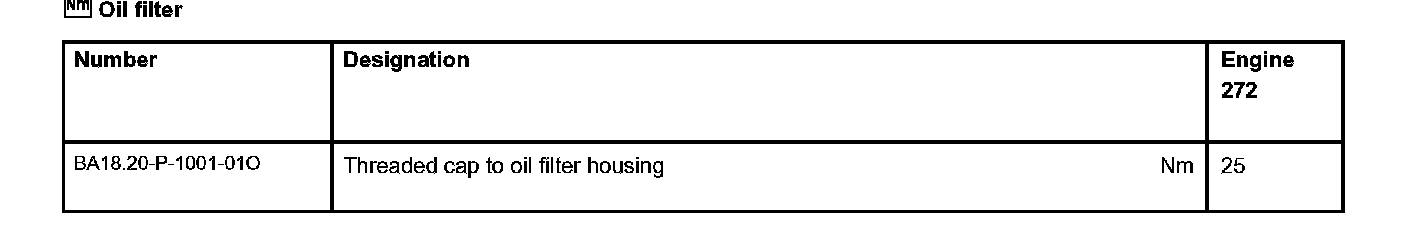

Oil filter:

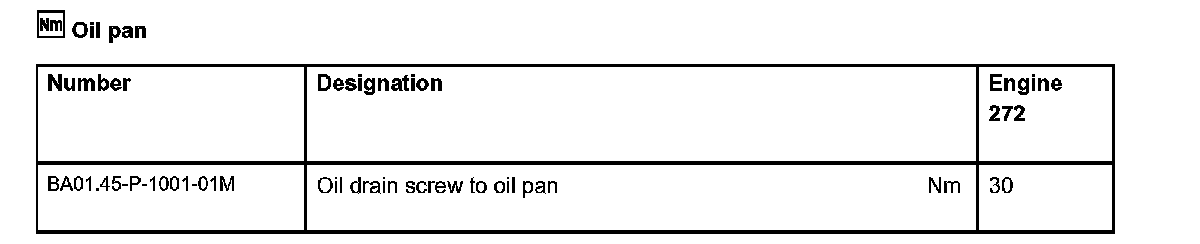

Oil pan:

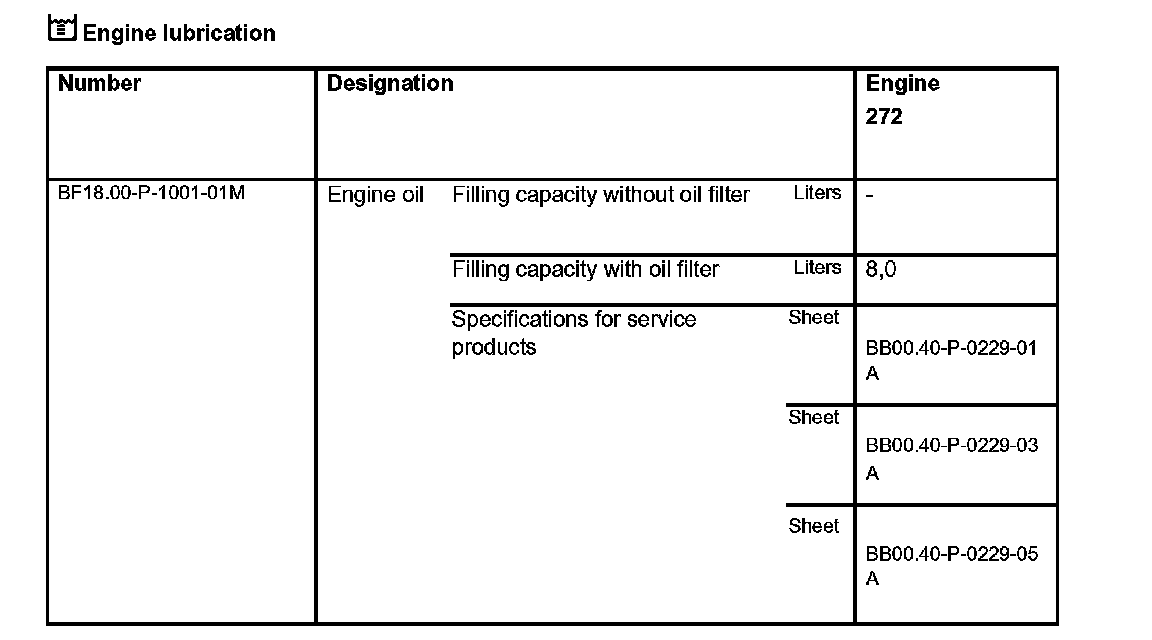

Engine lubrication:

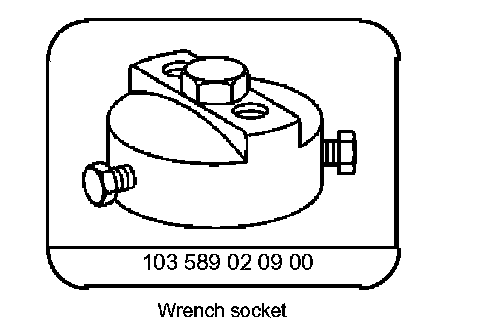

Special Tools:
