AR18.10-P-6020CV Remove/Install Oil Pump
AR18.10-P-6020CV Remove/Install Oil Pump
AR18.10-P-6020CV Remove/install oil pump

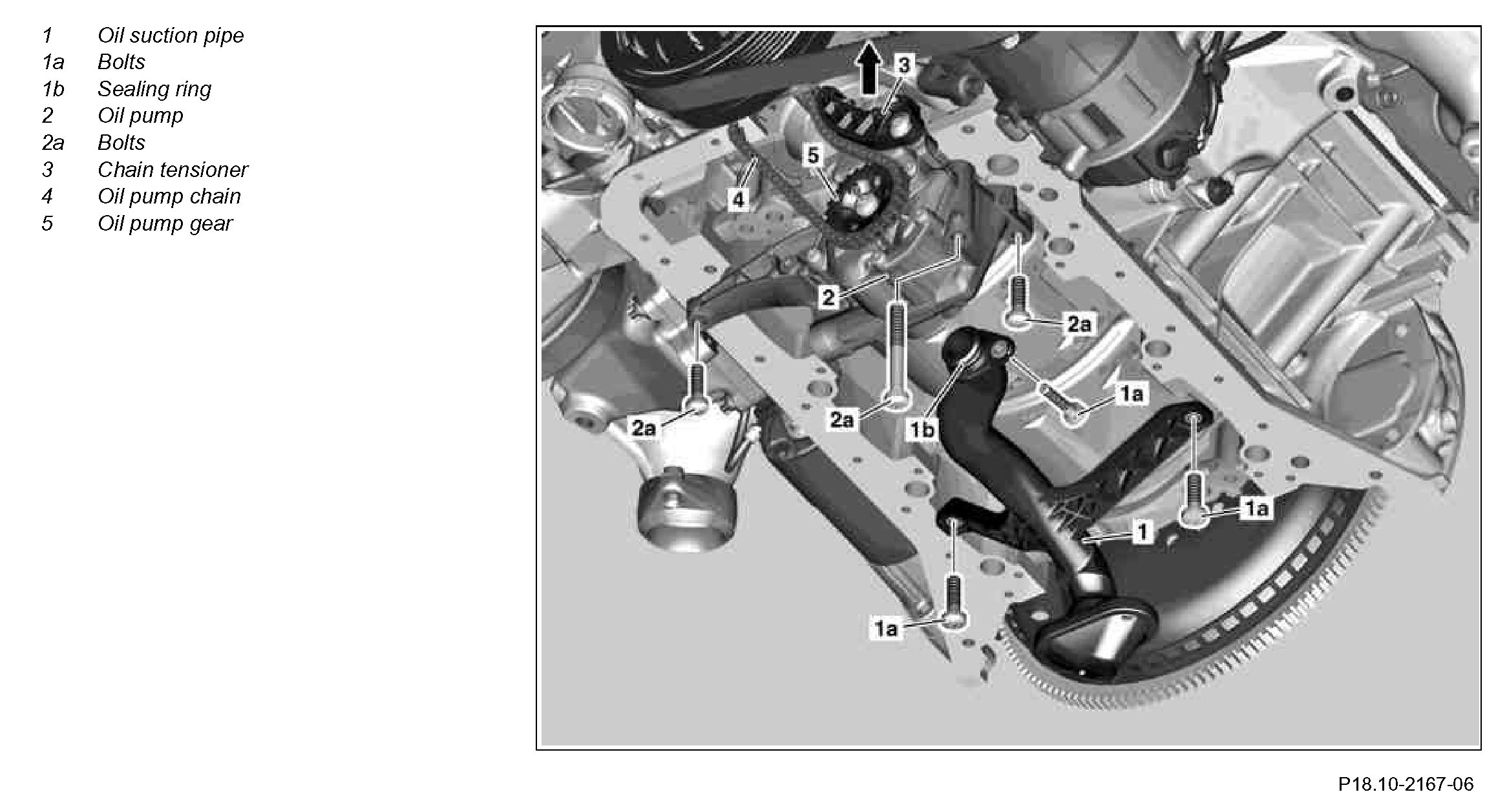

Component Identification:
Modification notes:

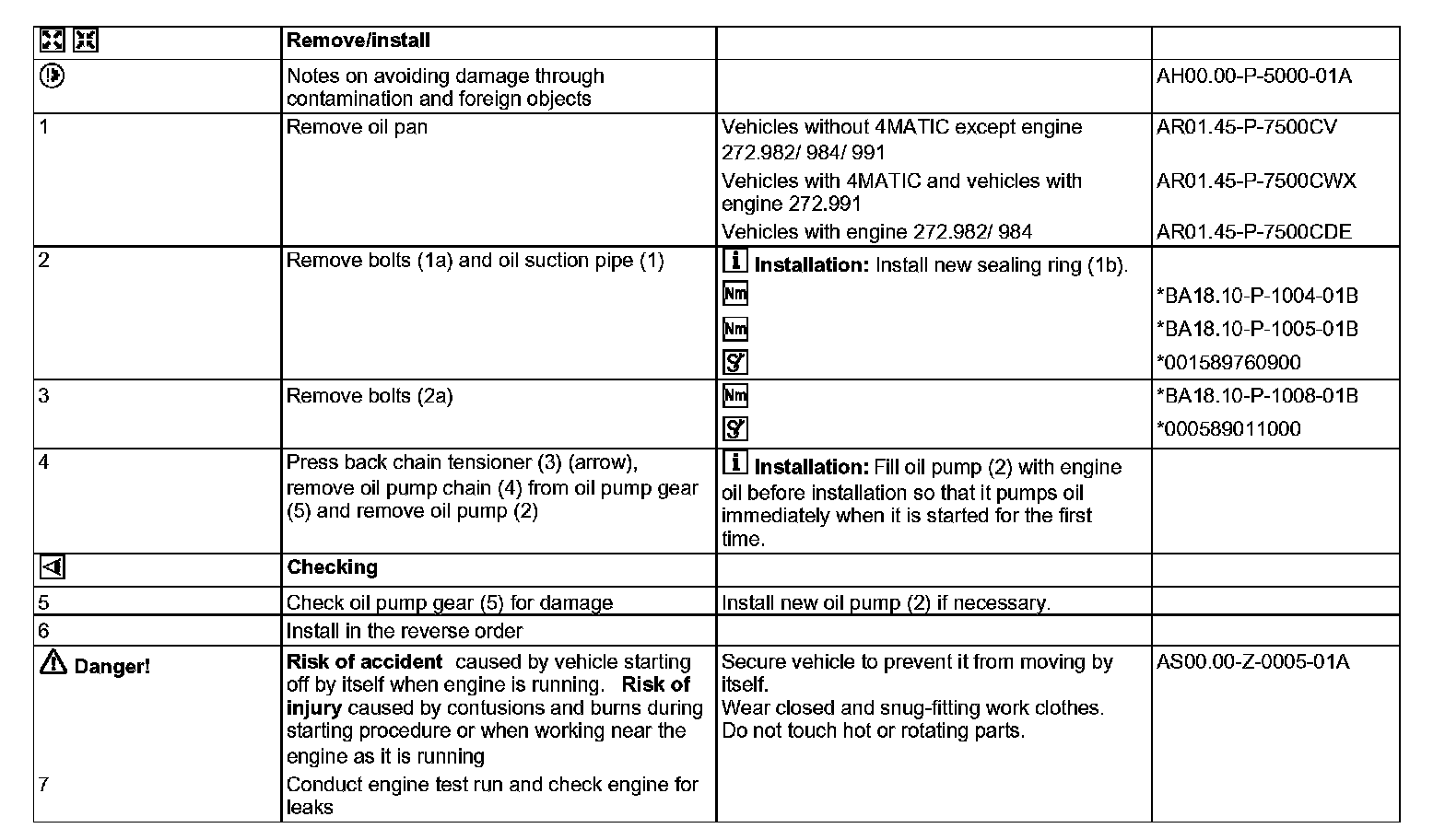

Steps 1-7:

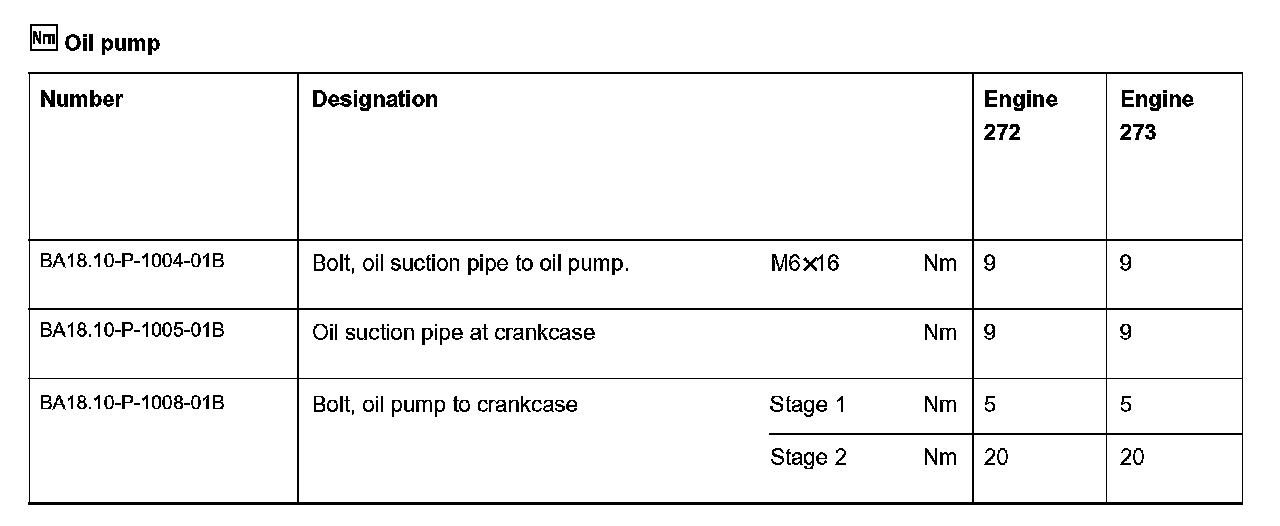

Oil pump:

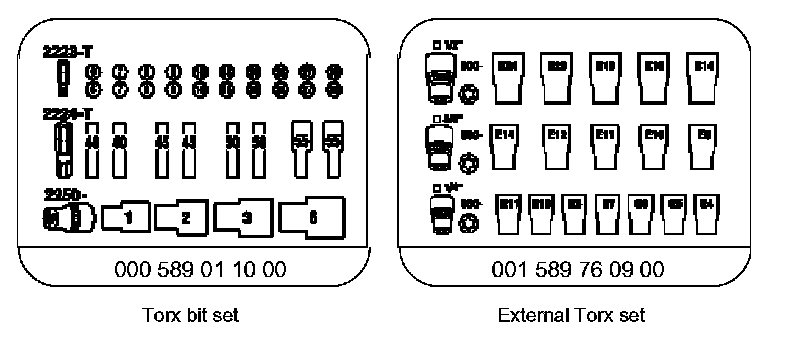

Special Tools:
