AR01.45-P-7500CV Remove/Install Oil Pan

AR01.45-P-7500CV Remove/Install Oil Pan
ENGINES 272 (except 272.982) in MODEL 204.0 /2
Vehicles with rear sump
ENGINES 272, 273 (except 272.984) in MODEL 207
Vehicles with rear sump

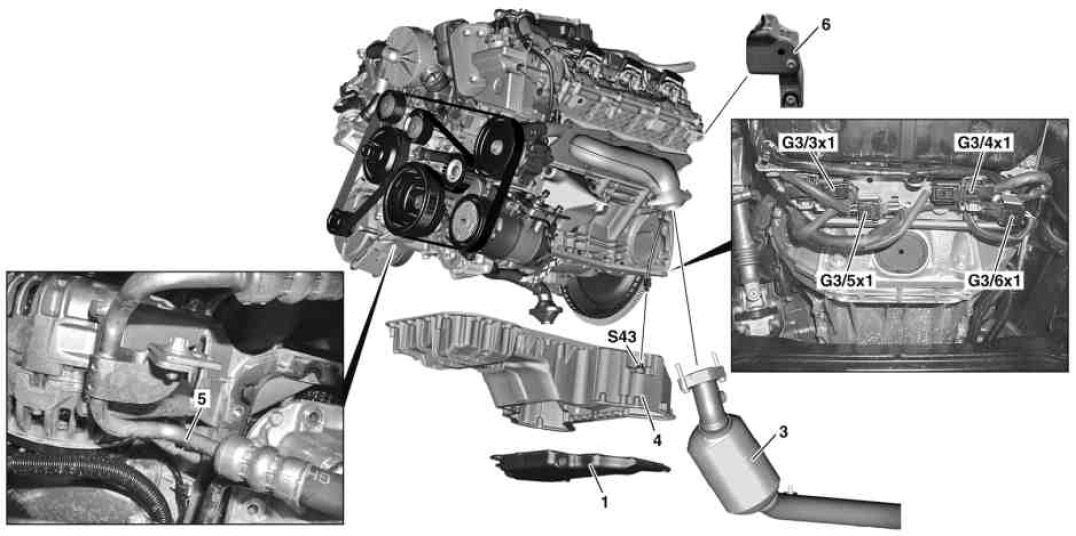

1 Oil pan bottom section
3 Catalytic converter
4 Oil pan
5 Power steering pressure line
6 Cover panel
G3/3x1 Electrical connector for left oxygen sensor upstream of catalytic converter
G3/4x1 Electrical connector for right oxygen sensor upstream of catalytic converter
G3/5x1 Electrical connector for left oxygen sensor downstream of catalytic converter
G3/6x1 Electrical connector for right oxygen sensor downstream of catalytic converter
S43 Oil level check switch


























112 589 00 25 00
Squeeze gun
