Oil Cooler: Service and Repair
AR18.30-P-3481CV Remove/install oil-water heat exchanger at
oil filter

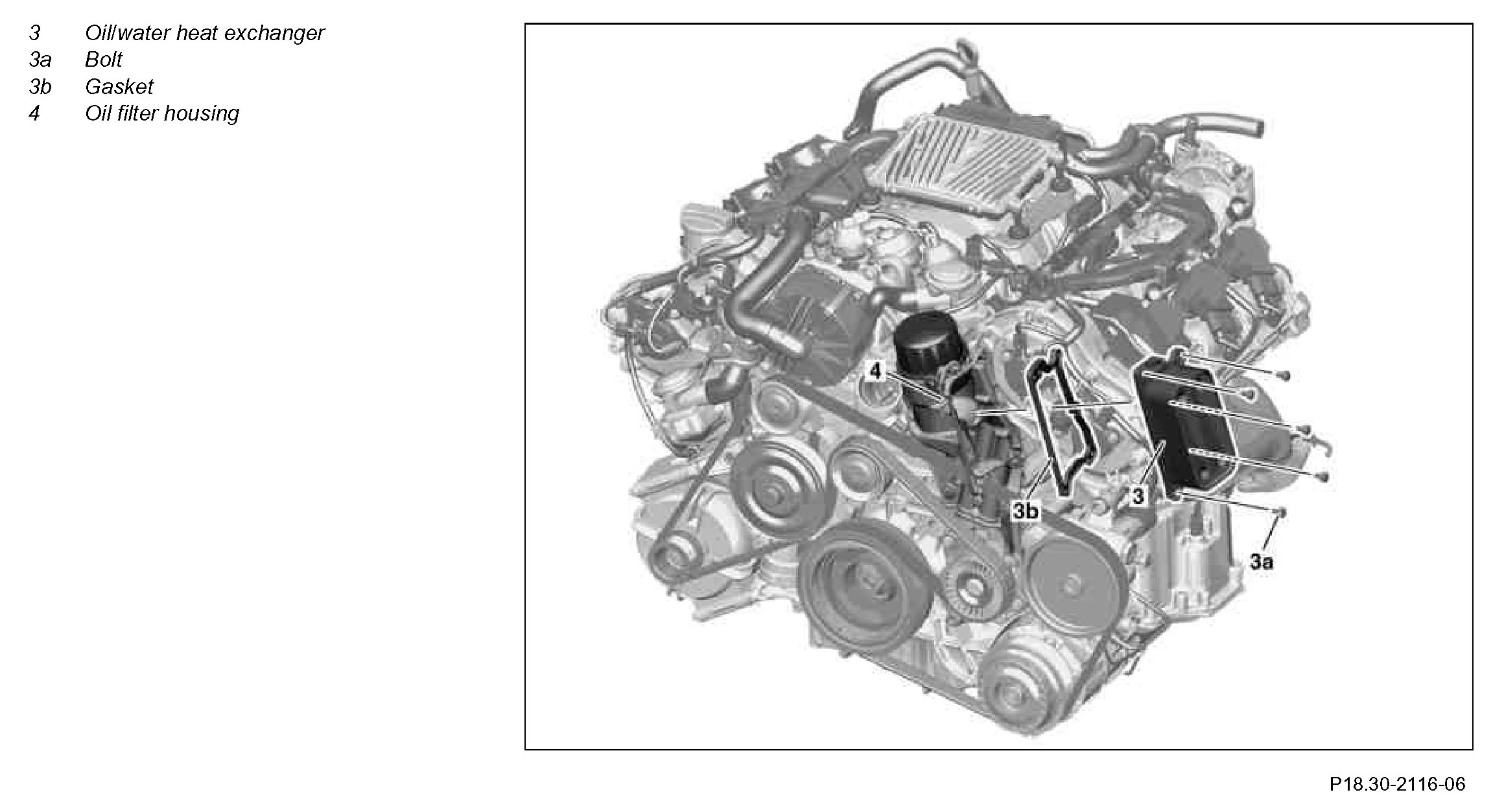

Component Identification:

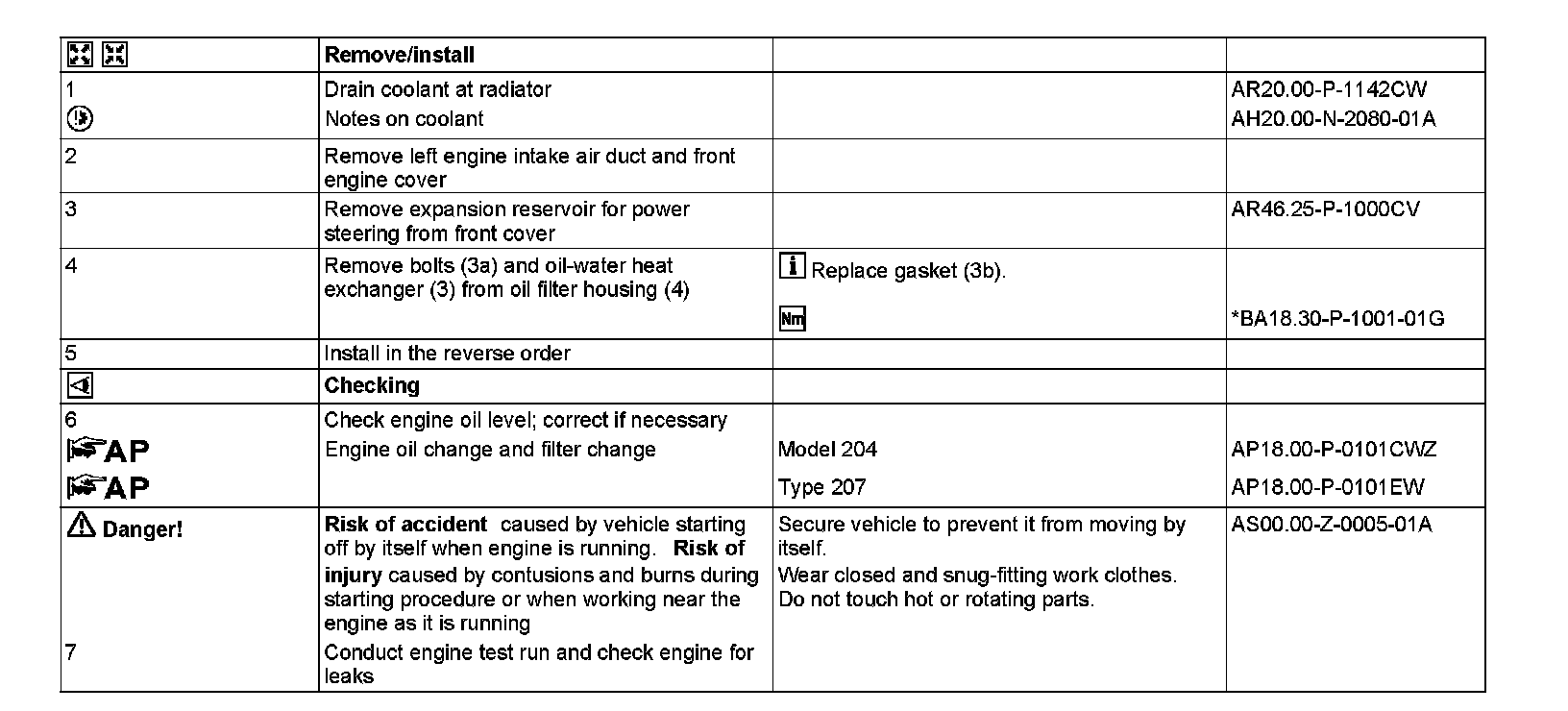

Steps 1-7:

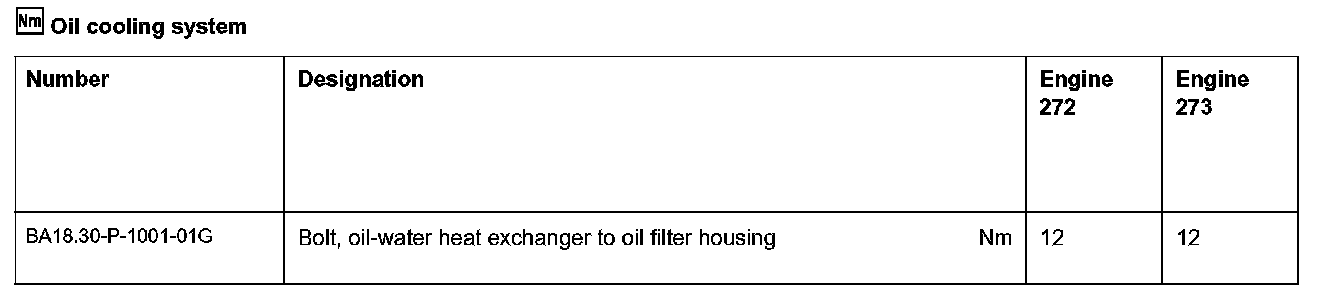

Oil cooling system:
