AR18.40-P-3510CWX Remove/Install Oil Dipstick Guide Tube



AR18.40-P-3510CWX Remove/install oil dipstick guide tube
- Vehicles with middle sump

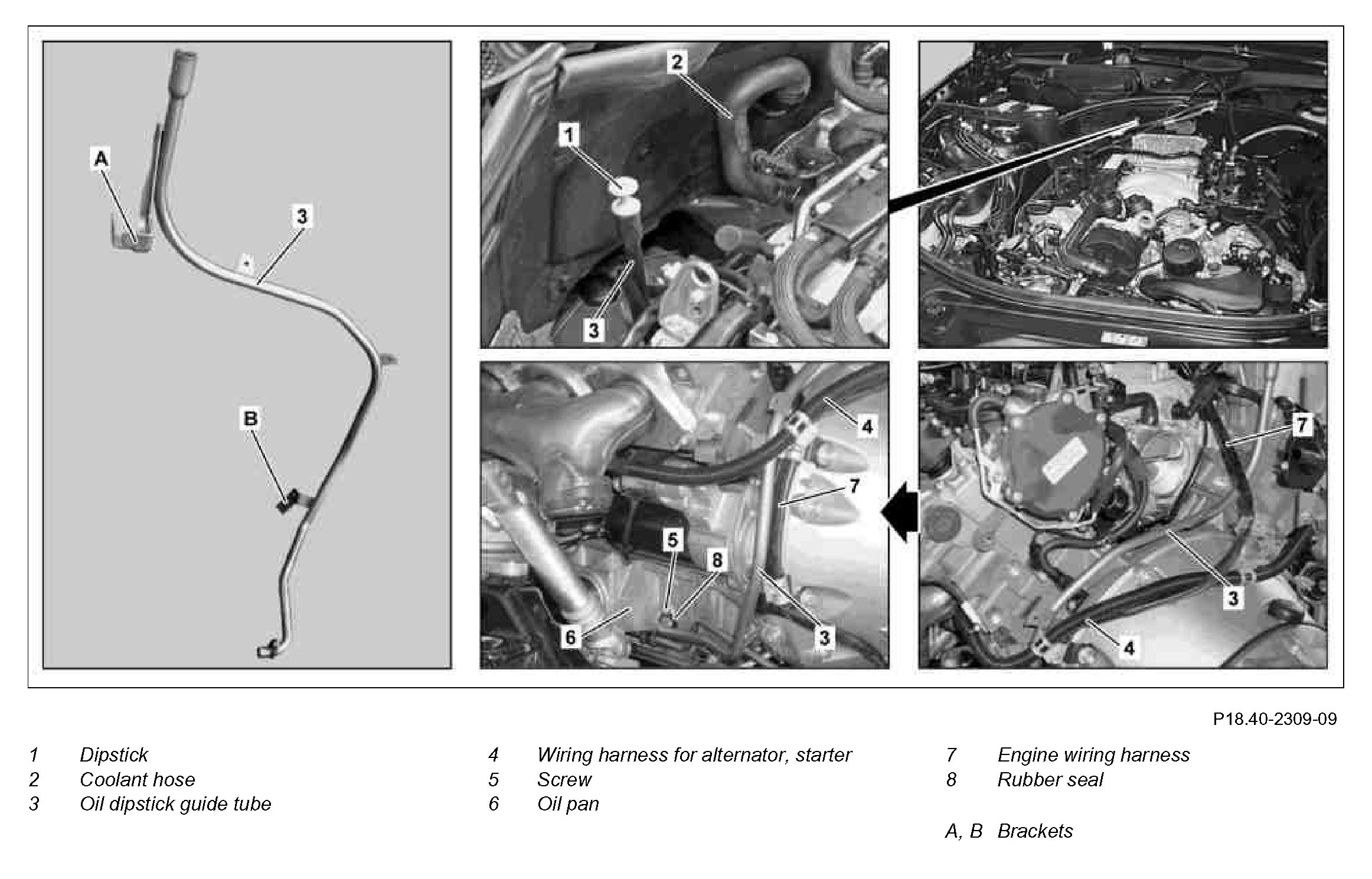

Component Identification:

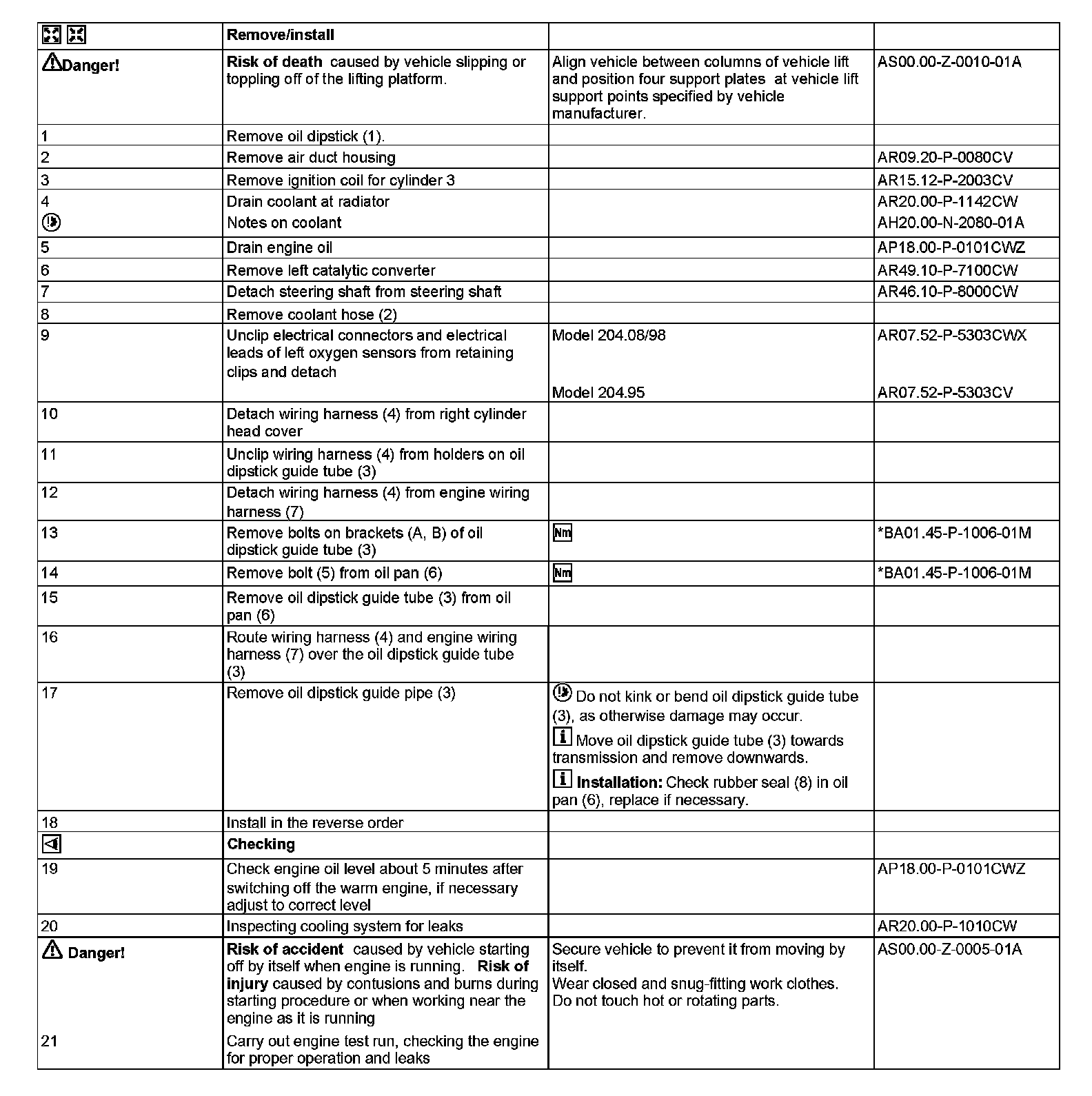

Steps 1-21:

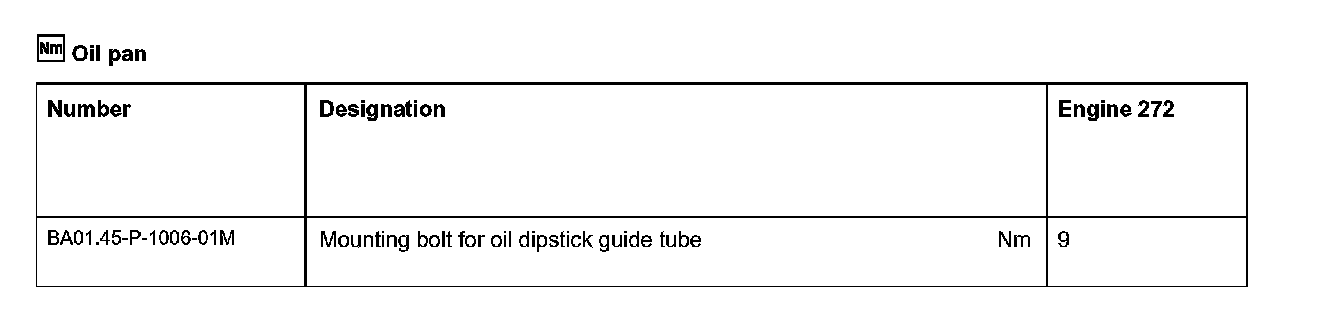

Oil pan:
