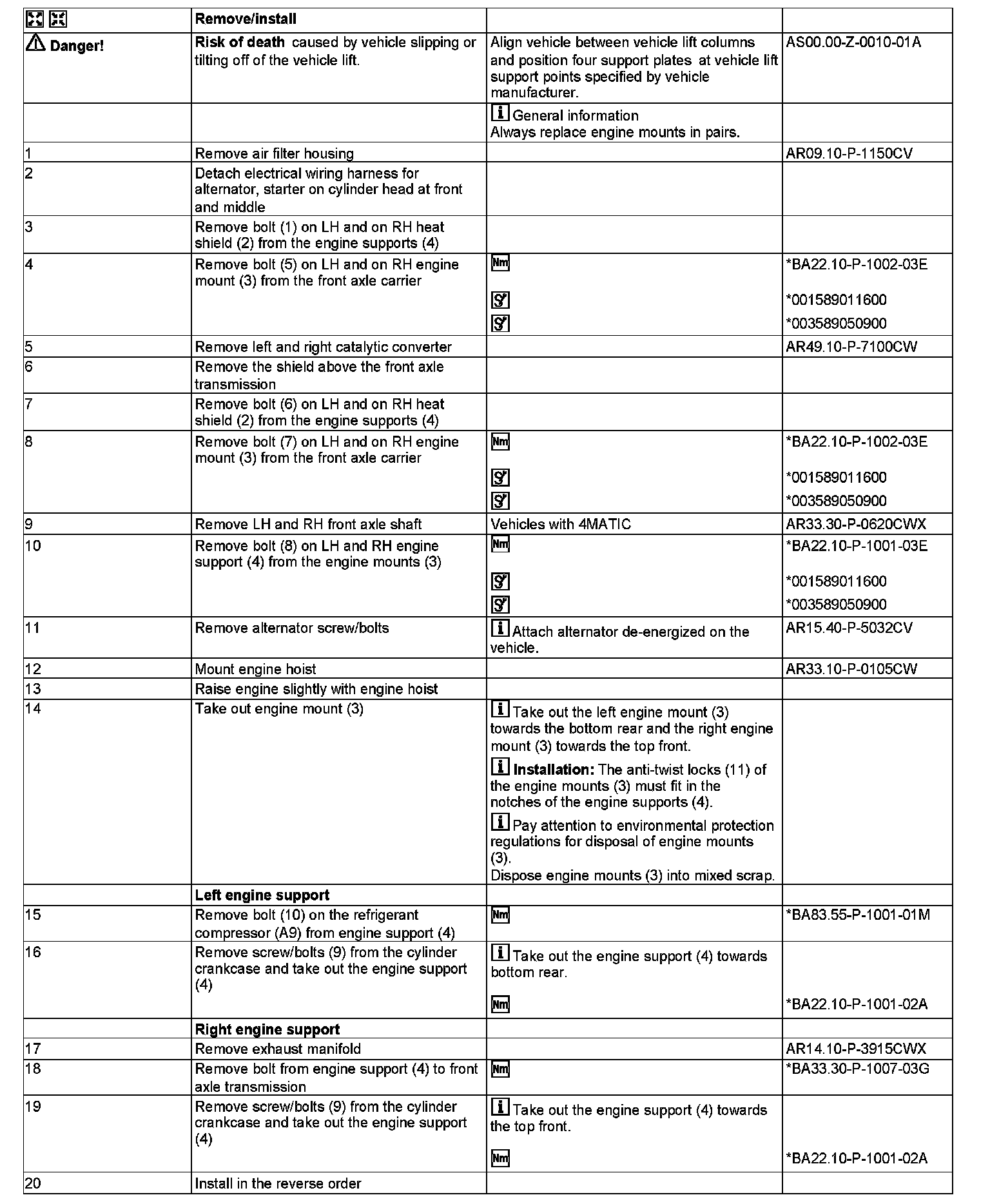

AR22.10-P-1260CWX Remove/Install Front Engine Mounts and/or Engine Support

AR22.10-P-1260CWX Remove/Install Front Engine Mounts And/Or Engine Support
ENGINES 272 in MODEL 204.08 /95 /98

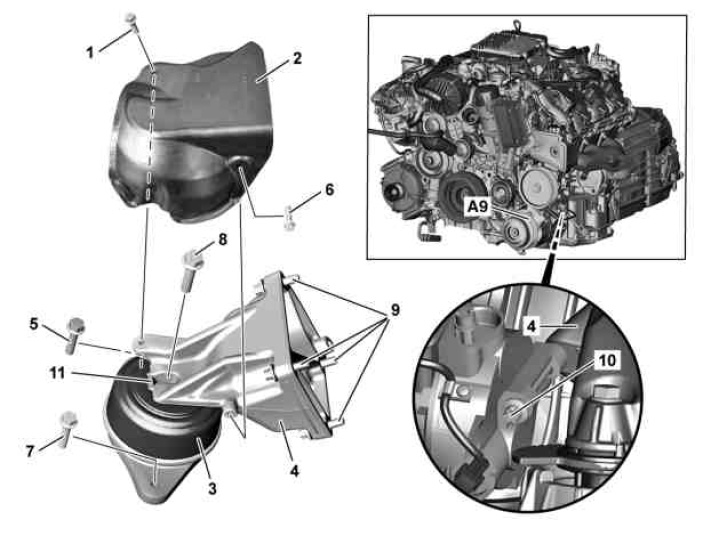

1 Screw/bolt
2 Heat shield
3 Engine mount
4 Engine support
5 Screw/bolt
6 Screw/bolt
7 Screw/bolt
8 Screw/bolt
9 Screw/bolts
10 Screw/bolt
11 Anti-twist lock

A9 Refrigerant compressor




















001 589 01 16 00
Set of engine bearing wrenches





003 589 05 09 00
Torque tool set
