Valve Spring: Service and Repair



AR05.30-P-3500CV Remove/install valve springs and/or valve stem seals

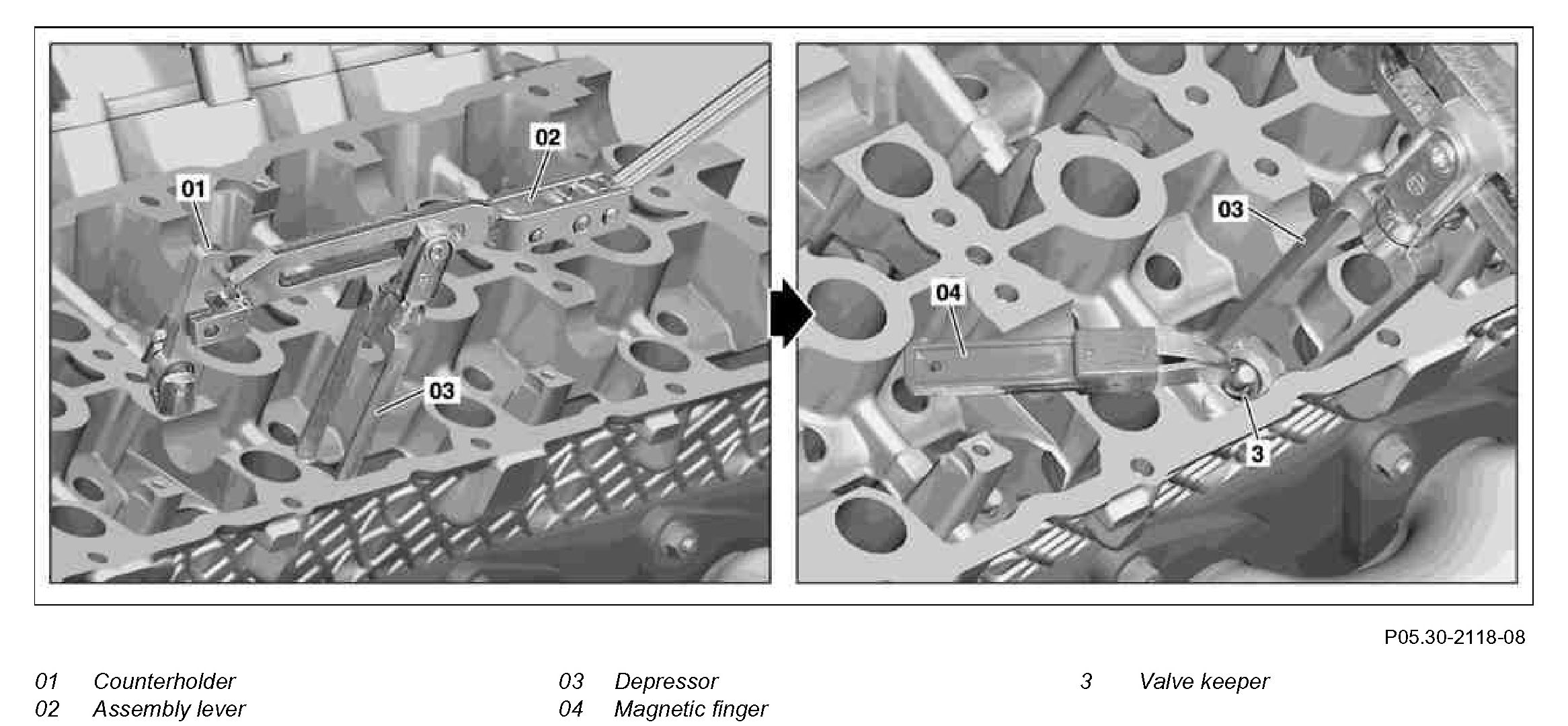

Component Identification:

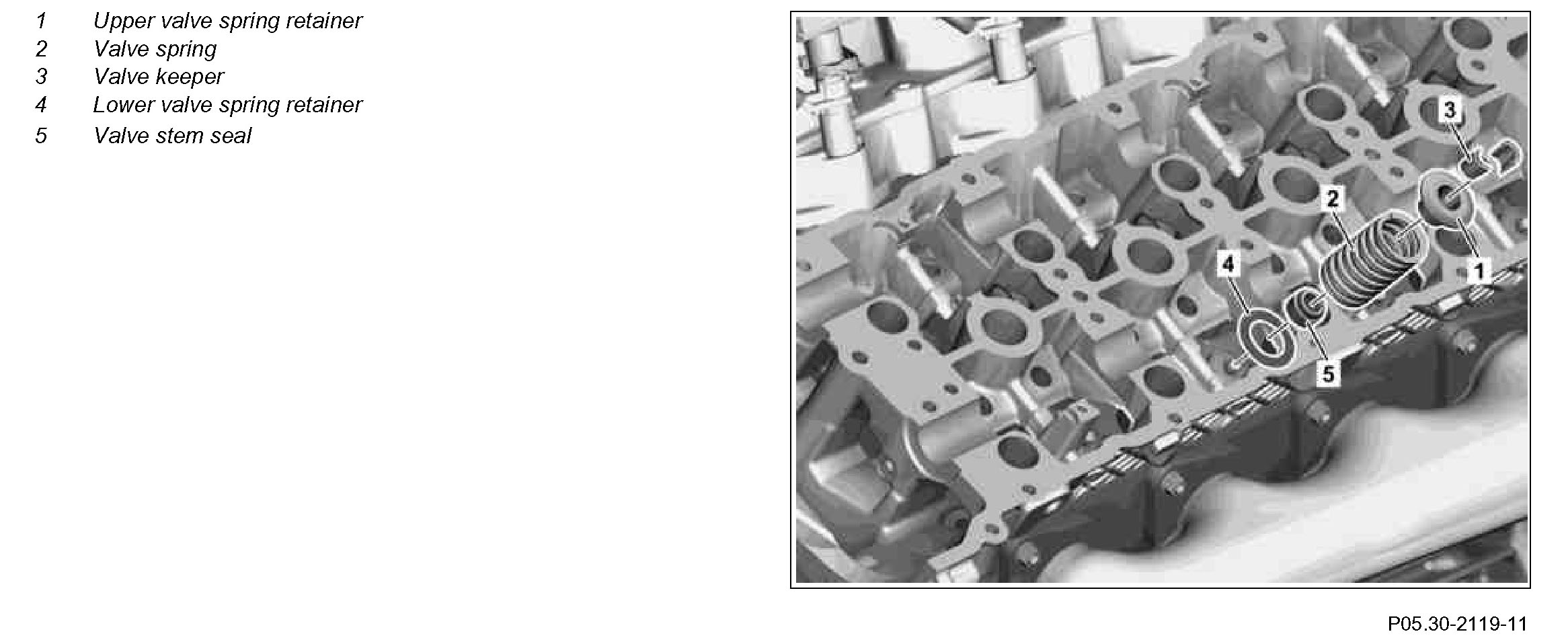

Component Identification:

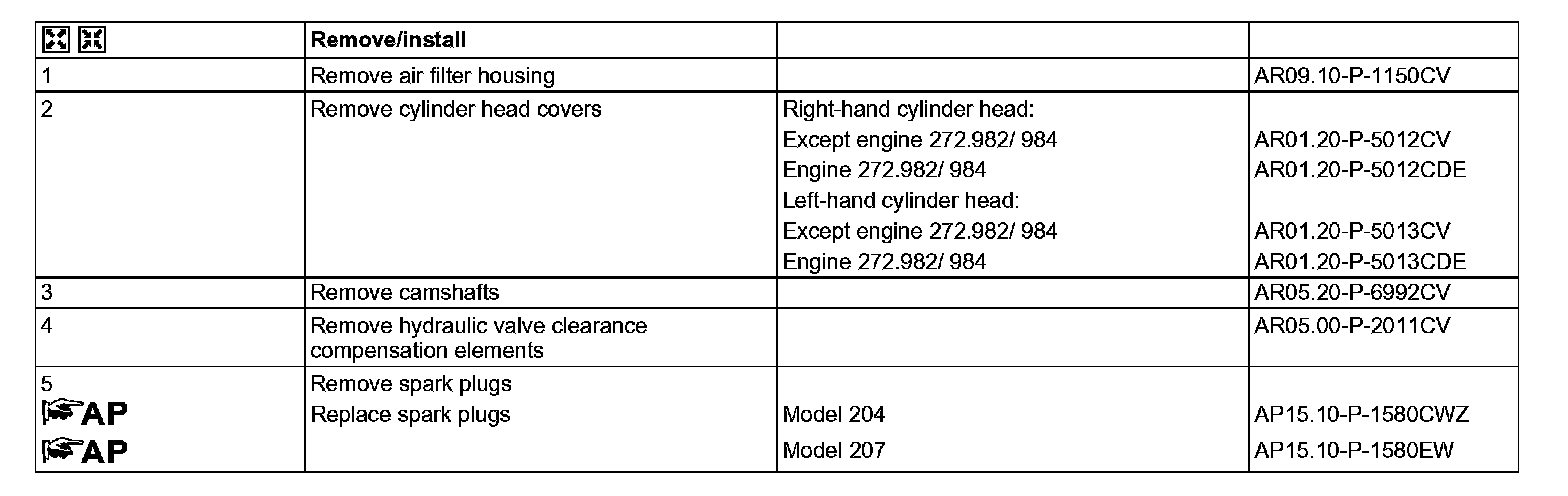

Steps 1-5:

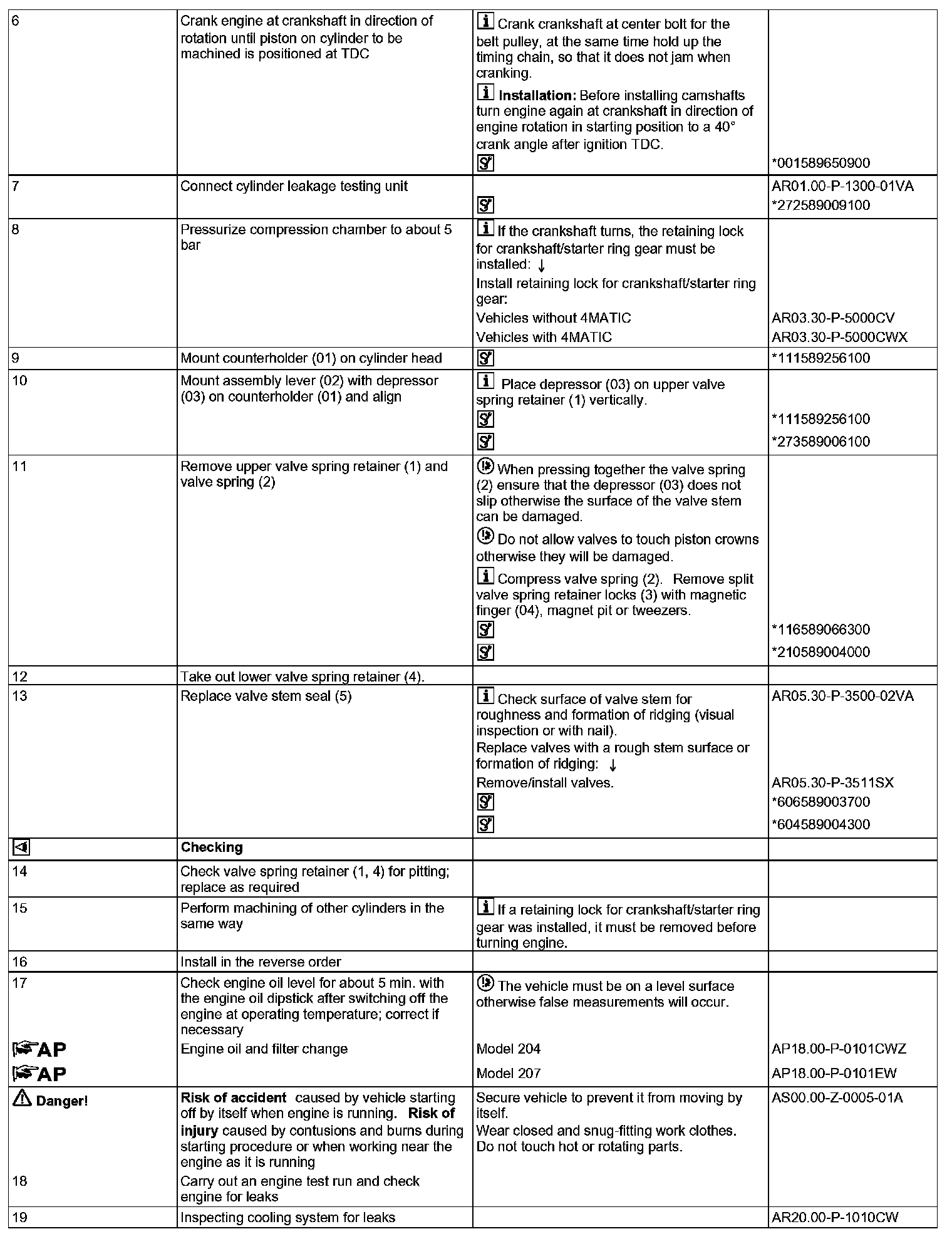

Steps 6-19:

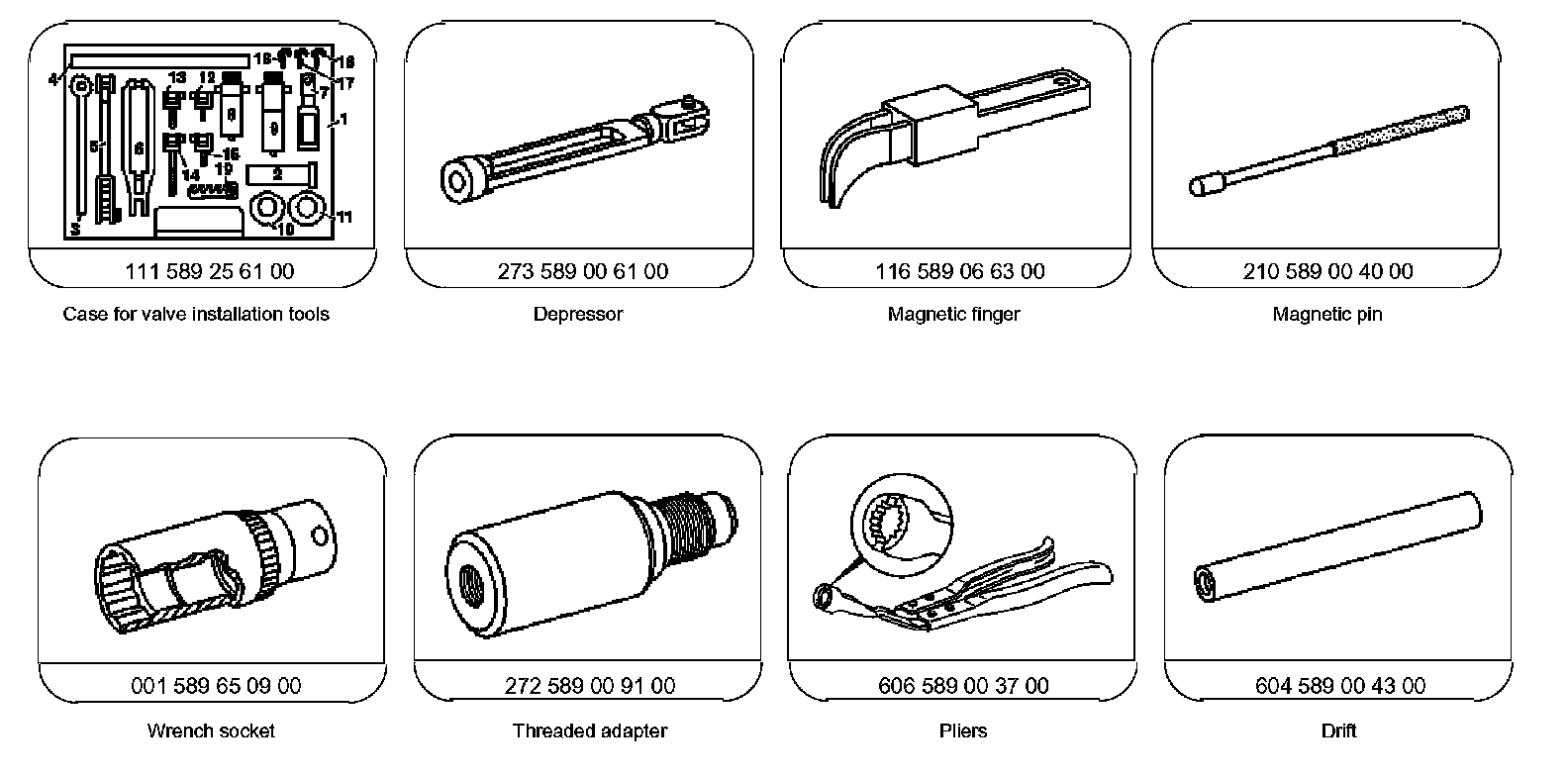

Special Tools:
