AR01.20-P-5013CV Remove/Install Left Cylinder Head Cover

AR01.20-P-5013CV Remove/Install Left Cylinder Head Cover
ENGINES 272 (except 272.982) in MODEL 204
ENGINES 272, 273 (except 272.982 /984) in MODEL 207

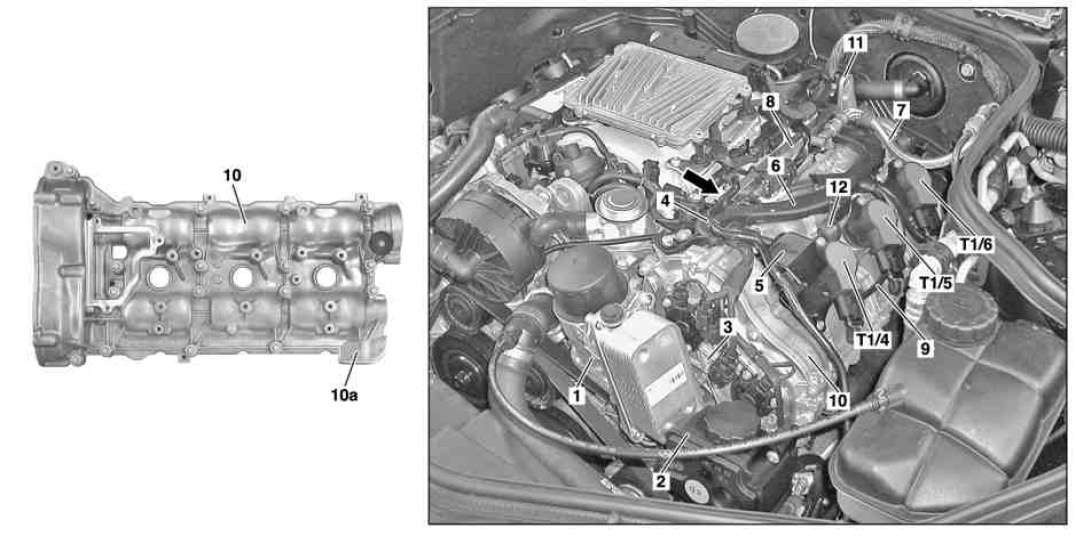

Shown on engine 272

1 Oil filter housing
2 Power steering expansion reservoir
3 Front cover
4 Purge line
5 Oil separator
6 Feed duct
7 Fuel line
8 Fuel distributor
9 Ground cable
10 Cylinder head cover
10a Heat shield
11 Engine suspension lug
12 Rubber mount

T1/4 Cylinder 4 ignition coil
T1/5 Cylinder 5 ignition coil
T1/6 Cylinder 6 ignition coil




















119 589 04 63 00
Pressure hose





129 589 00 91 00
Set of stop plugs





112 589 00 25 00
Squeeze gun
