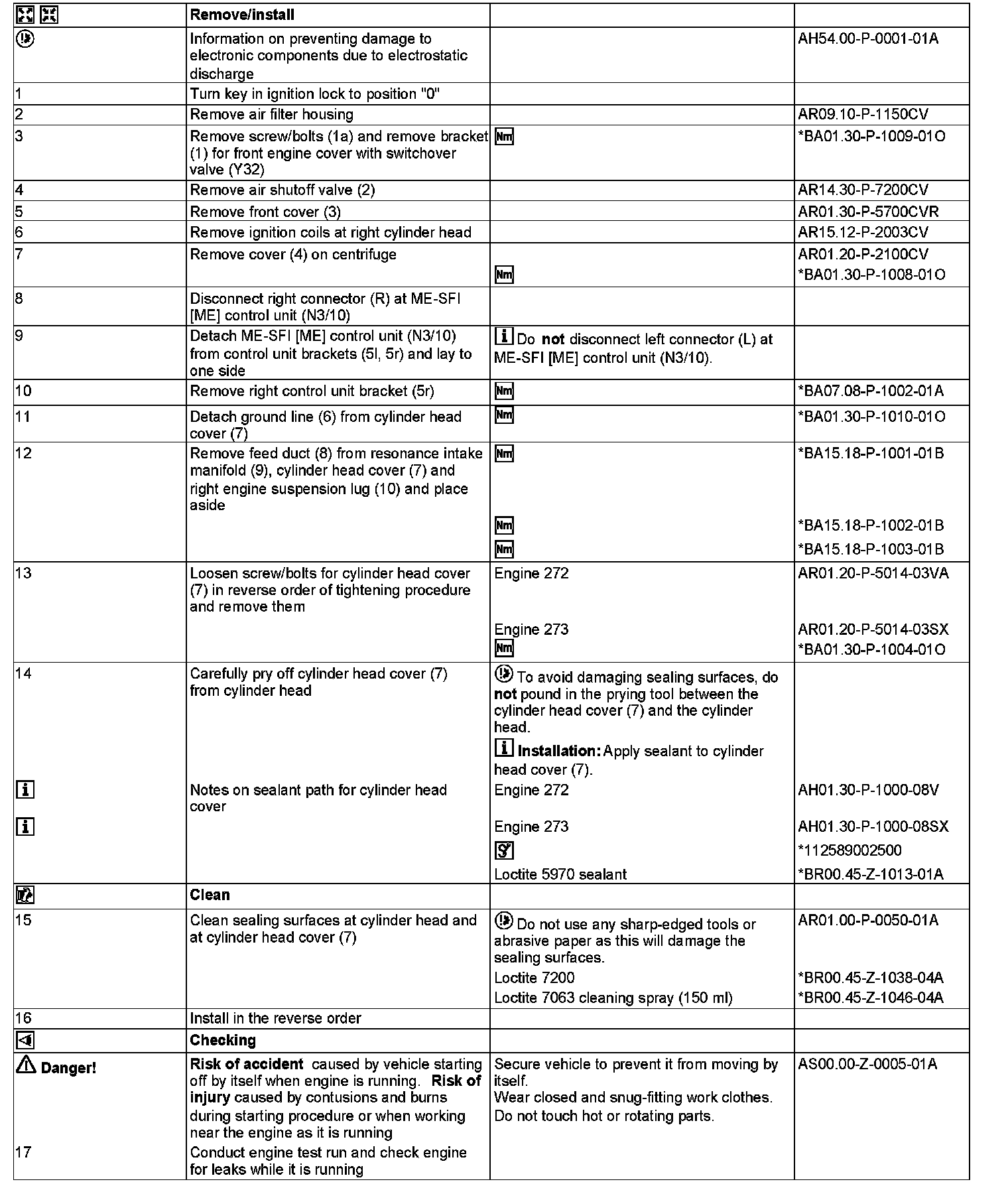

AR01.20-P-5012CV Remove/Install Right Cylinder Head Cover

AR01.20-P-5012CV Remove/Install Right Cylinder Head Cover
ENGINES 272 (except 272.982) in MODEL 204
ENGINES 272, 273 (except 272.982 /984) in MODEL 207

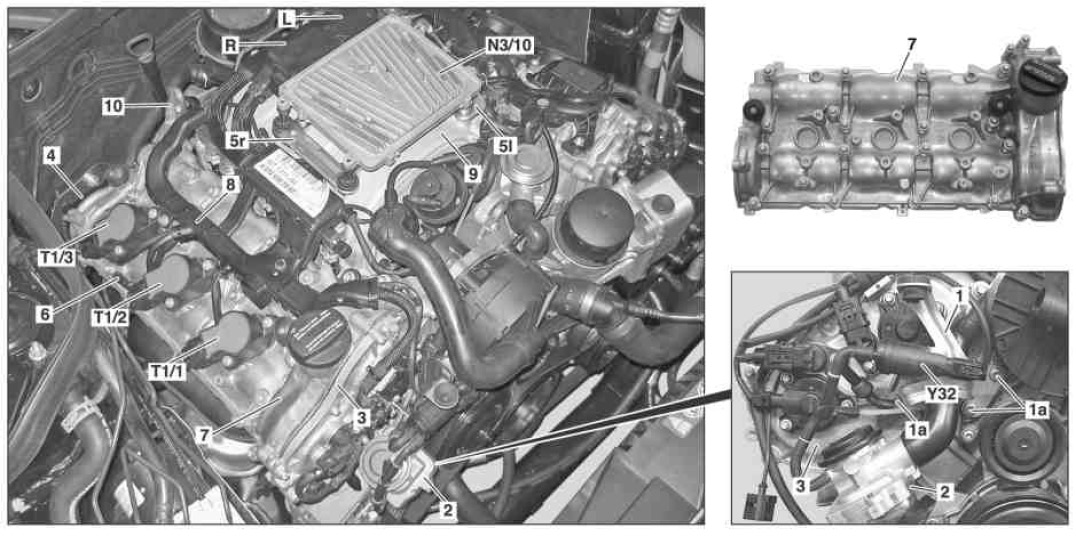

Shown on engine 272

1 Bracket
1a Screw/bolts
2 Air shutoff valve
3 Front cover
4 Cover
5l Left control unit bracket
5r Right control unit bracket
6 Ground cable
7 Cylinder head cover
8 Feed duct
9 Resonance intake manifold
10 Engine suspension lug

N3/10 ME-SFI [ME] control unit
T1/1 Cylinder 1 ignition coil
T1/2 Cylinder 2 ignition coil
T1/3 Cylinder 3 ignition coil
Y32 Air pump switchover valve

L Left connector
R Right connector

















112 589 00 25 00
Squeeze gun
