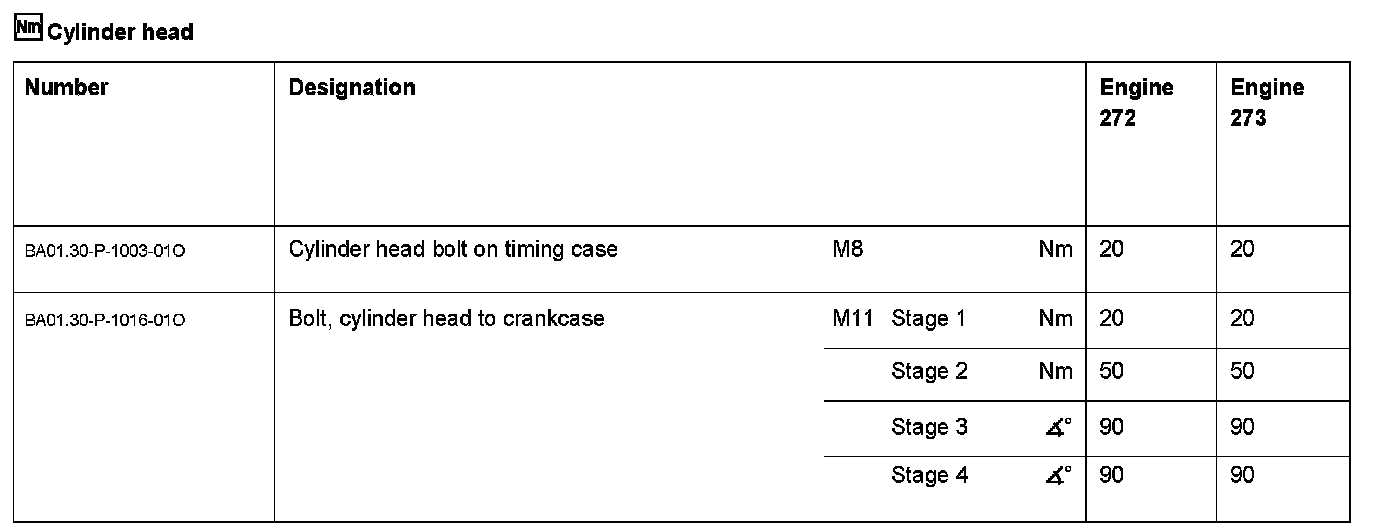

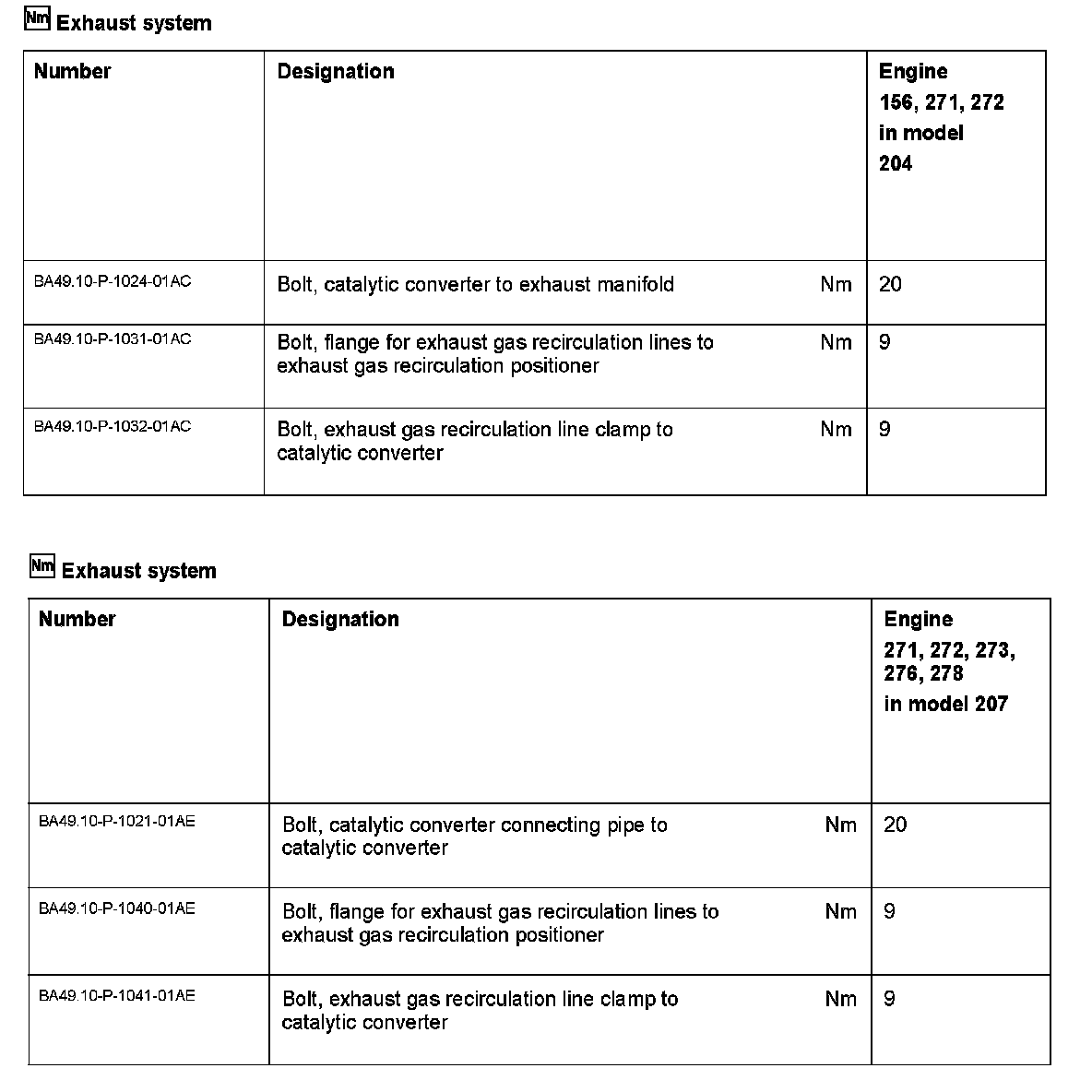

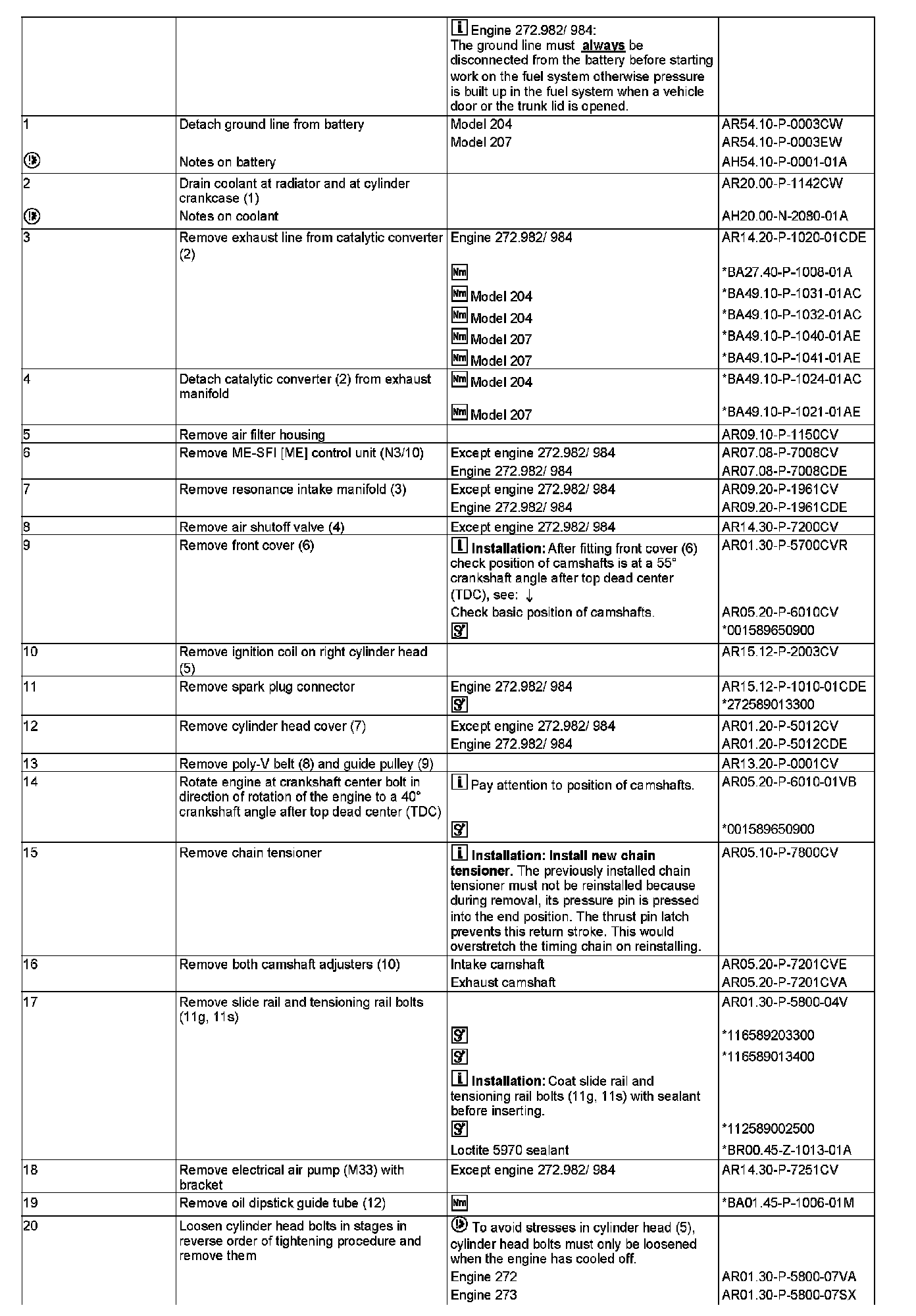

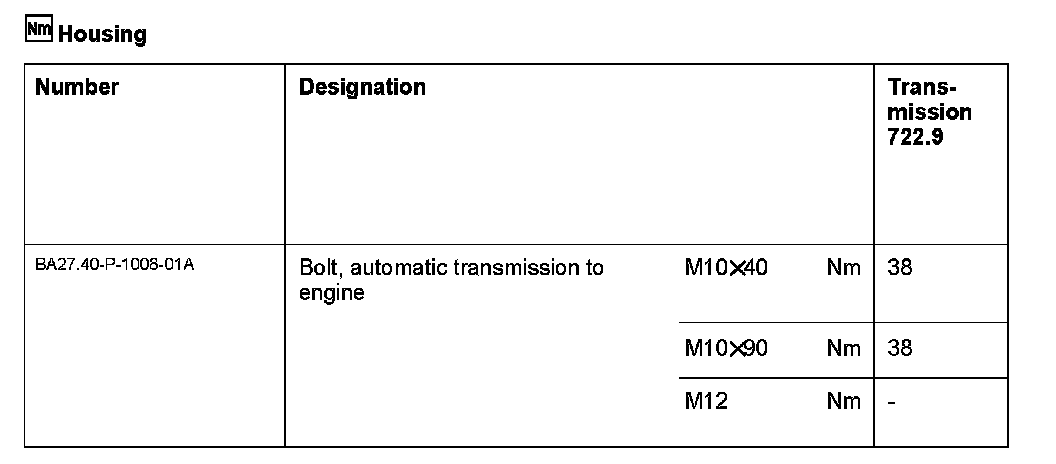

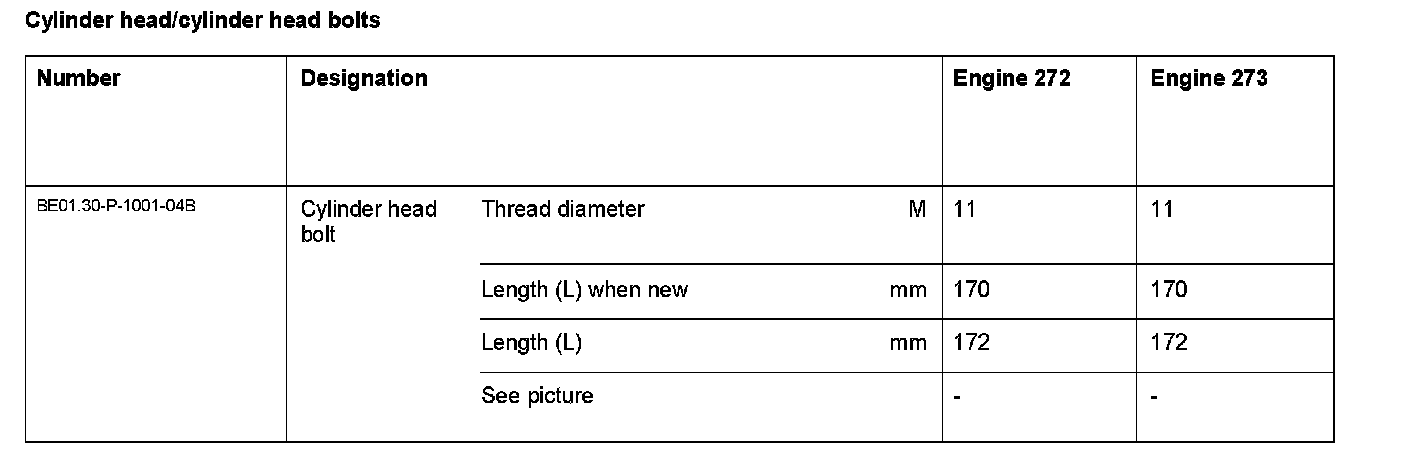

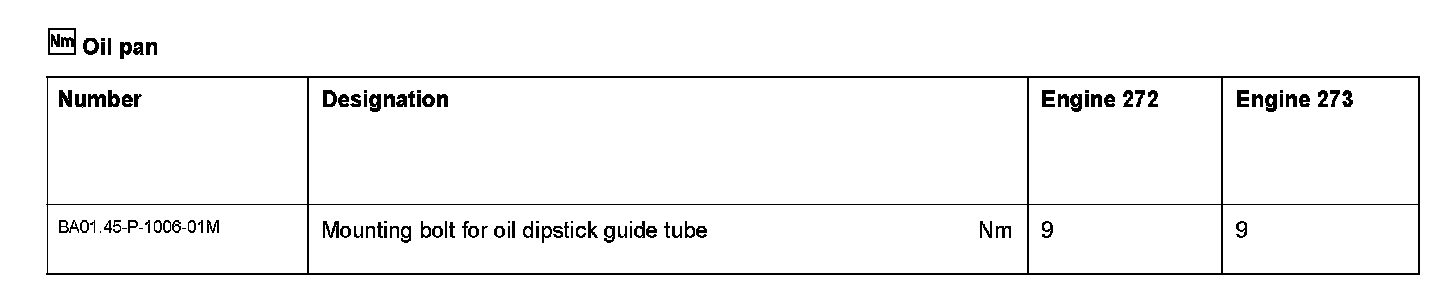

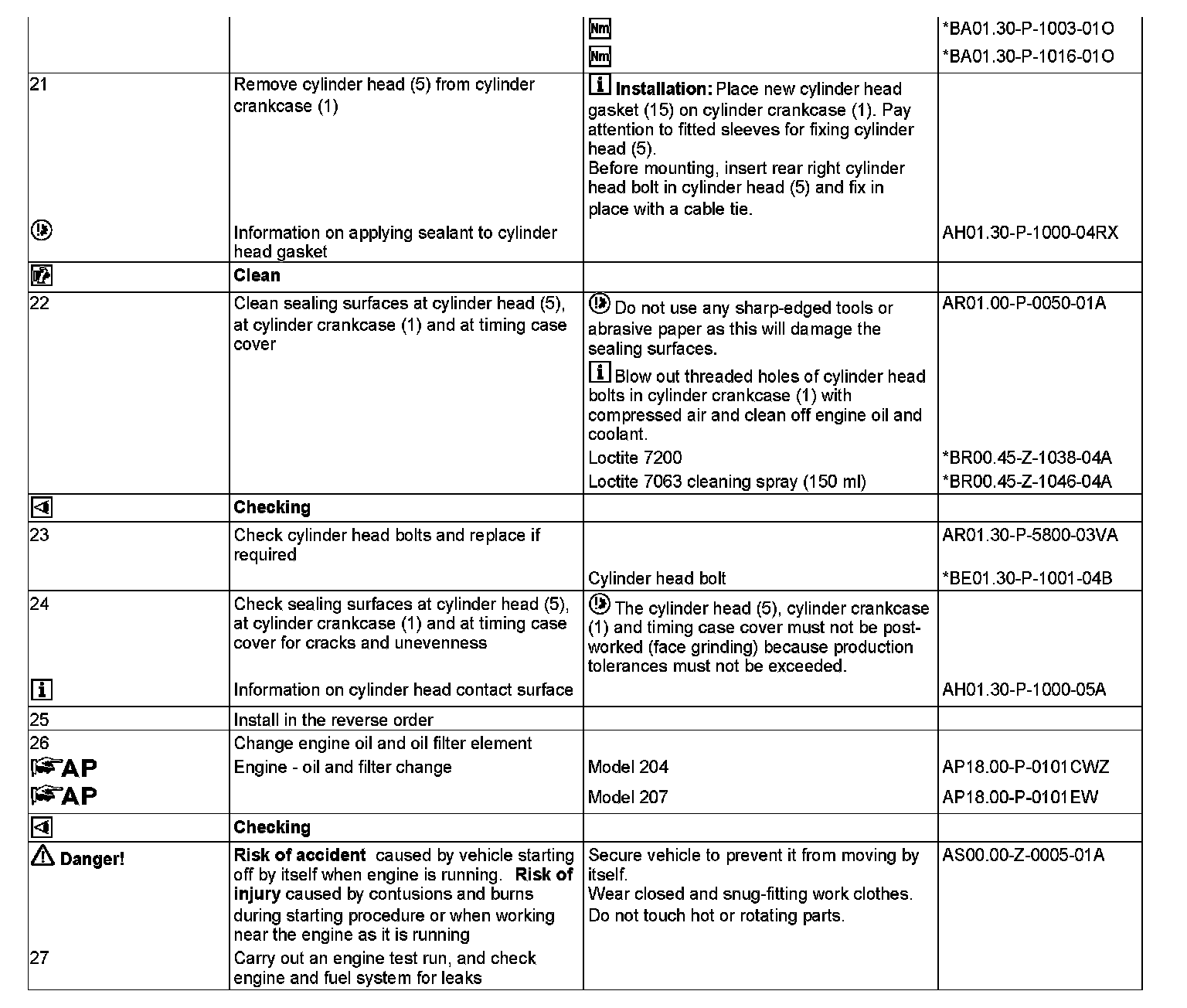

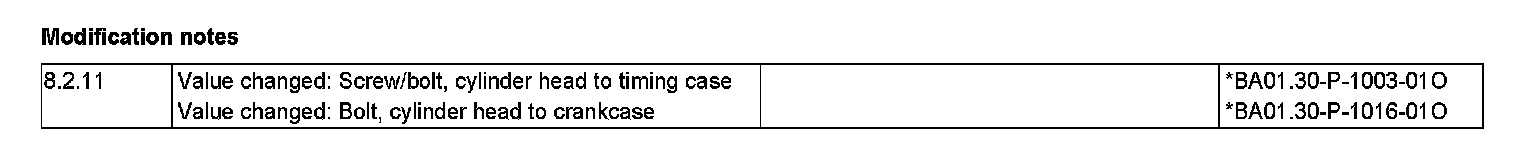

AR01.30-P-5780CV Remove/Install Right Cylinder Head

AR01.30-P-5780CV Remove/Install Right Cylinder Head
ENGINES 272 in MODEL 204
ENGINES 272, 273 in MODEL 207





Shown on engine 272

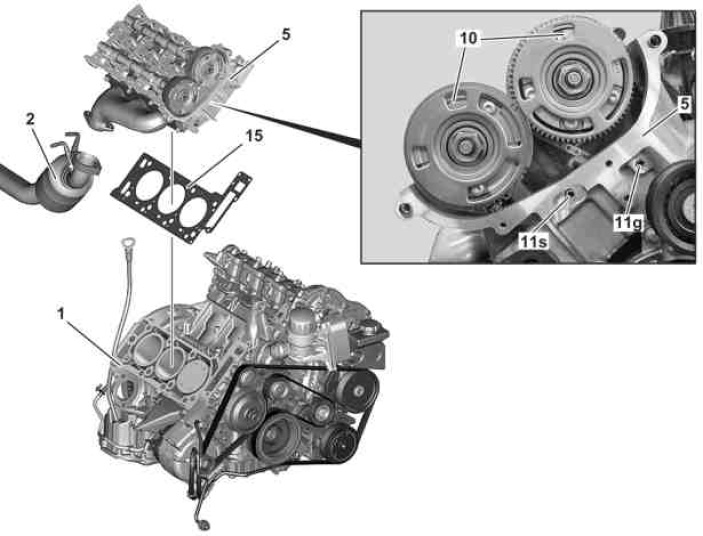

1 Cylinder crankcase
2 Catalytic converter
5 Cylinder head
10 Camshaft adjuster
11g Slide rail pins
11s Tensioning rail bolts
15 Cylinder head gasket





Shown on engine 272

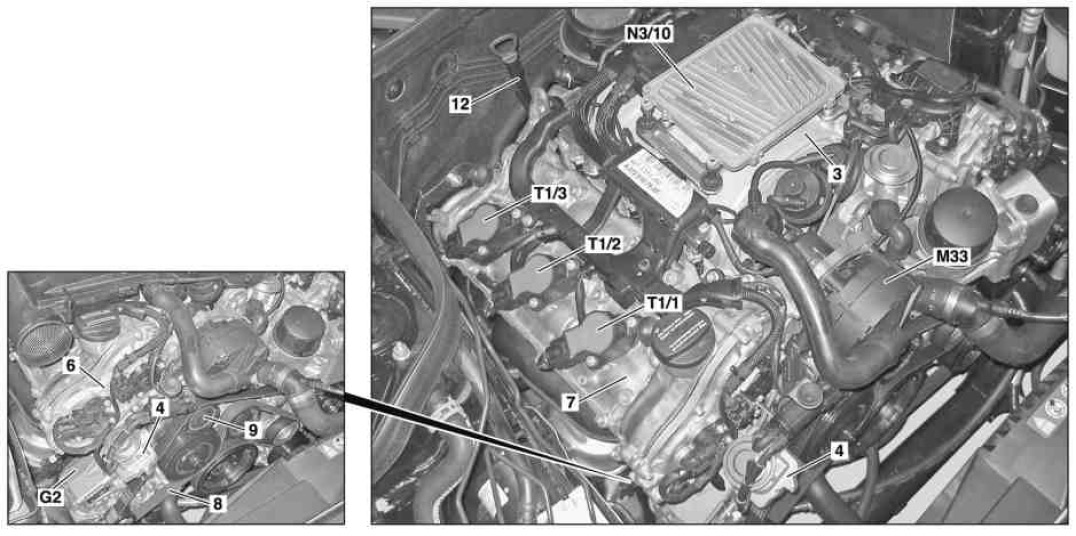

3 Resonance intake manifold
4 Air shutoff valve
6 Front cover
7 Cylinder head cover
8 Poly-V-belt
9 Pulley
12 Oil dipstick guide tube

G2 Generator
M33 Electric air pump
N3/10 ME-SFI [ME] control unit
T1/1 Cylinder 1 ignition coil
T1/2 Cylinder 2 ignition coil
T1/3 Cylinder 3 ignition coil
































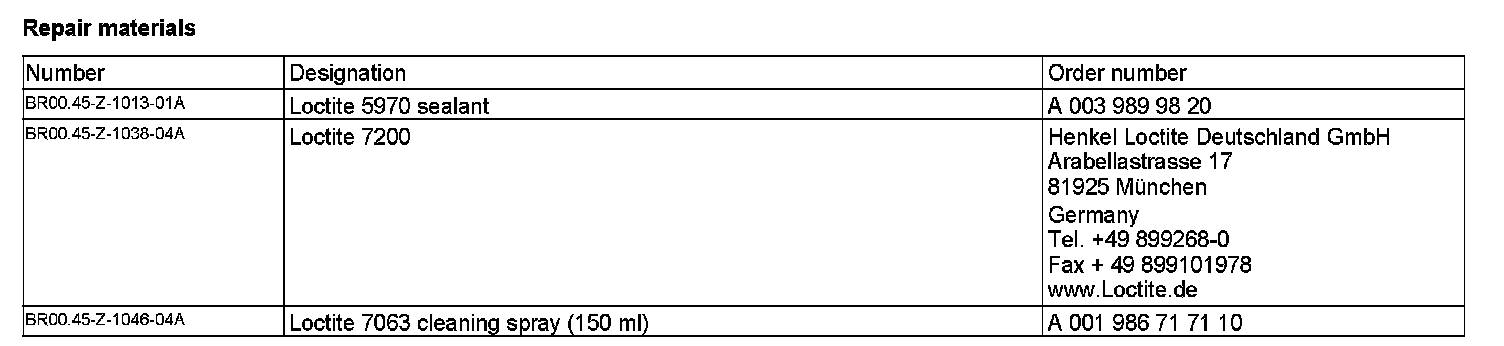

001 589 65 09 00
Wrench socket





116 589 20 33 00
Impact extractor





116 589 01 34 00
Threaded stud





112 589 00 25 00
Squeeze gun





272 589 01 33 00
Puller
