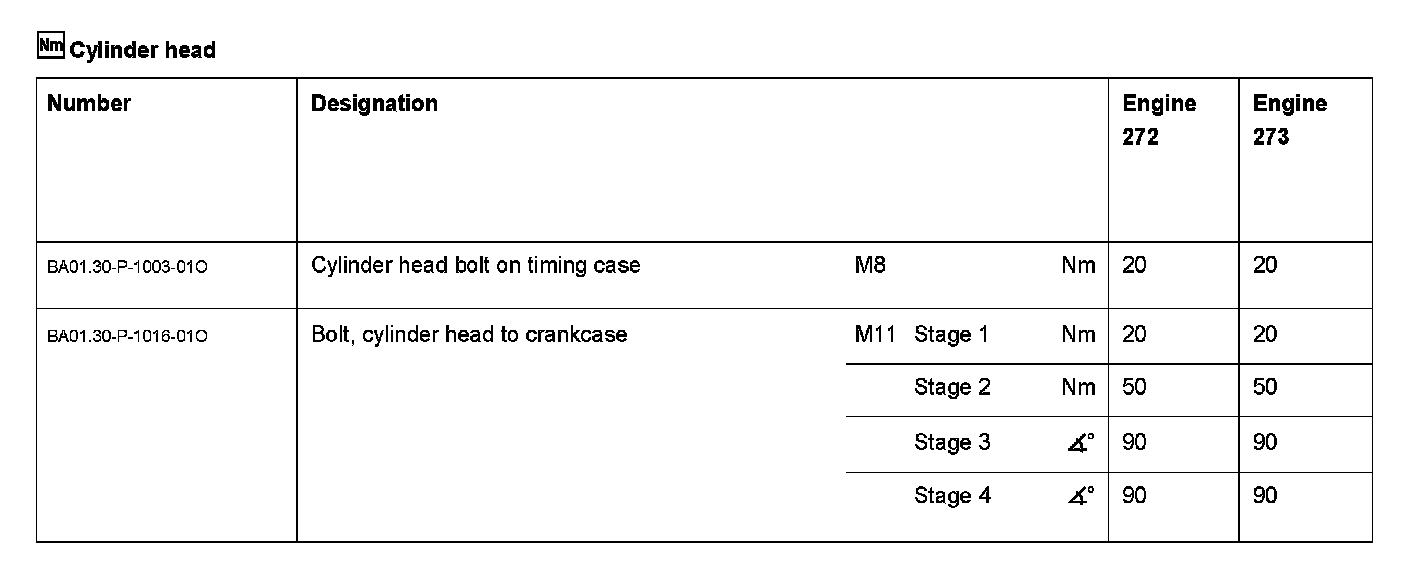

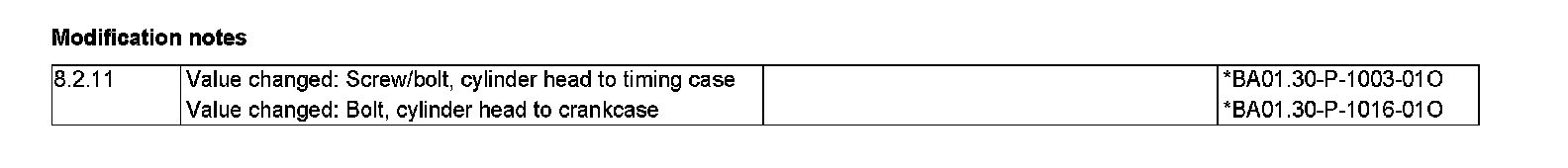

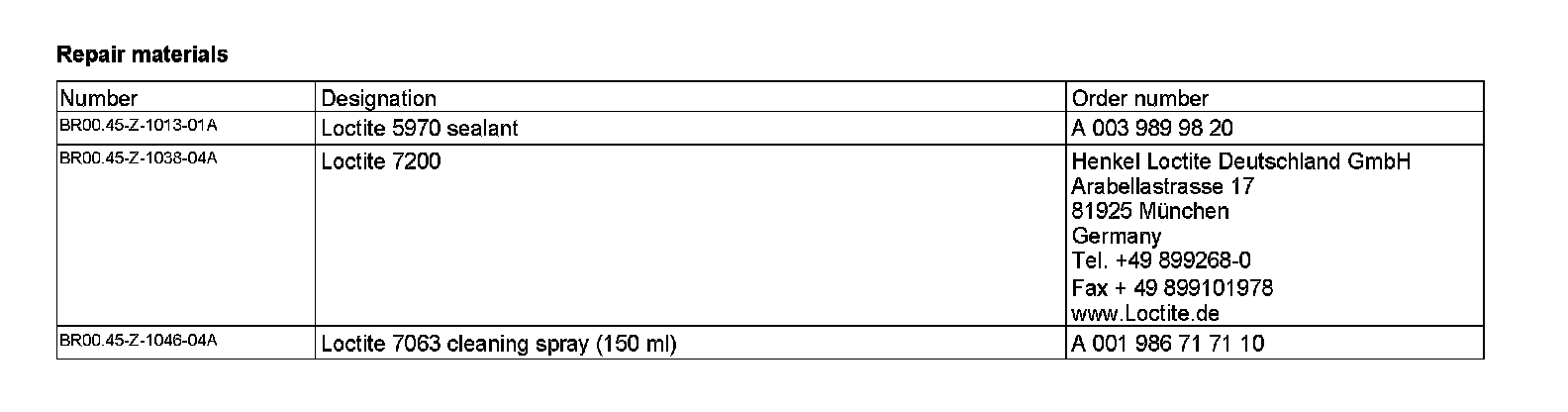

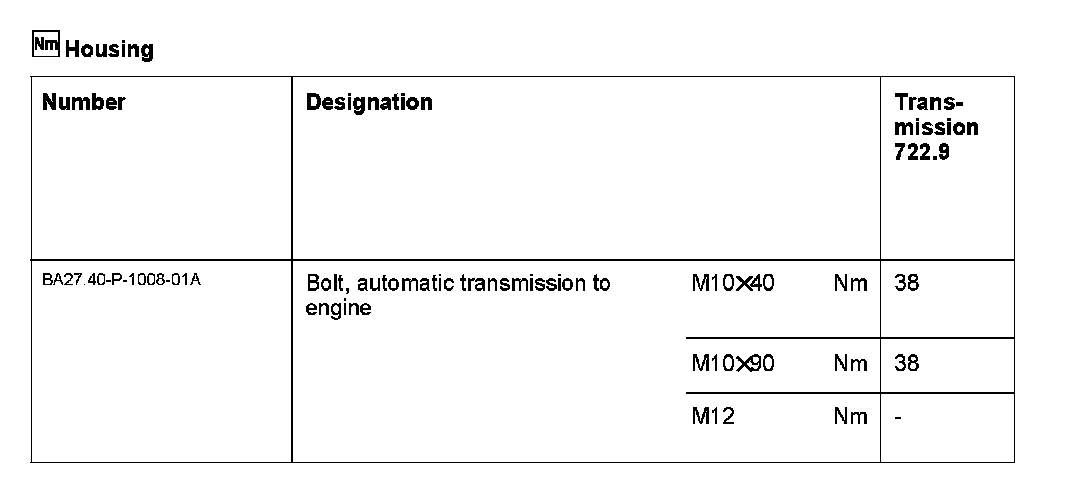

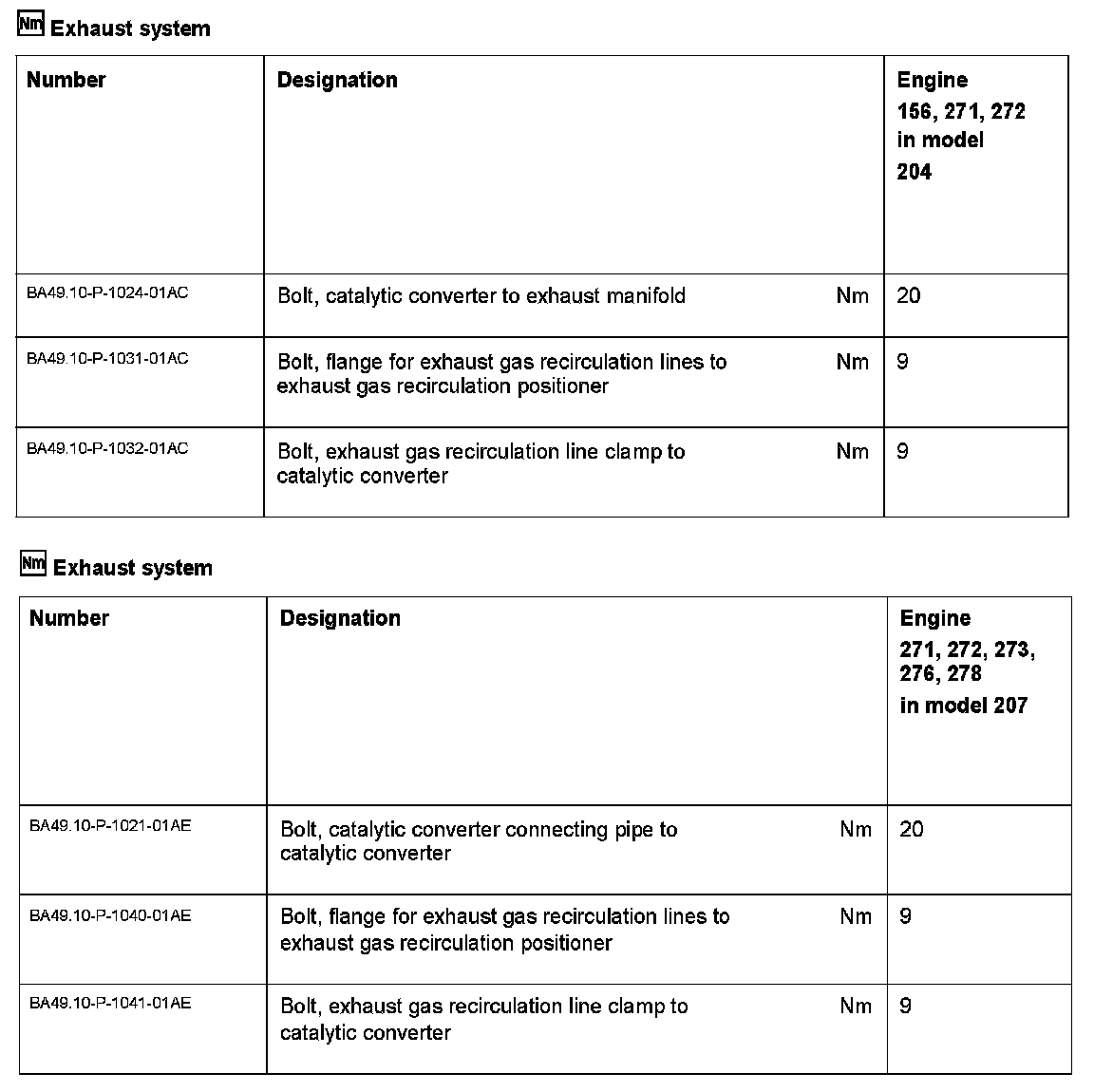

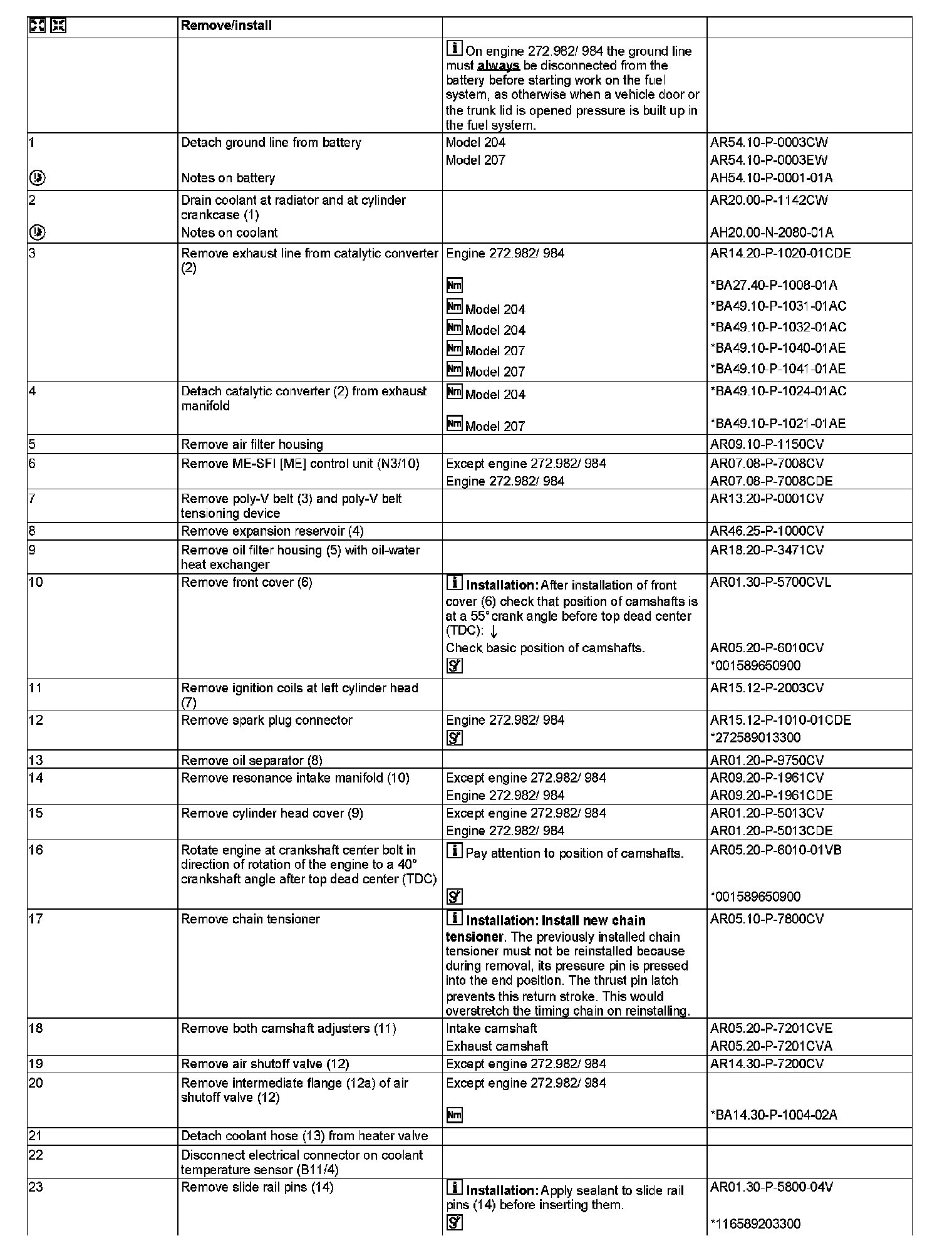

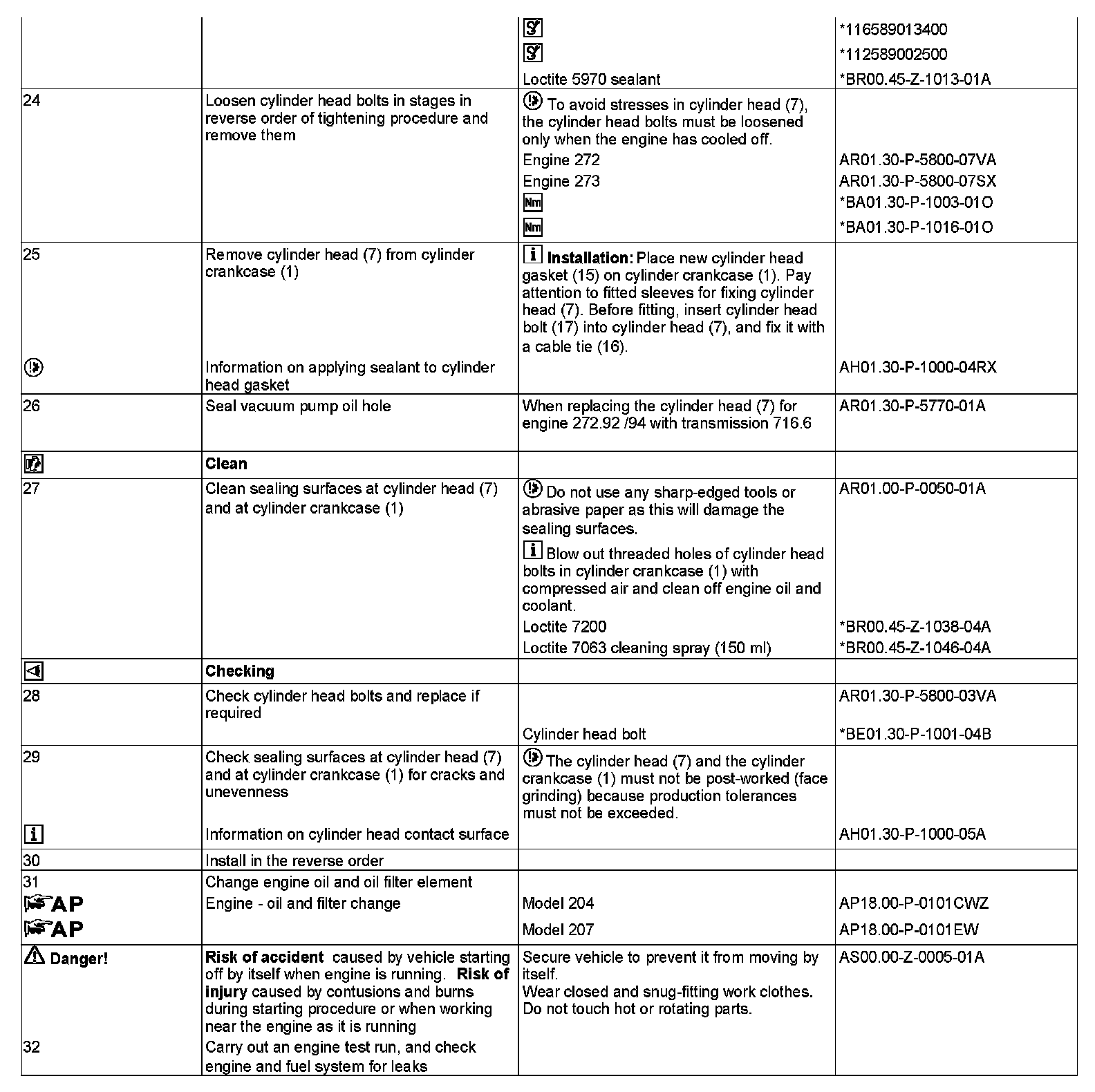

AR01.30-P-5770CV Remove/Install the Cylinder Head

AR01.30-P-5770CV Remove/Install The Cylinder Head
ENGINES 272 in MODEL 204
ENGINES 272, 273 in MODEL 207





Shown on engine 272

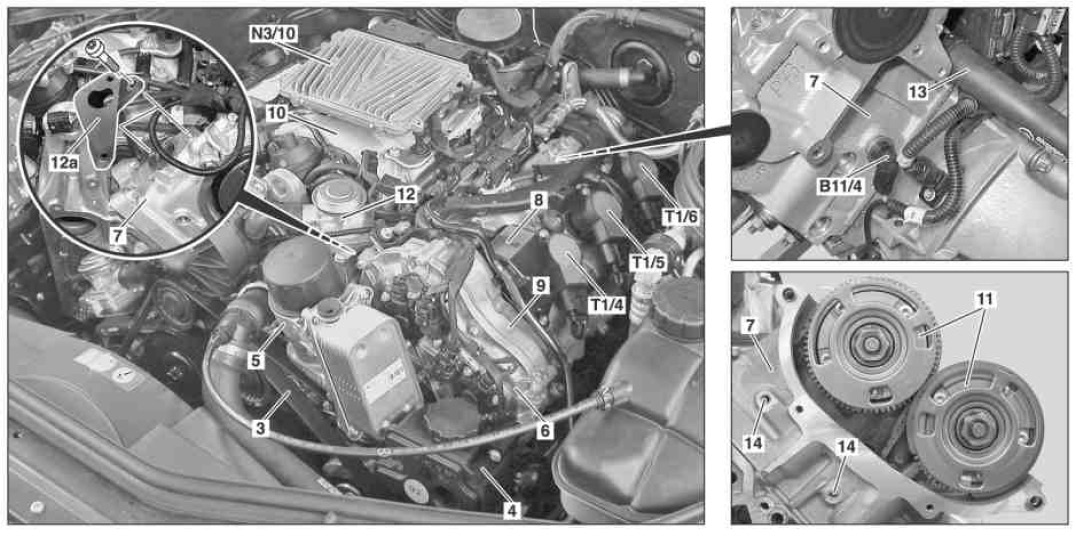

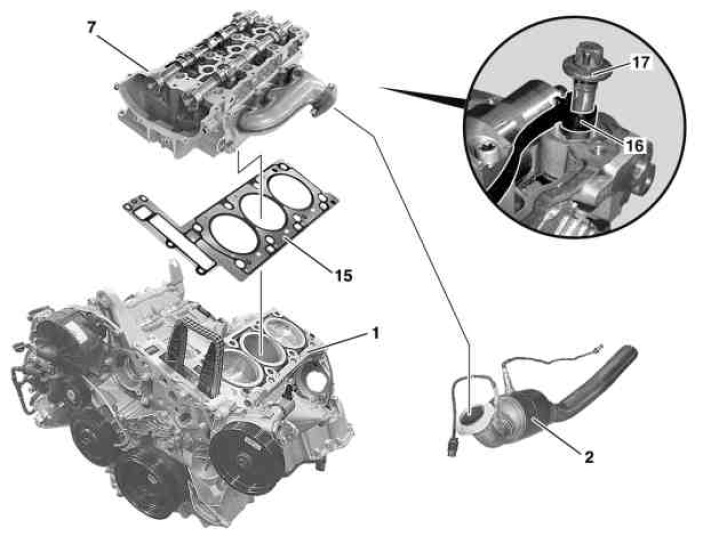

1 Cylinder crankcase
2 Catalytic converter
7 Cylinder head
15 Cylinder head gasket
16 Cable tie

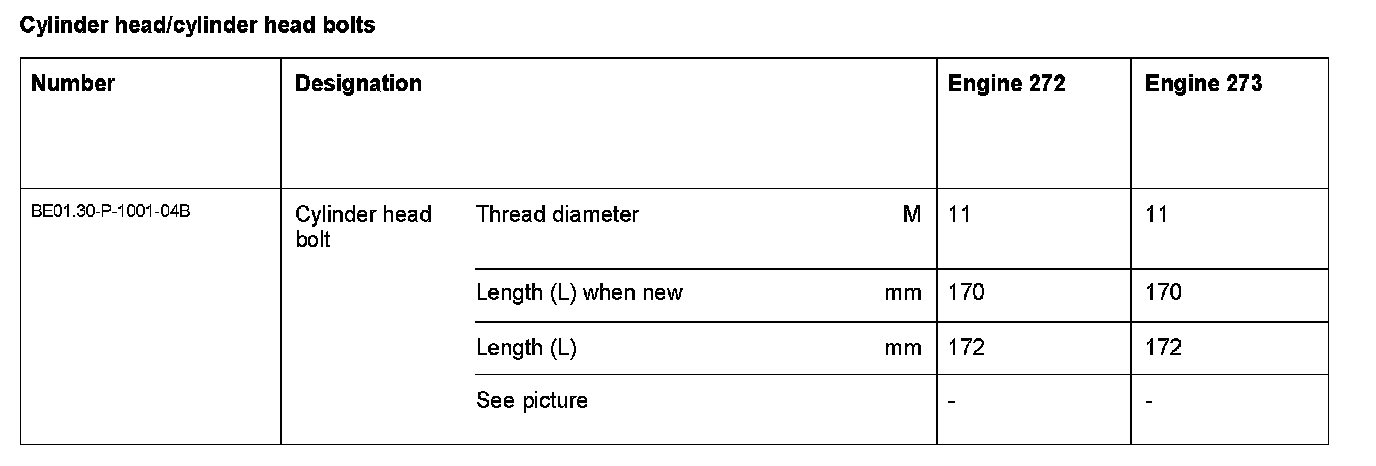

17 Cylinder head bolt





Shown on engine 272

3 Poly-V-belt
4 Power steering expansion reservoir
5 Oil filter housing
6 Front cover
7 Cylinder head
8 Oil separator
9 Cylinder head cover
10 Resonance intake manifold
11 Camshaft adjuster

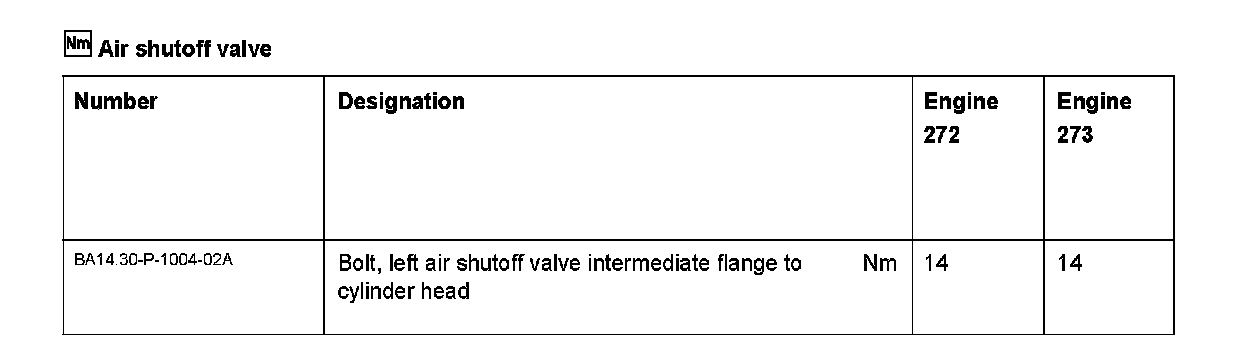

12 Air shutoff valve
12a Intermediate flange
13 Coolant hose
14 Slide rail pins

B11/4 Coolant temperature sensor
N3/10 ME-SFI [ME] control unit
T1/4 Cylinder 4 ignition coil
T1/5 Cylinder 5 ignition coil
T1/6 Cylinder 6 ignition coil





























001 589 65 09 00
Wrench socket





116 589 20 33 00
Impact extractor





116 589 01 34 00
Threaded stud





112 589 00 25 00
Squeeze gun





272 589 01 33 00
Puller
