Harmonic Balancer - Crankshaft Pulley: Service and Repair



AR03.30-P-1600CV Remove/install belt pulley/vibration damper

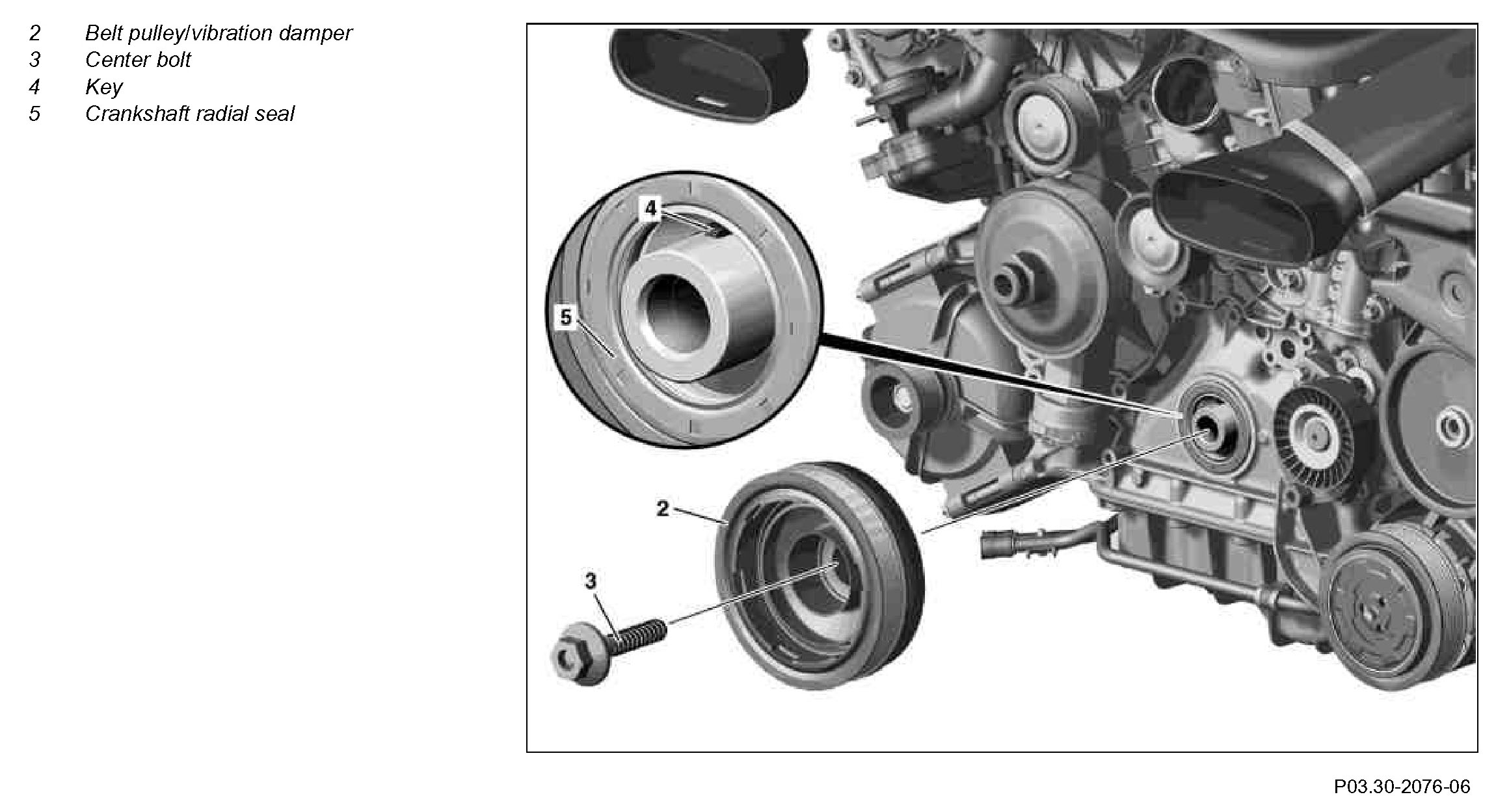

Component Identification:

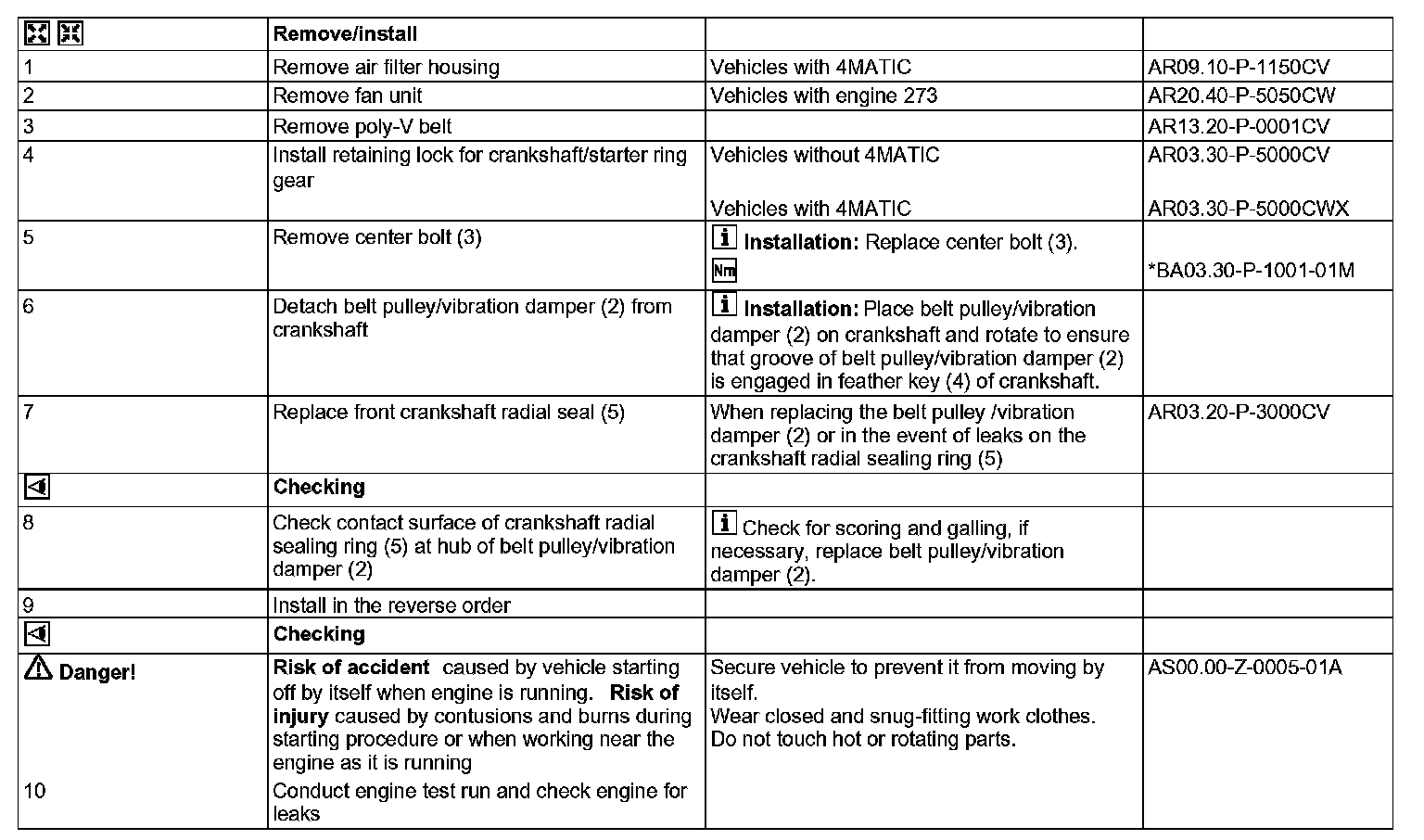

Steps 1-10:

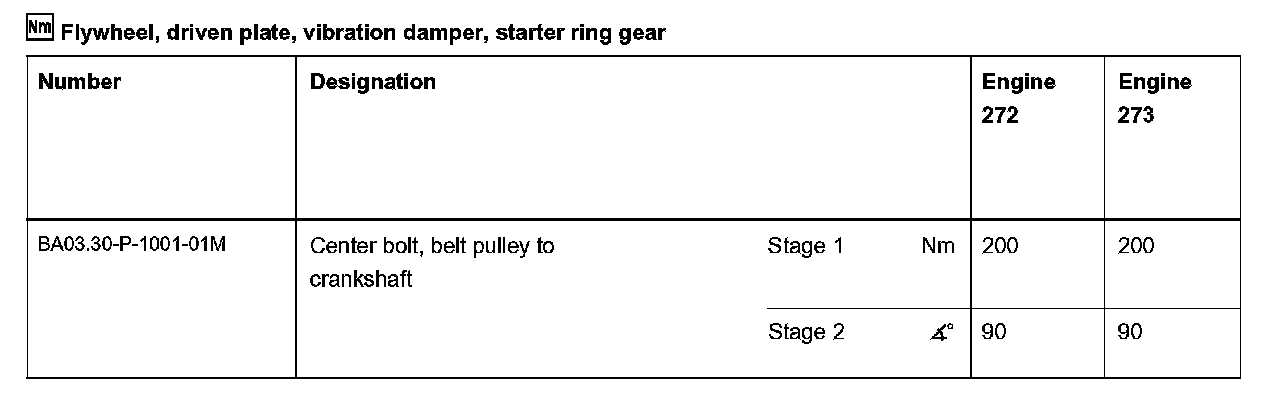

Flywheel, driven plate, vibration damper, starter ring gear:
