Lifter / Lash Adjuster: Service and Repair

AR05.00-P-2011CV Remove, install hydraulic valve clearance compensating elements

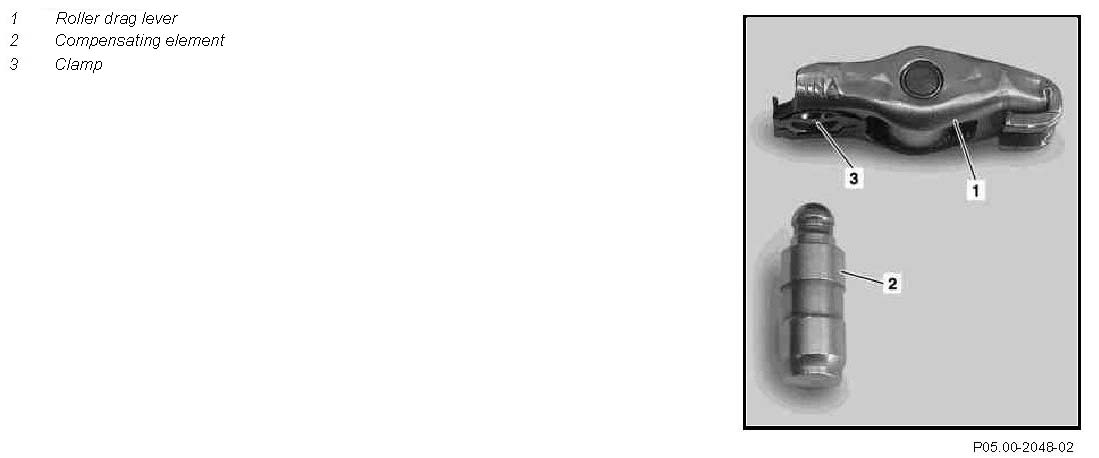

Component Identification:

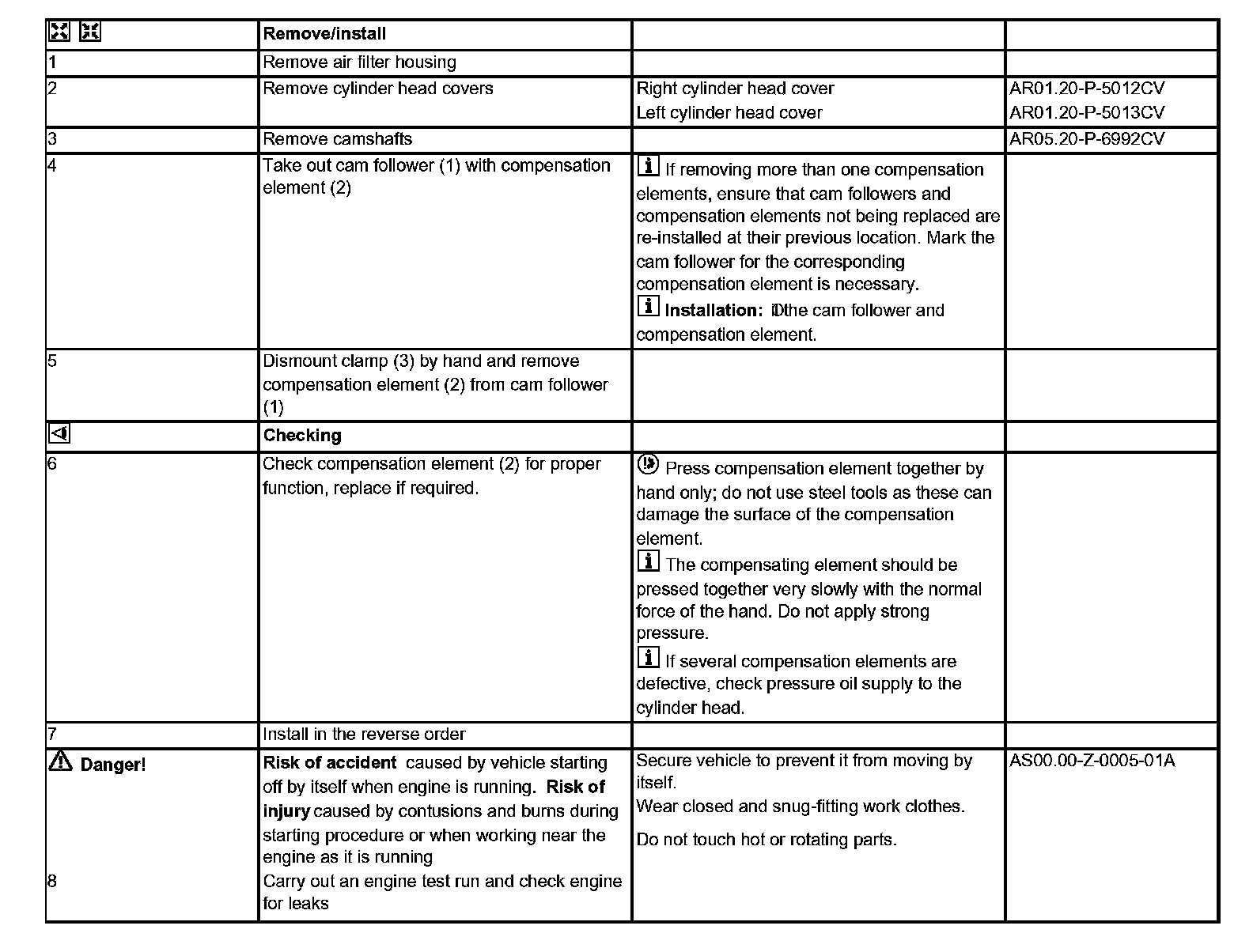

Remove/install Steps 1-8:
