Camshaft: Testing and Inspection
AR05.20-P-6010CV Check basic position of camshafts

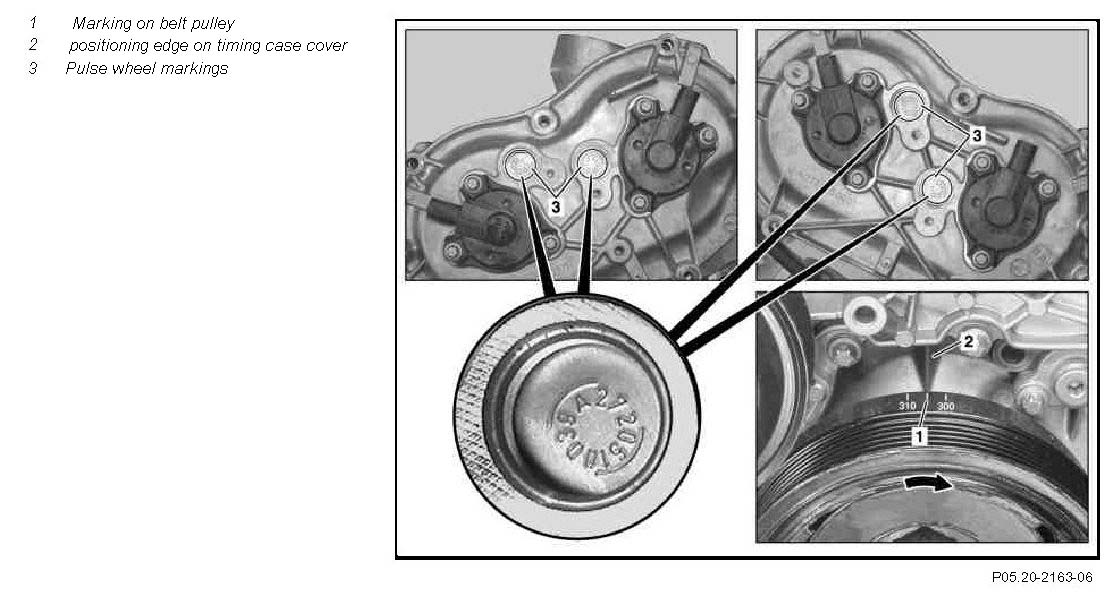

Component Identification:

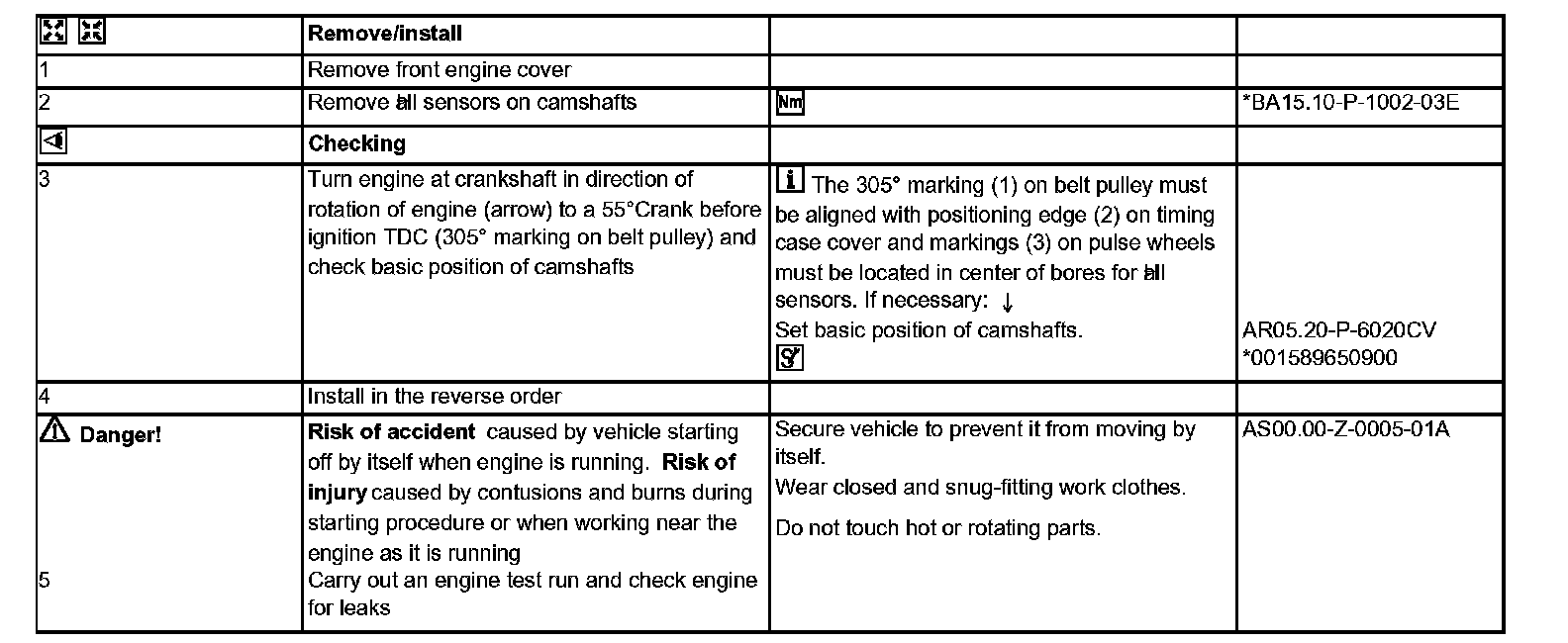

Remove/install Steps 1-5:

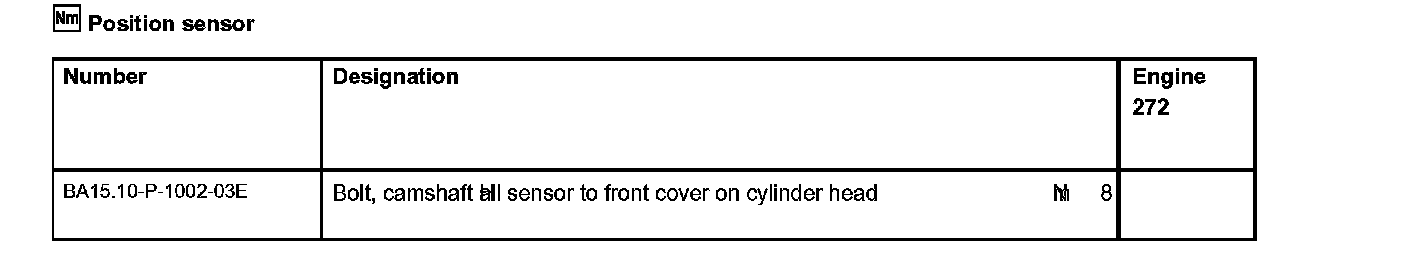

Position sensor:

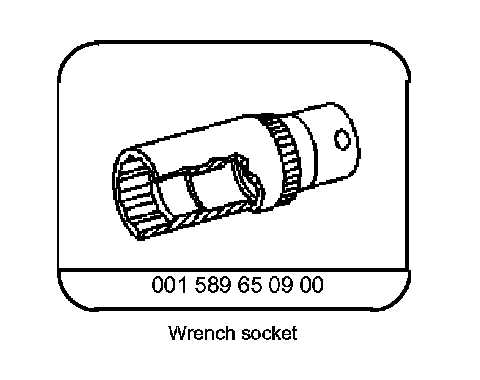

Special Tools:
