Home >> Mercedes Benz >> 2012 >> C 300 4MATIC (204.081) V6-3.0L (272.948) >> Repair and Diagnosis >> Engine, Cooling and Exhaust >> Cooling System >> Thermostat >> Service and Repair

Thermostat: Service and Repair



AR20.10-P-2460CV Remove/install coolant thermostat
- Three-disk thermostat


Component Identification:

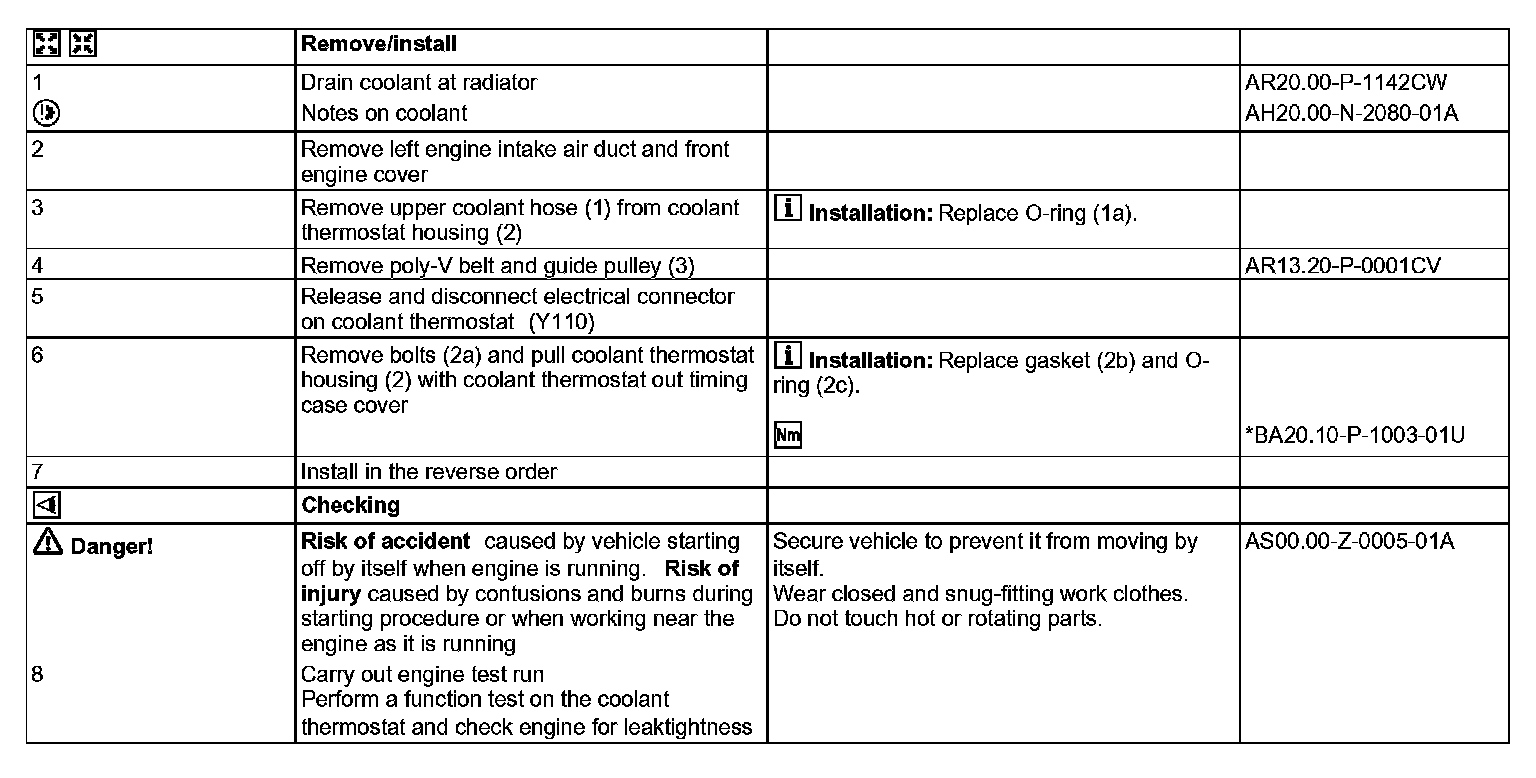

Steps 1-8:

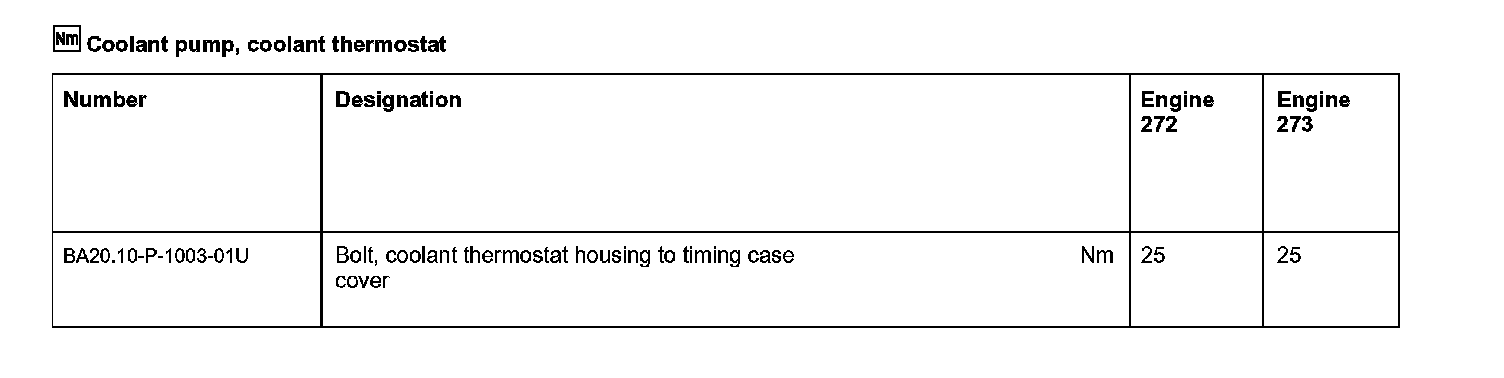

Coolant pump, coolant thermostat:
