Home >> Mercedes Benz >> 2012 >> C 300 4MATIC (204.081) V6-3.0L (272.948) >> Repair and Diagnosis >> Engine, Cooling and Exhaust >> Cooling System >> Service and Repair >> Procedures

Procedures



AR20.00-P-1142CW Drain/fill in coolant

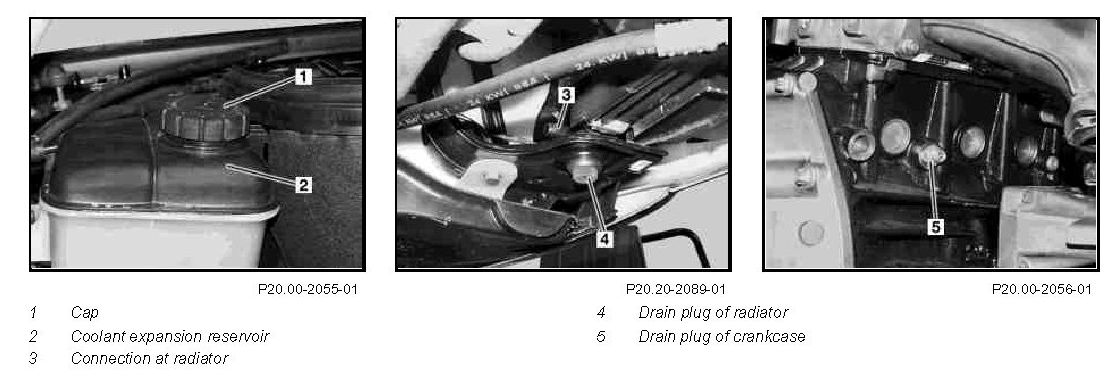

Component Identification:

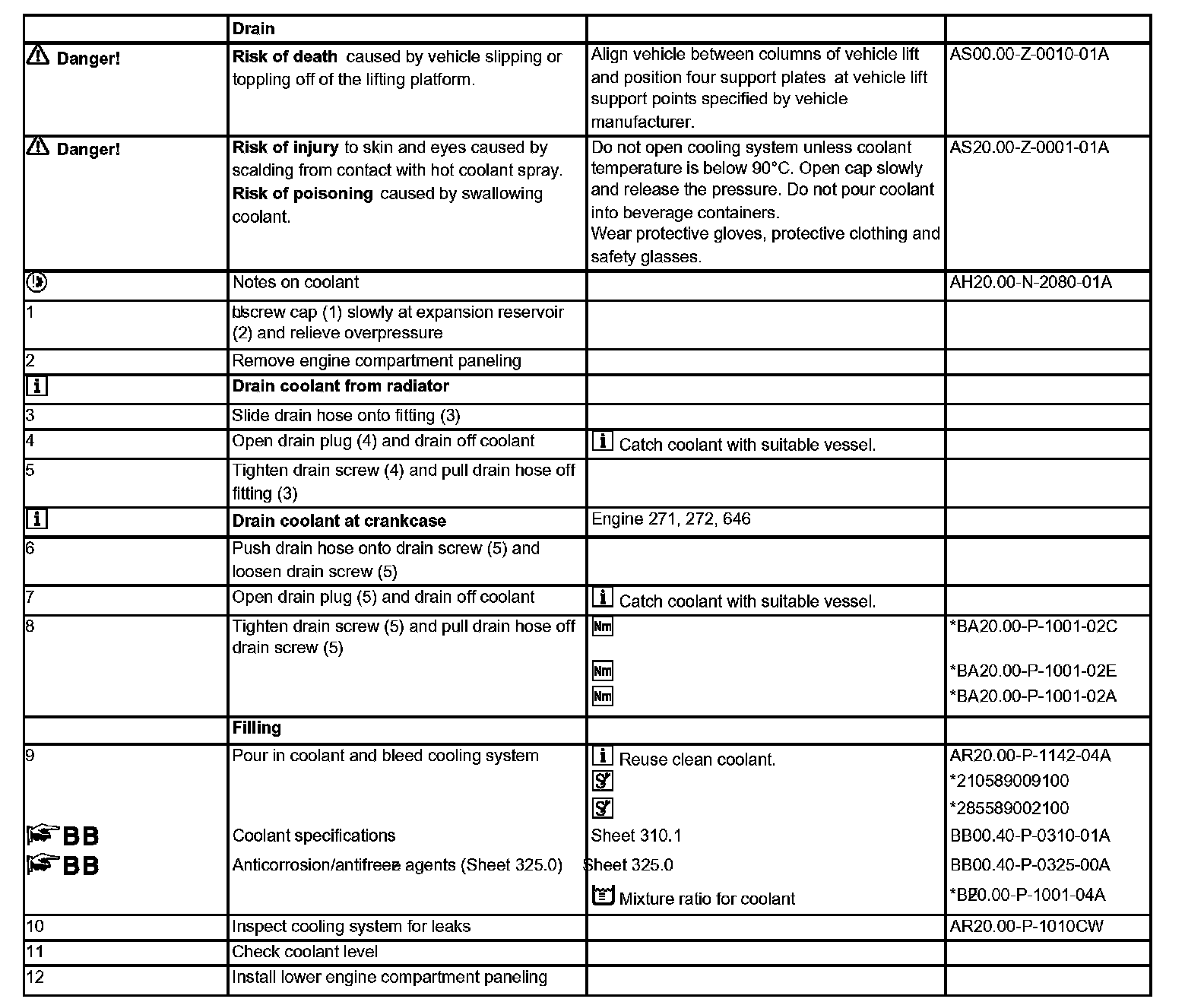

Steps 1-12:

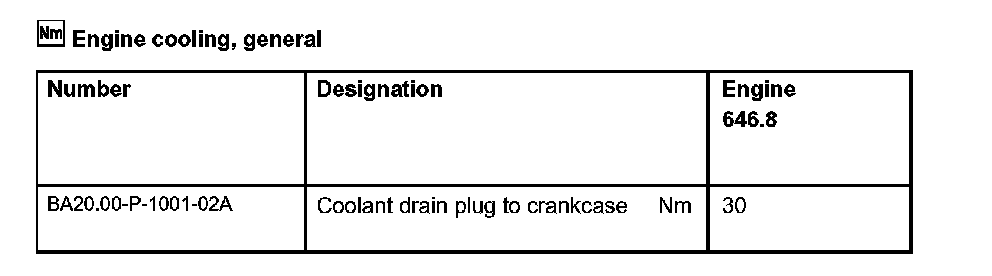

Engine cooling, general:

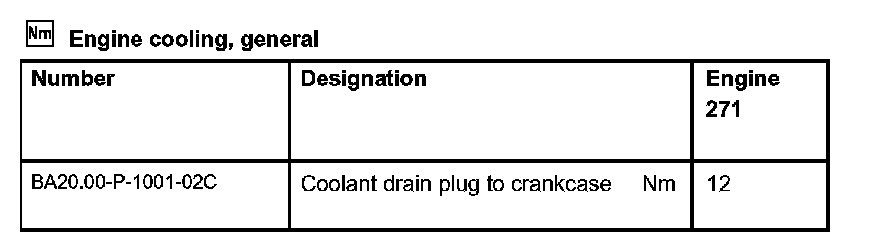

Engine cooling, general:

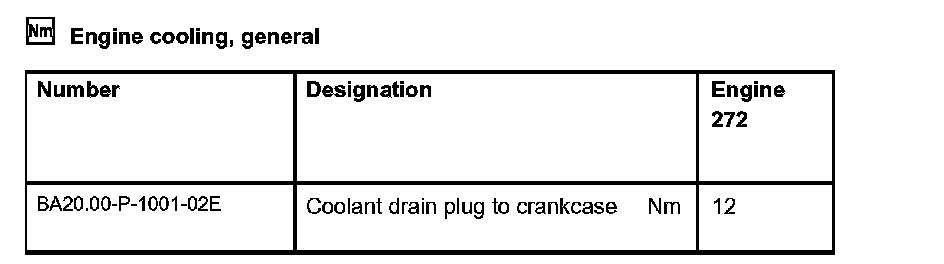

Engine cooling, general:

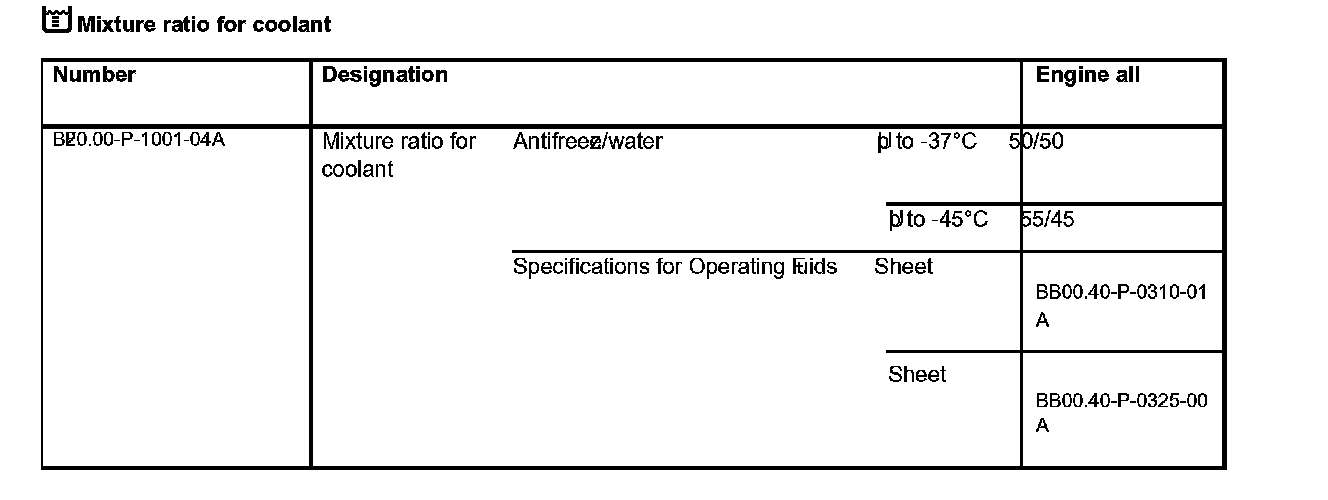

Mixture ratio for coolant:

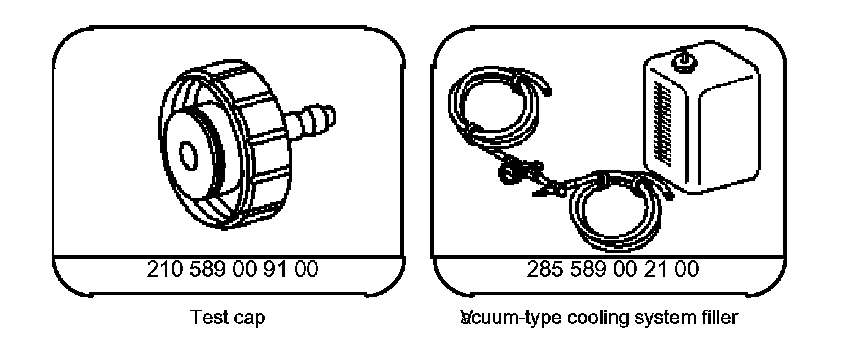

Special Tools:
