Oil Filter Housing
Oil Filter Housing
AR18.20-P-3471-01VA Bolt plan for the
oil filter housing

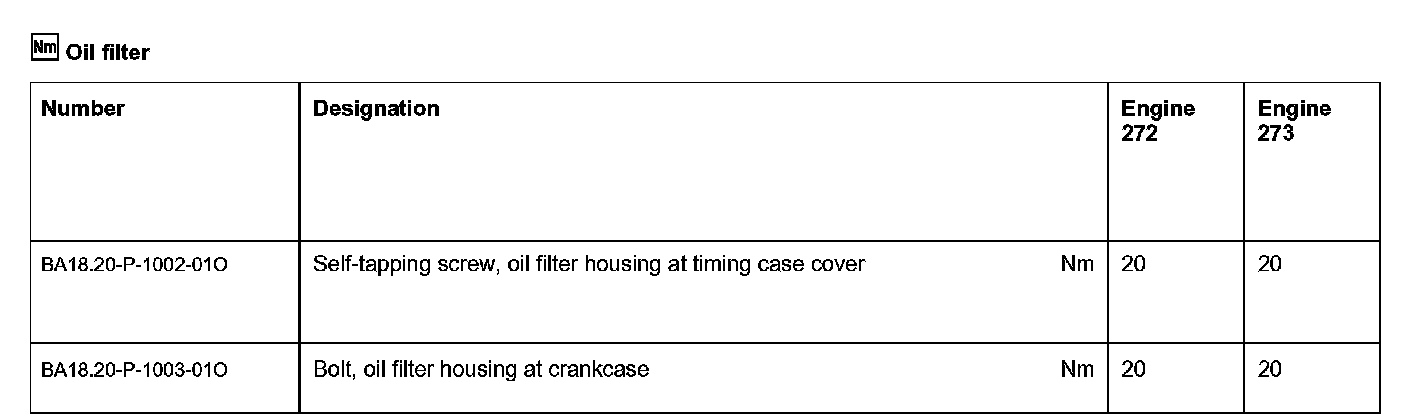

Oil filter:

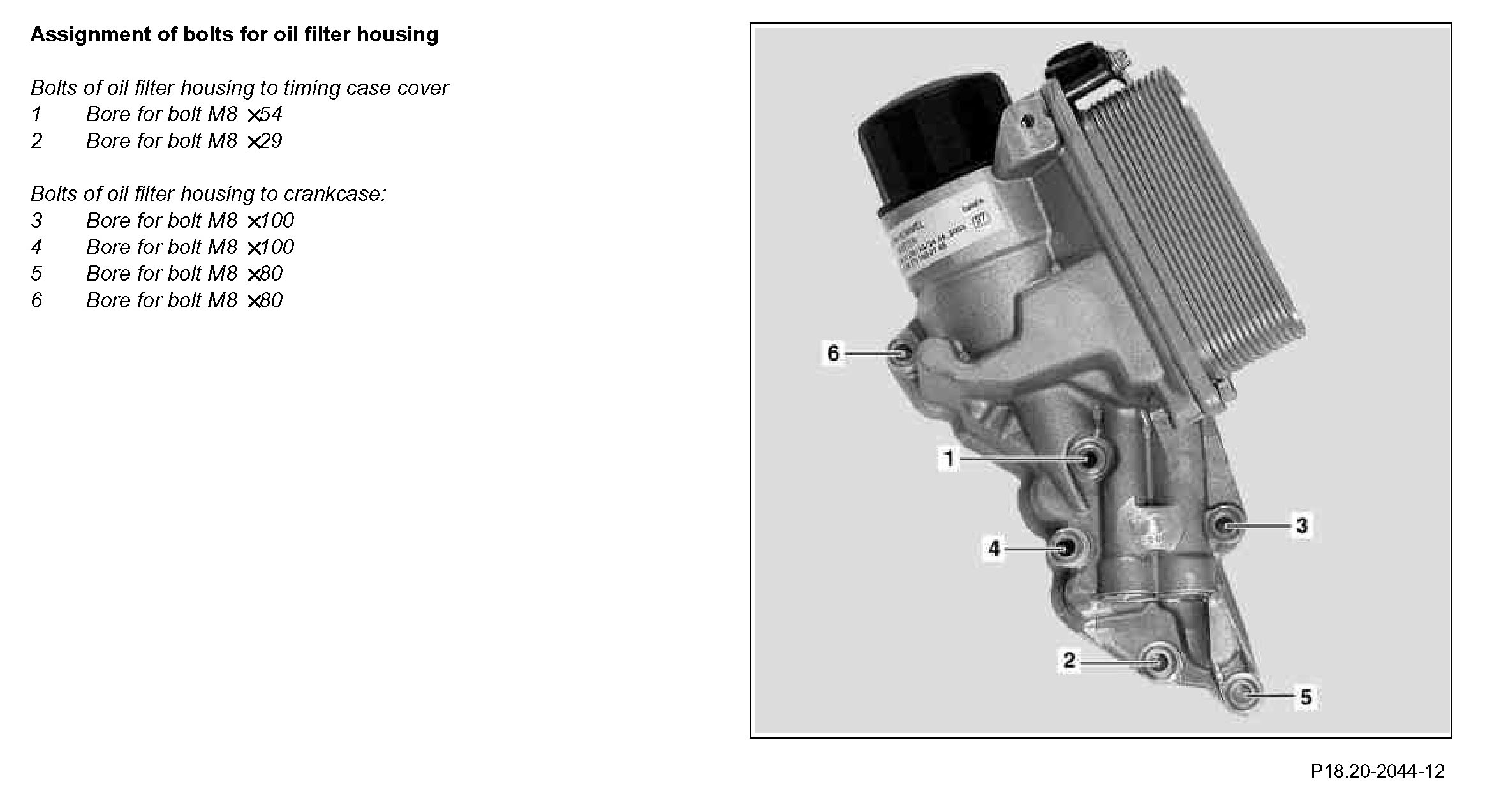

Assignment of bolts for oil filter housing:
