Ignition Switch

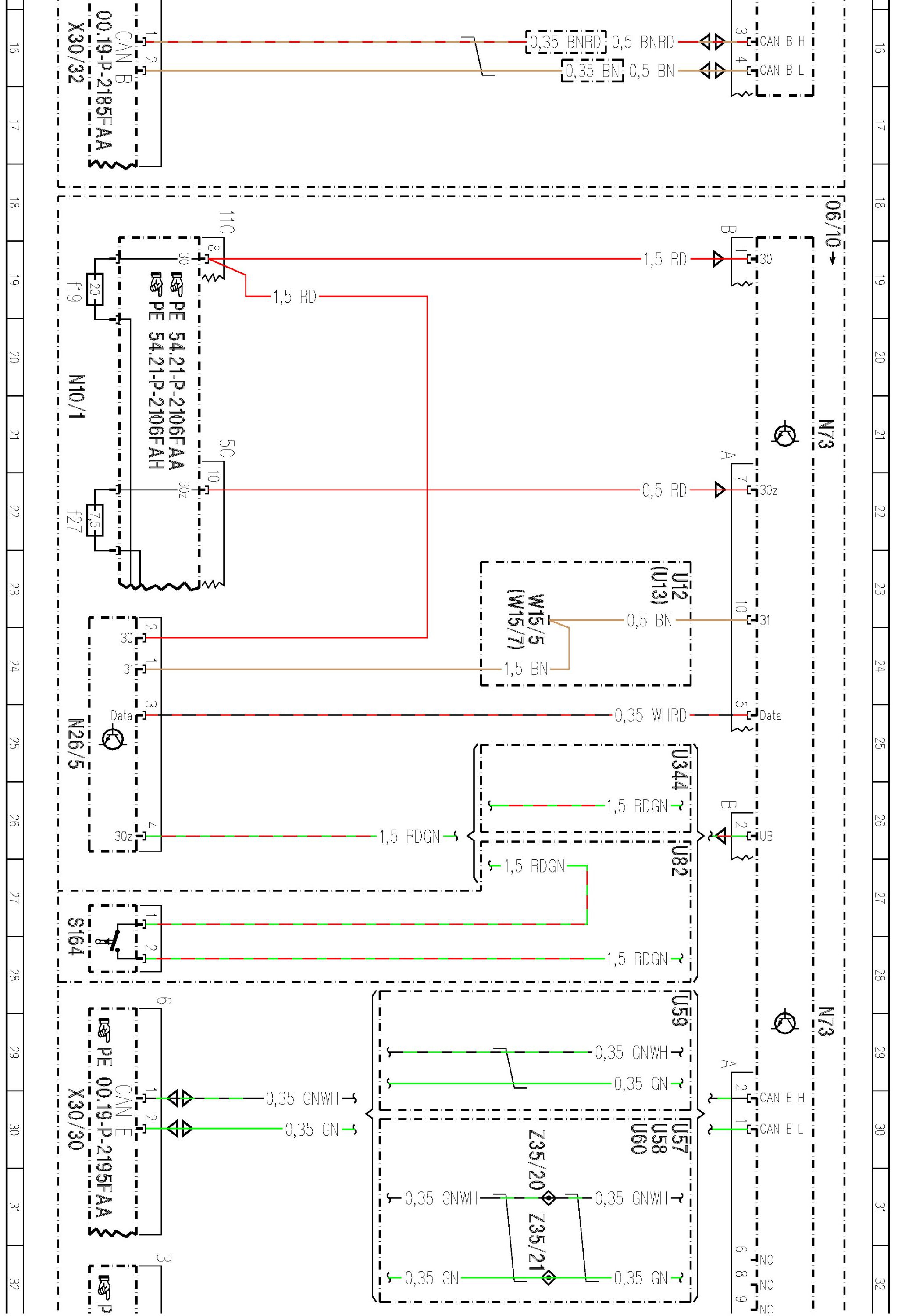

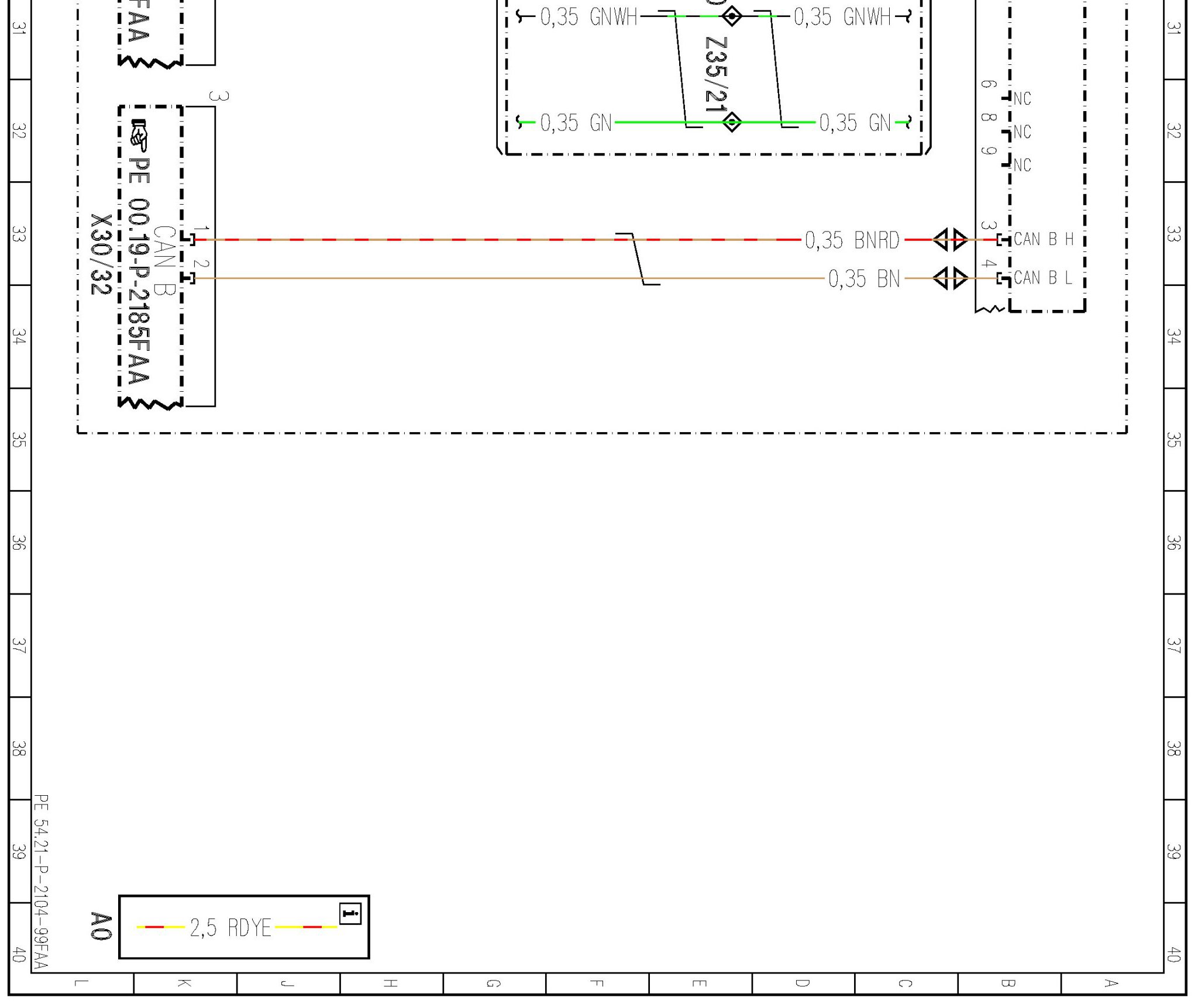

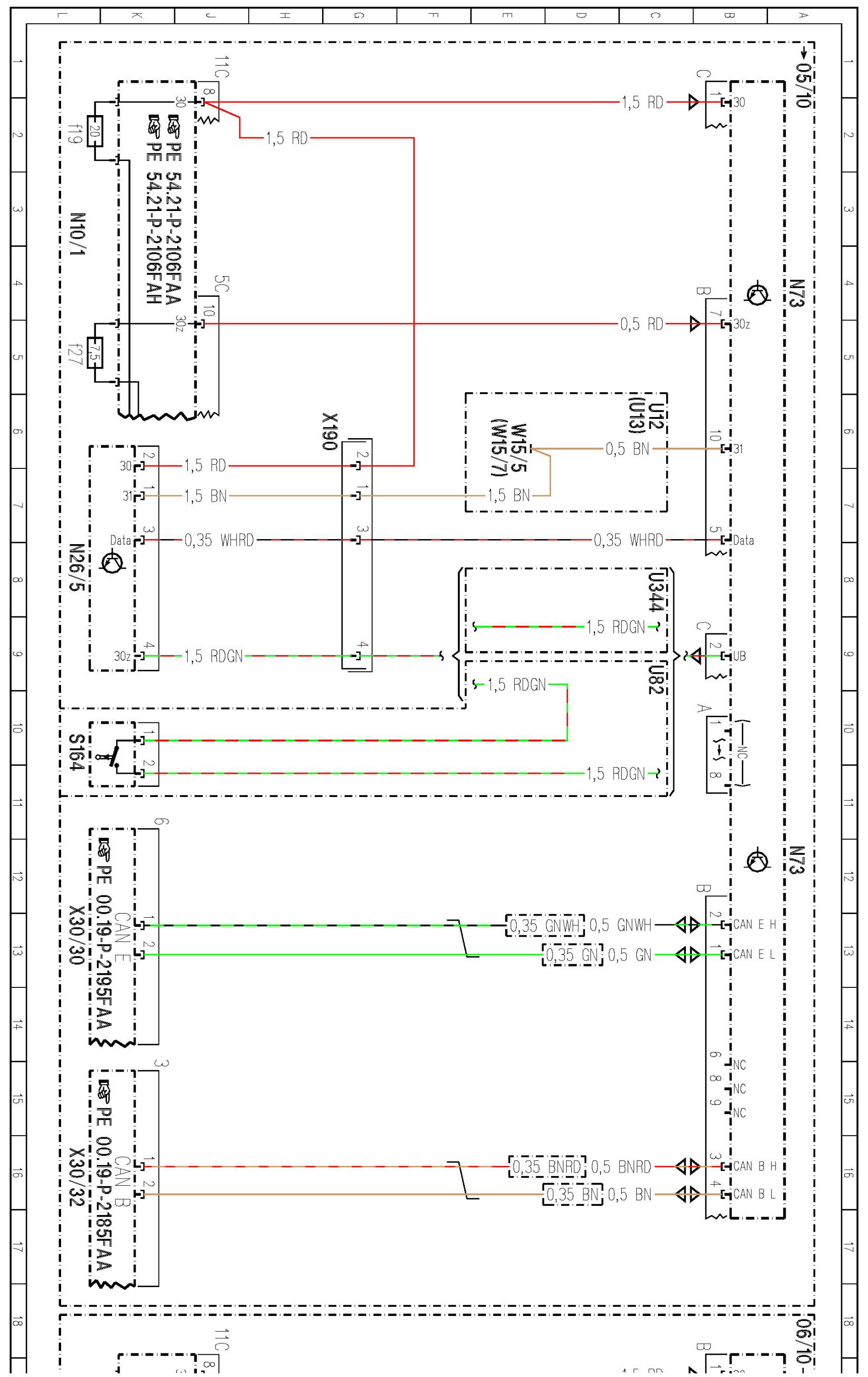

PE54.21-P-2104FAA Electronic Ignition Switch (EIS) Control Unit
MODEL 204
-

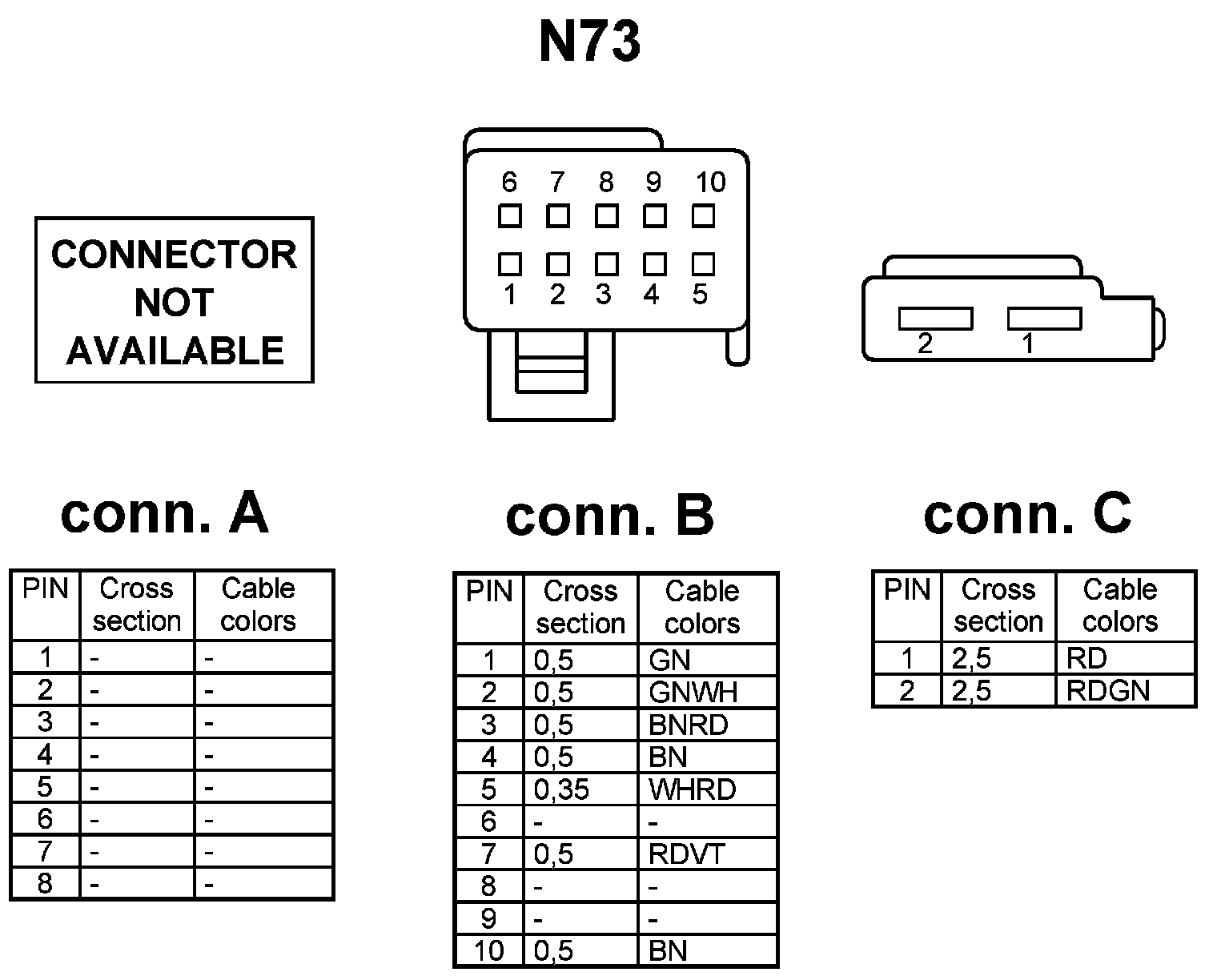

Control unit N73
Component Locations:
Component Location photographs can be found via their component names at the vehicle level.
Component Locations
