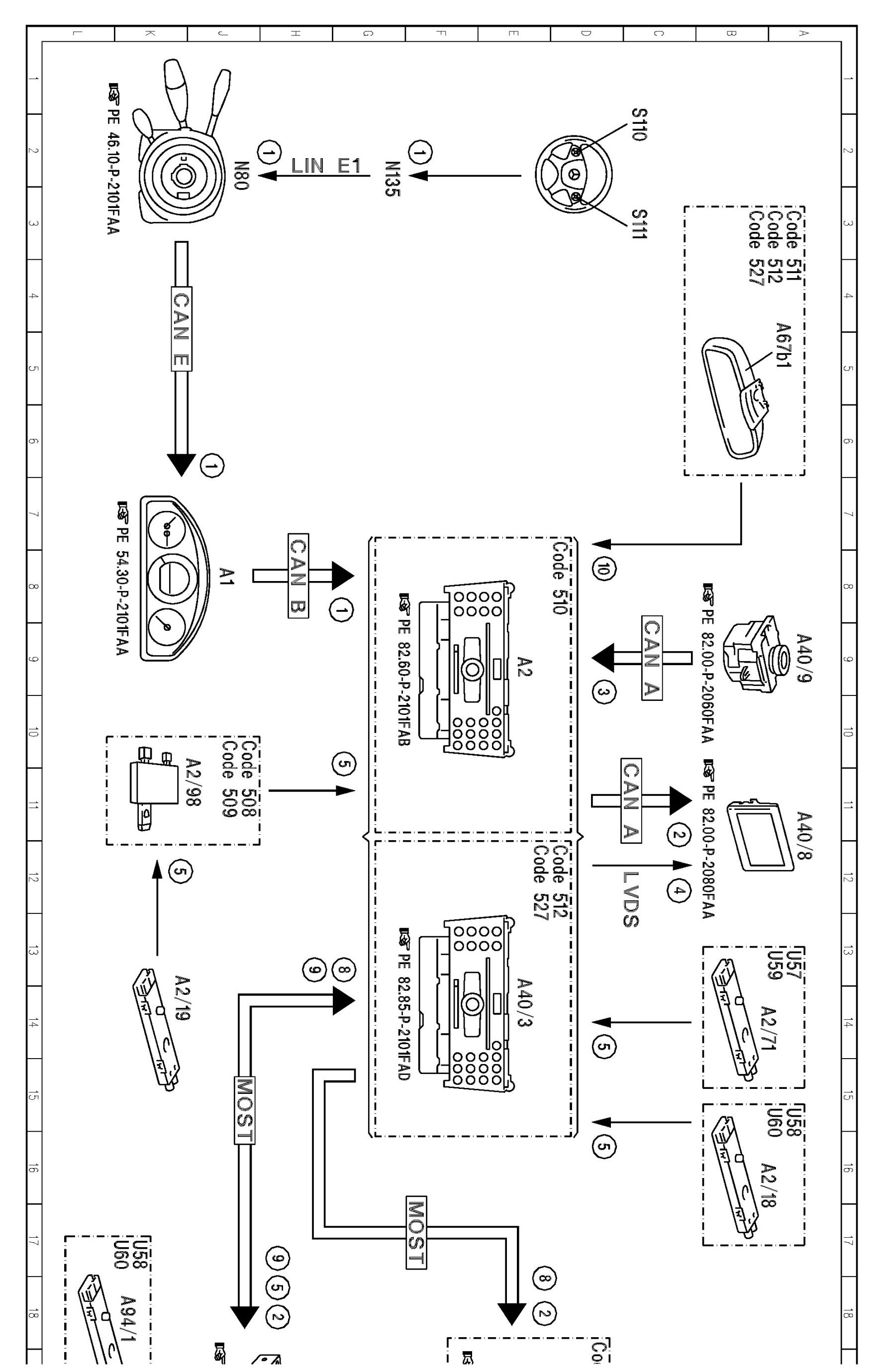

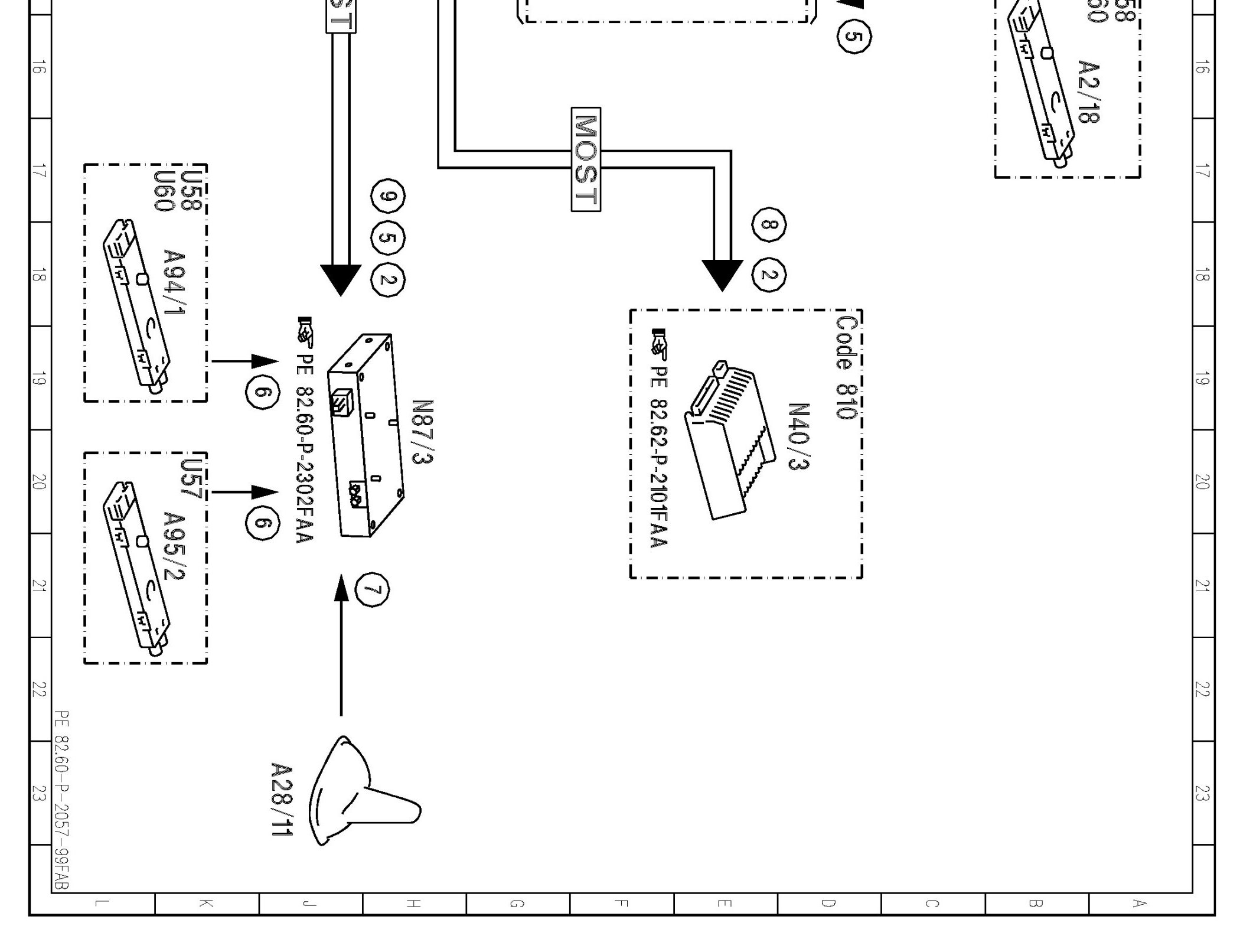

PE82.60-P-2057FAB Electrical Function Diagram For Digital Audio Broadcasting, Function

PE82.60-P-2057FAB Electrical Function Diagram For Digital Audio Broadcasting, Function

MODEL 204.0 /2
- with CODE (537) Digital radio
- as of model year 2012 /model refinement package 11

MODEL 204.3
- with CODE (537) Digital radio



































































Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
