PE07.61-P-2787FAC Electrical Function Schematic For Start Phase, Post-Start Phase and Warm-Up Enrichment

PE07.61-P-2787FAC Electrical Function Schematic For Start Phase, Post-Start Phase and Warm-Up Enrichment

MODEL 204 with ENGINE 272
- as of model year 09 / AEJ 08

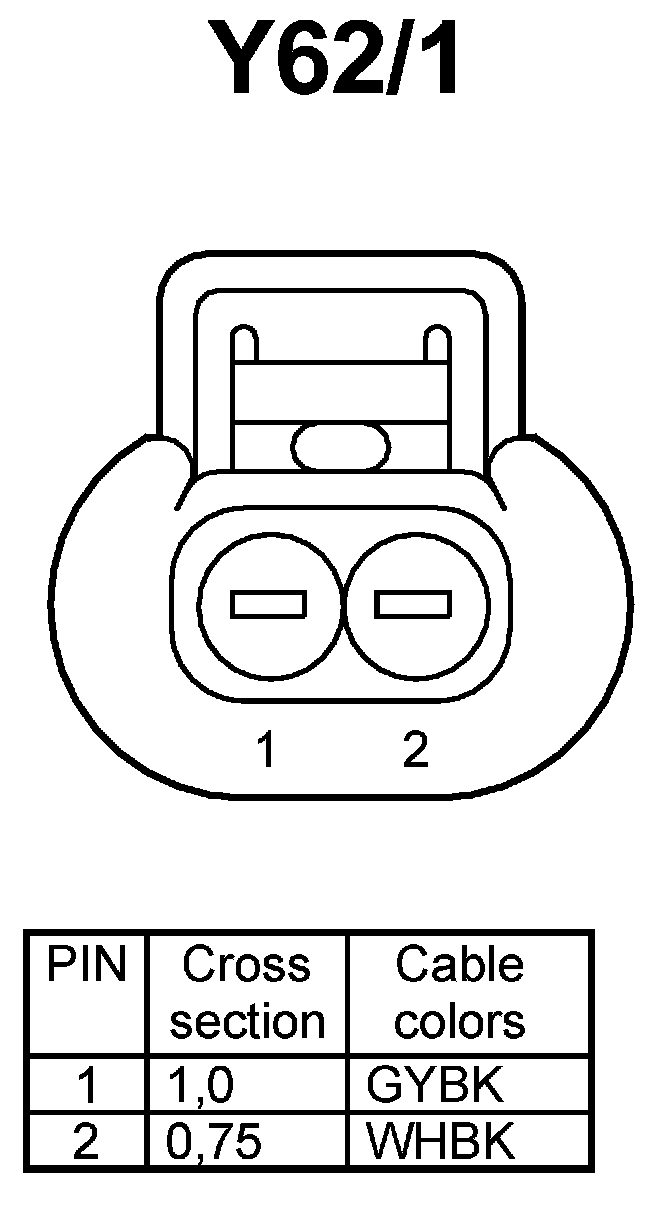

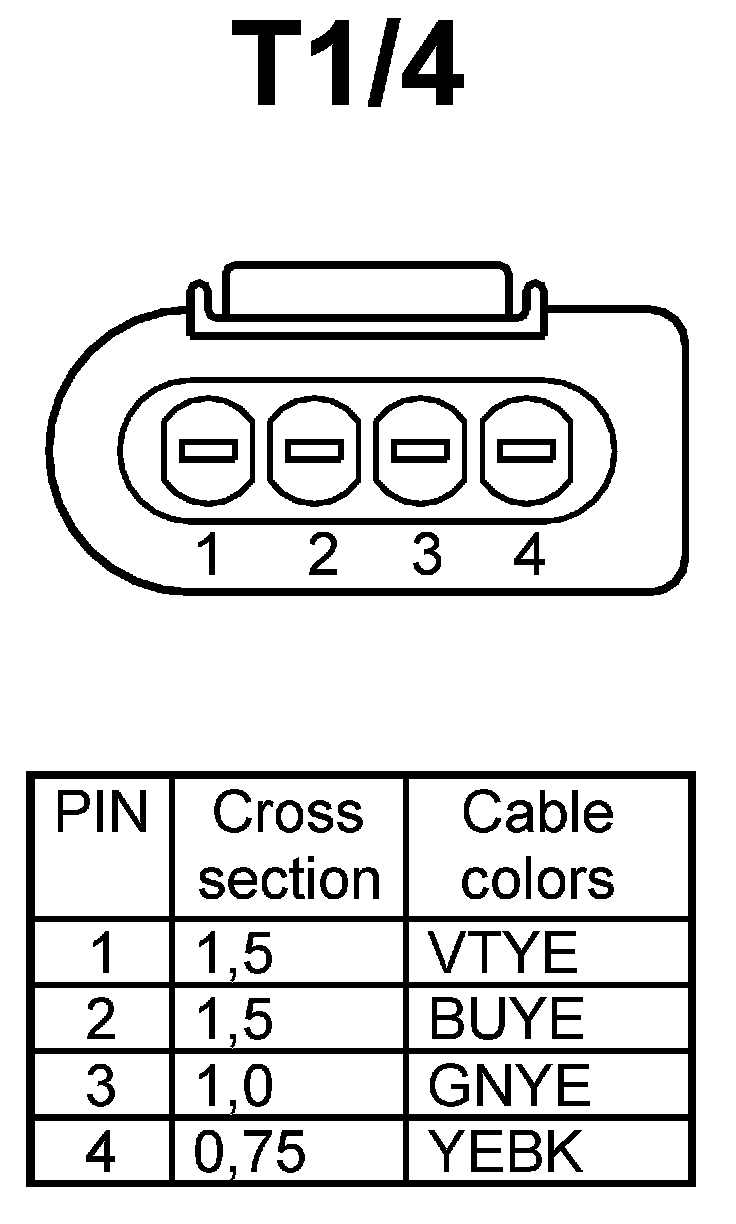

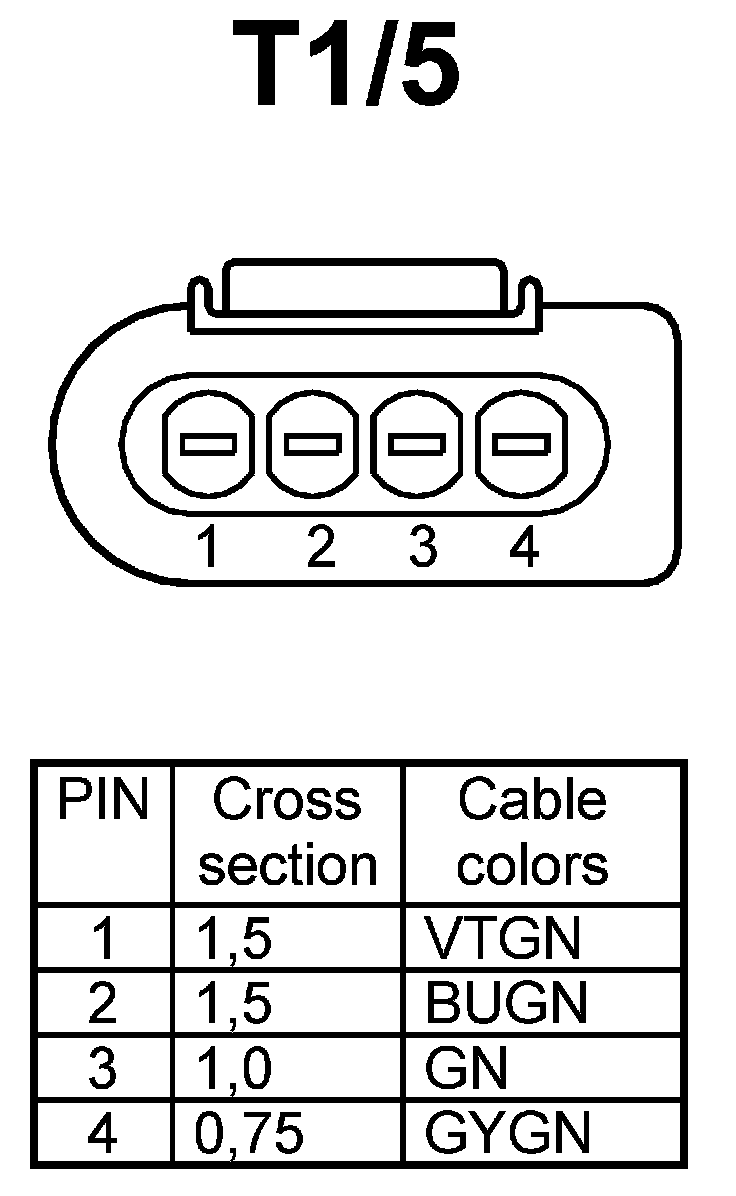

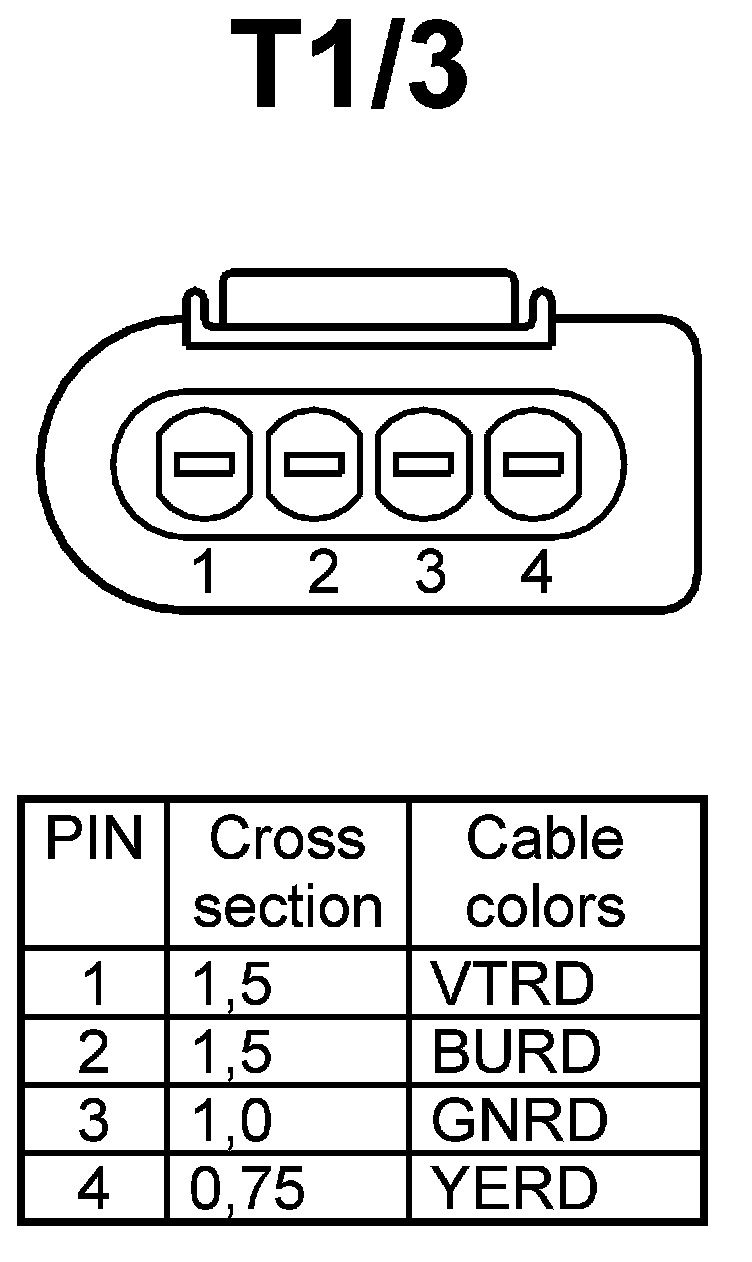

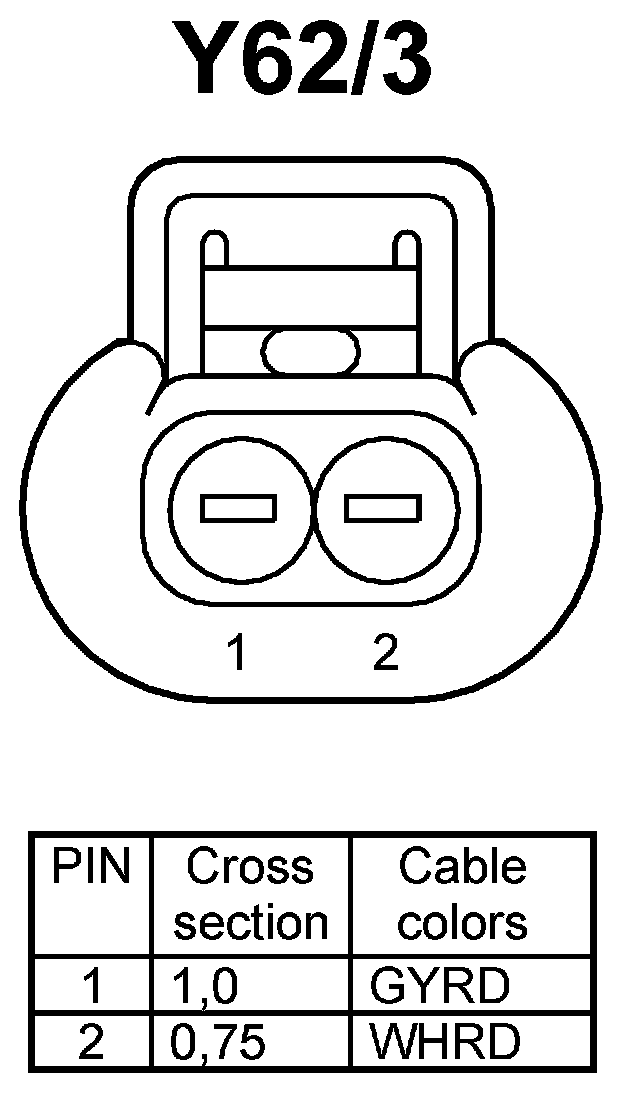

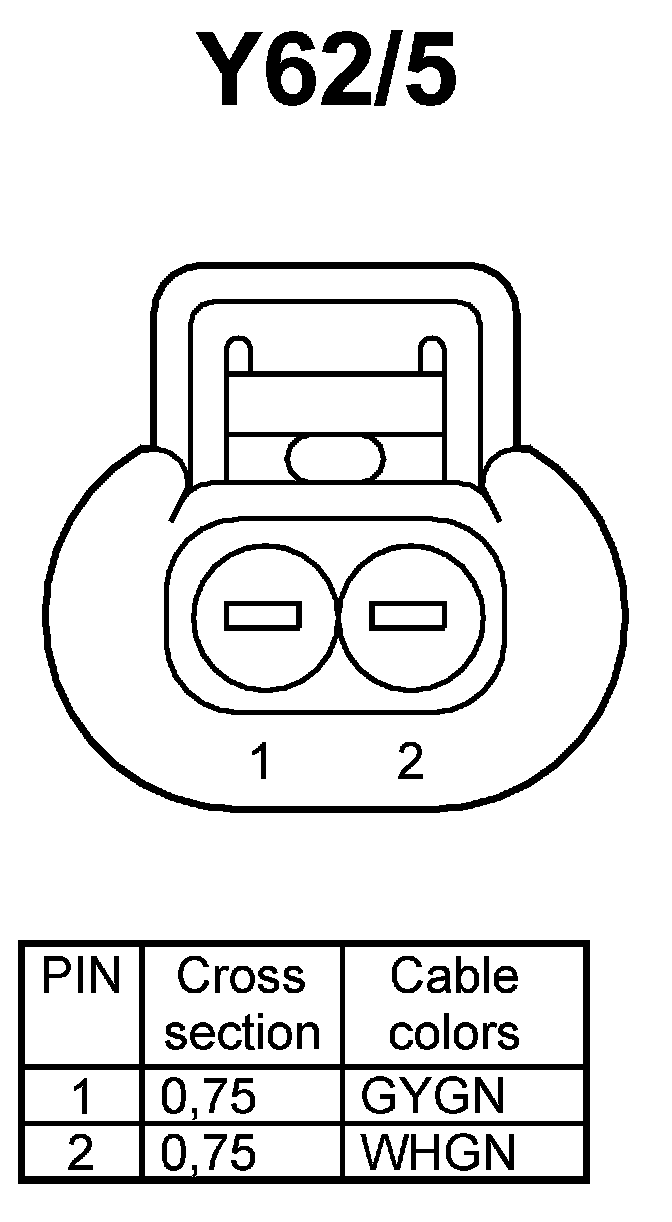

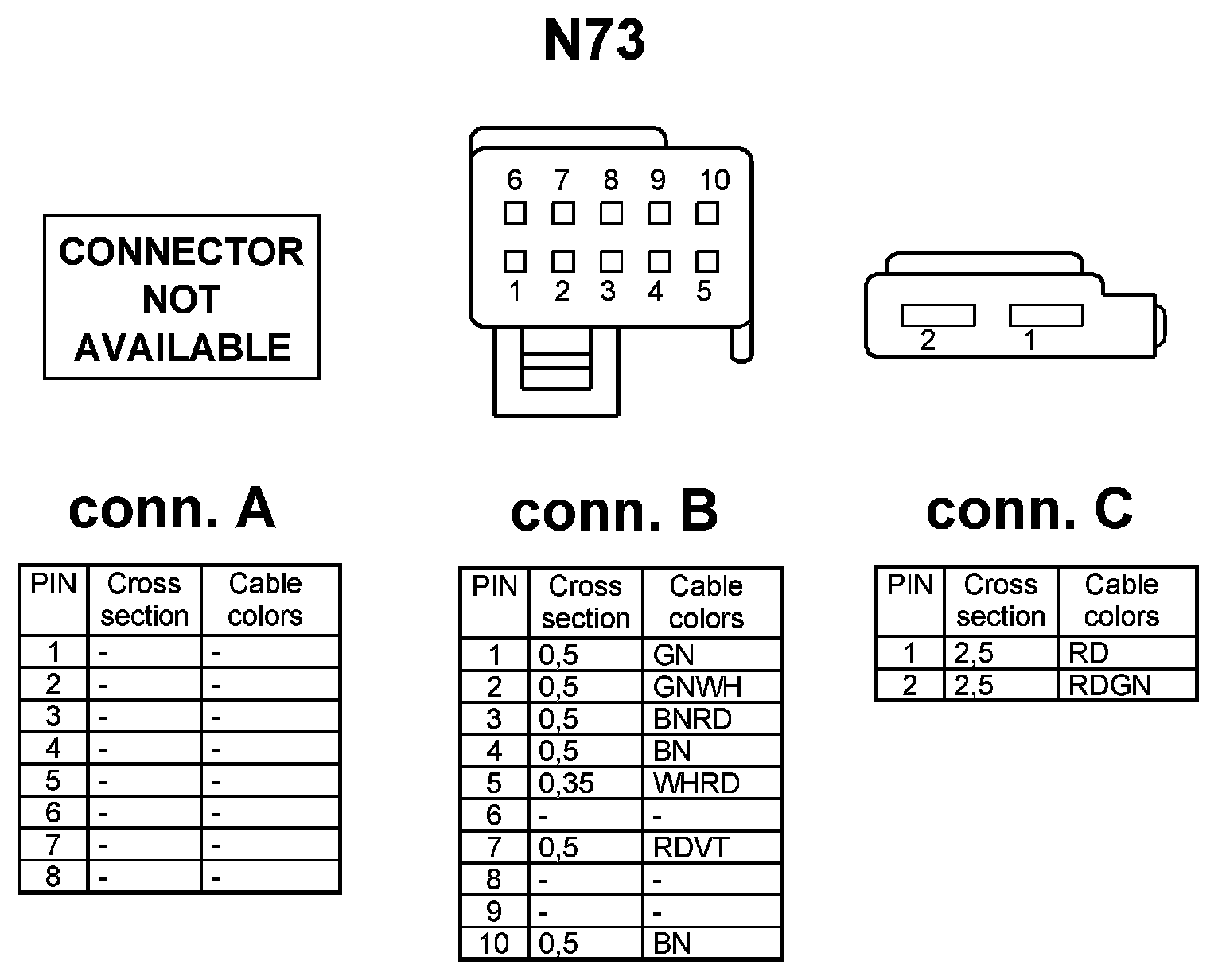

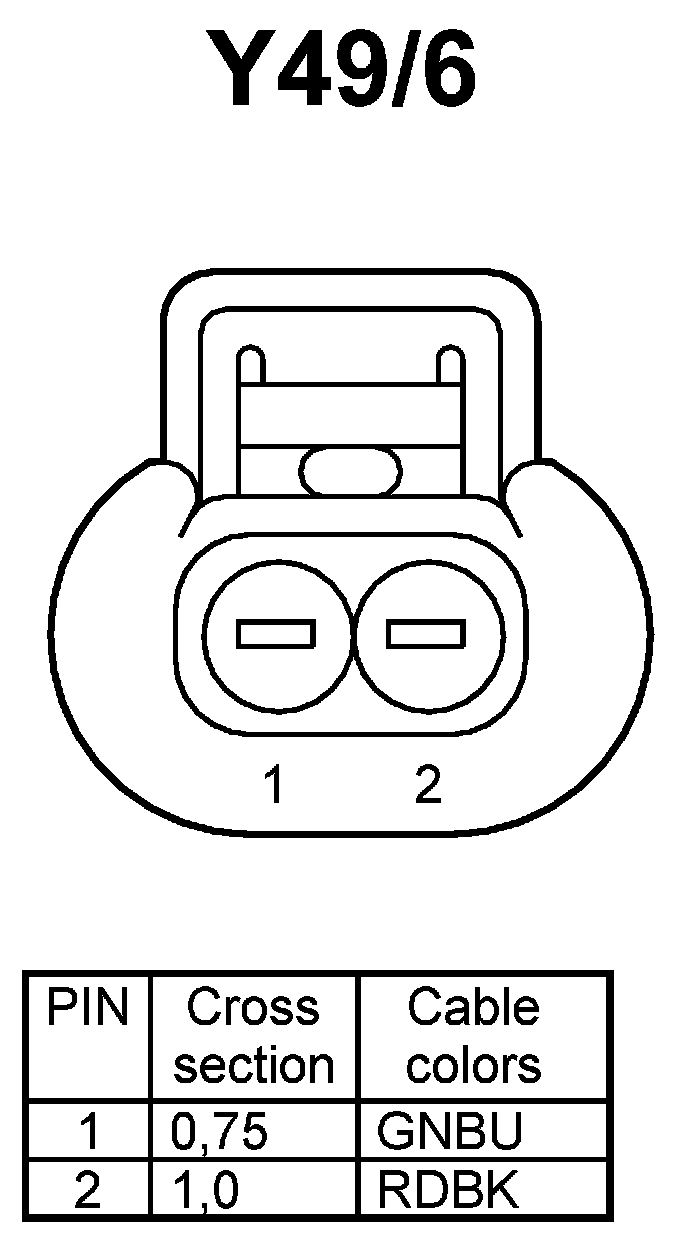

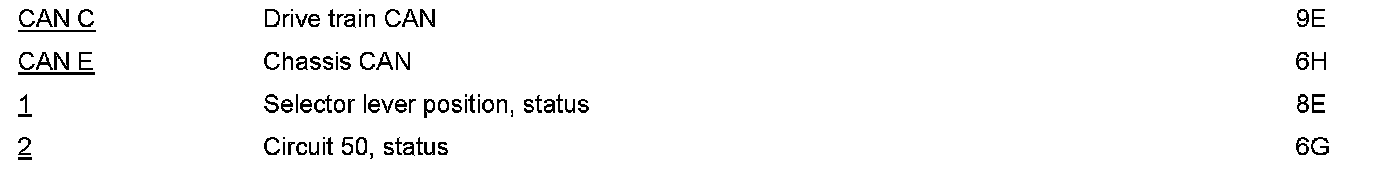

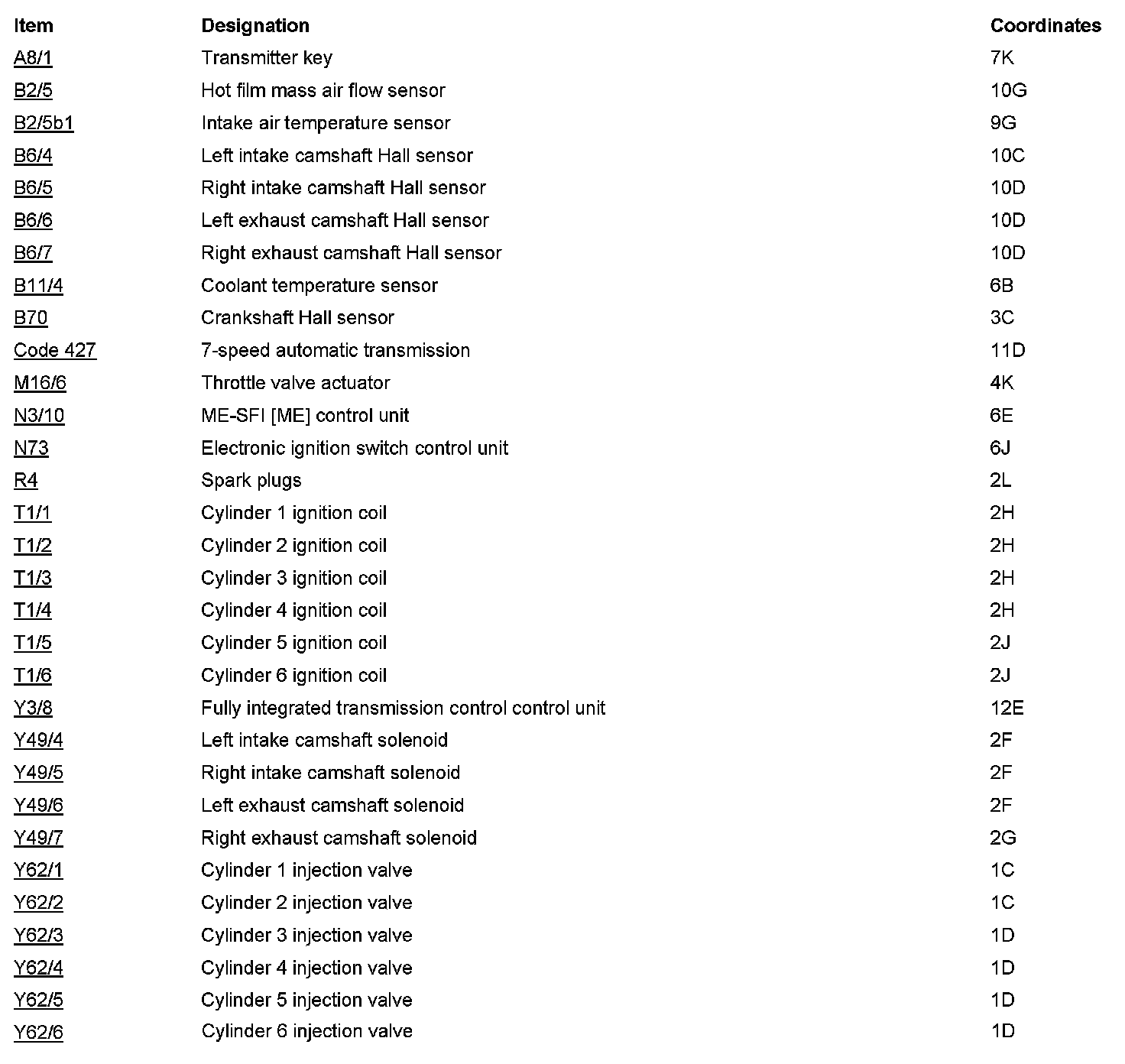

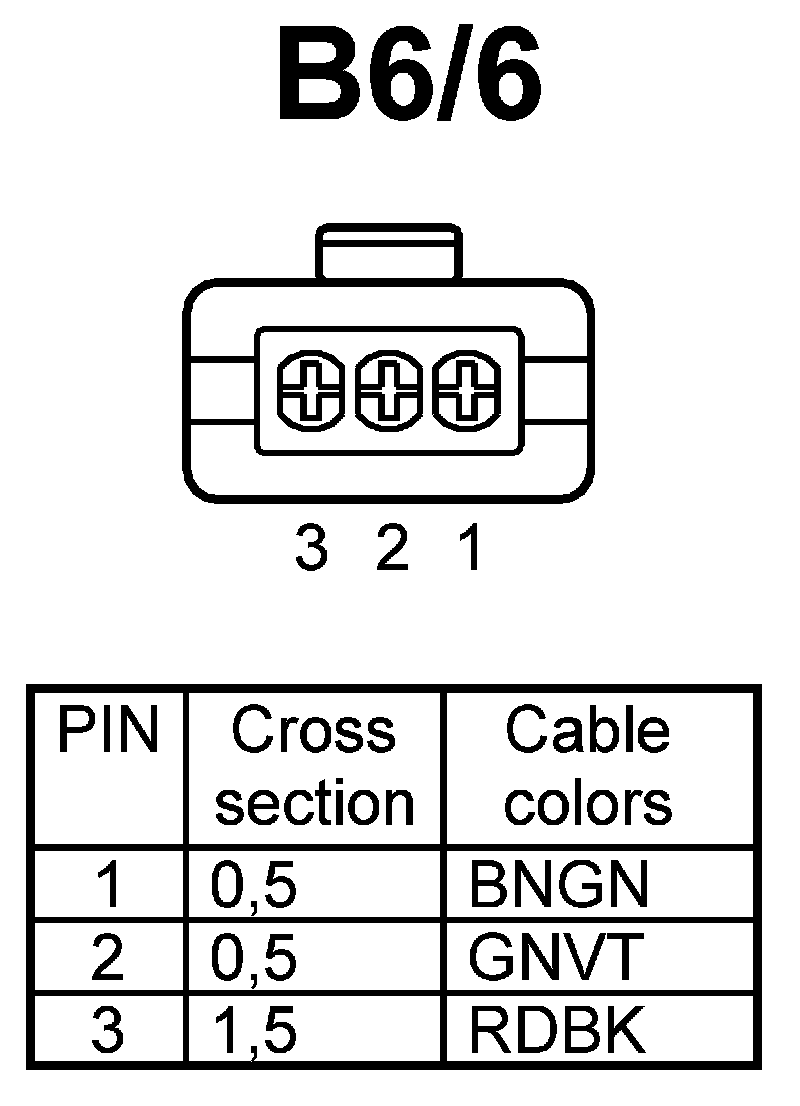

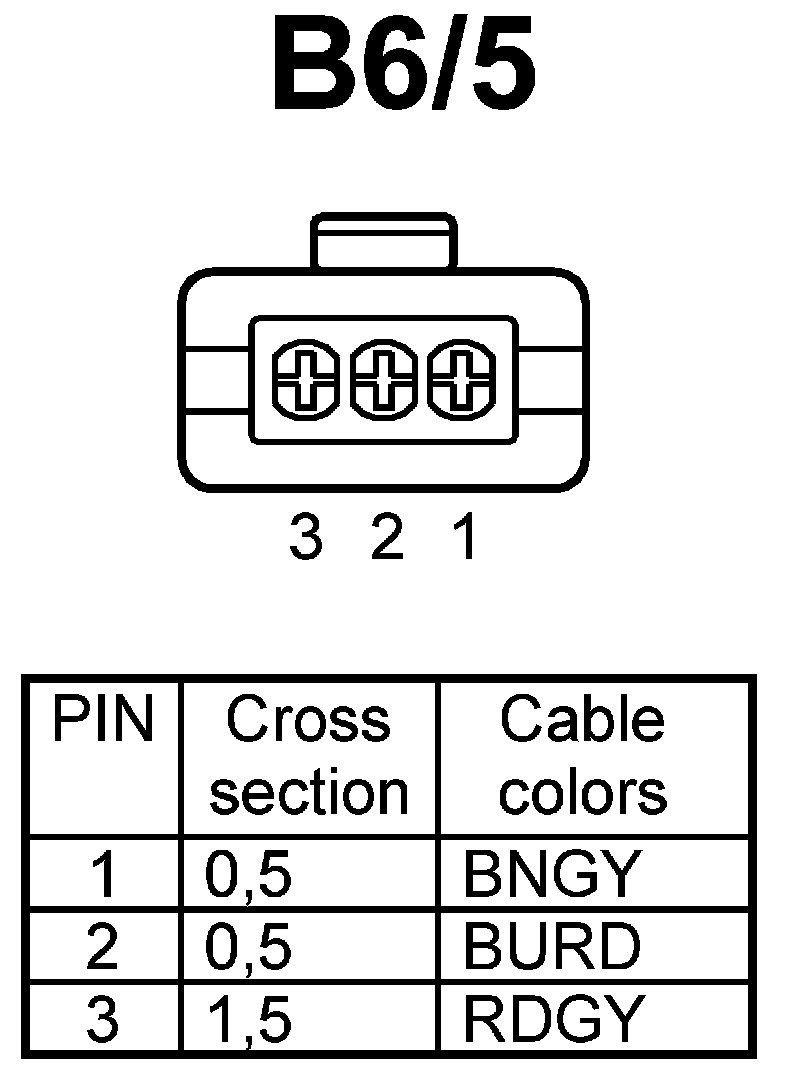

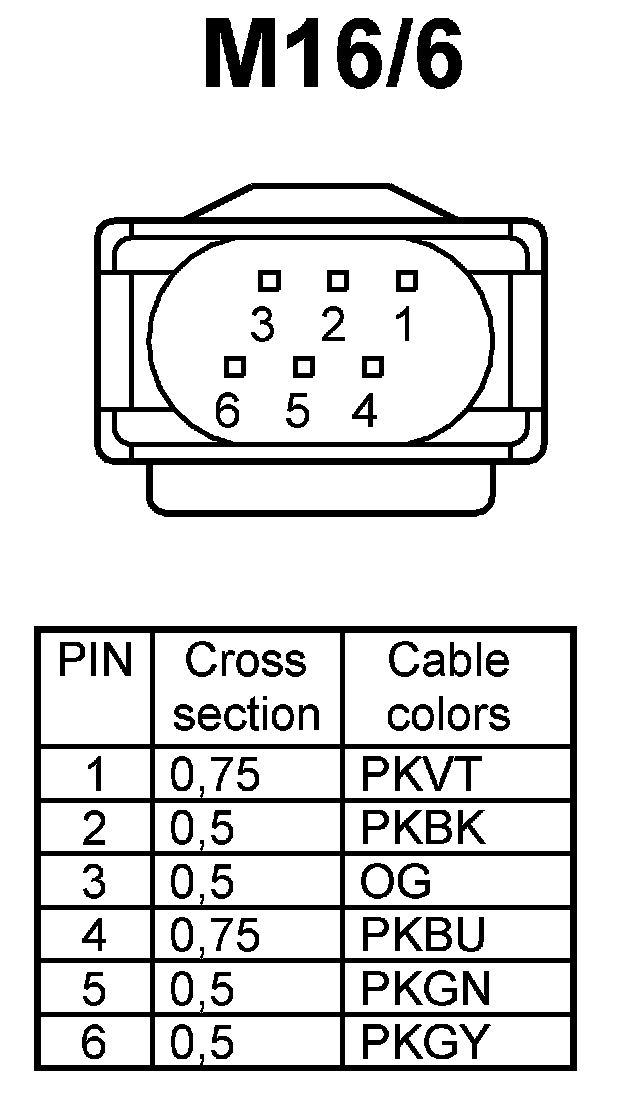

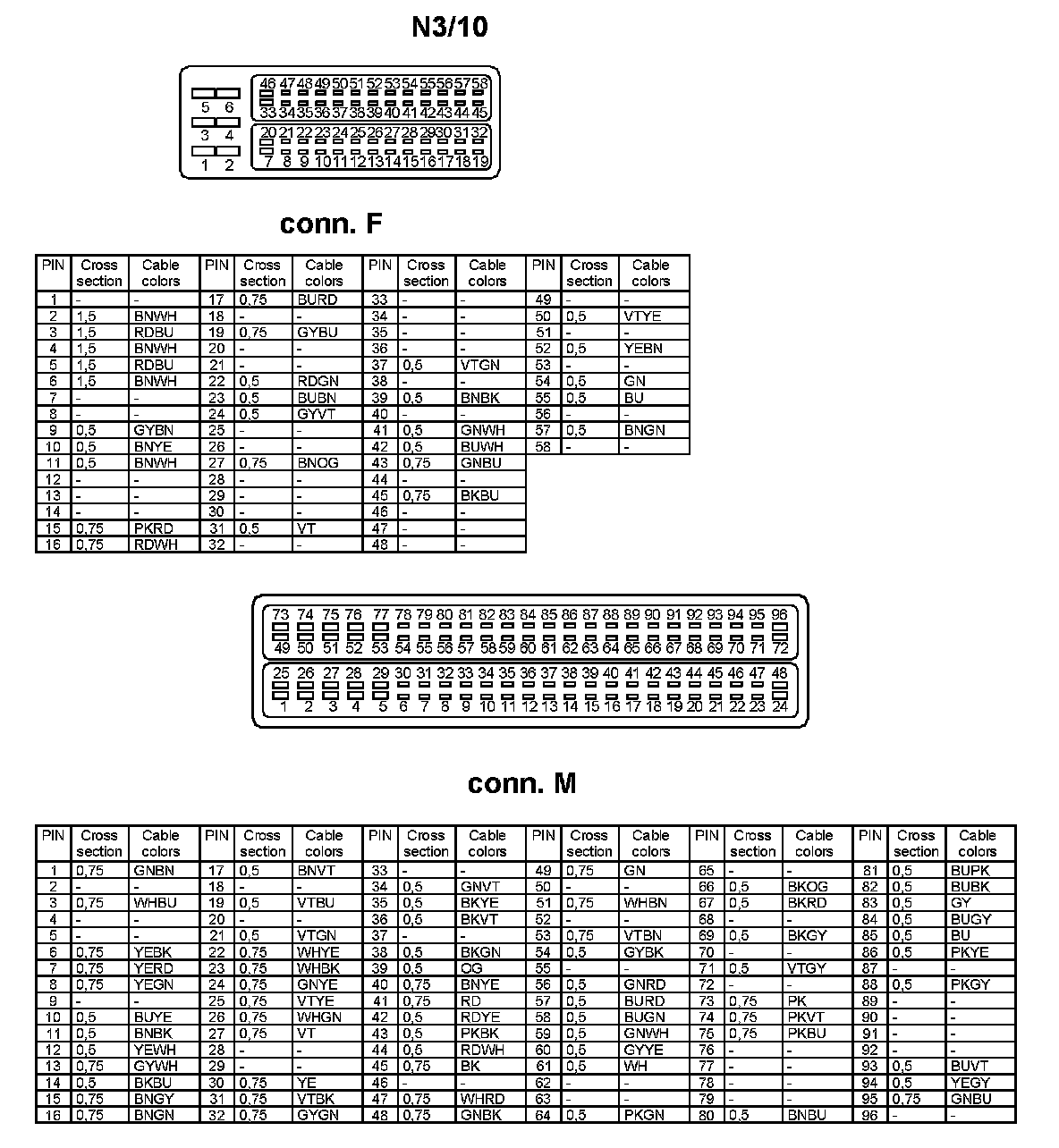

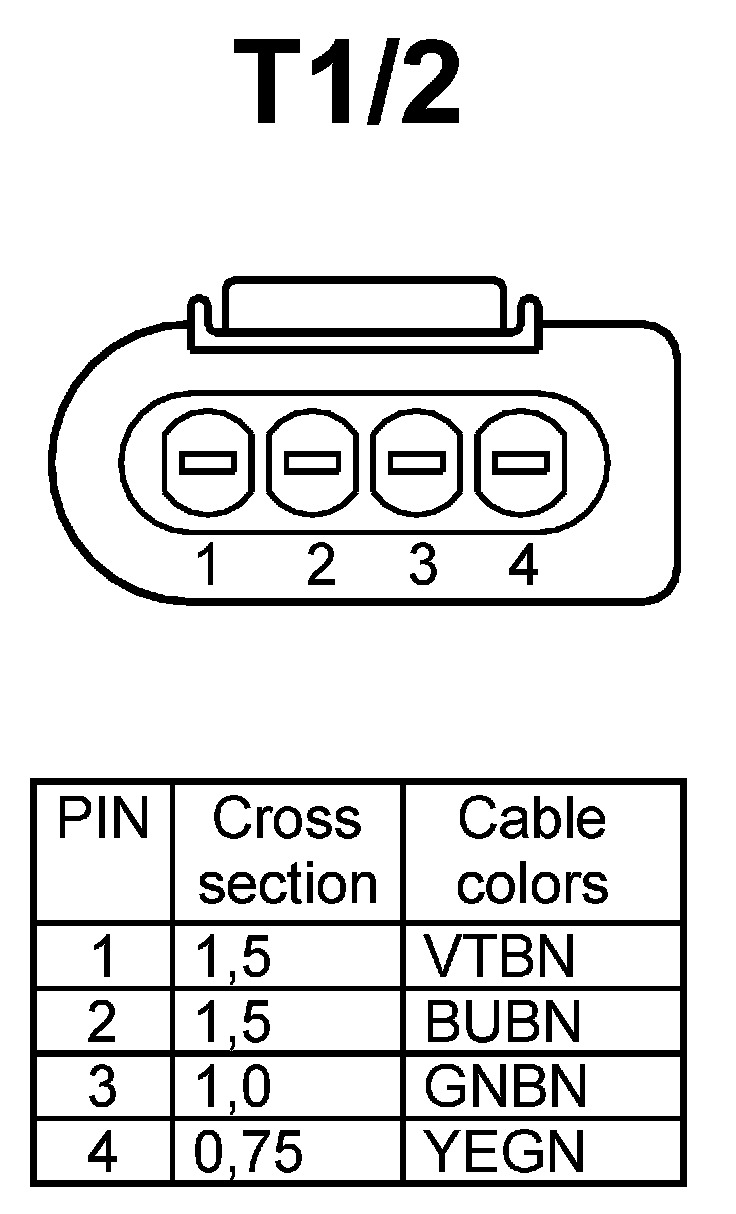

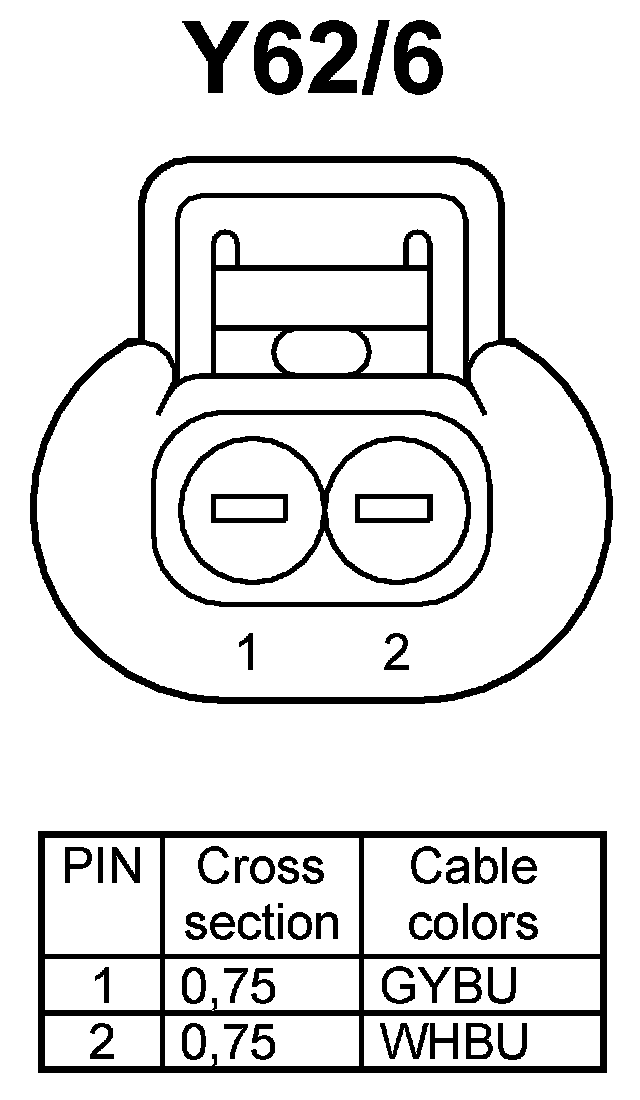

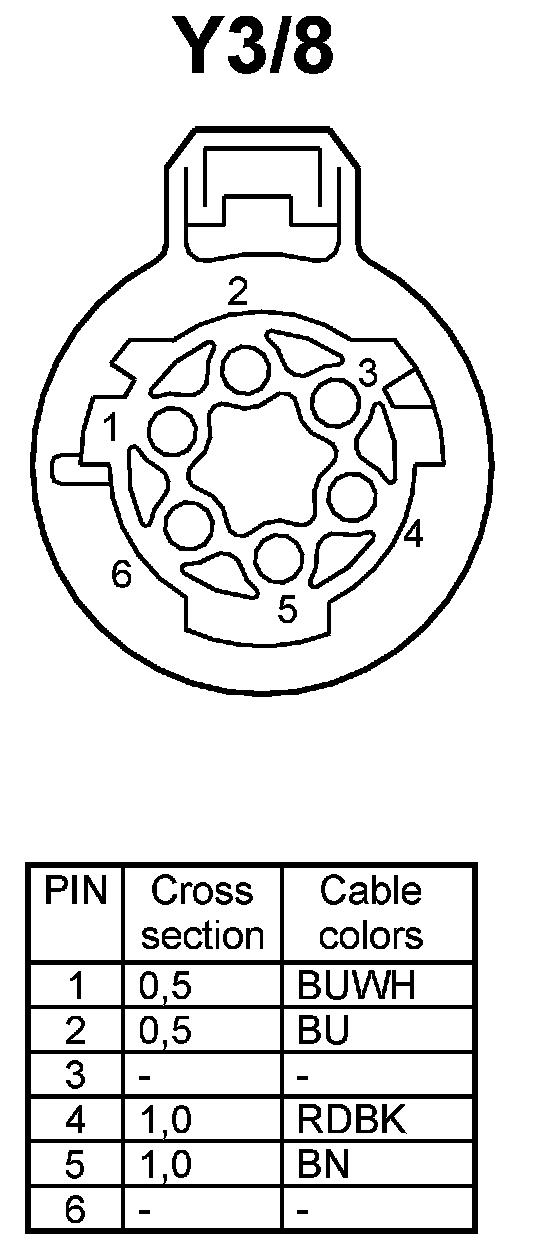

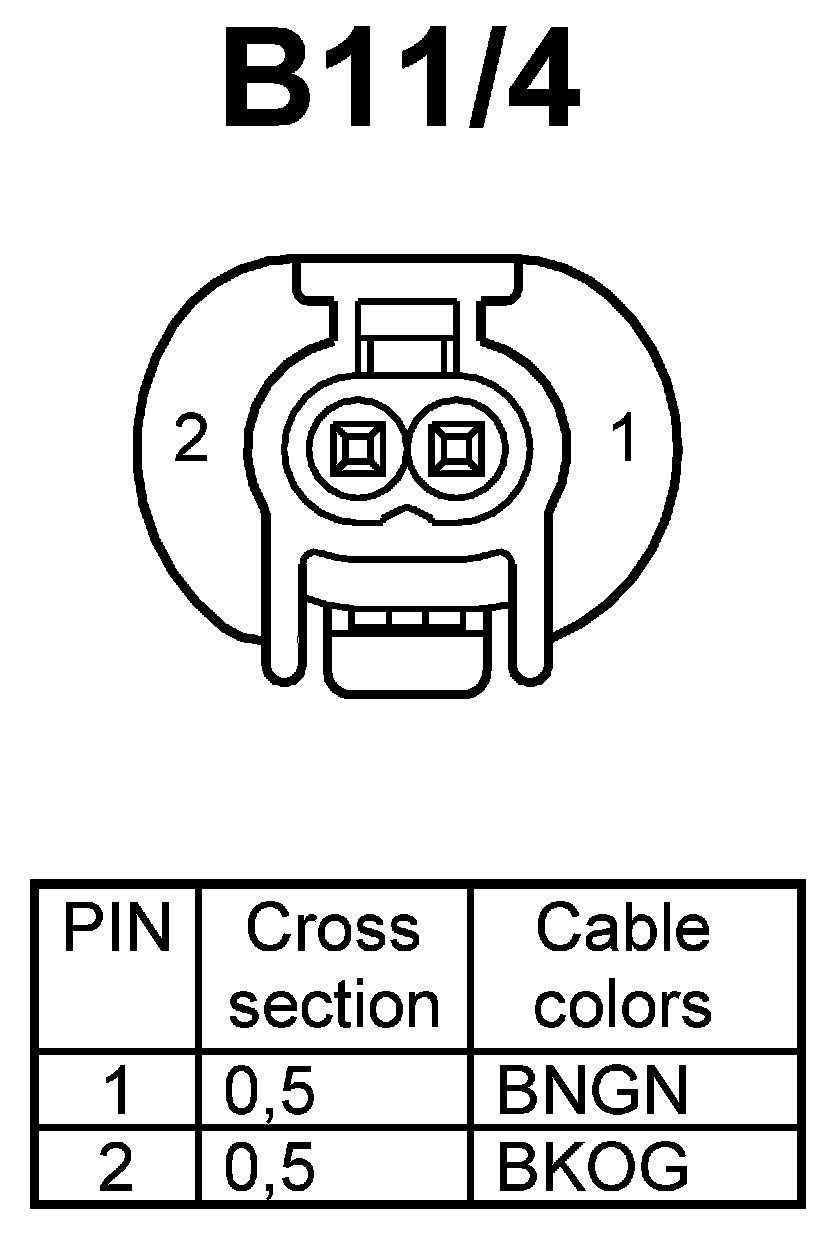

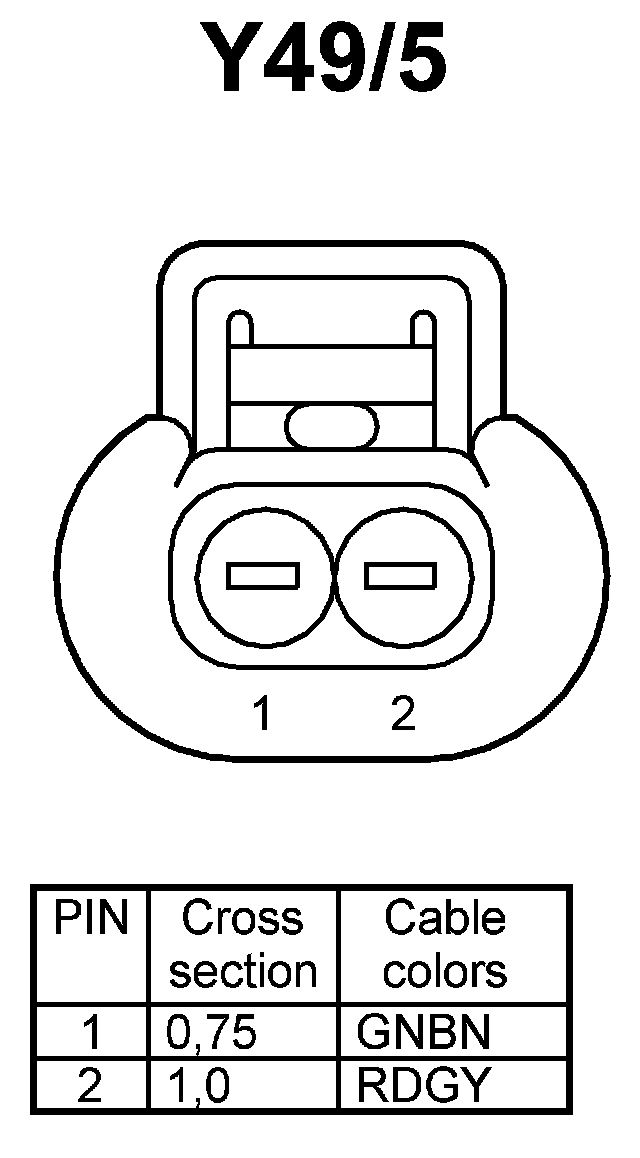

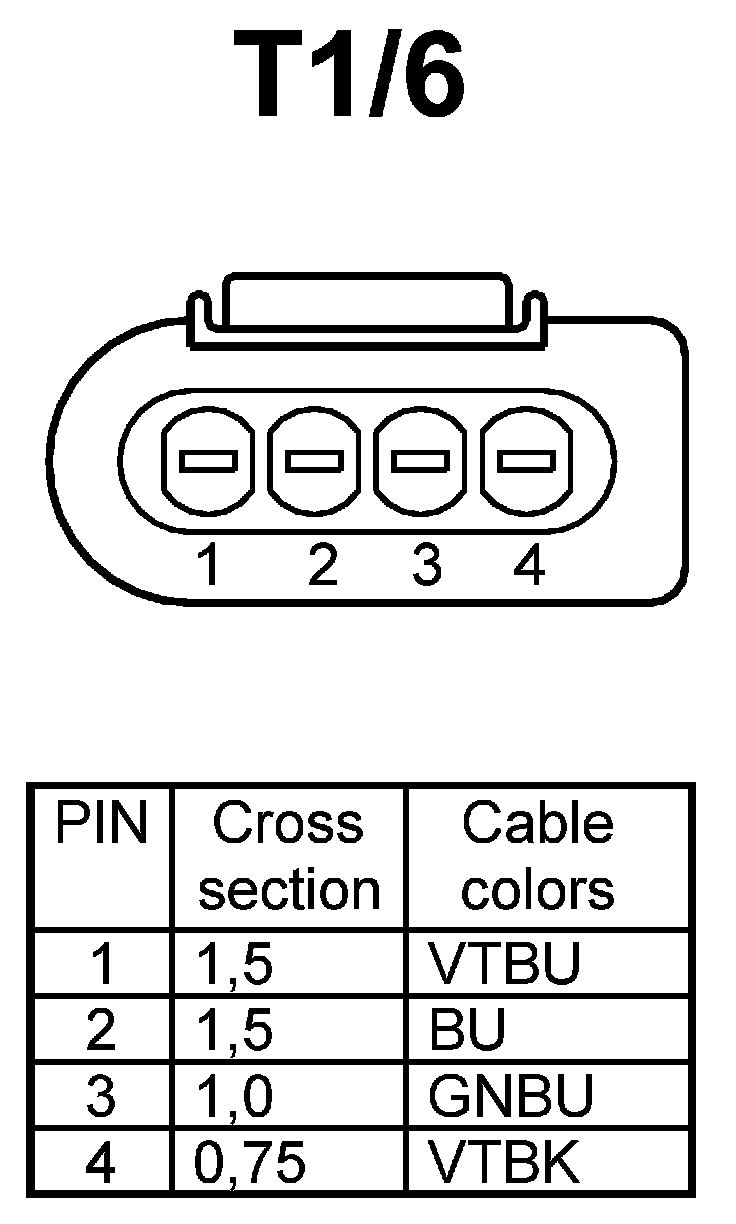

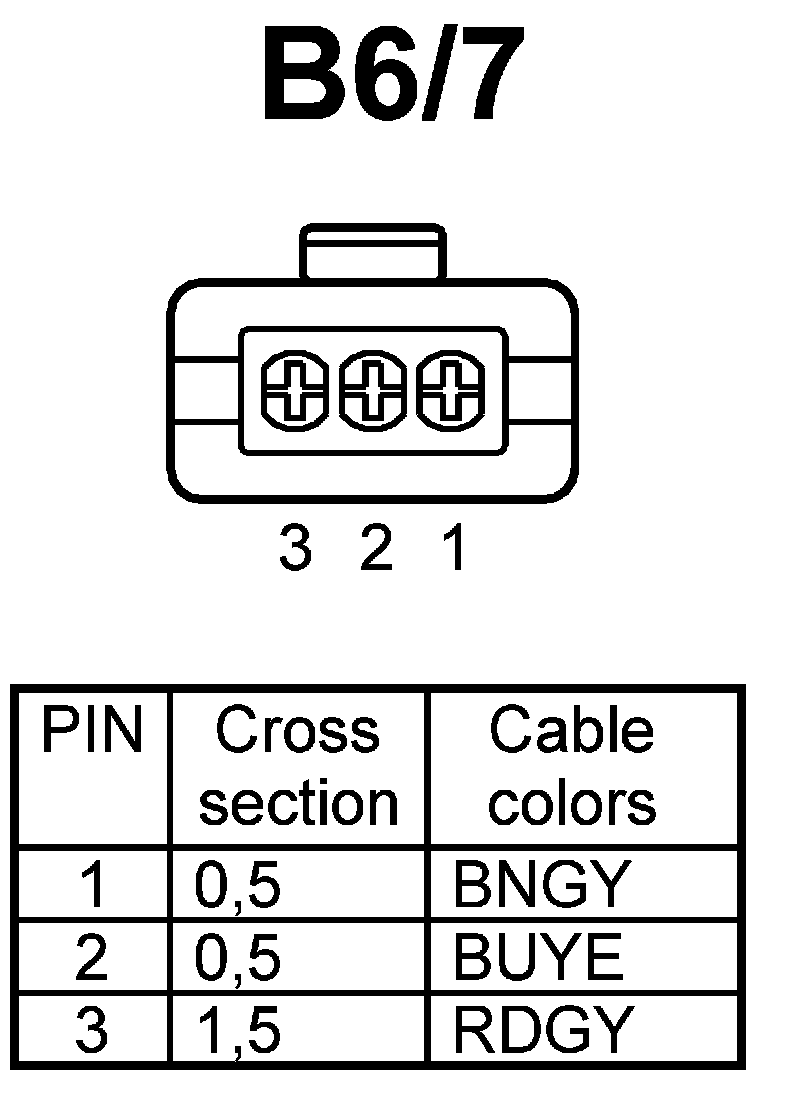

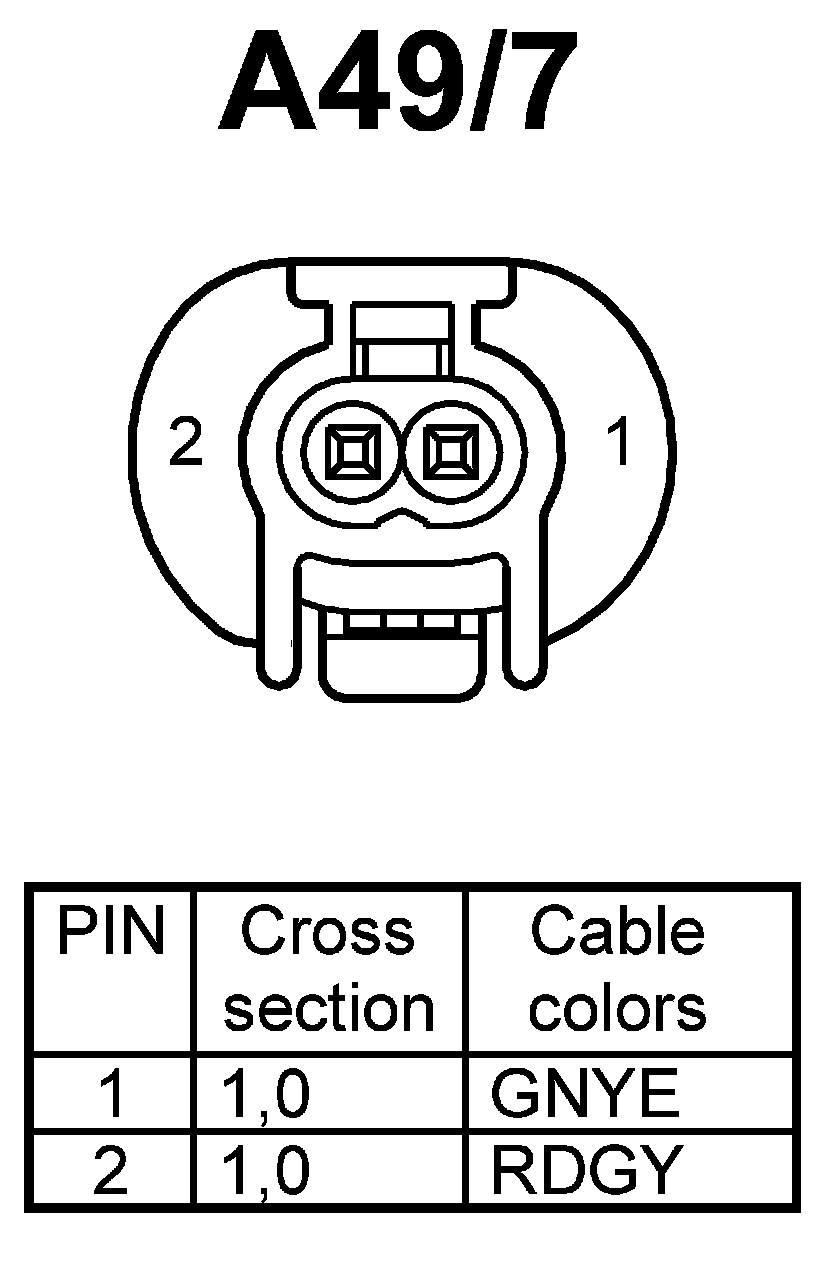

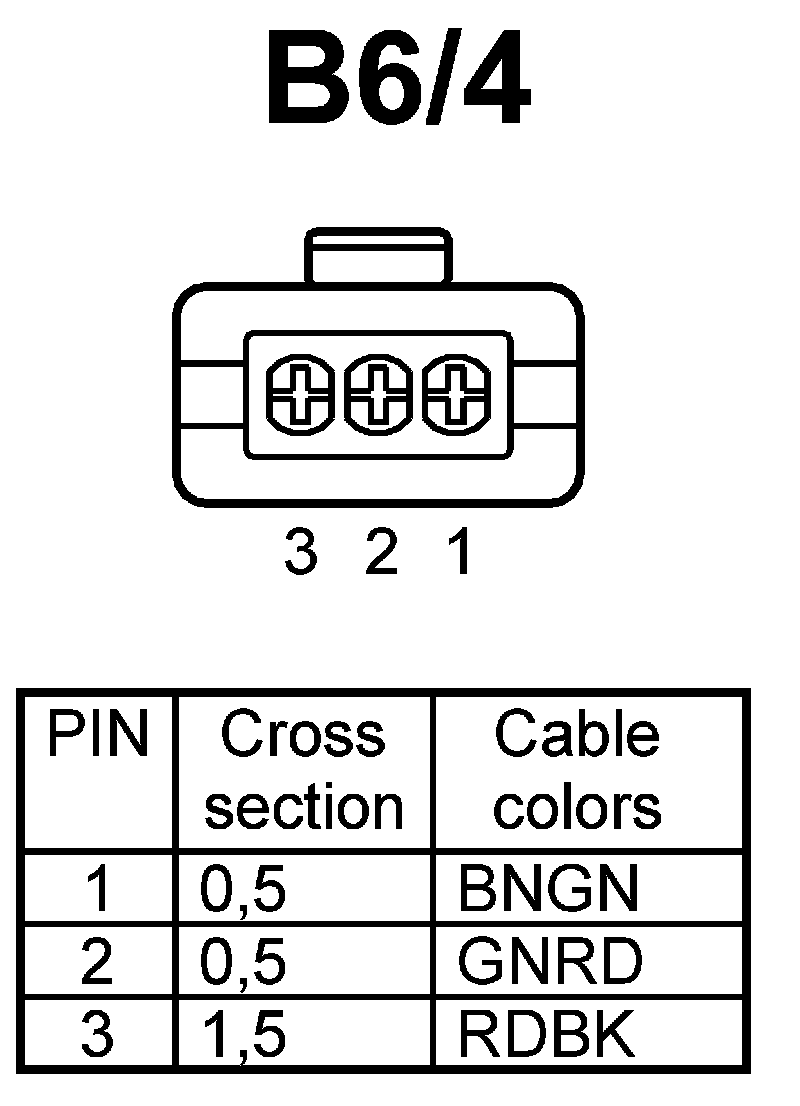

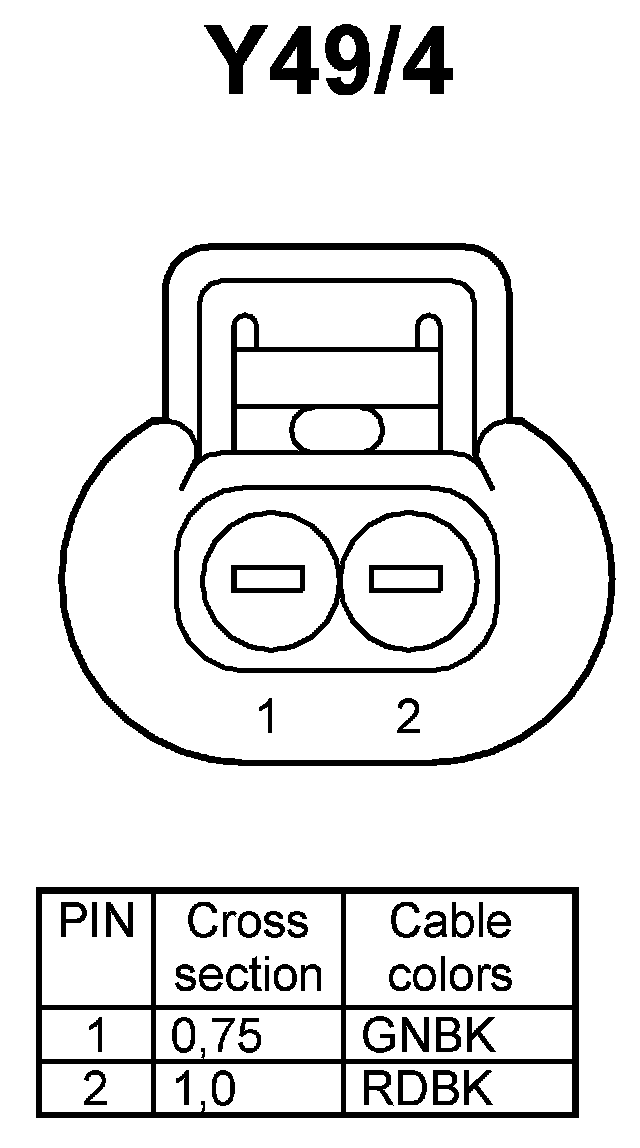

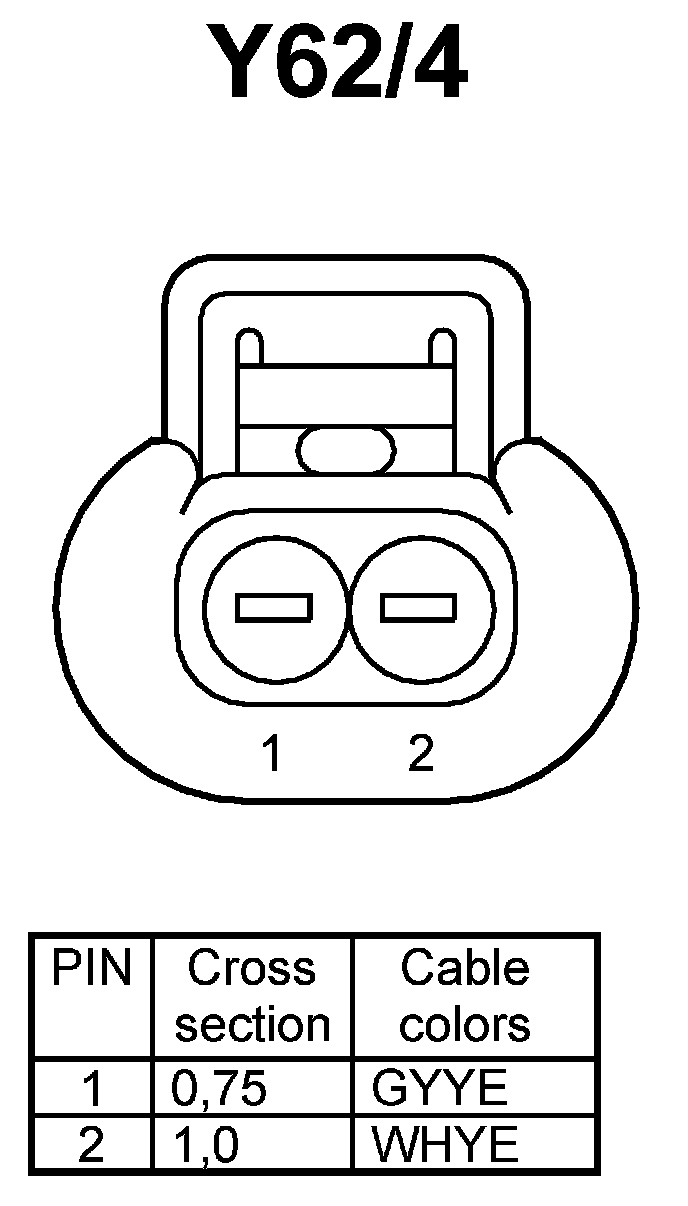

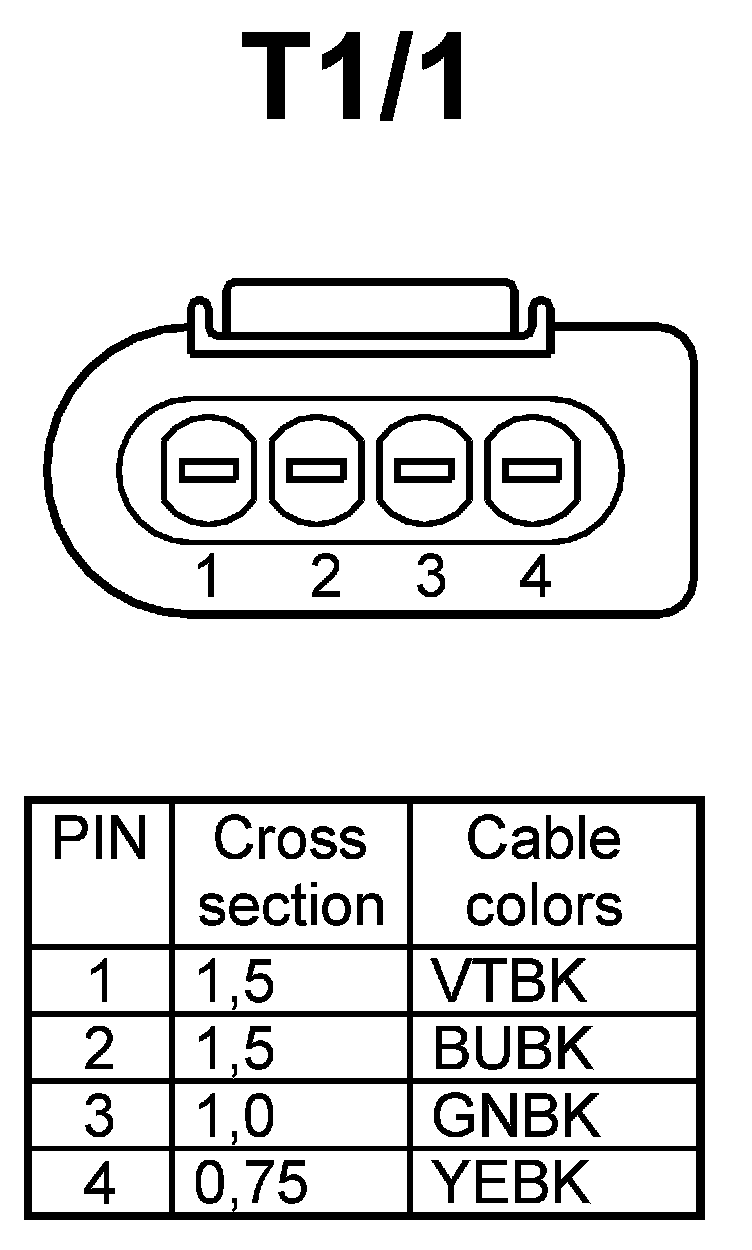

Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
