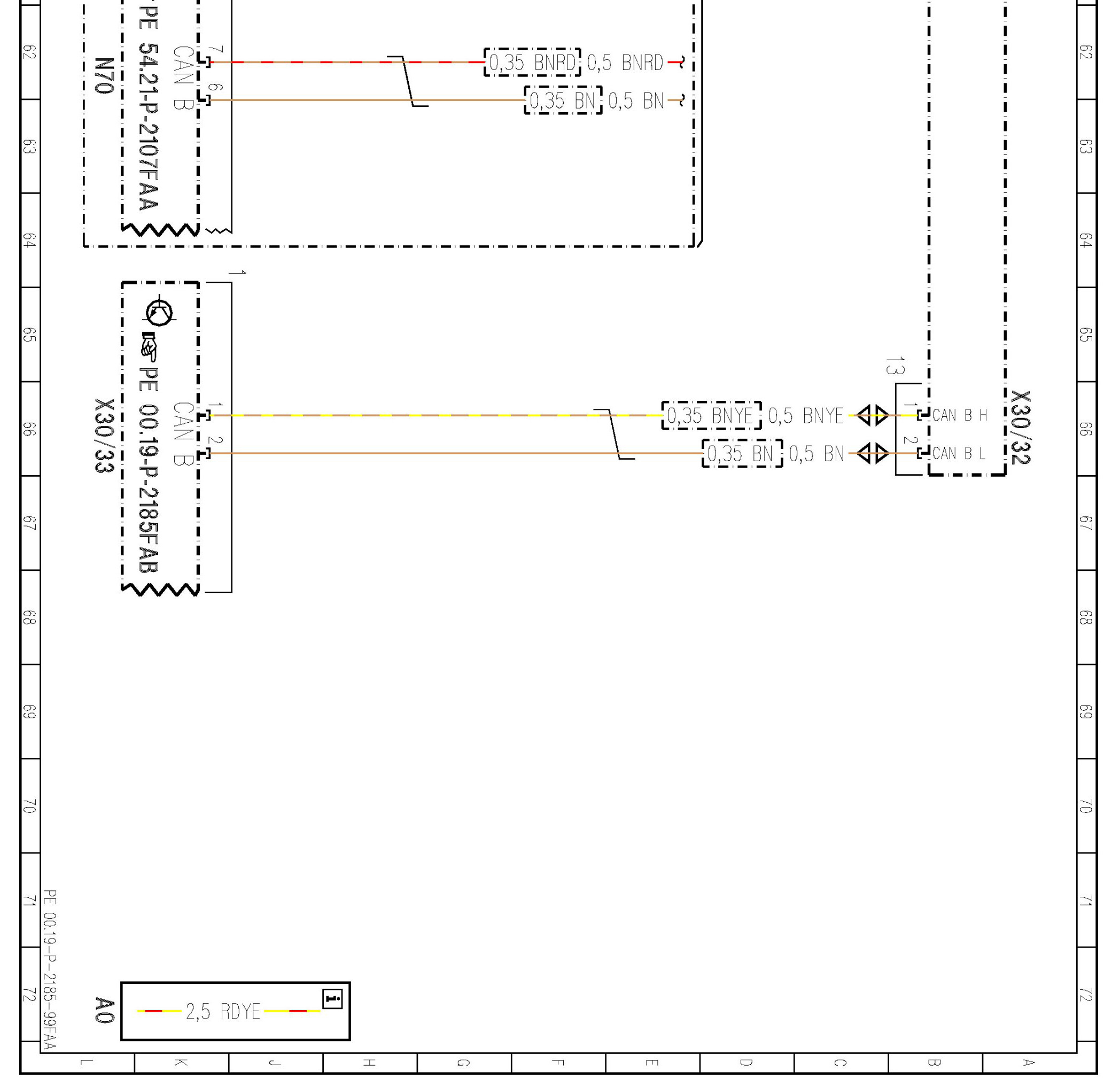

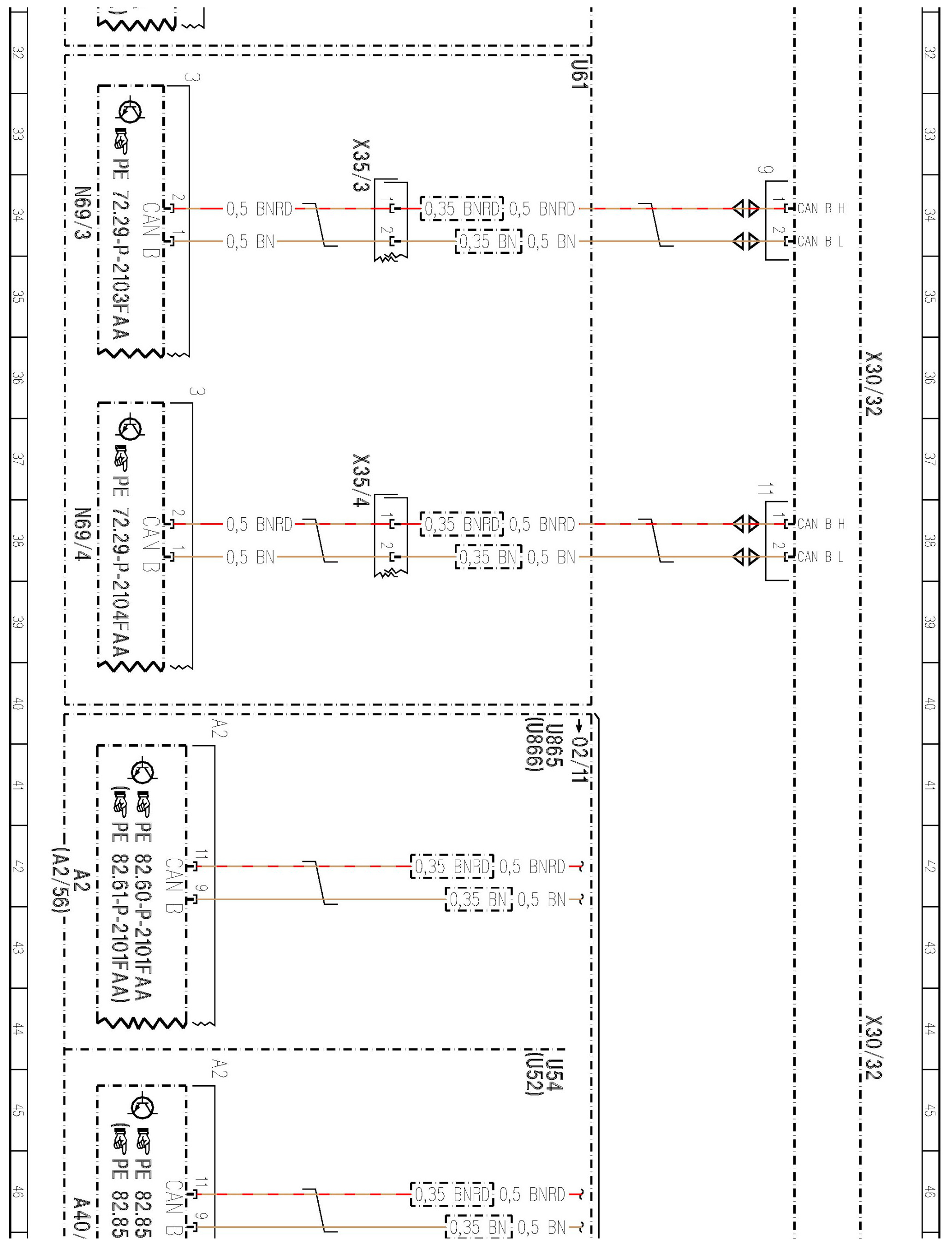

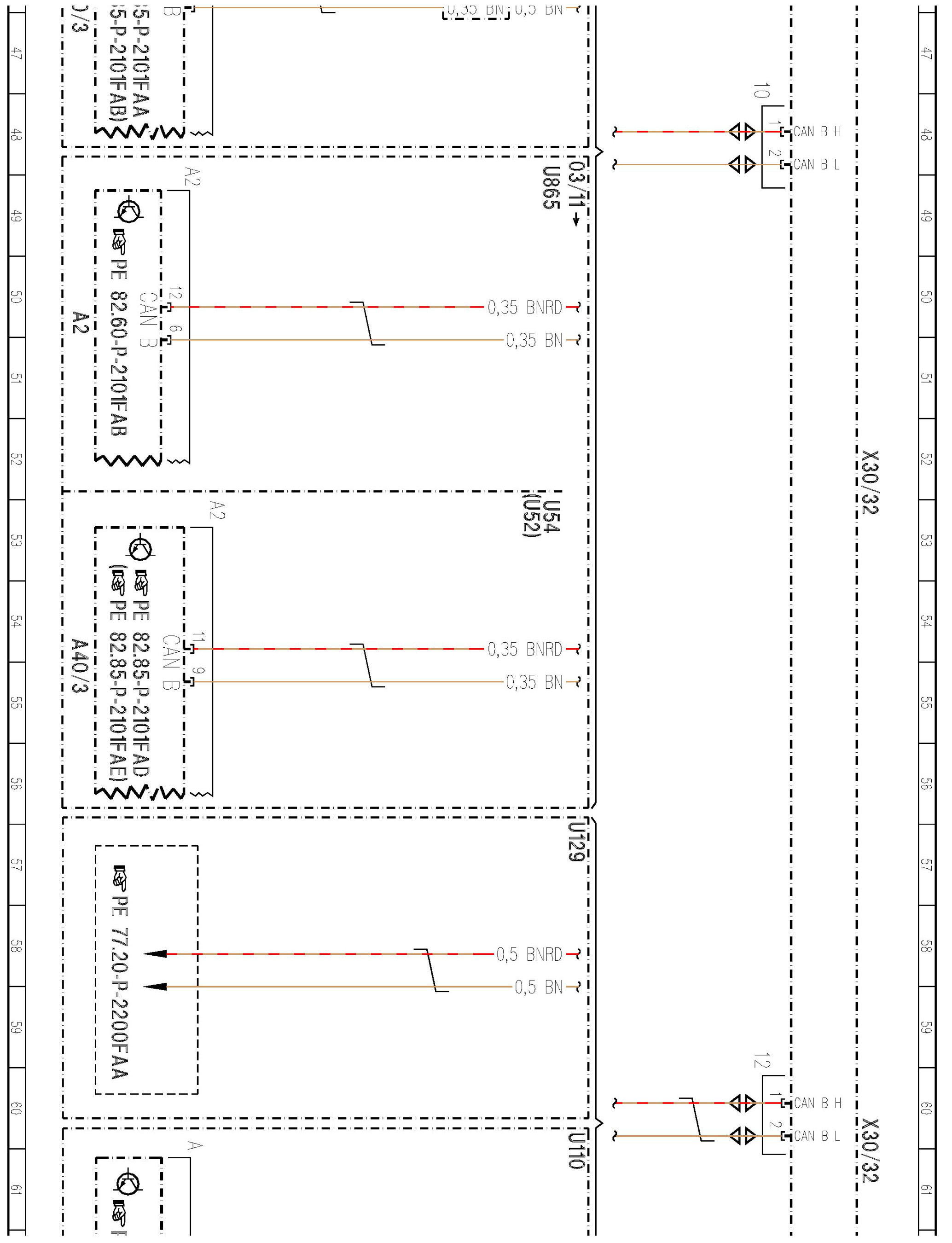

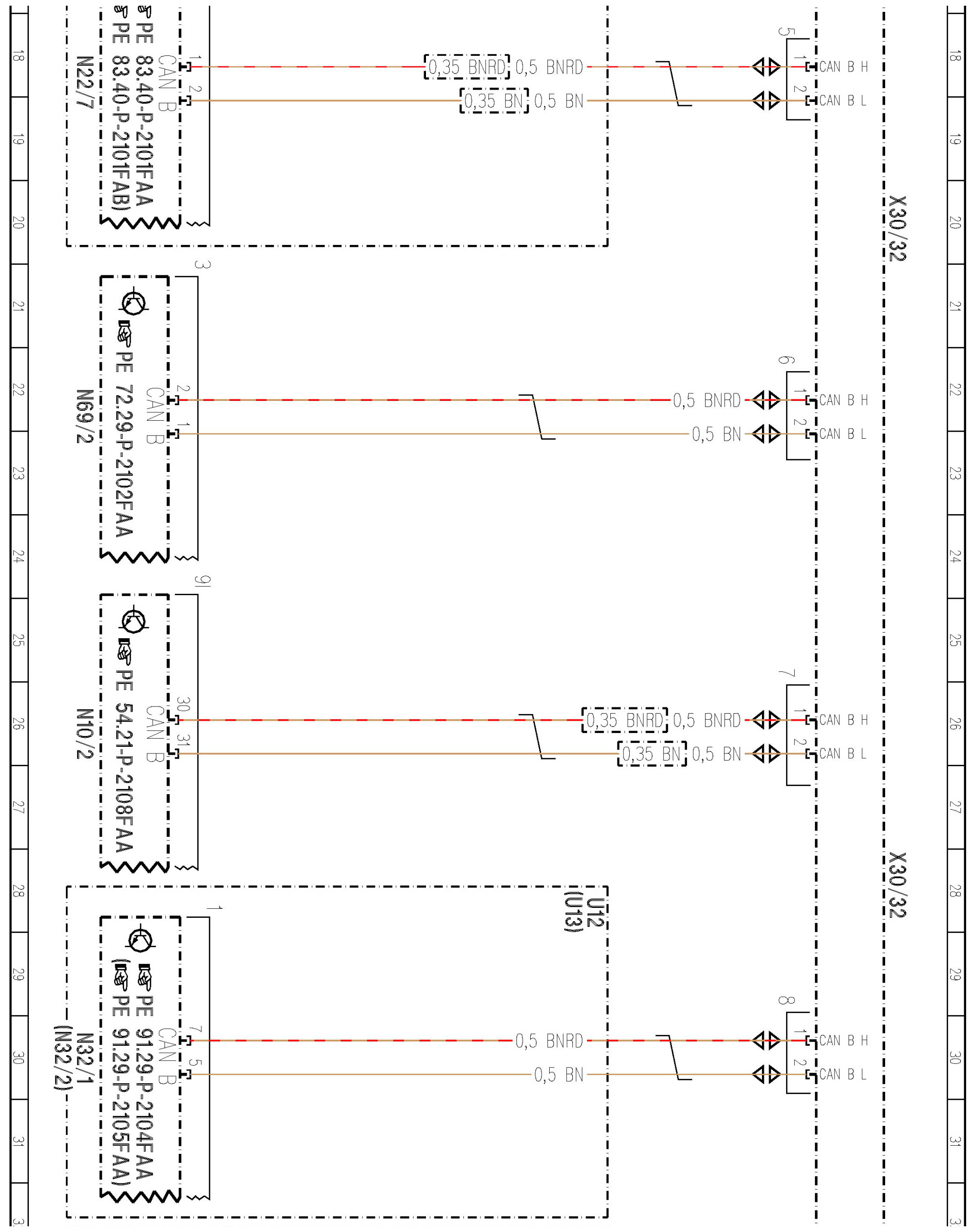

PE00.19-P-2185FAA Interior CAN



PE00.19-P-2185FAA Interior CAN

MODEL 204

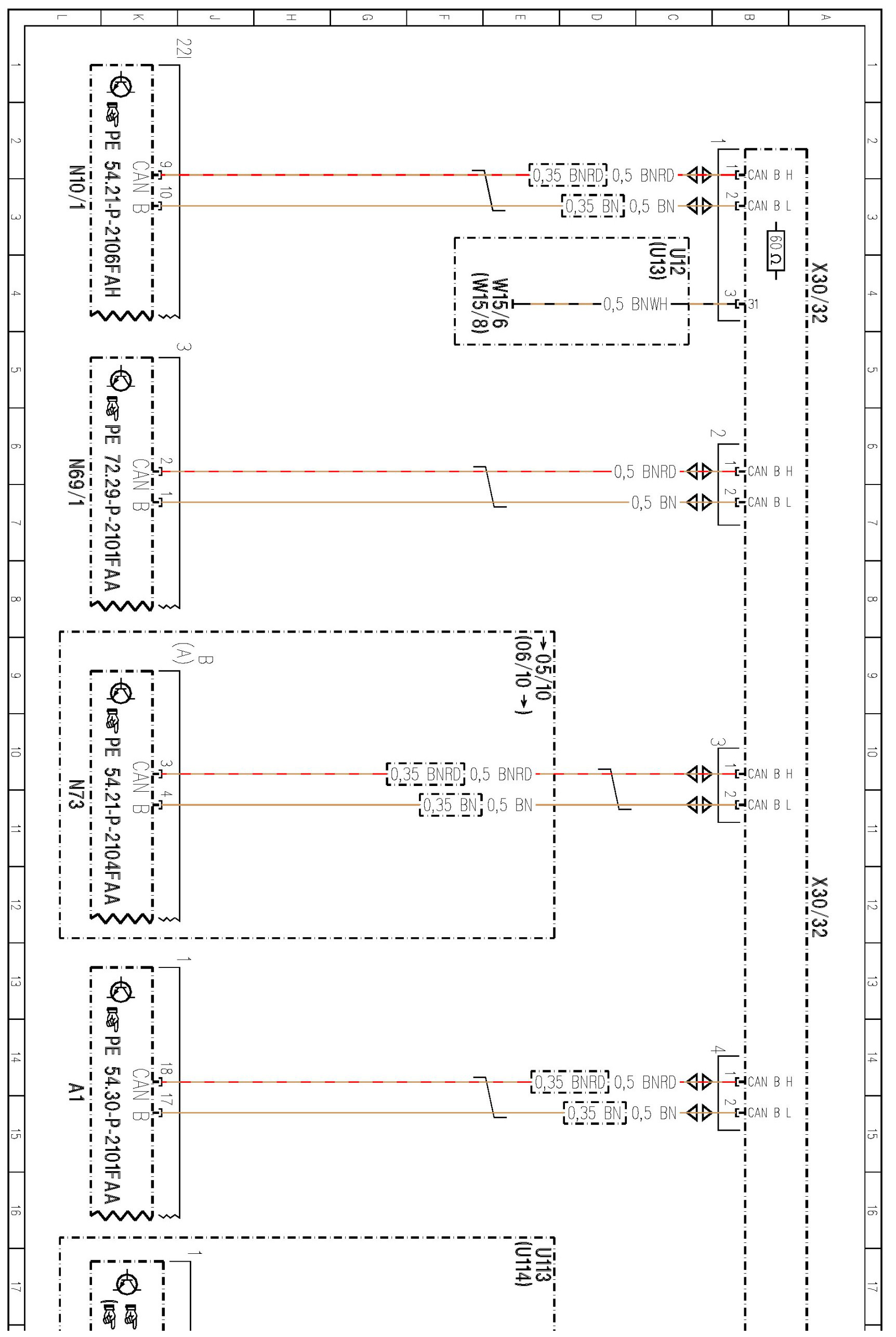

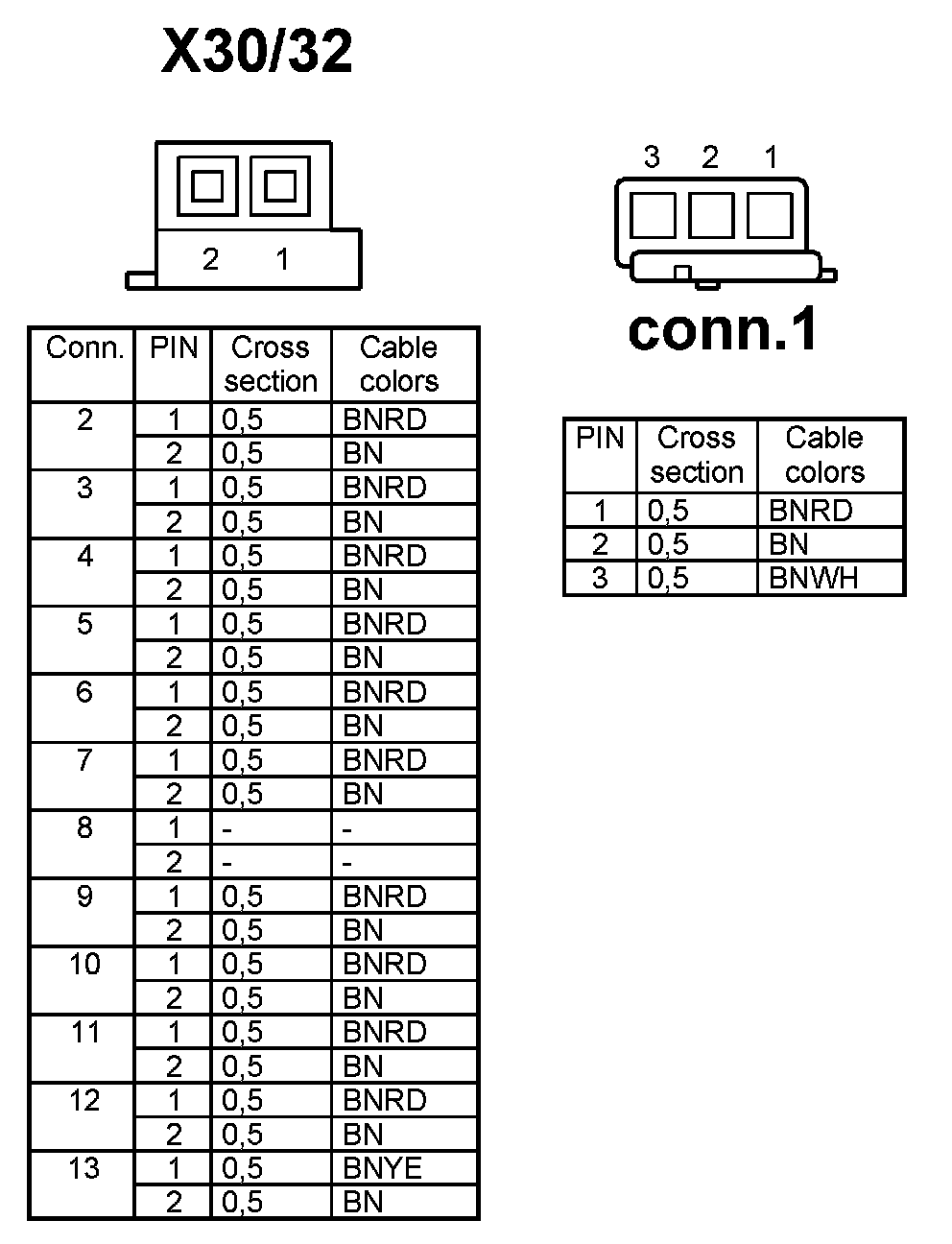

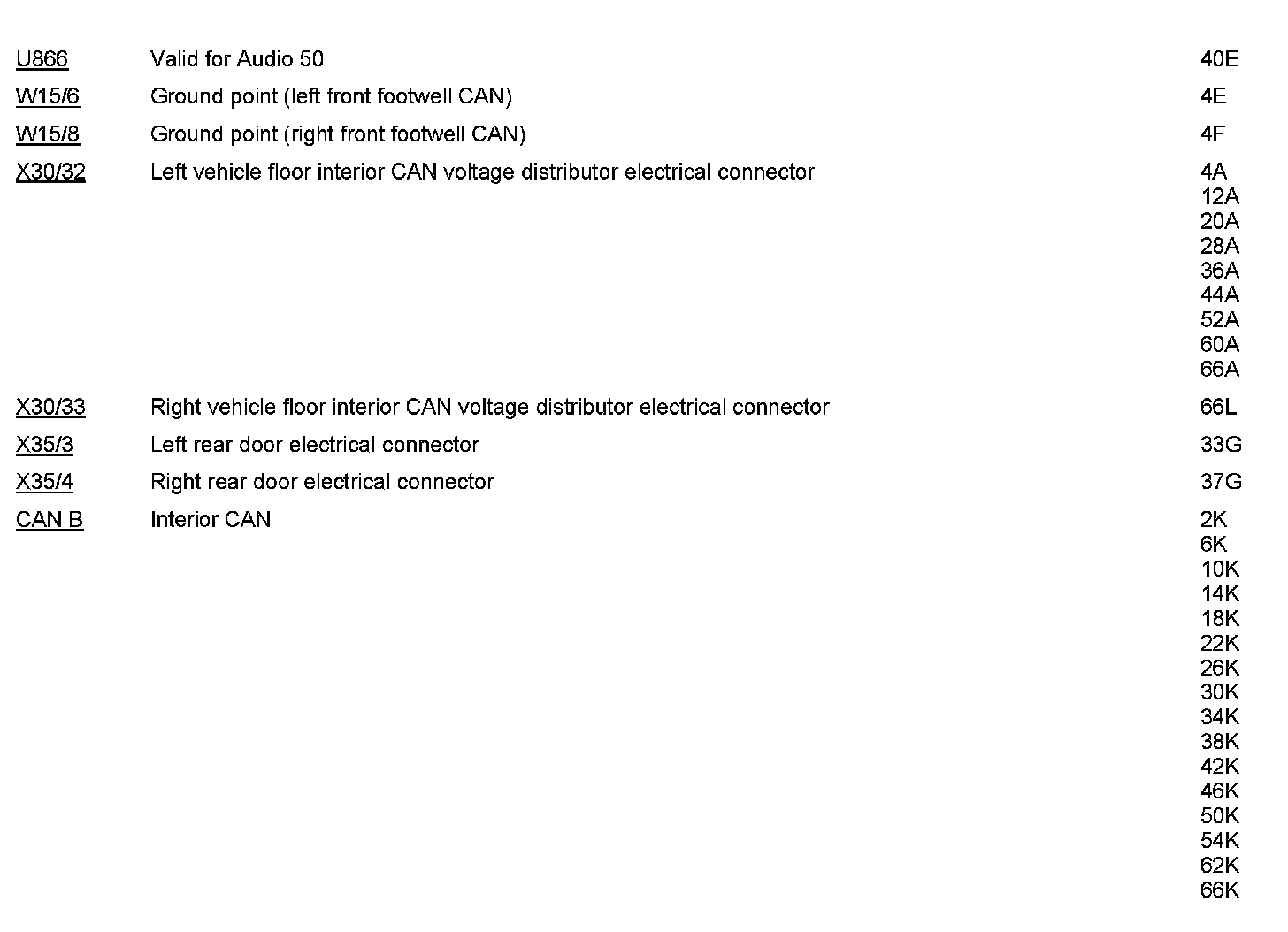

- Potential distributor X30/32































































































Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
