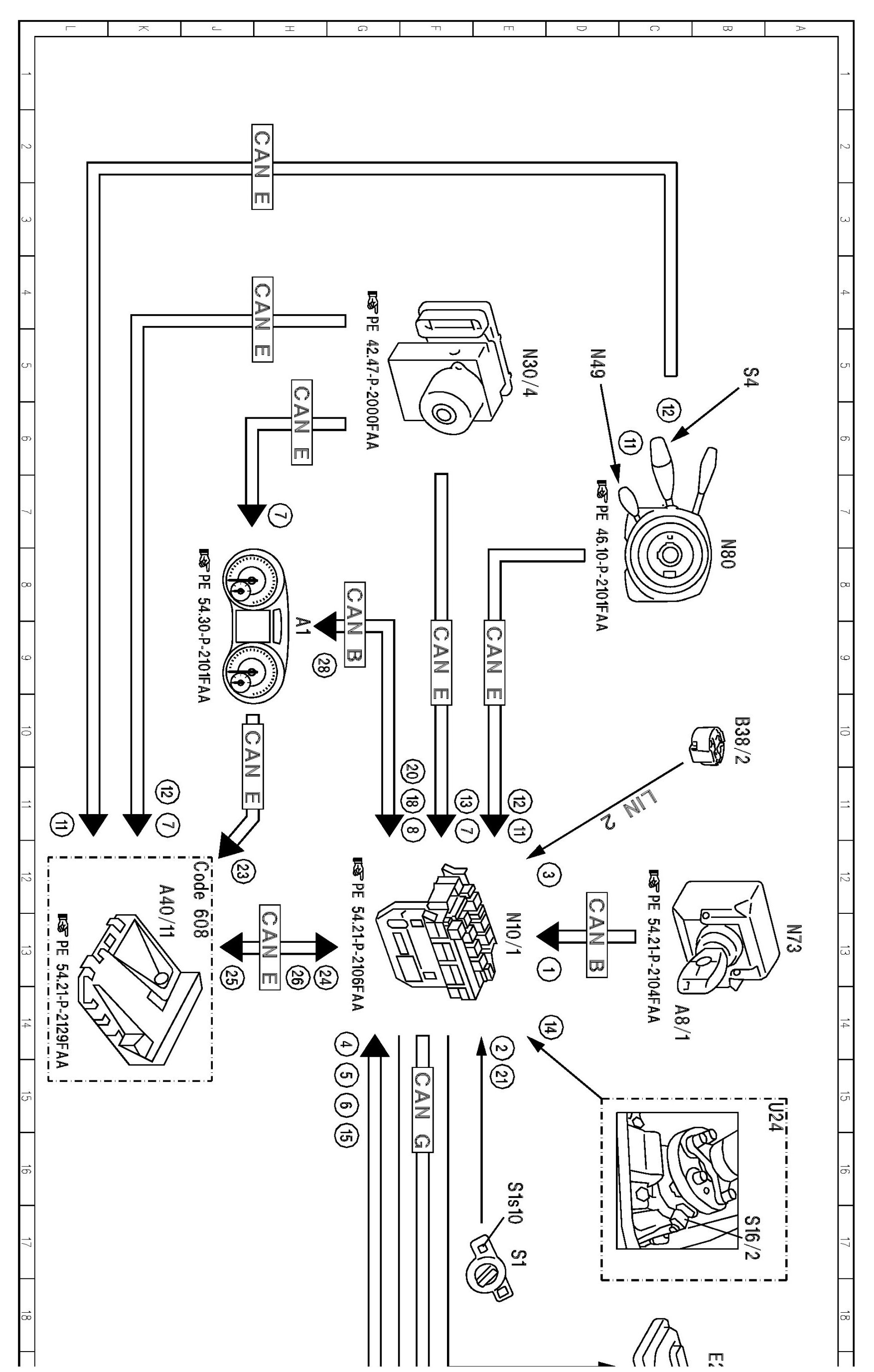

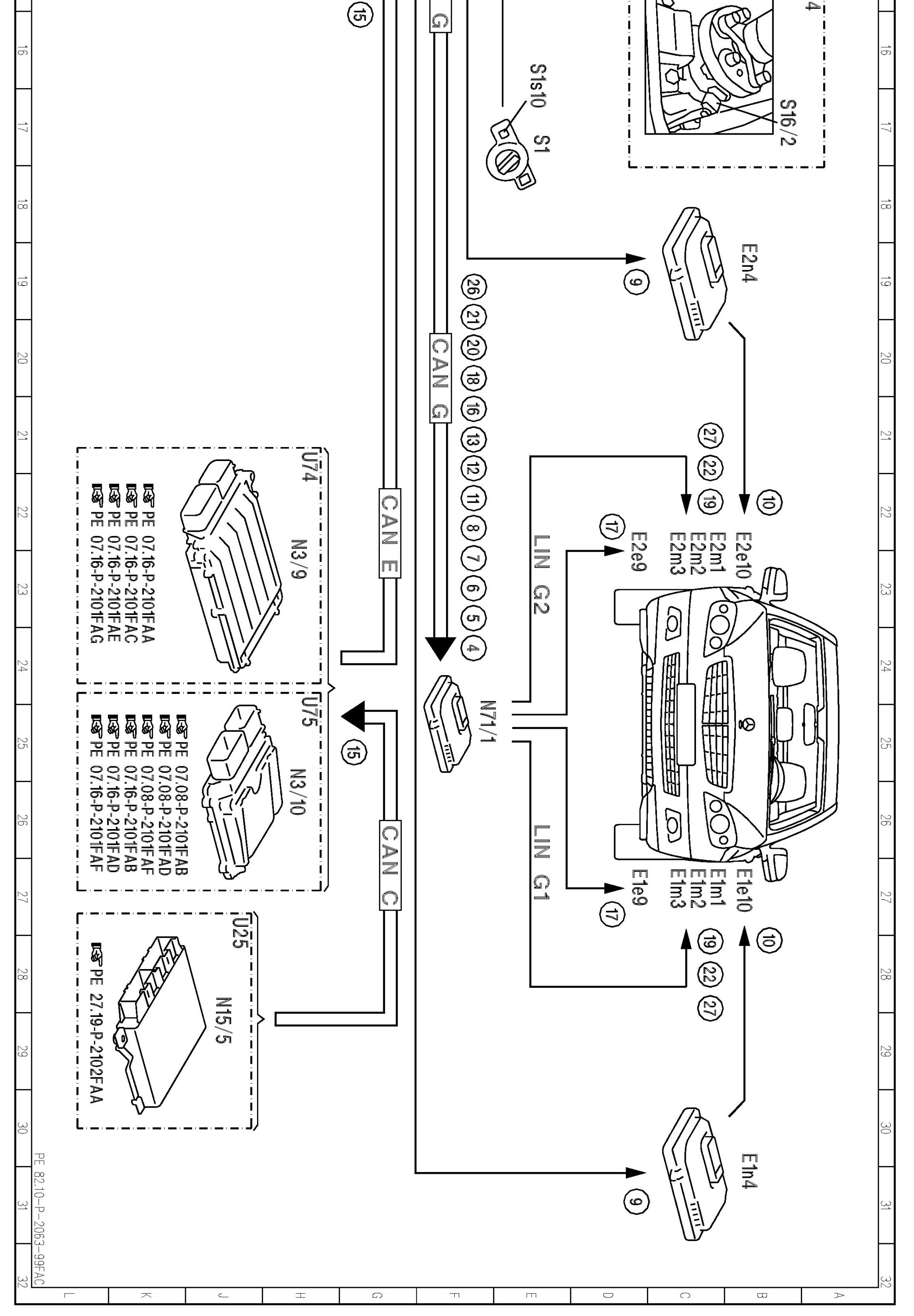

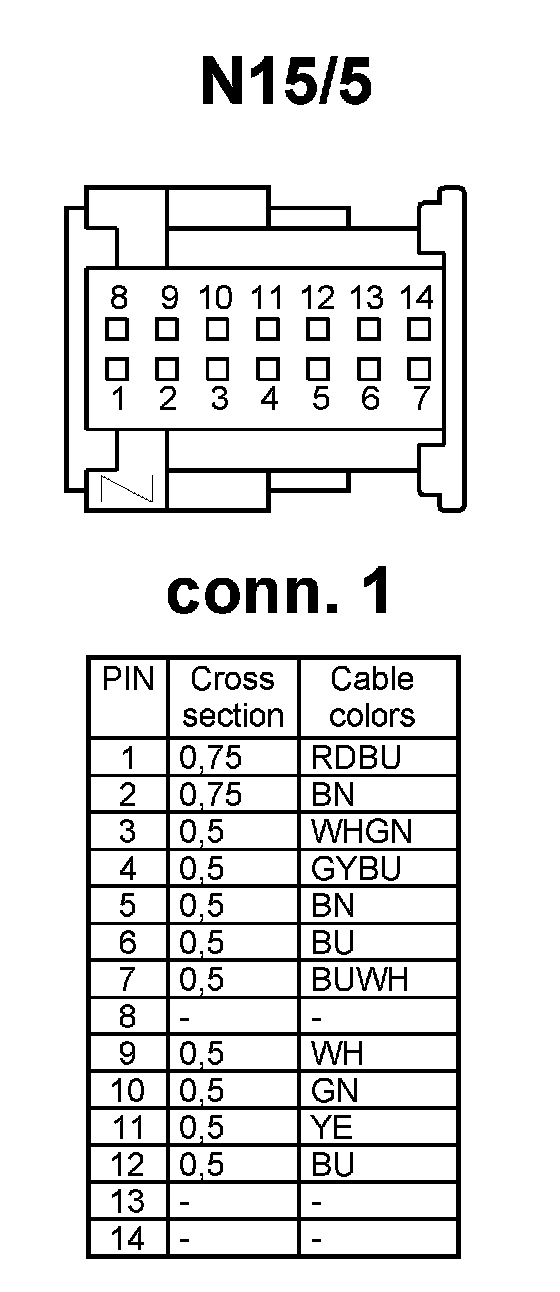

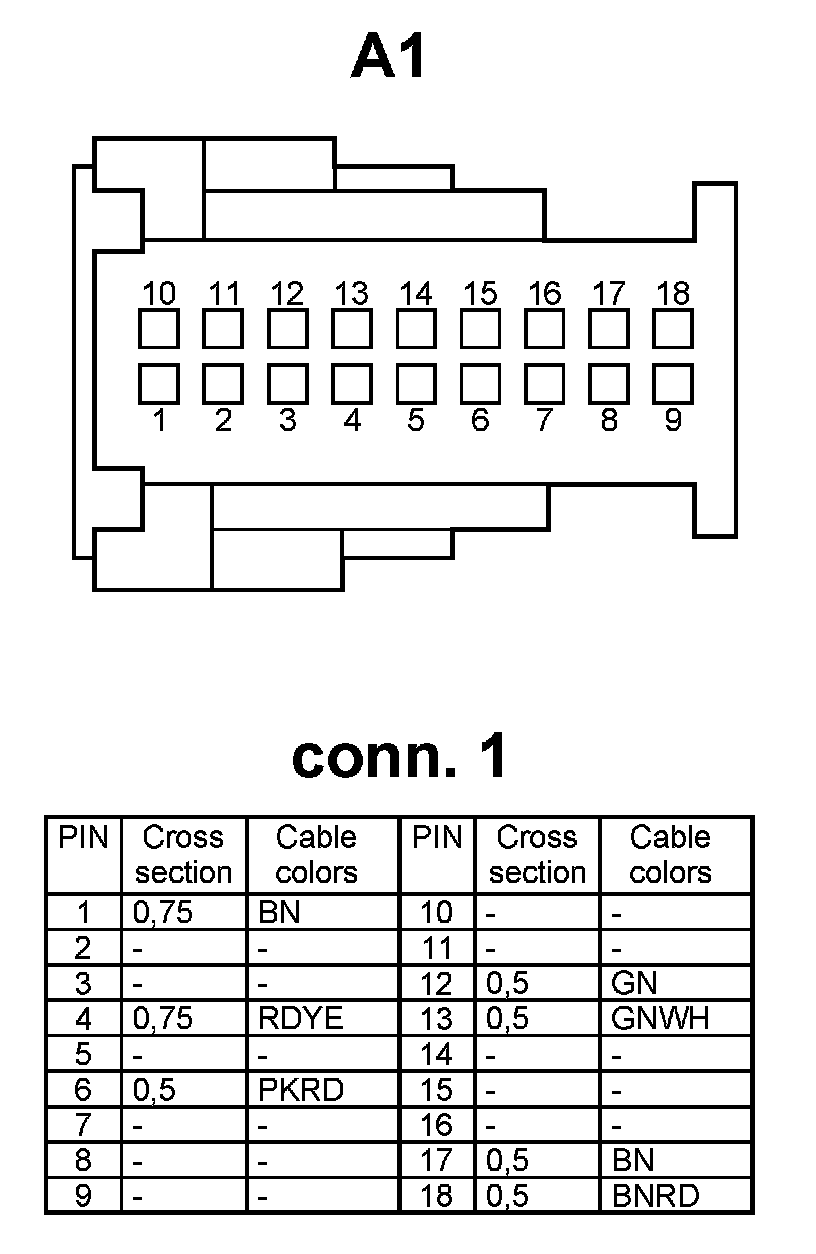

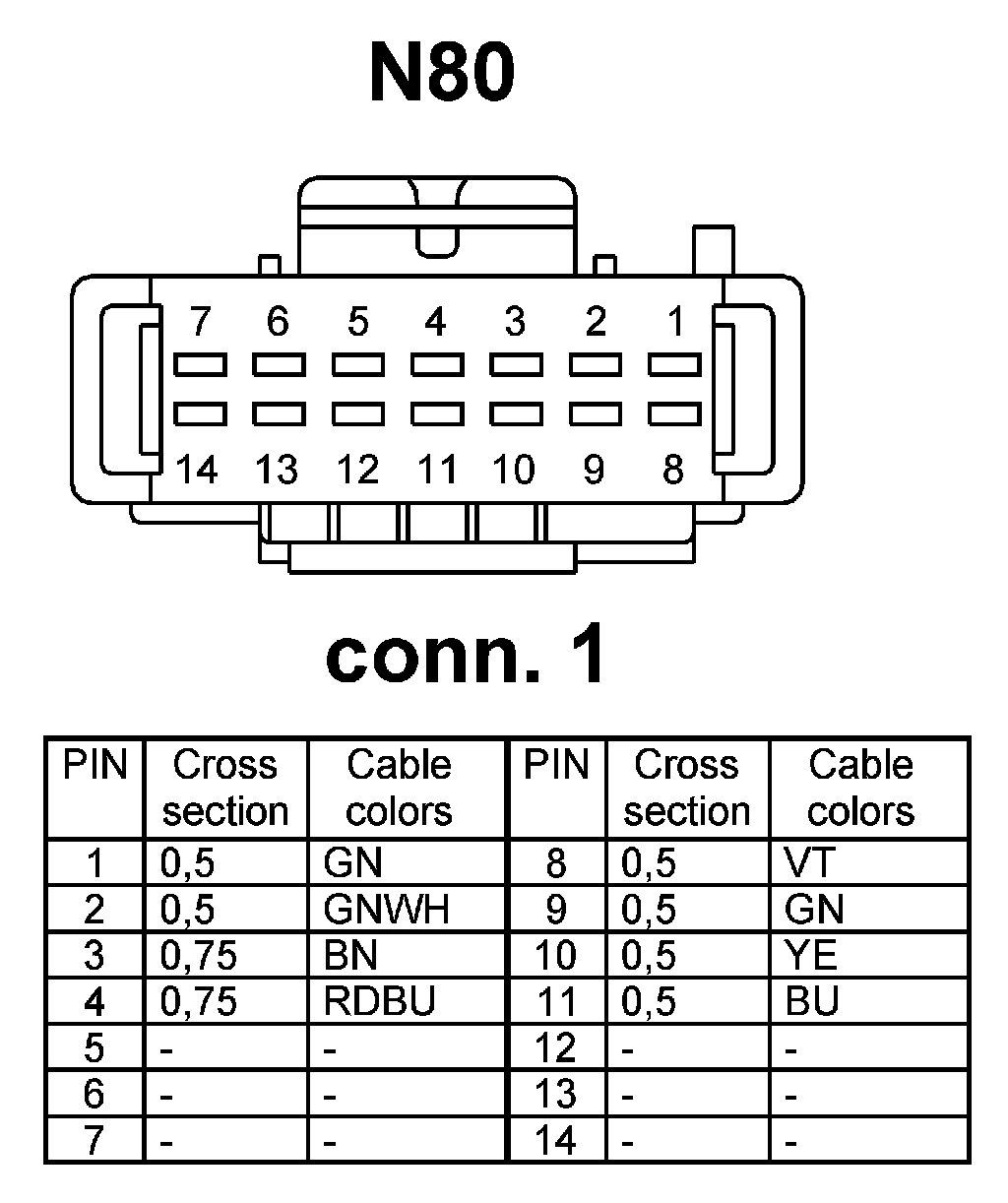

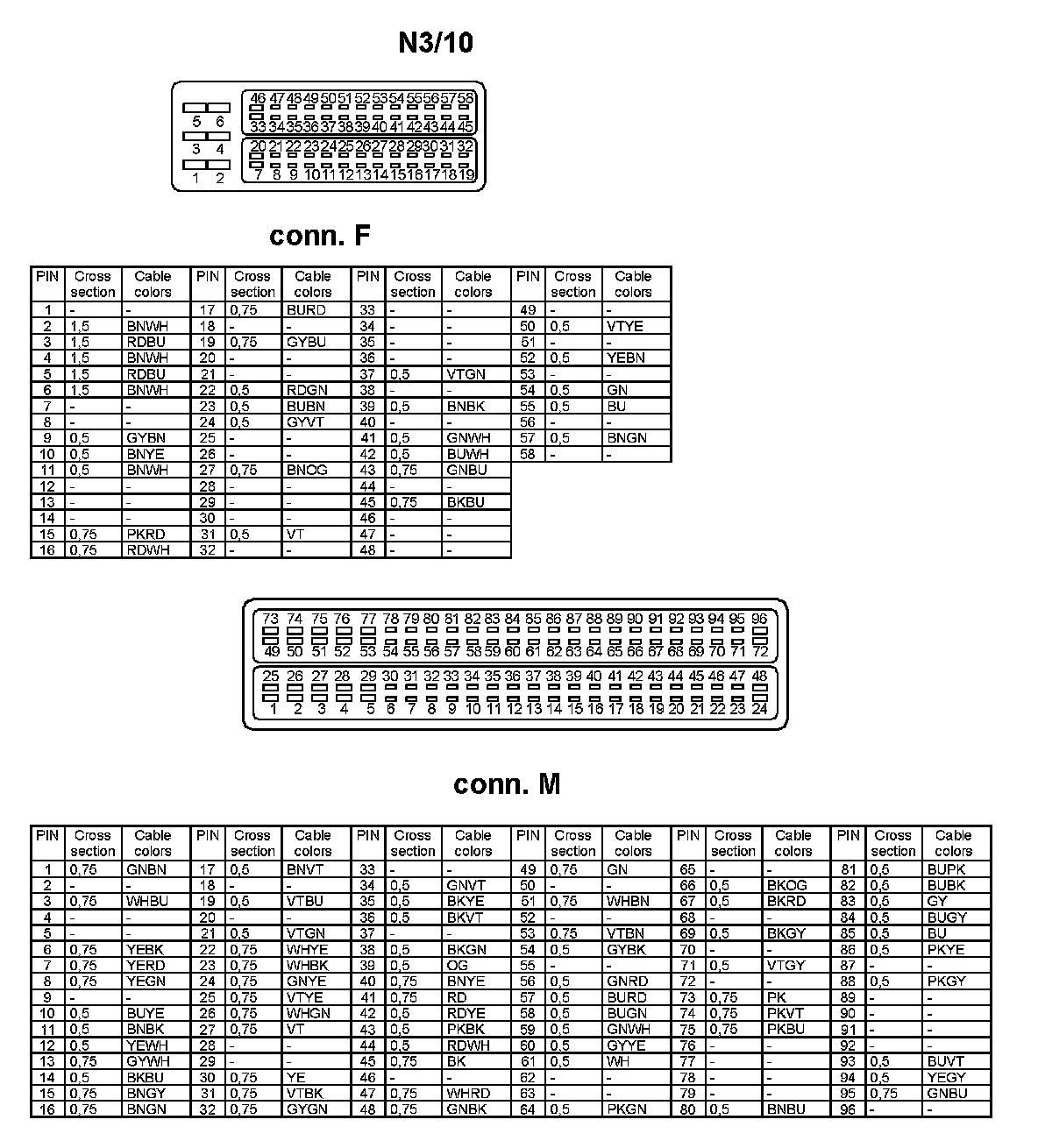

PE82.10-P-2063FAC Electrical Function Schematic, Additional Functions, Driving Lights Actuation

PE82.10-P-2063FAC Electrical Function Schematic, Additional Functions, Driving Lights Actuation

MODEL 204.0
- with CODE (615) Bi-xenon headlamp unit with integrated curve illumination
- with CODE (616) Bi-xenon headlamp unit with integrated asymmetric curve illumination
- with CODE (621) Intelligent Light System (left-hand traffic)
- with CODE (622) Intelligent Light System (right-hand traffic)
- with CODE (608) Adaptive Highbeam Assist
- as of model year 2012 /YoM 11 model refinement package

MODEL 204.2
- with CODE (621) Intelligent Light System (left-hand traffic)
- with CODE (622) Intelligent Light System (right-hand traffic)
- with CODE (608) Adaptive Highbeam Assist
- as of model year 2012 /YoM 11 model refinement package

MODEL 204.3
- with CODE (615) Bi-xenon headlamp unit with integrated curve illumination
- with CODE (616) Bi-xenon headlamp unit with integrated asymmetric curve illumination
- with CODE (621) Intelligent Light System (left-hand traffic)
- with CODE (622) Intelligent Light System (right-hand traffic)
- with CODE (608) Adaptive Highbeam Assist































































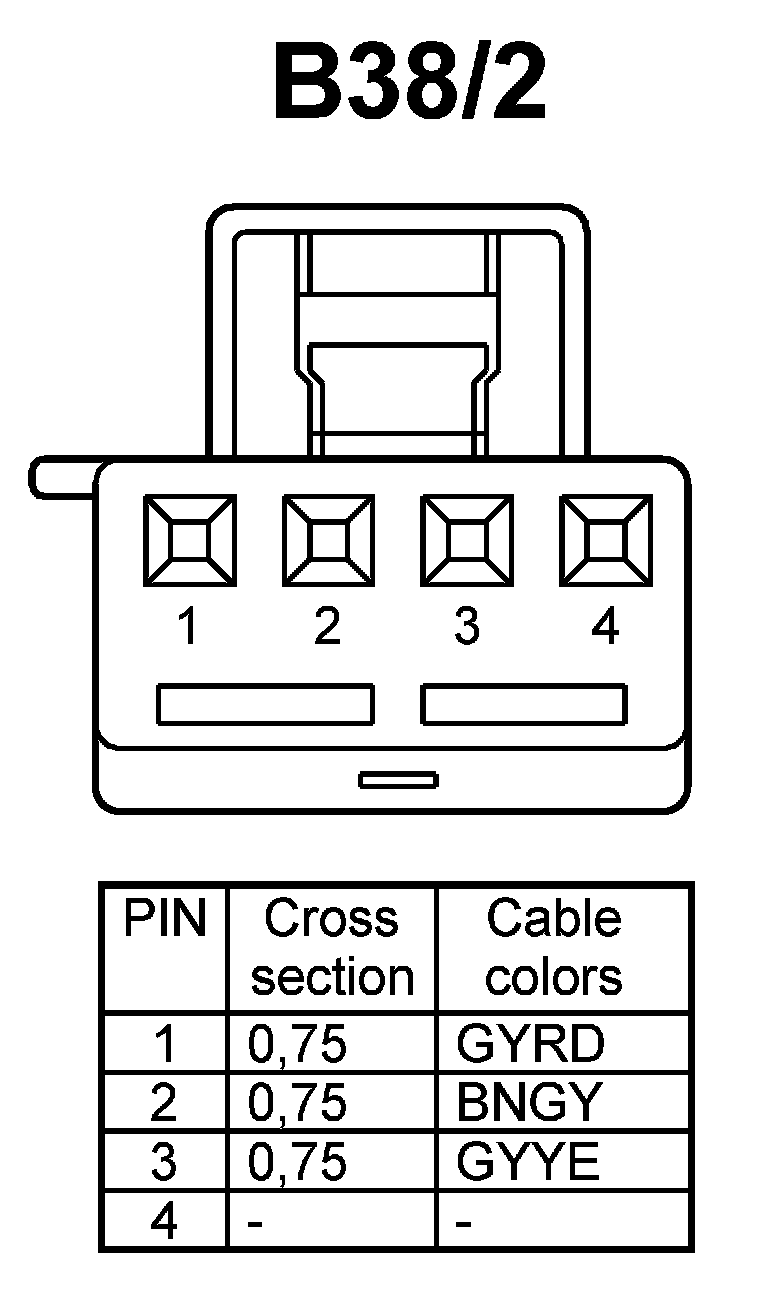

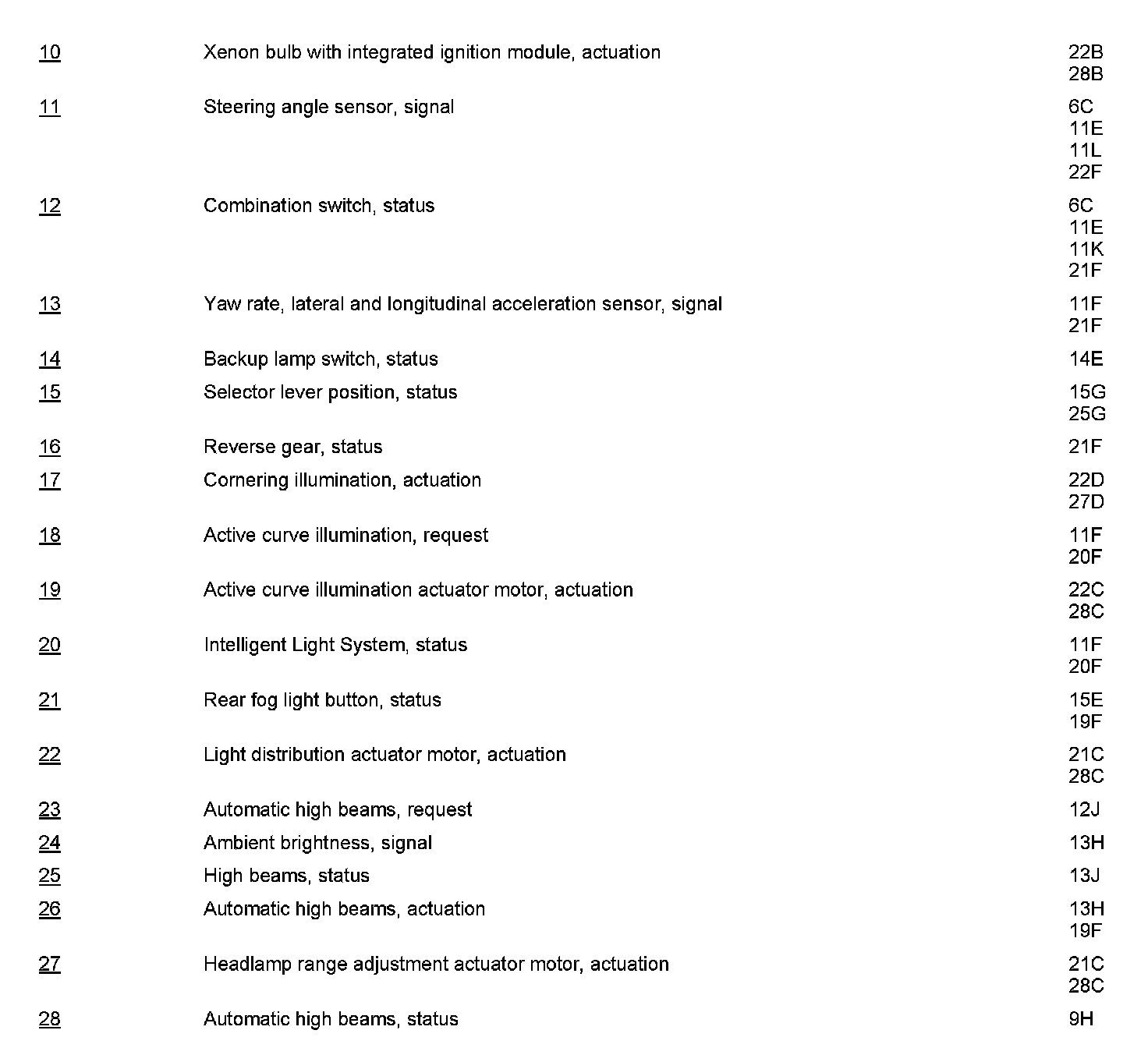

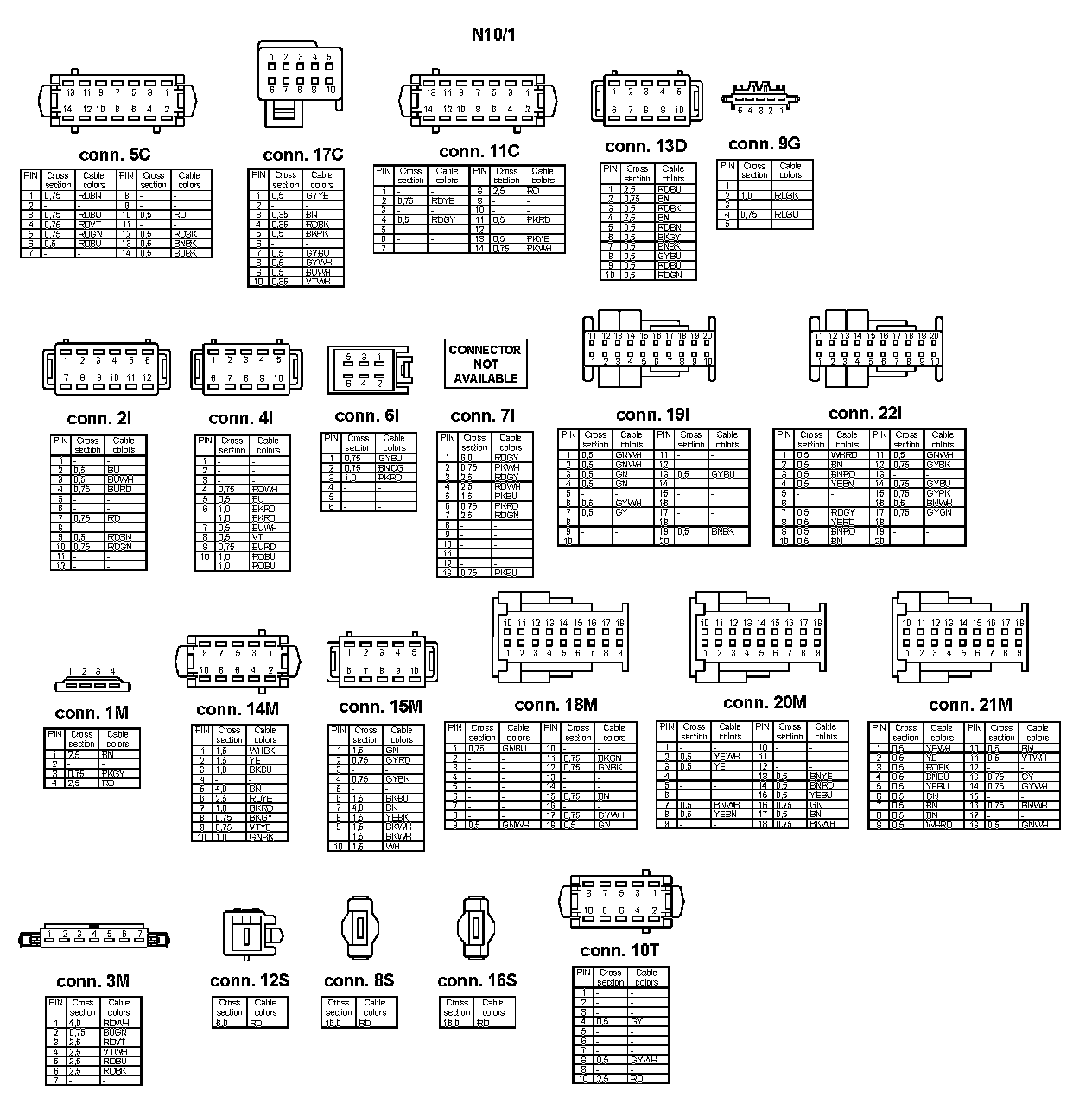

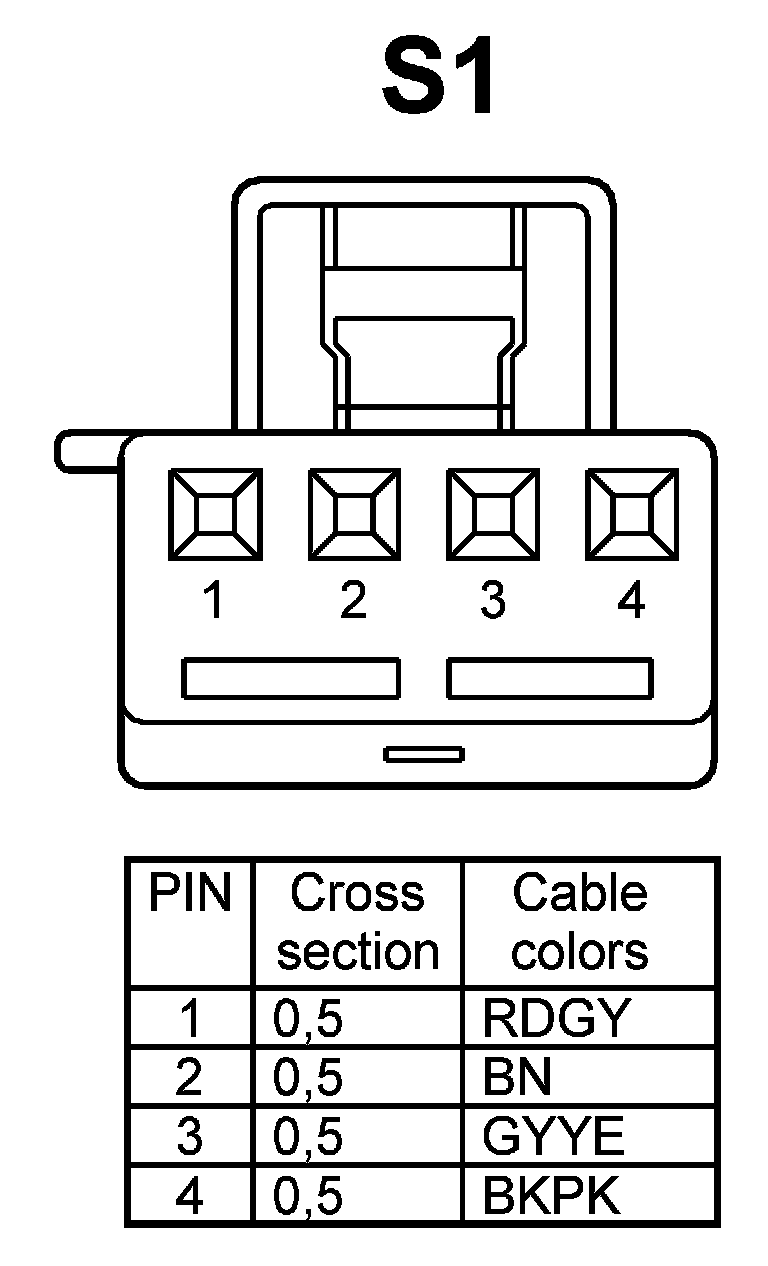

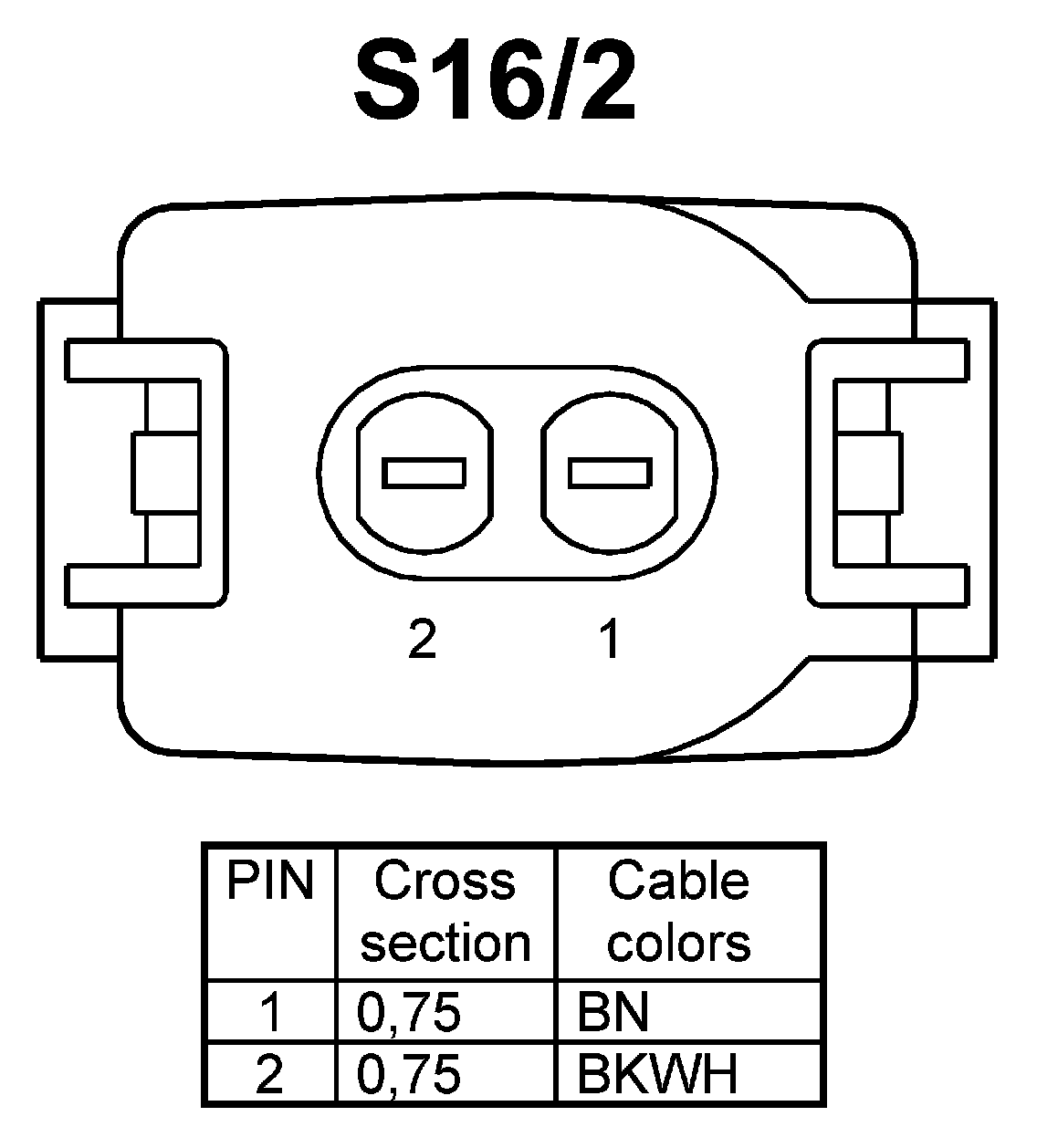

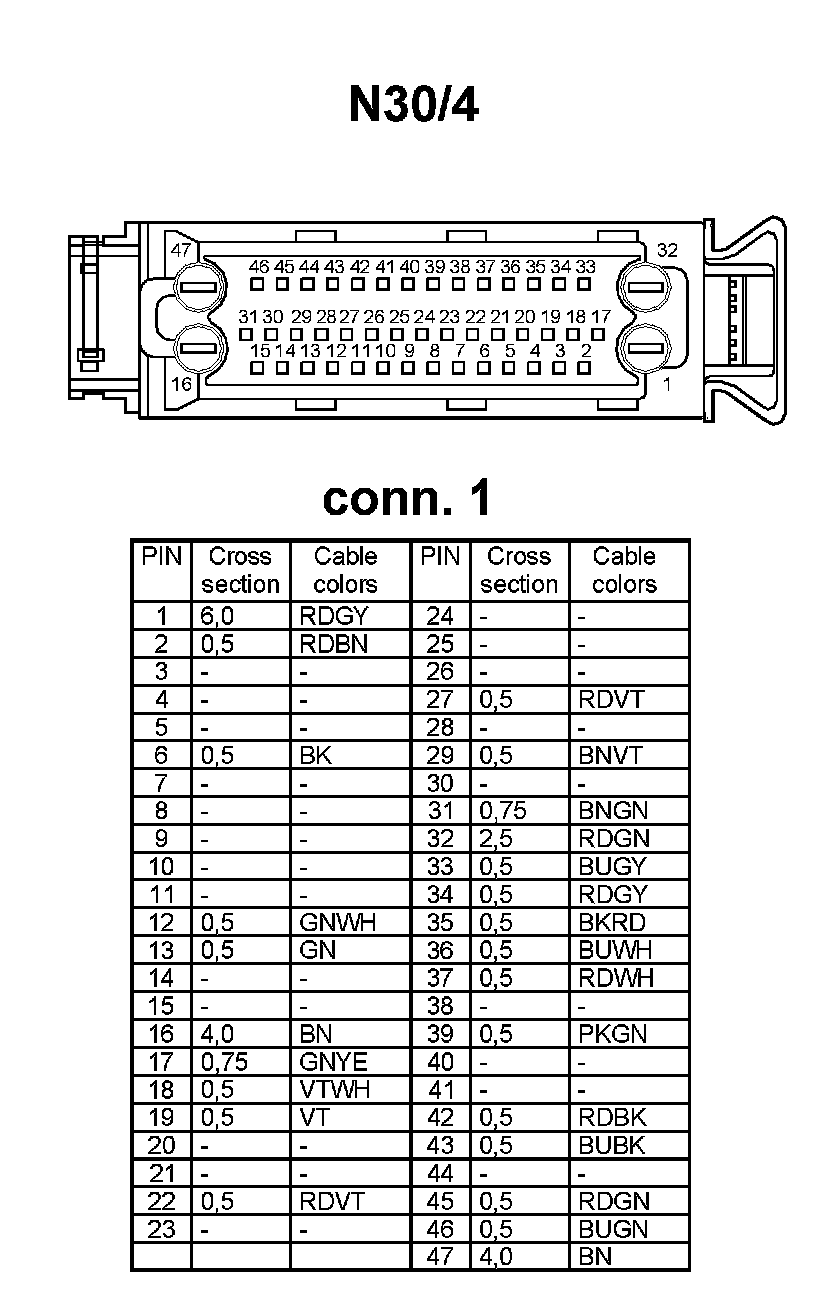

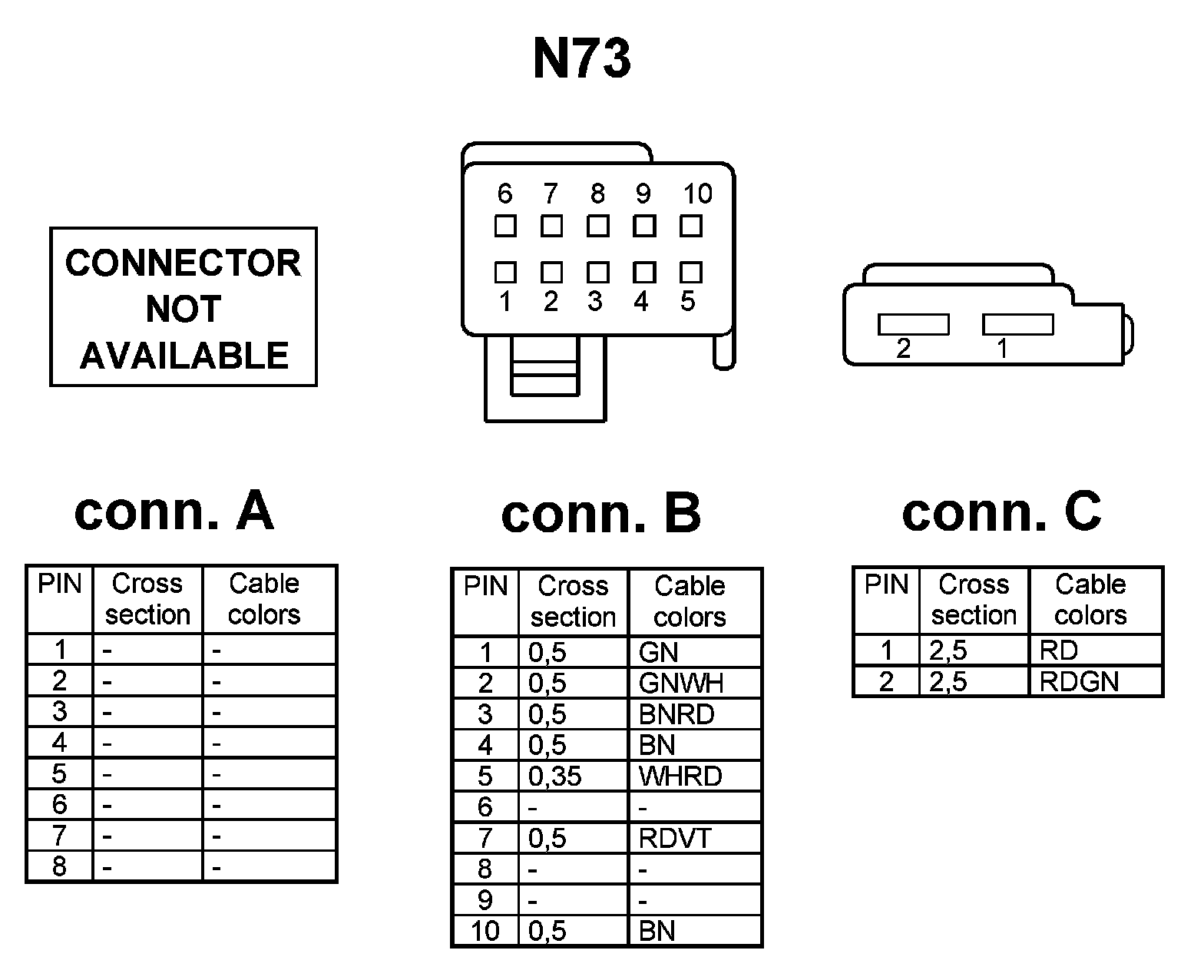

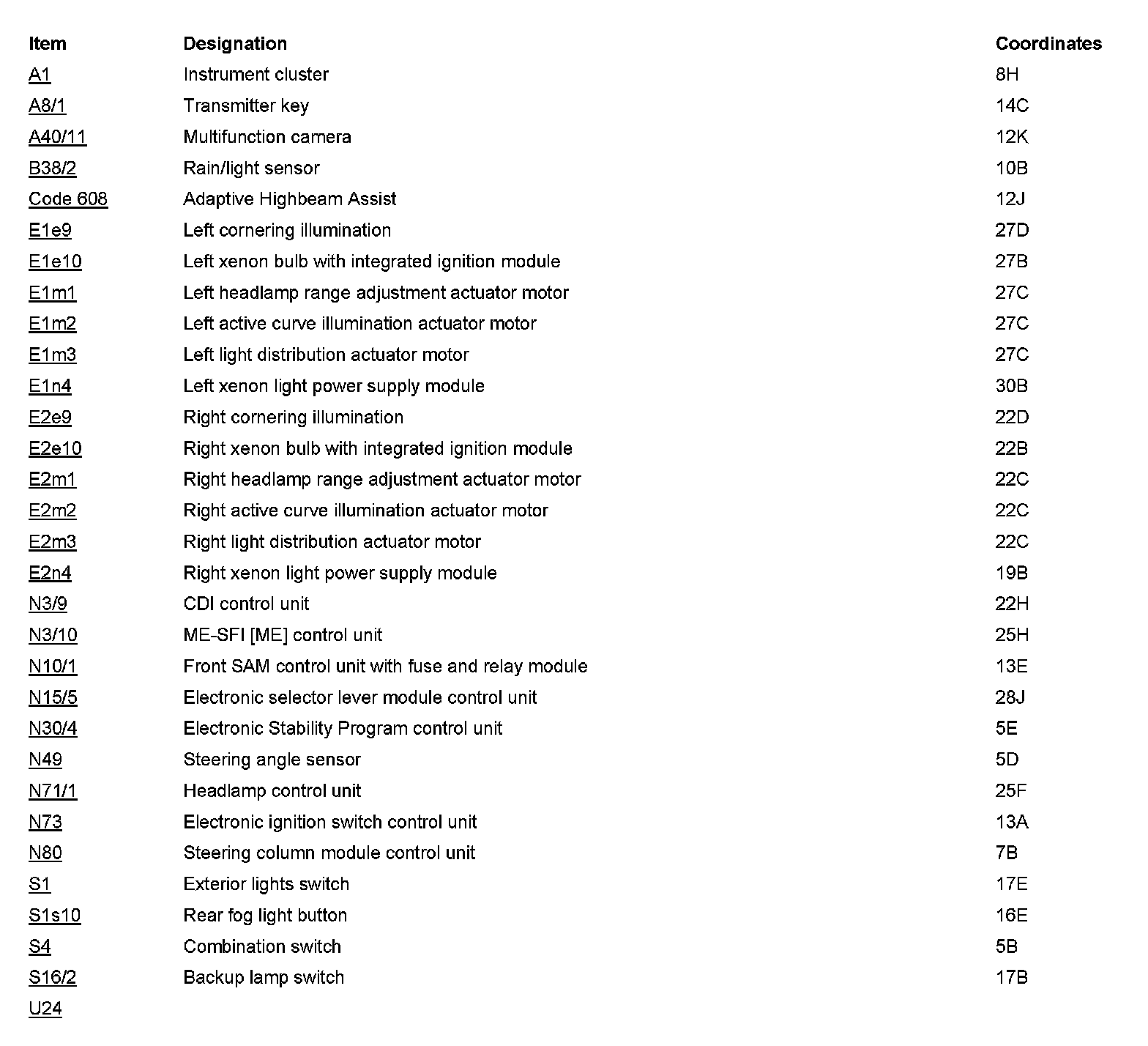

Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
