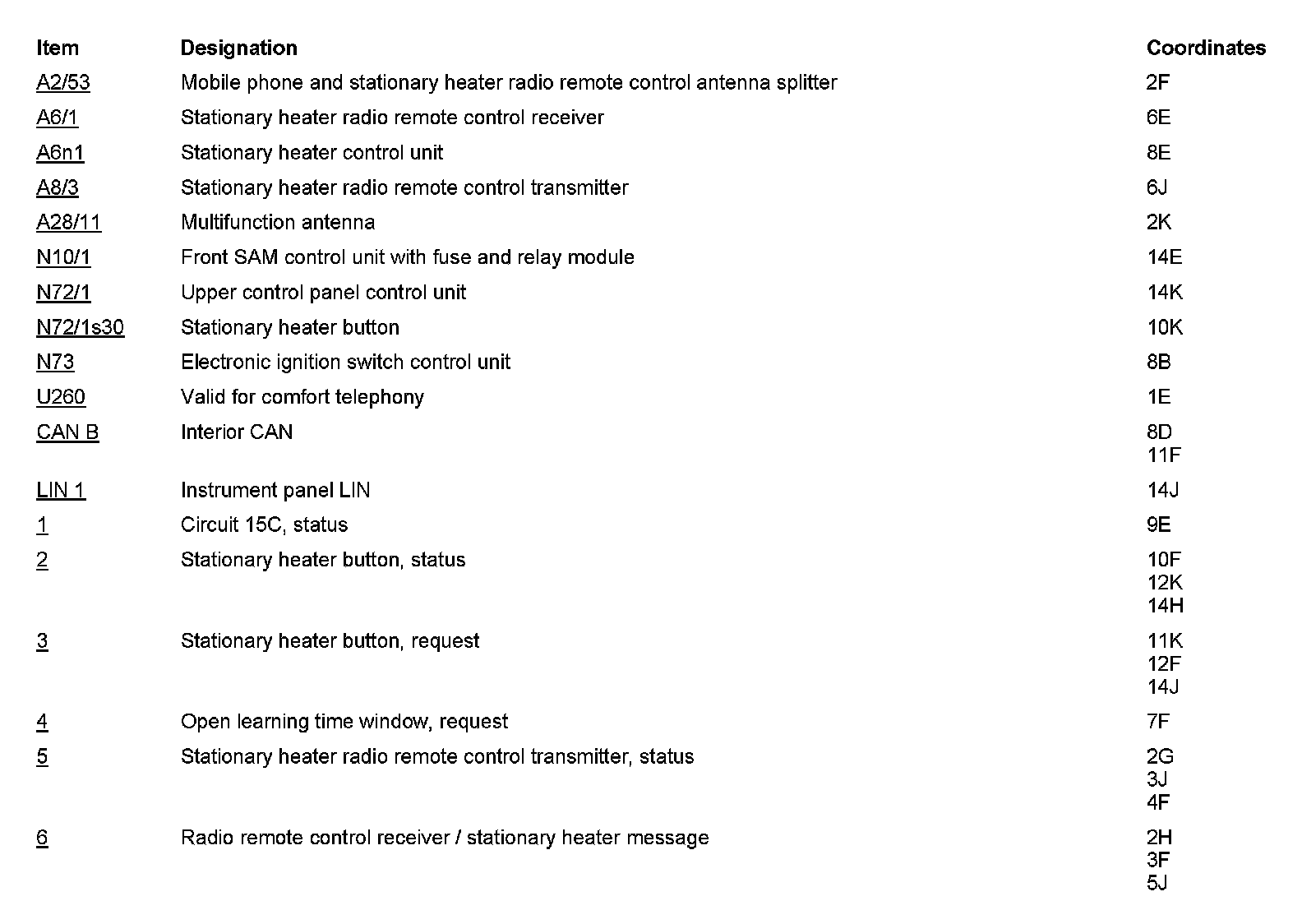

PE83.70-P-2052FAA Electrical Function Schematic, Teach-In Of Stationary Heater Radio Remote Control Transmitter

PE83.70-P-2052FAA Electrical Function Schematic, Teach-In Of Stationary Heater Radio Remote Control Transmitter

MODEL 204
- with CODE (228) Stationary heater
- as of model year 2011 /YoM 10

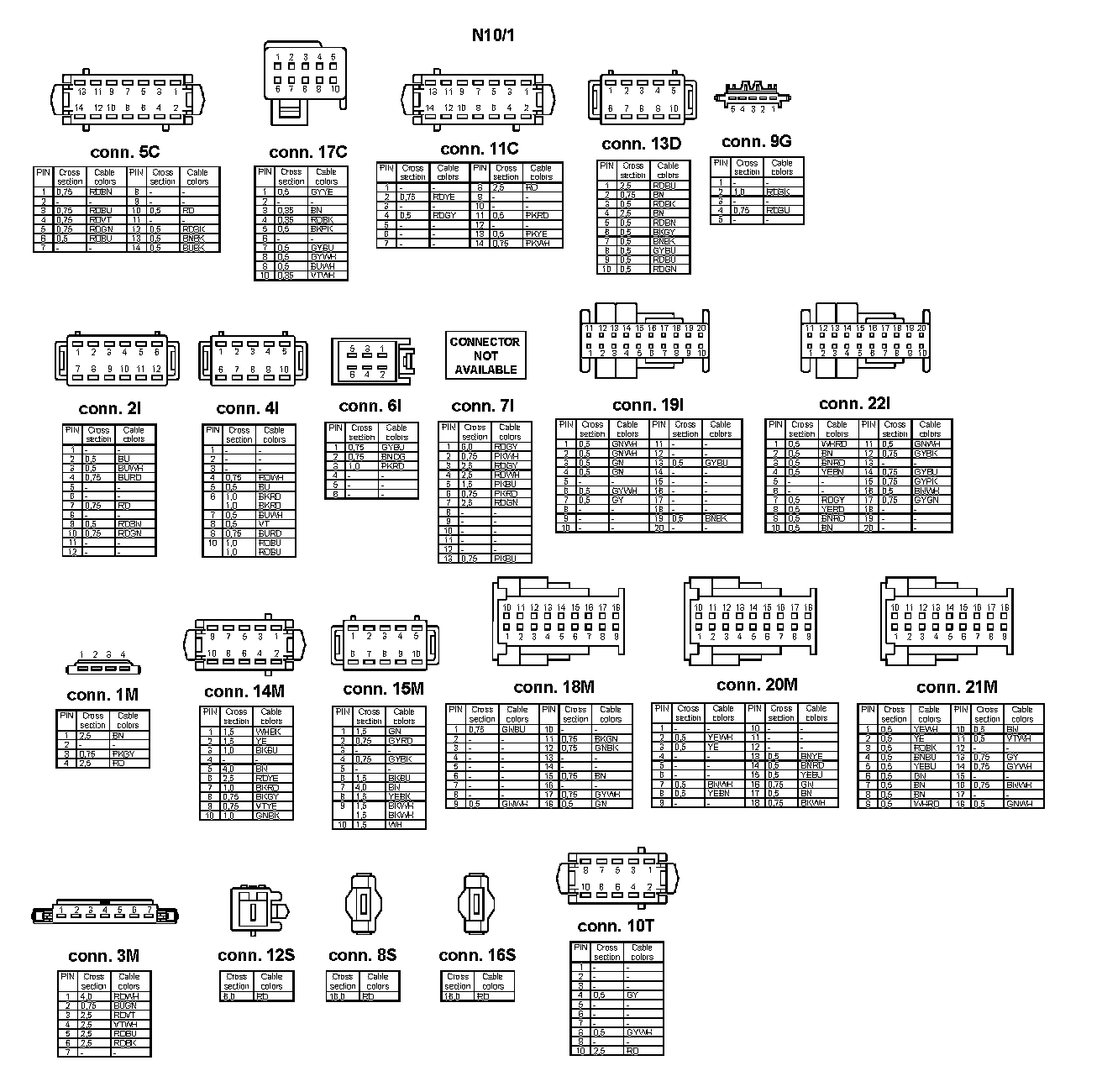

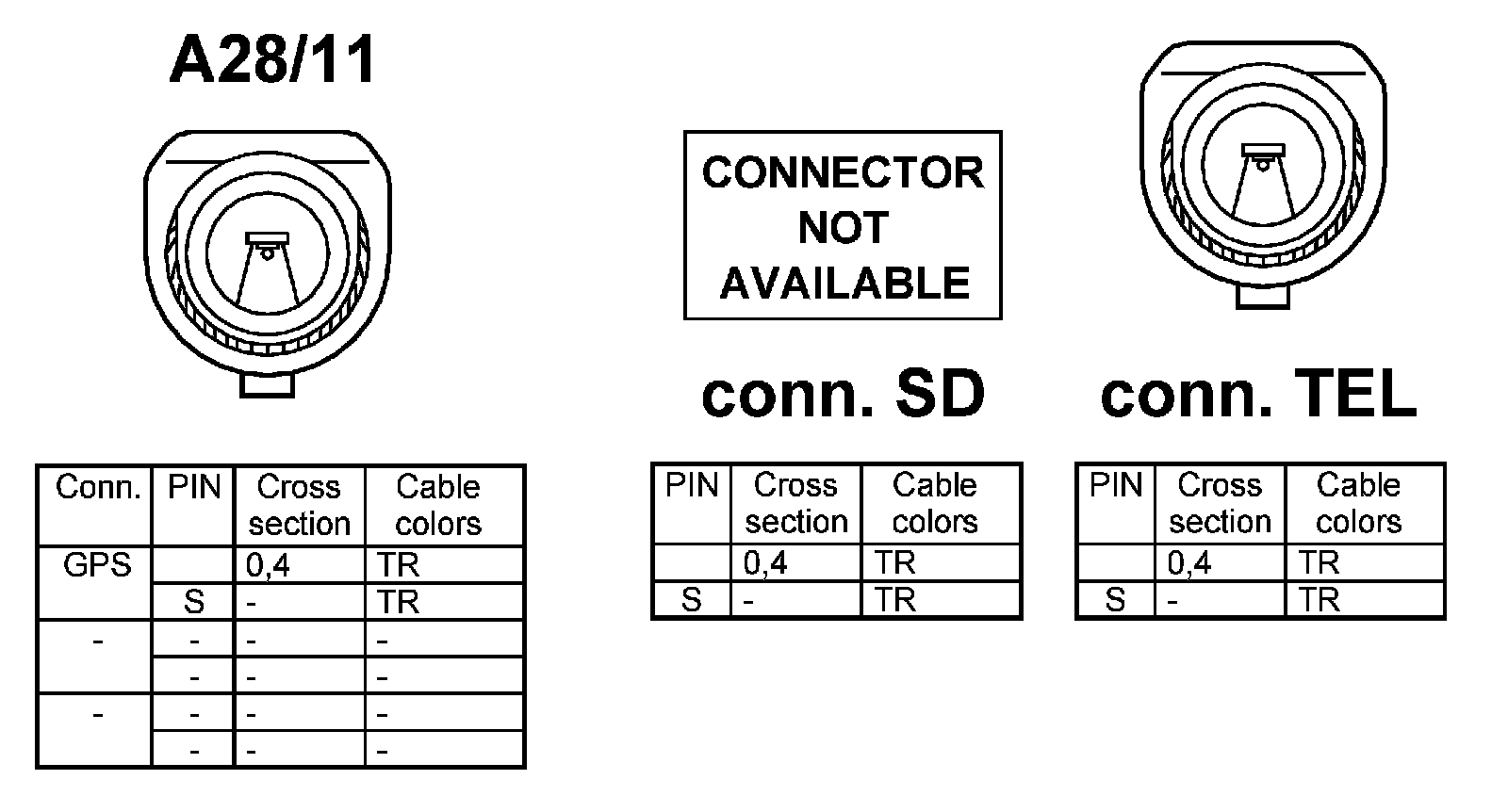

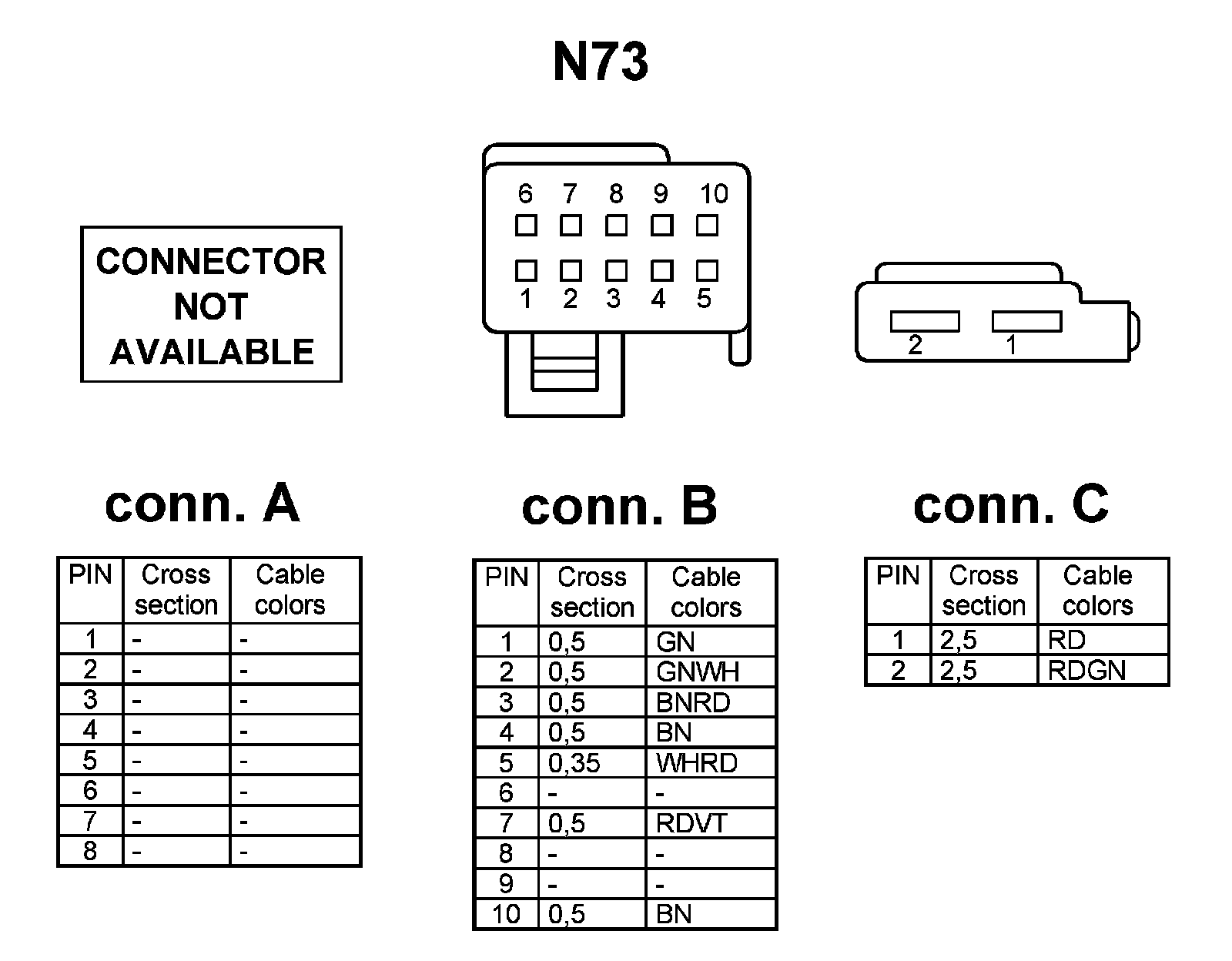

Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
