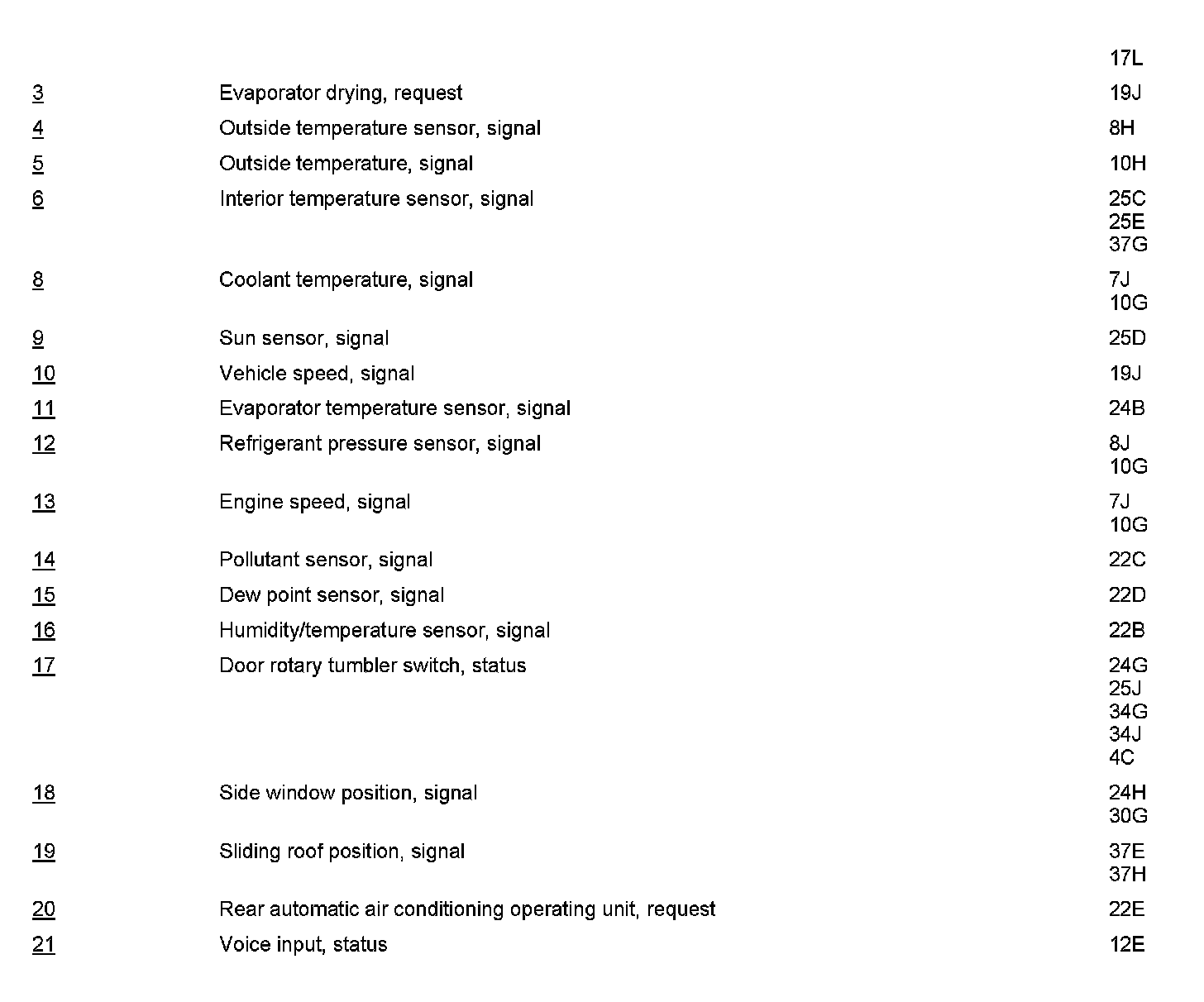

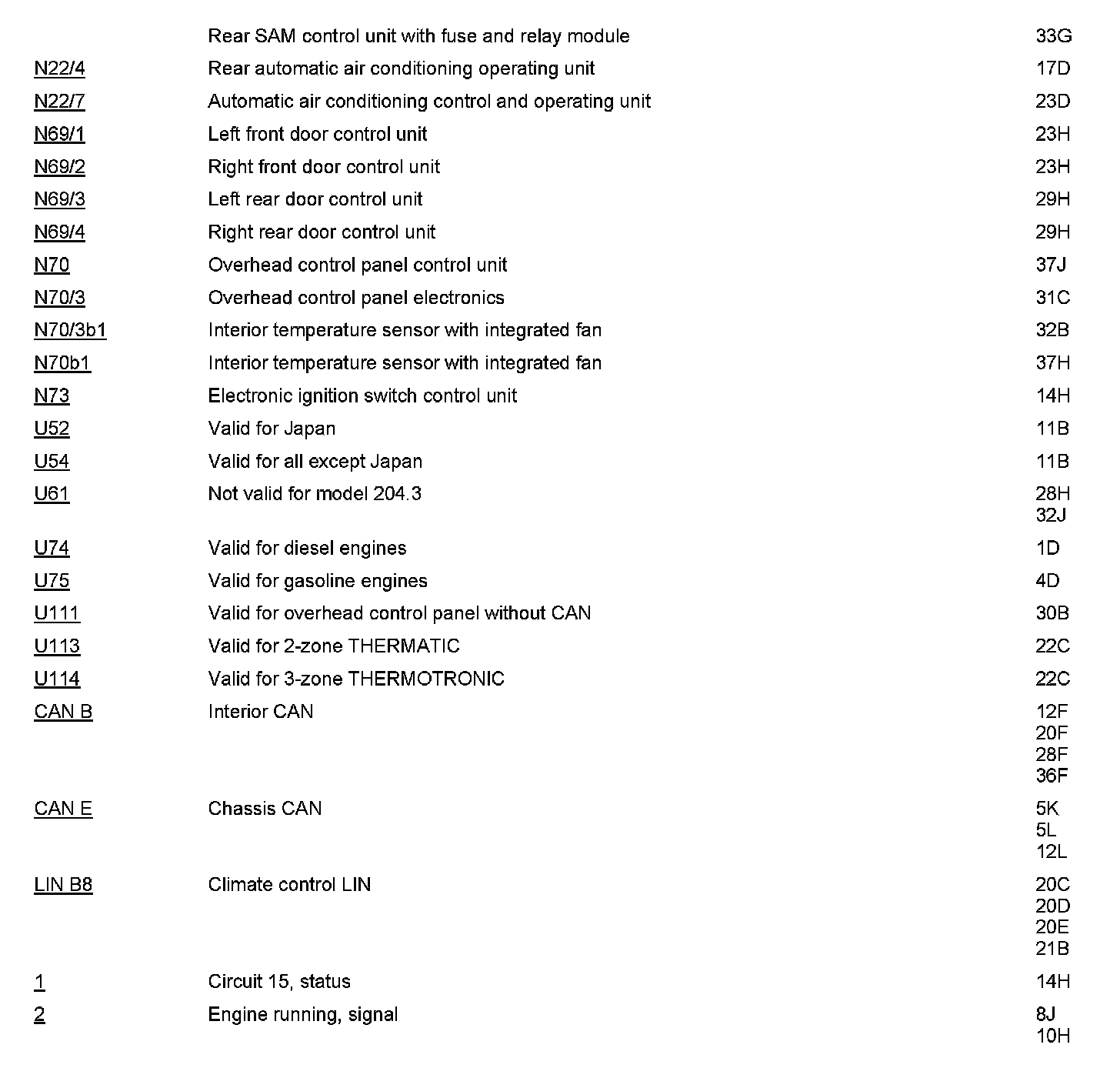

PE83.40-P-2052FAB Electrical Function Schematic For Automatic Air Conditioning, Input Signals

PE83.40-P-2052FAB Electrical Function Schematic For Automatic Air Conditioning, Input Signals

MODEL 204.0 /2
- as of model year 2009/YoM 08

MODEL 204.3

MODEL 204.9














































































































Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
