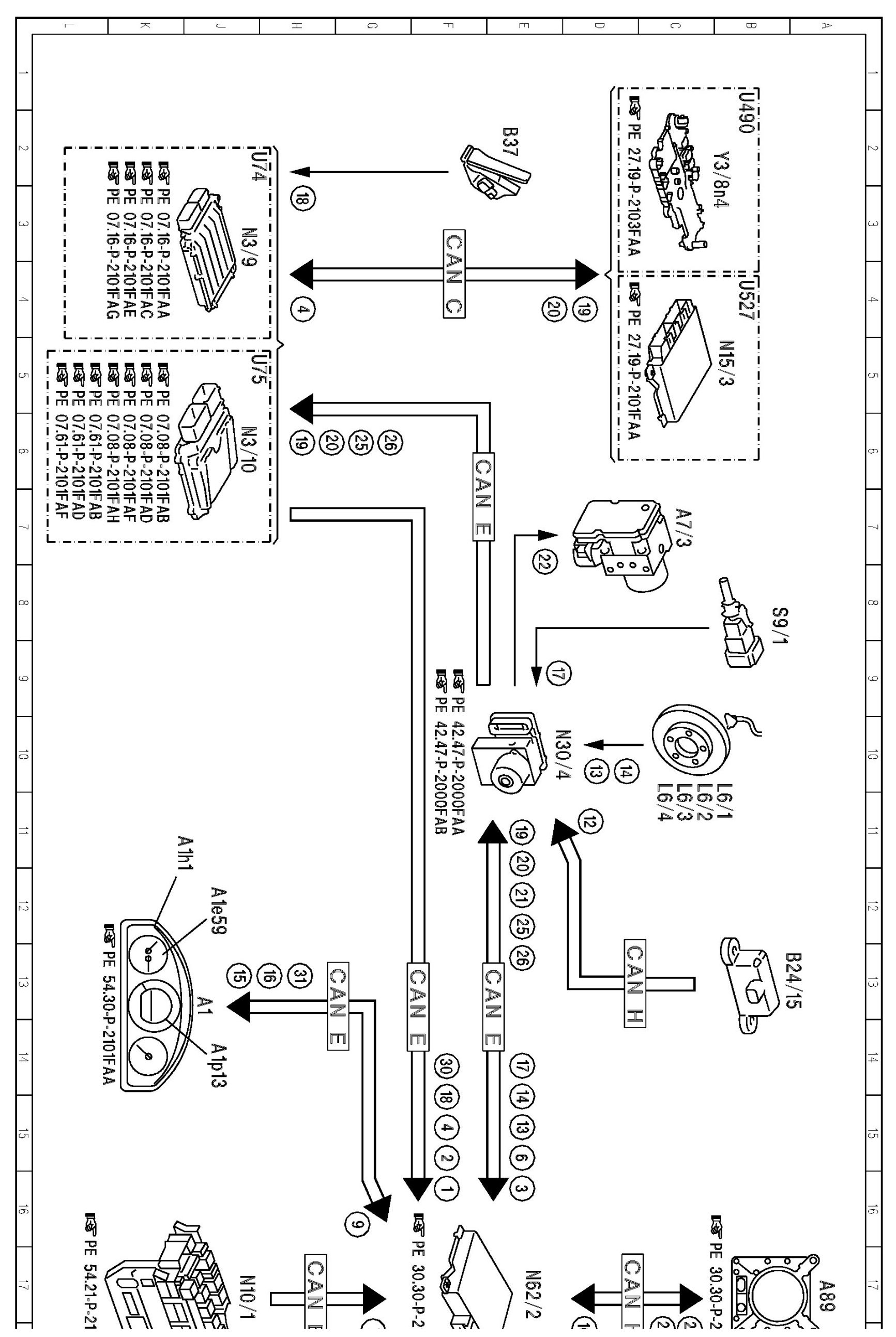

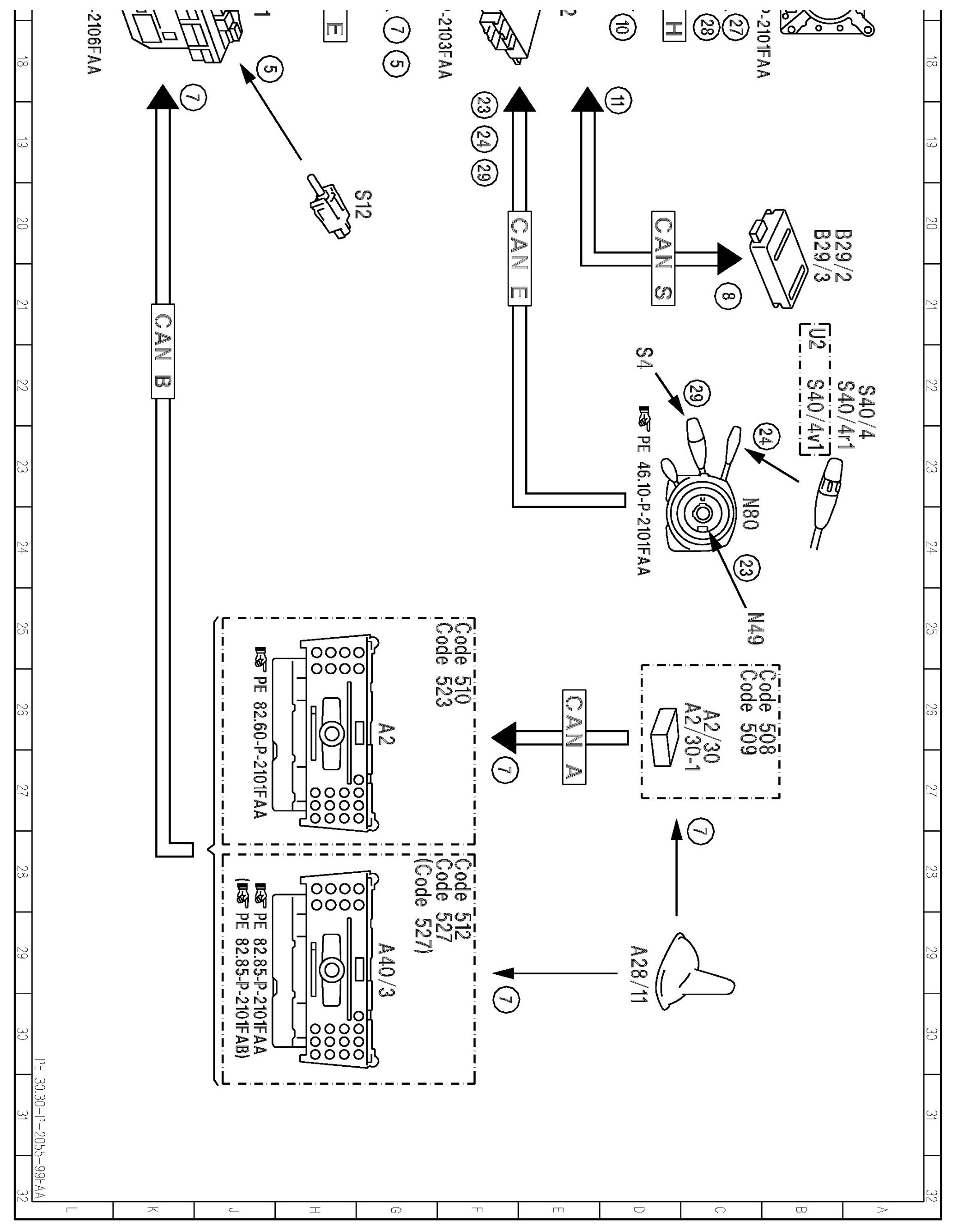

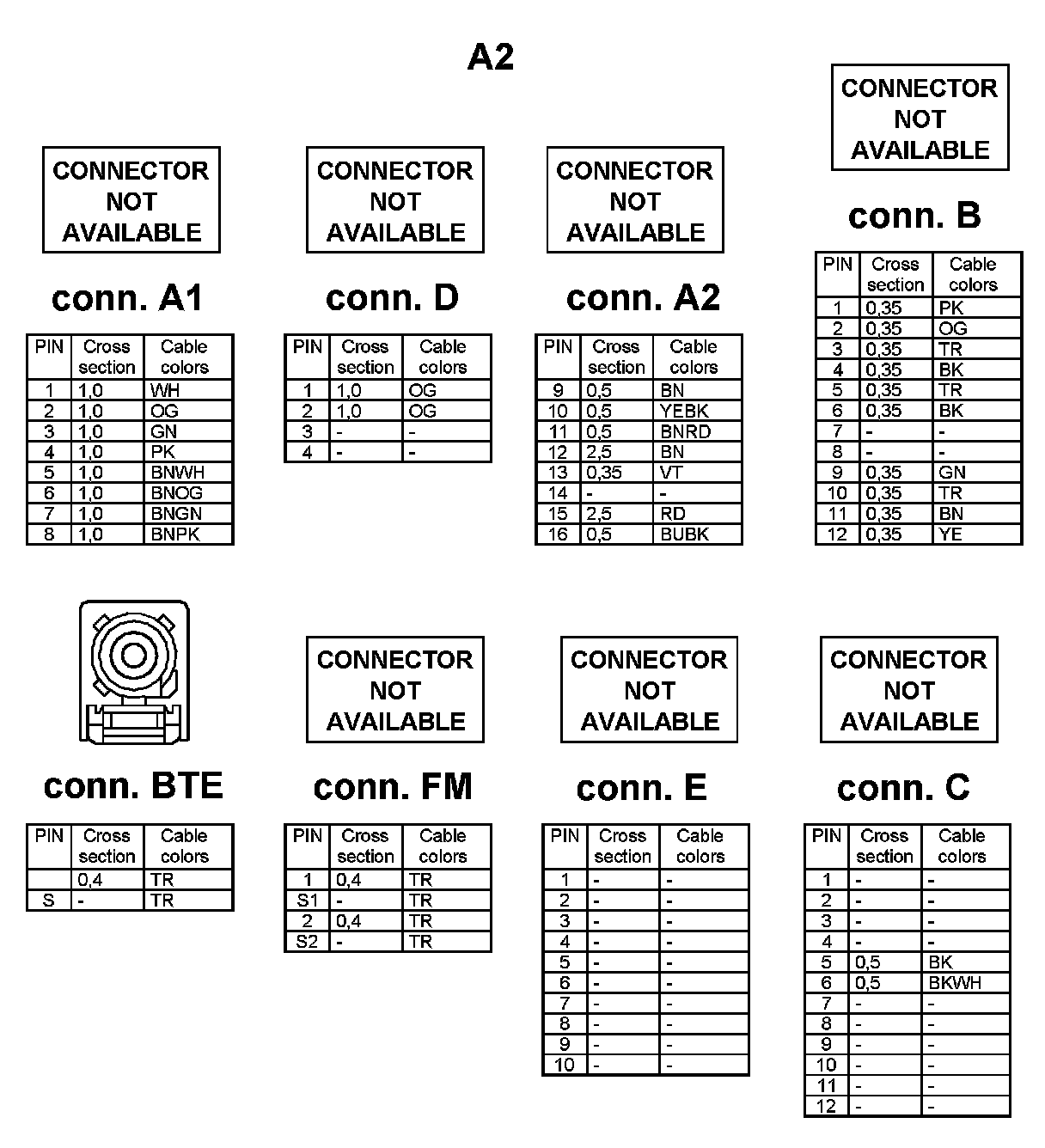

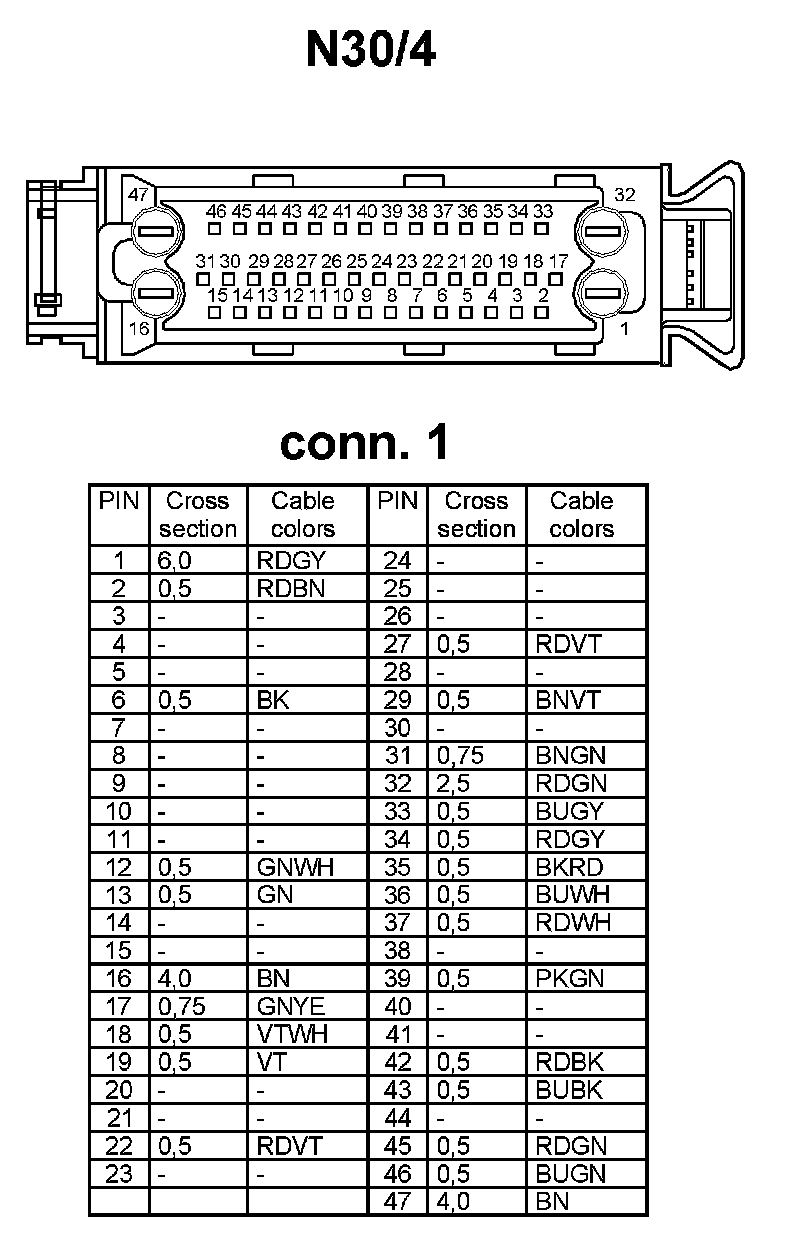

PE30.30-P-2055FAA Electrical Function Schematic For DISTRONIC PLUS INCL. BAS PLUS and Pre-Safe Brake

PE30.30-P-2055FAA Electrical Function Schematic For DISTRONIC PLUS INCL. BAS PLUS and Pre-Safe Brake

MODEL 204.0 /2
- with CODE (233) Distronic Plus
- with CODE (233) Distronic Plus
- as of model year 2012 /YoM 11 model refinement package
MODEL 204.3
- with CODE (233) Distronic Plus















































































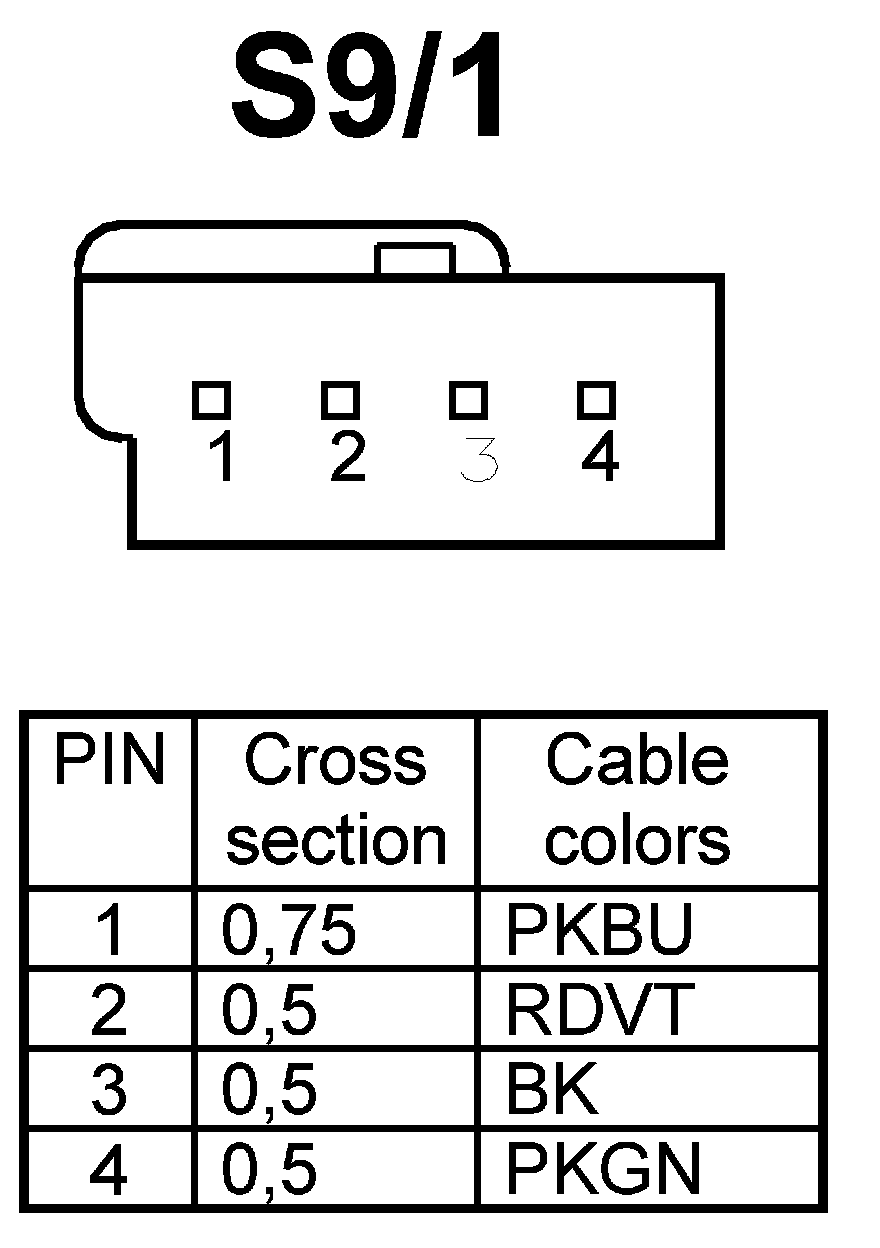

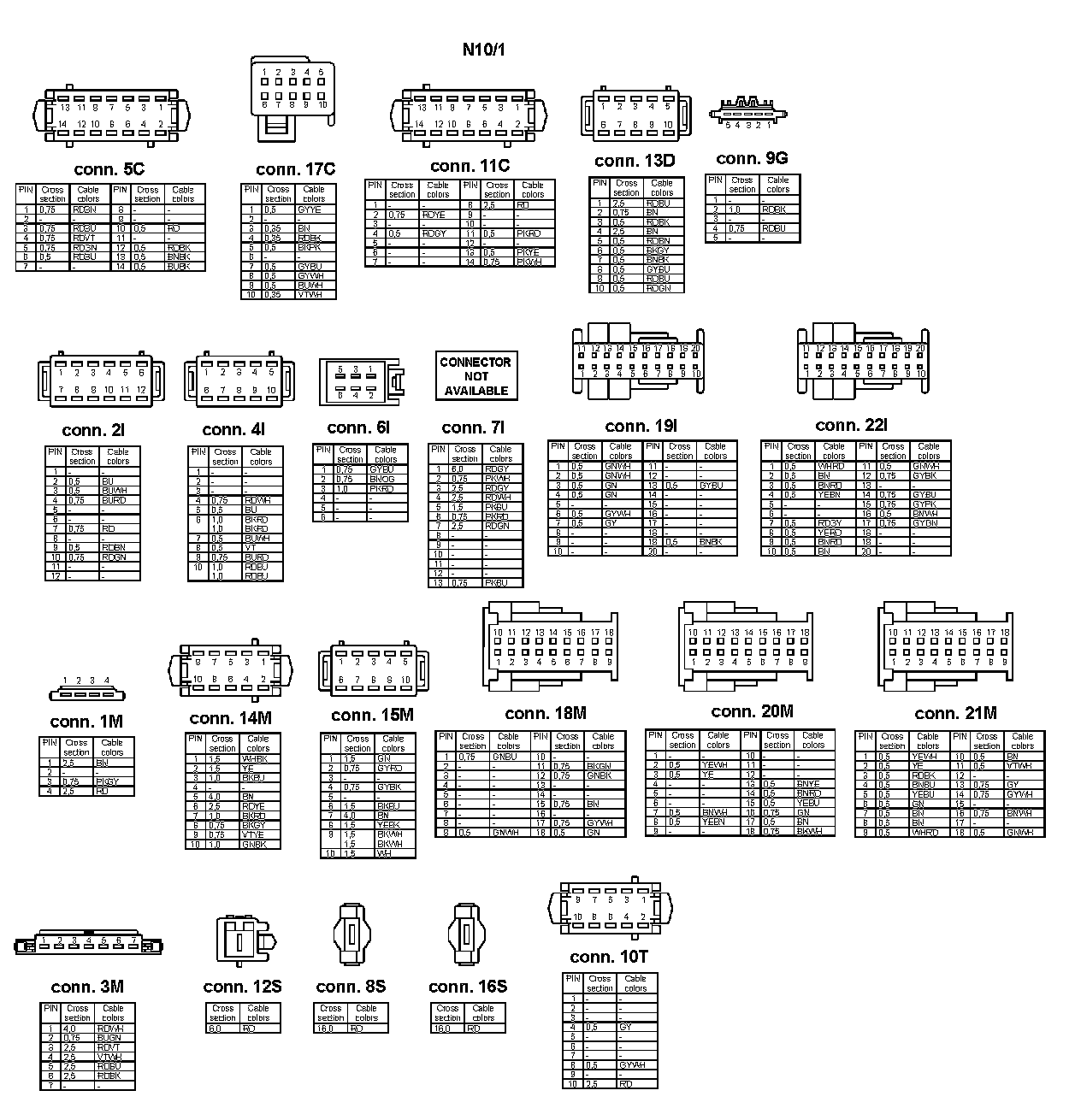

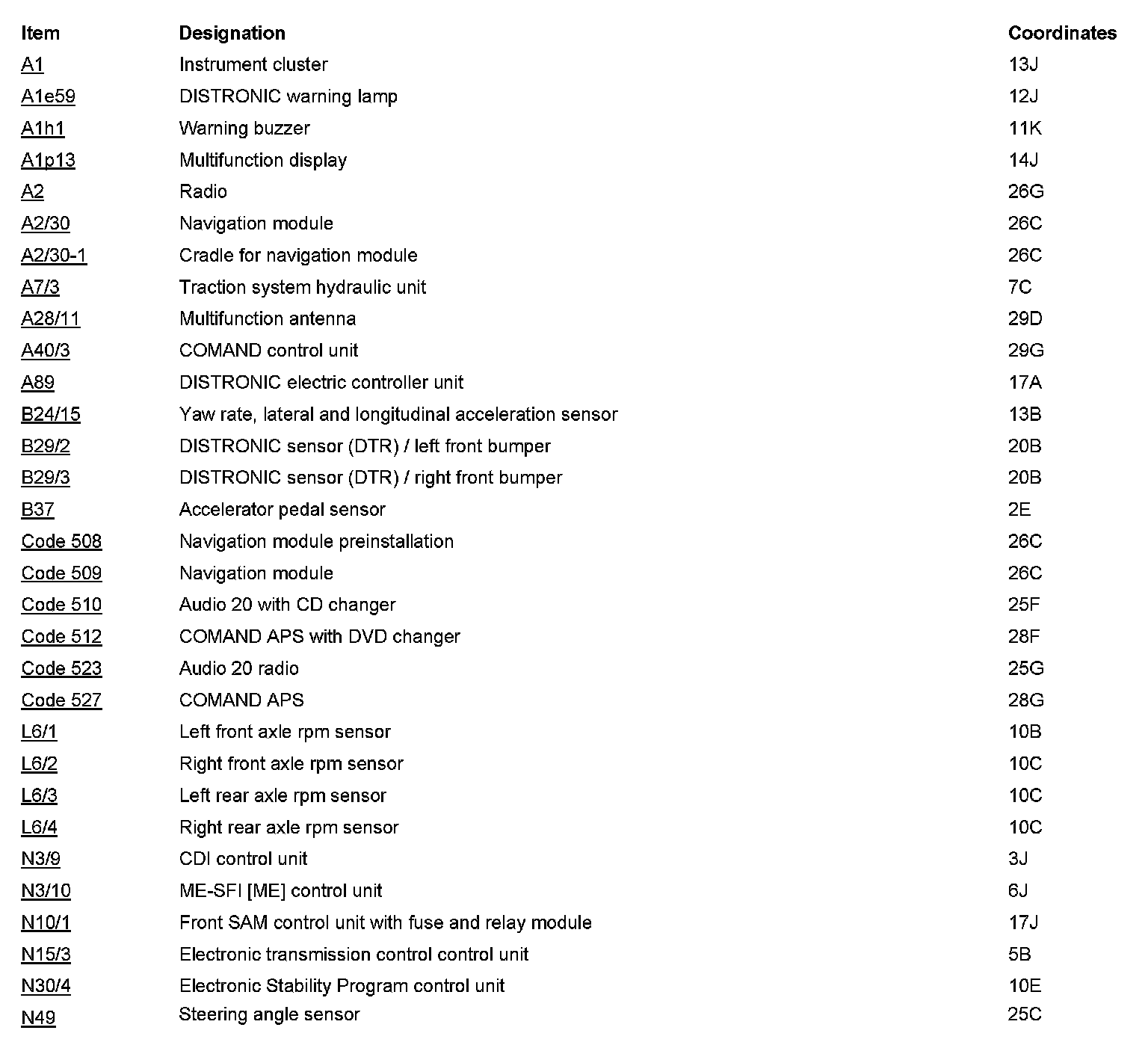

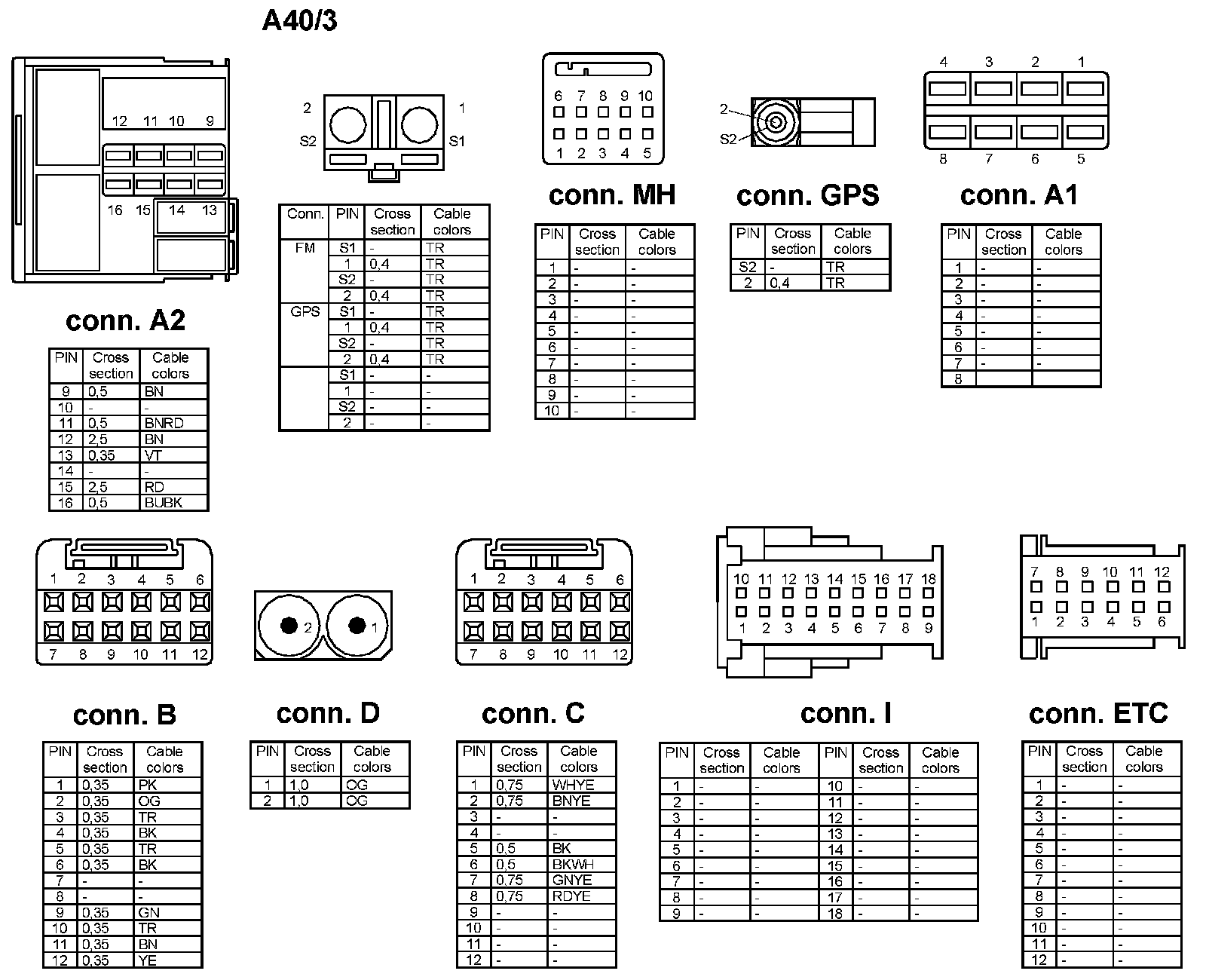

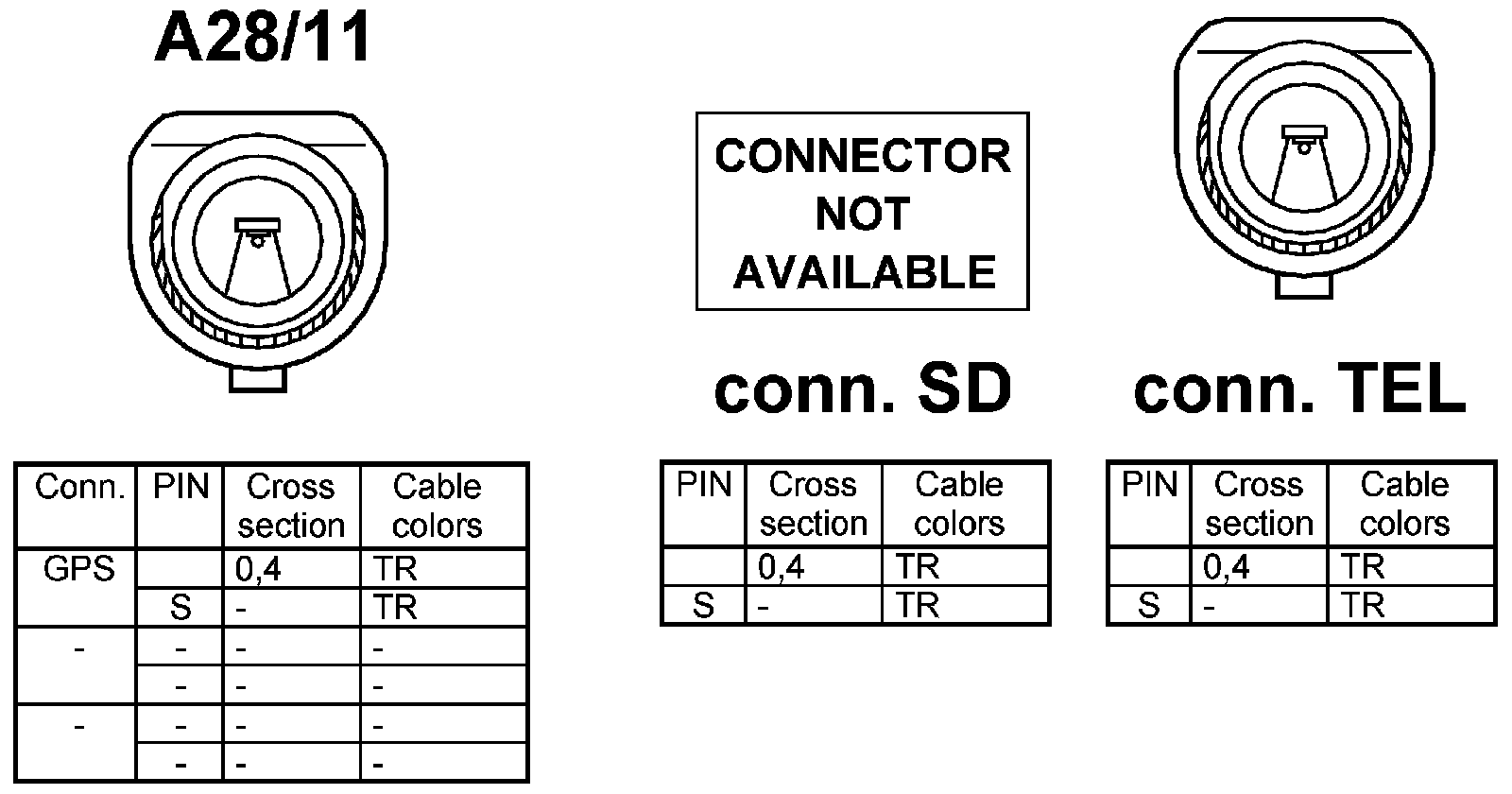

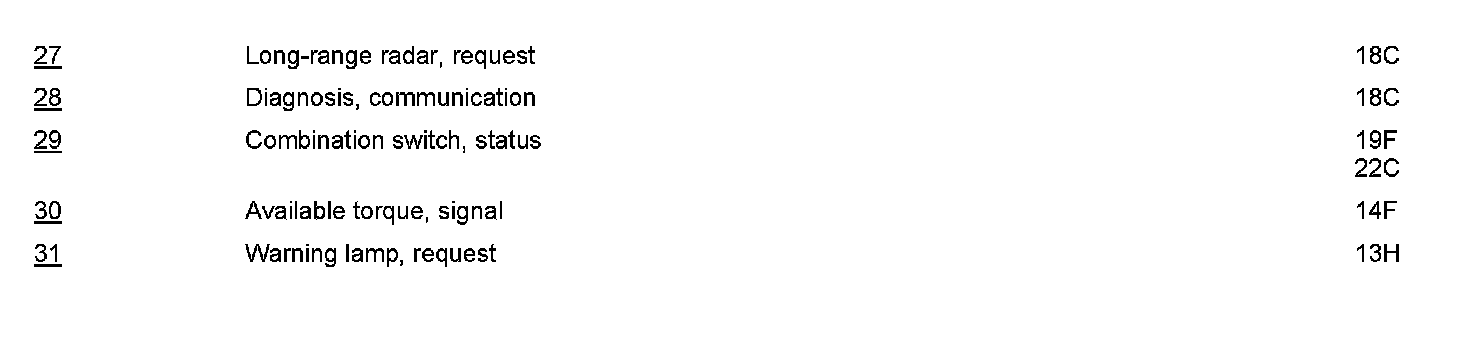

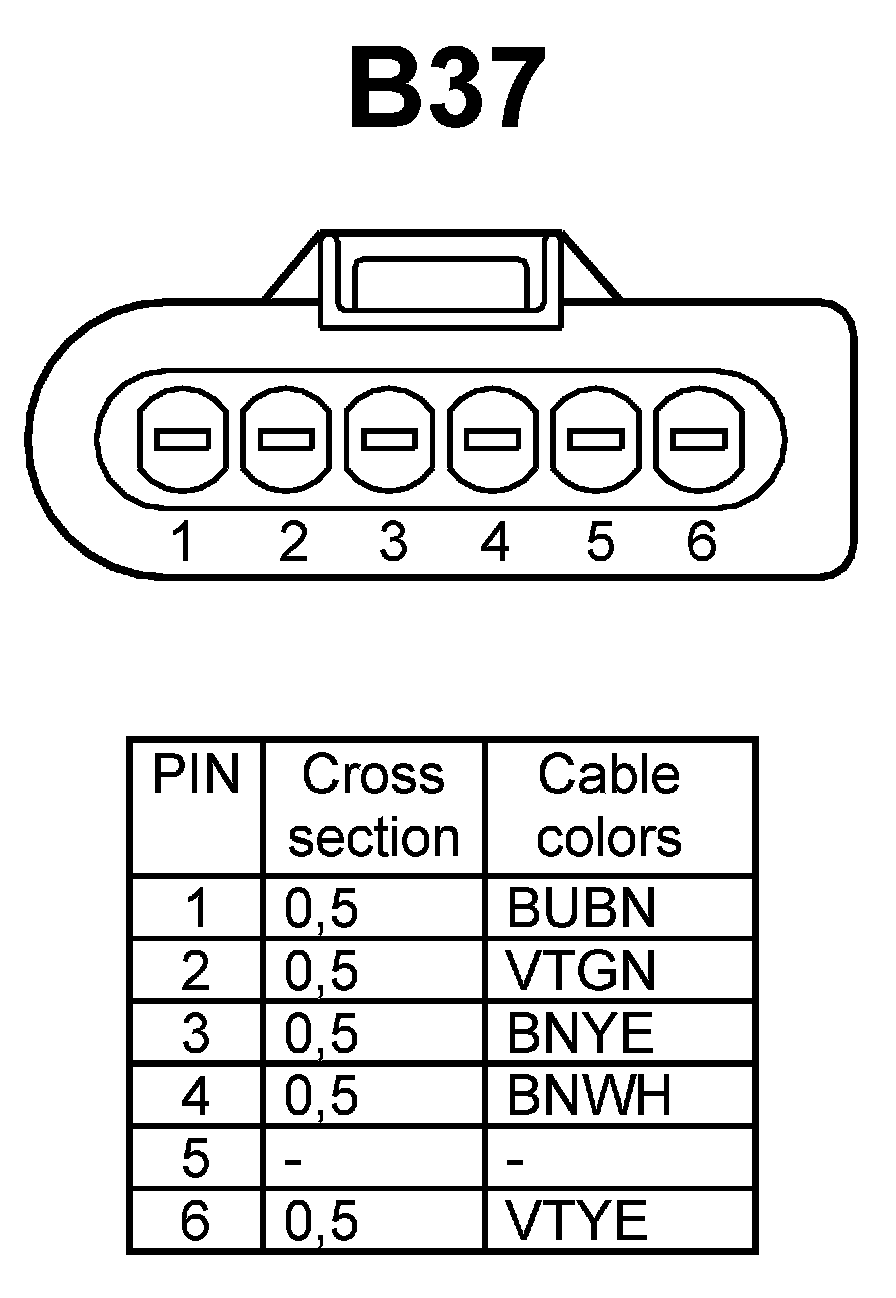

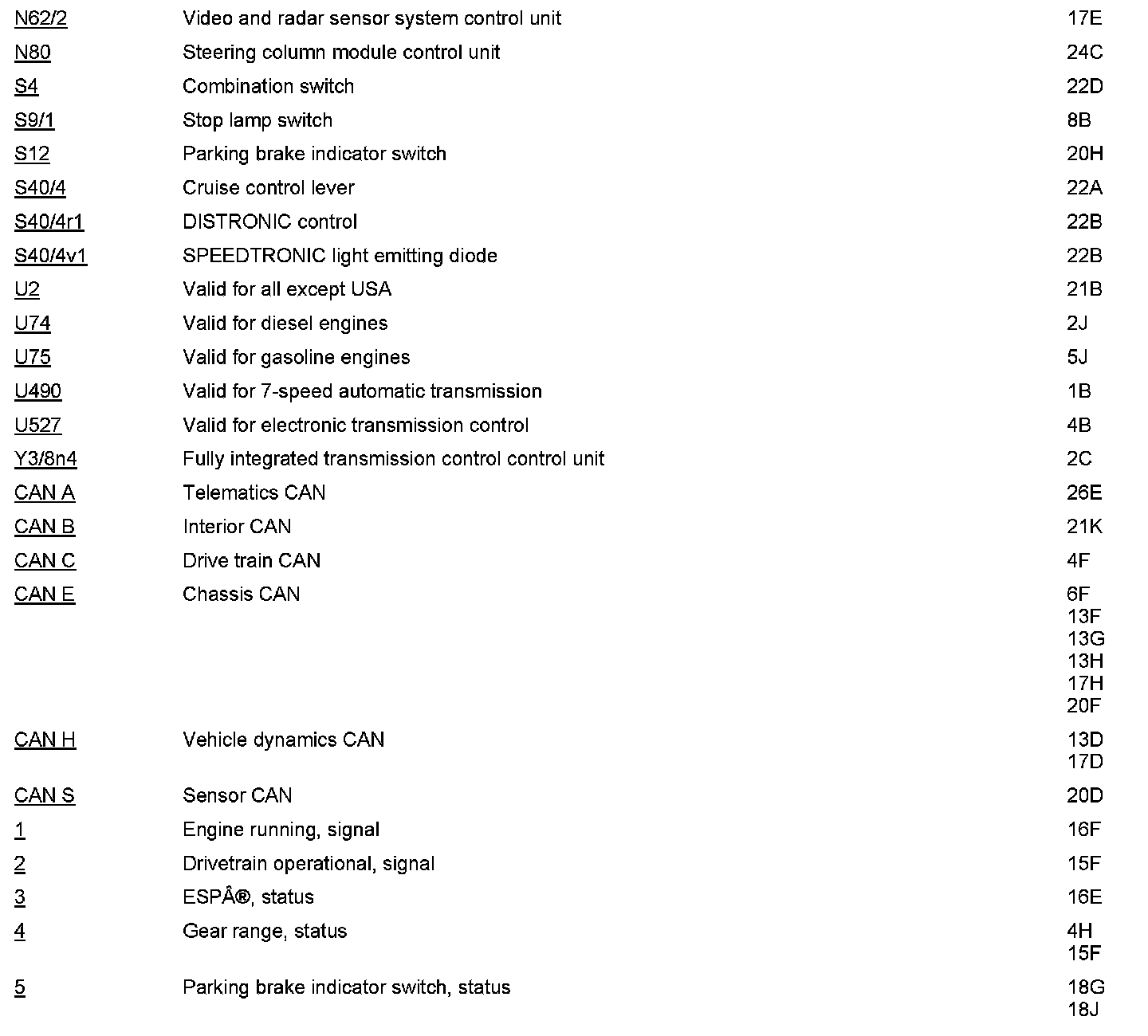

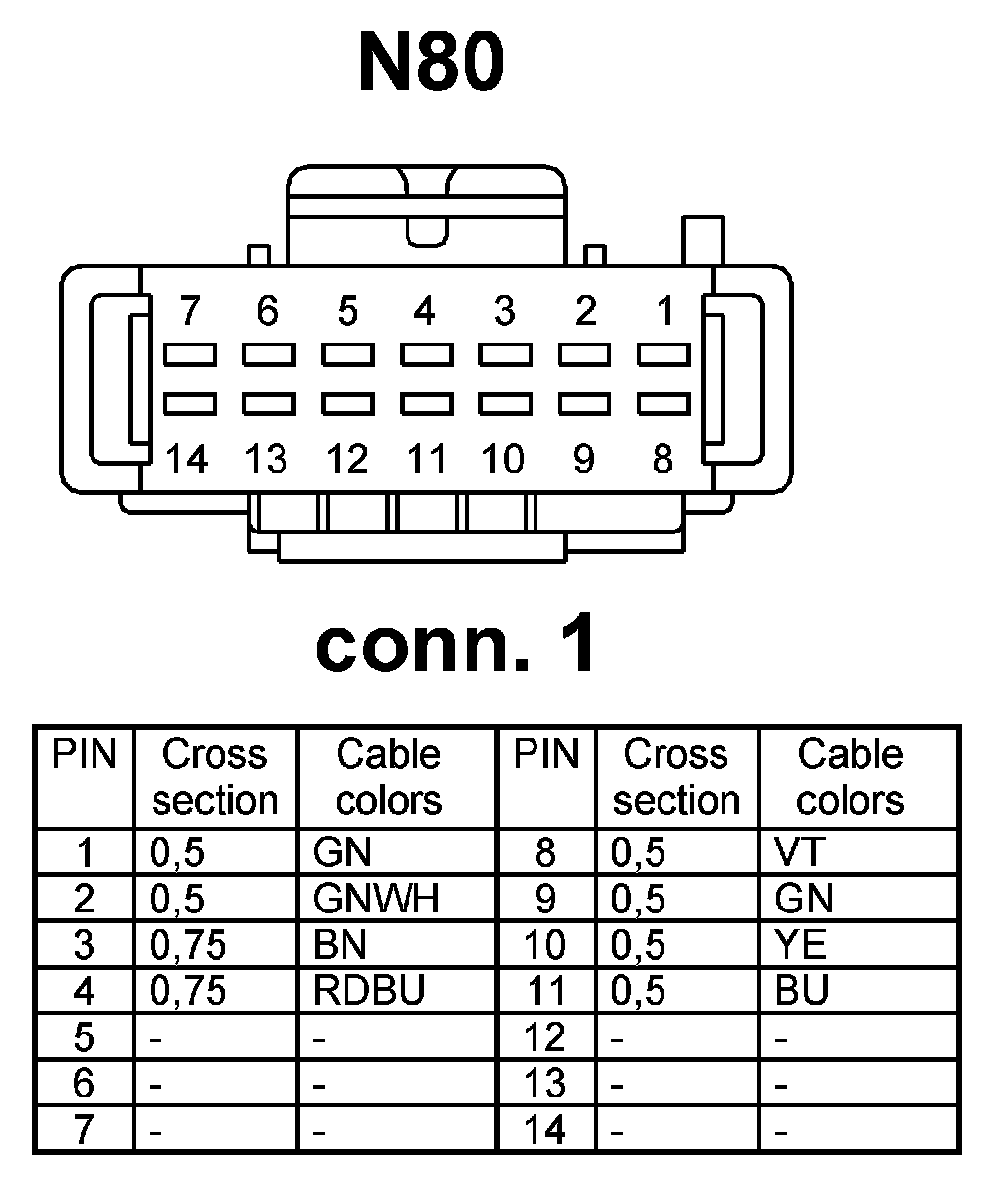

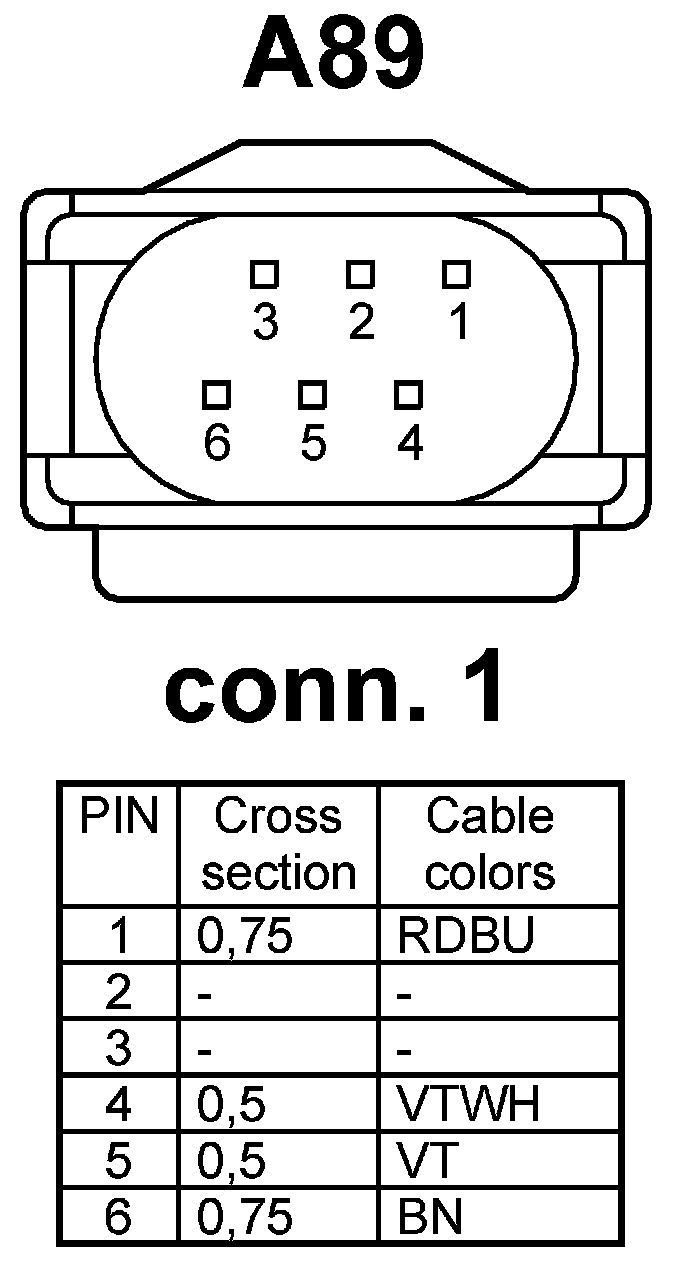

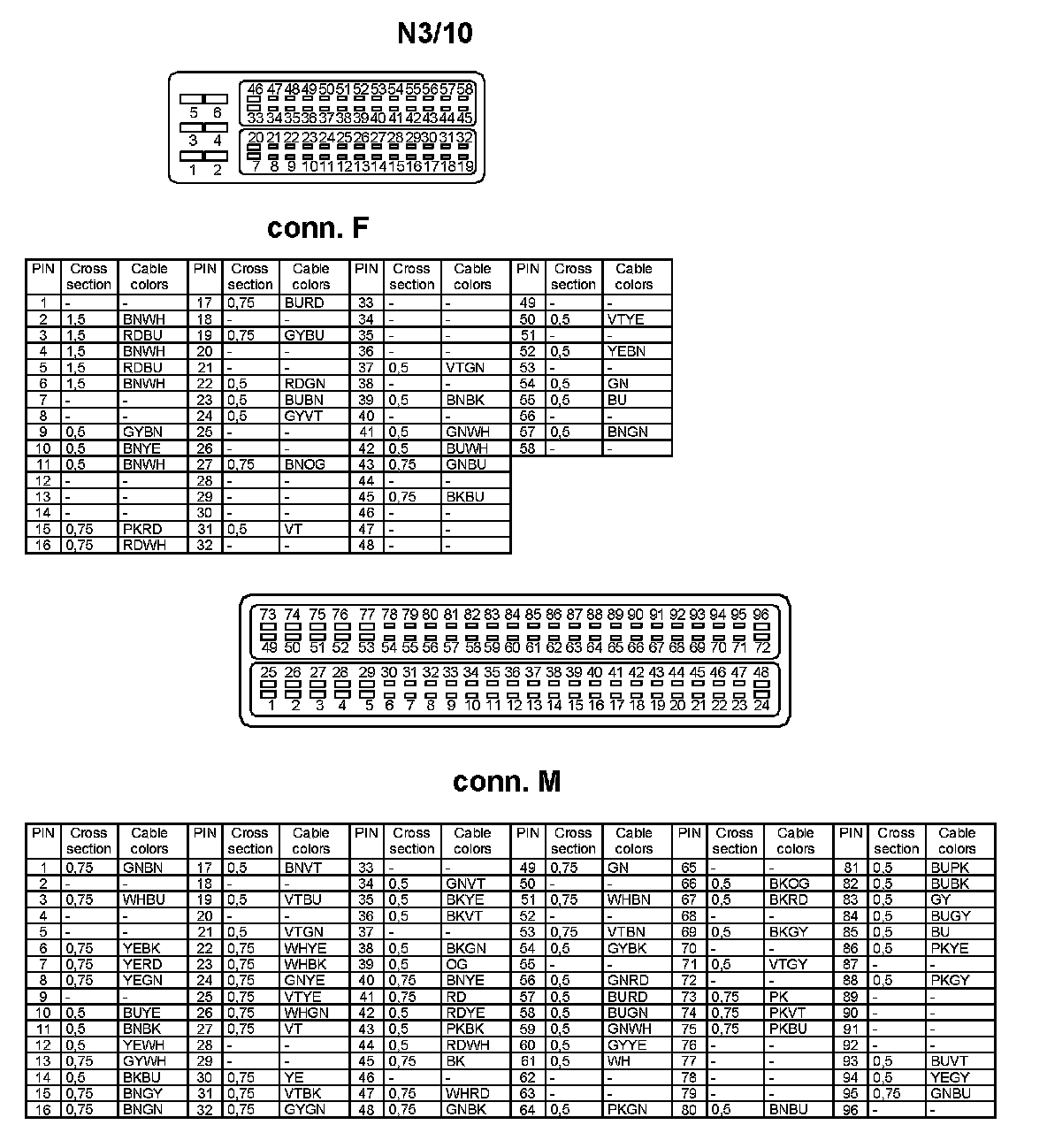

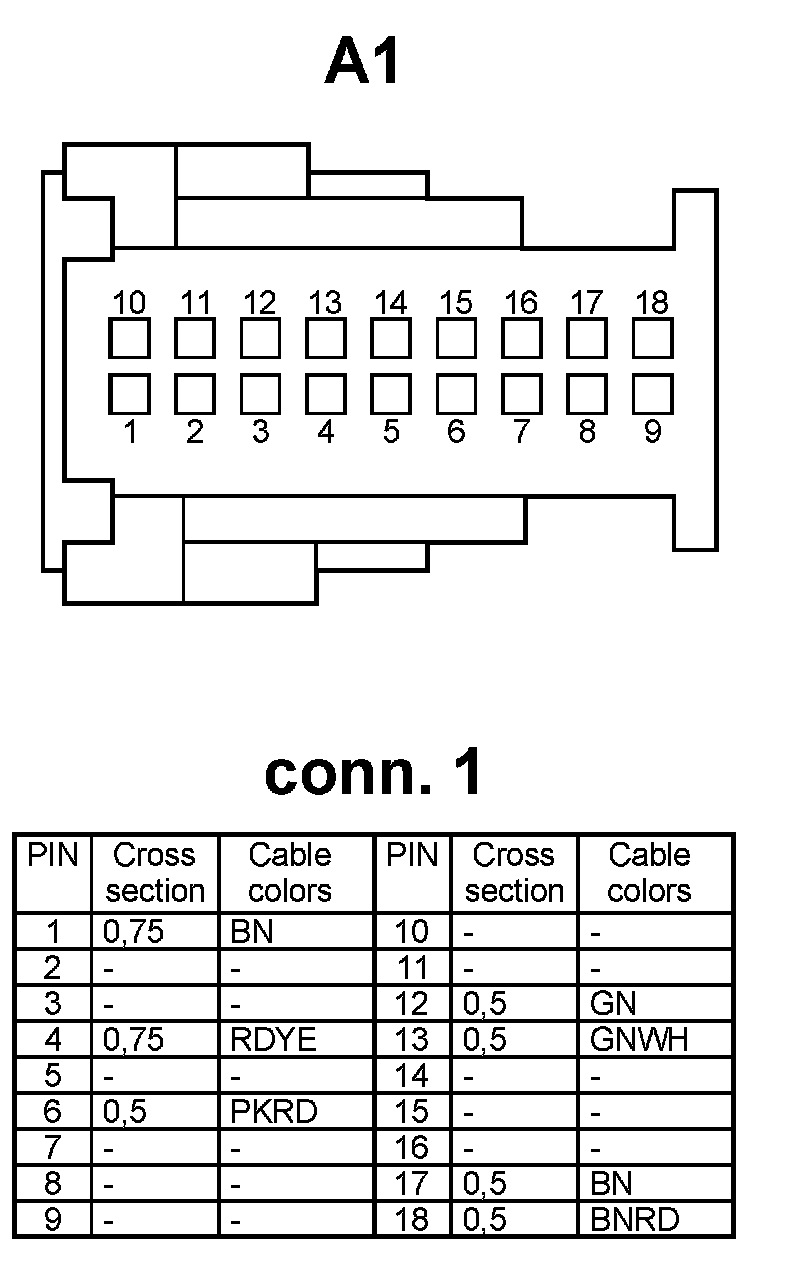

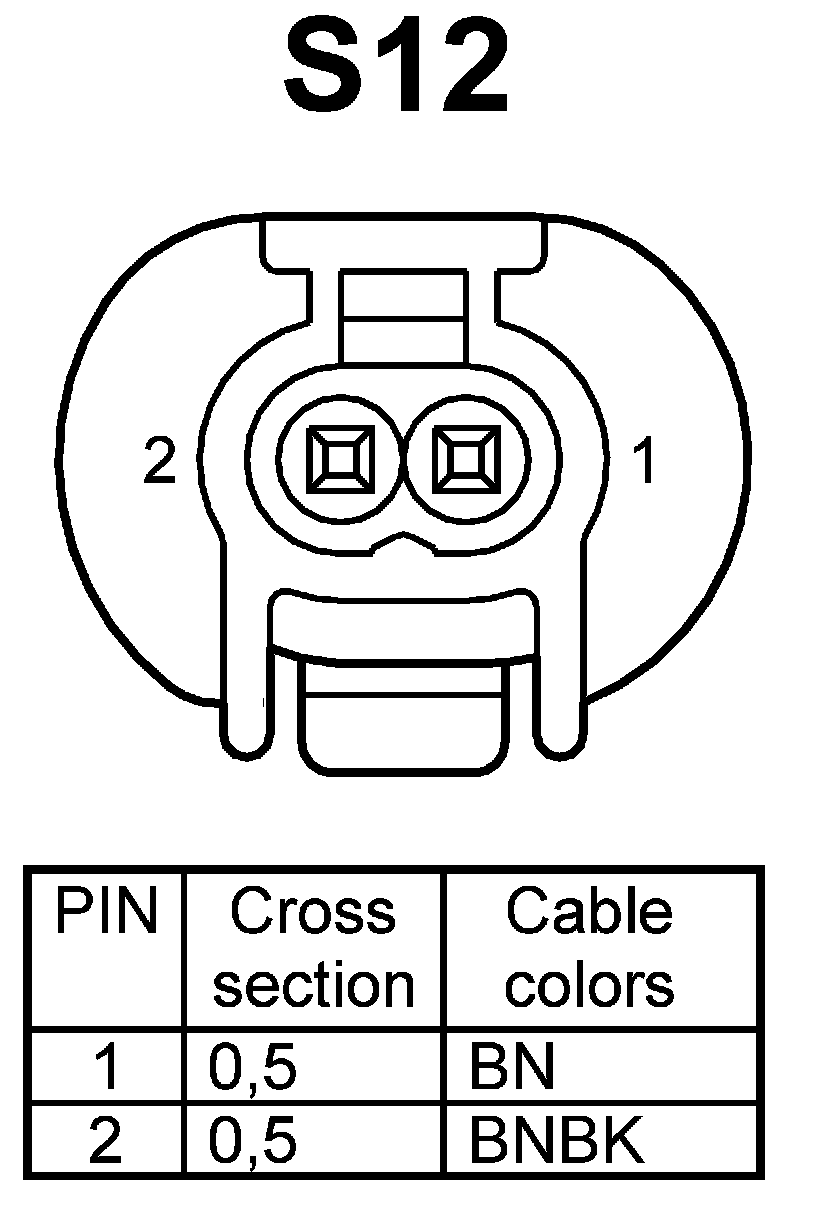

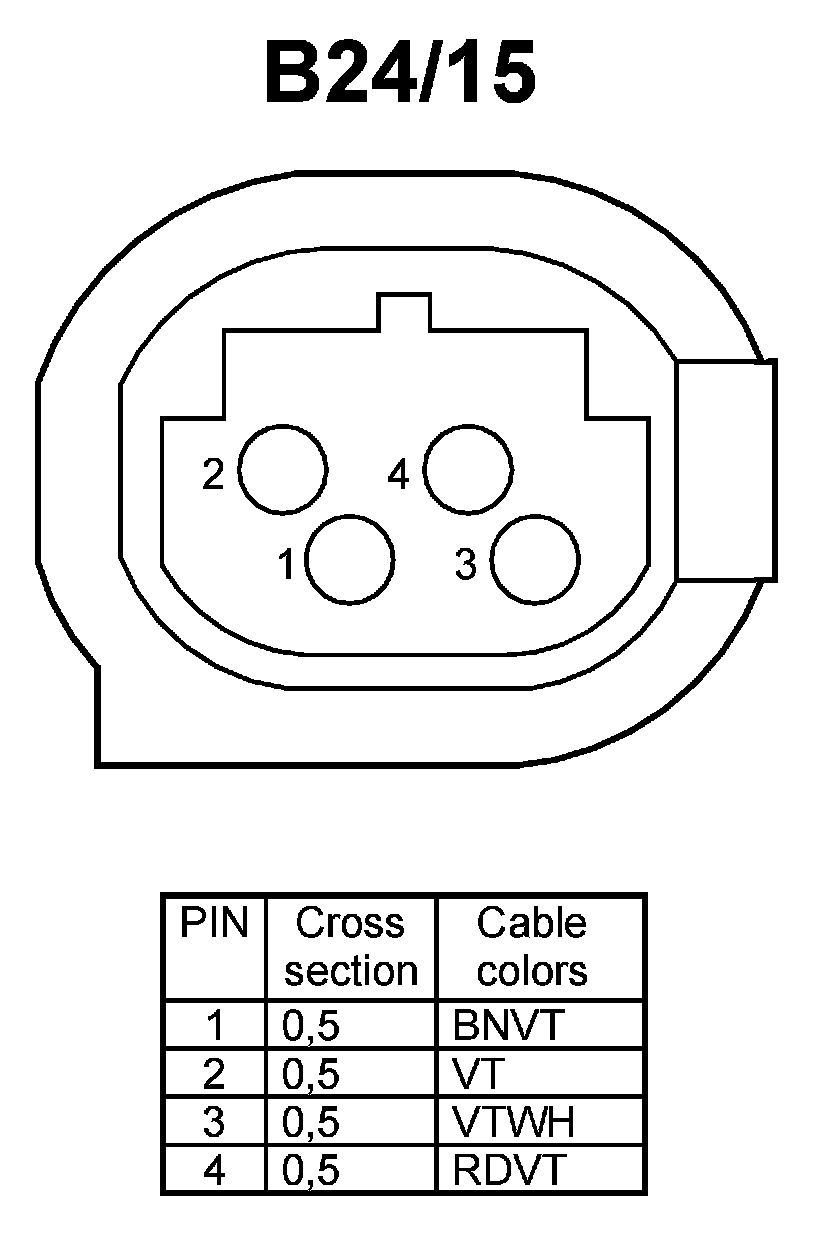

Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
