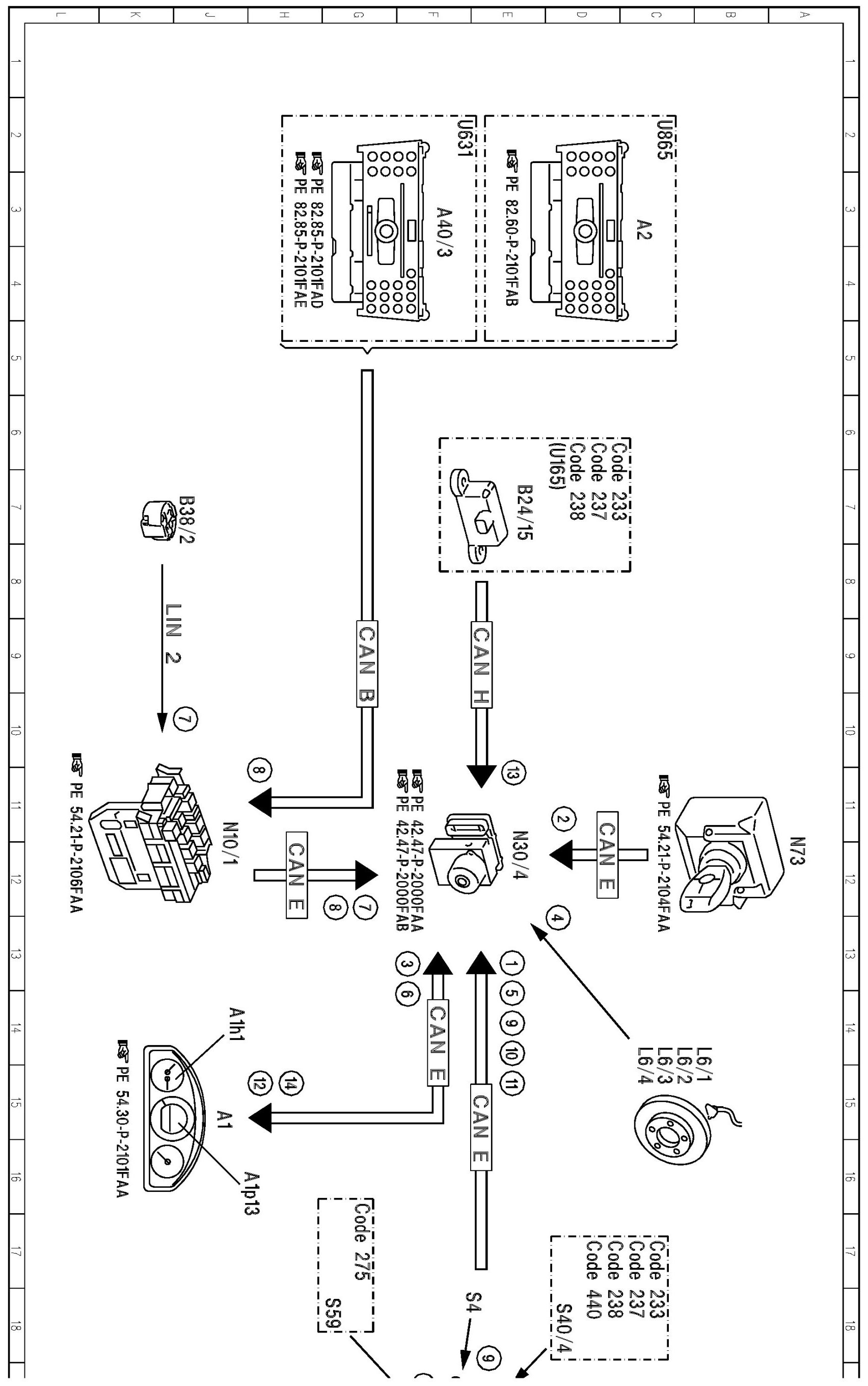

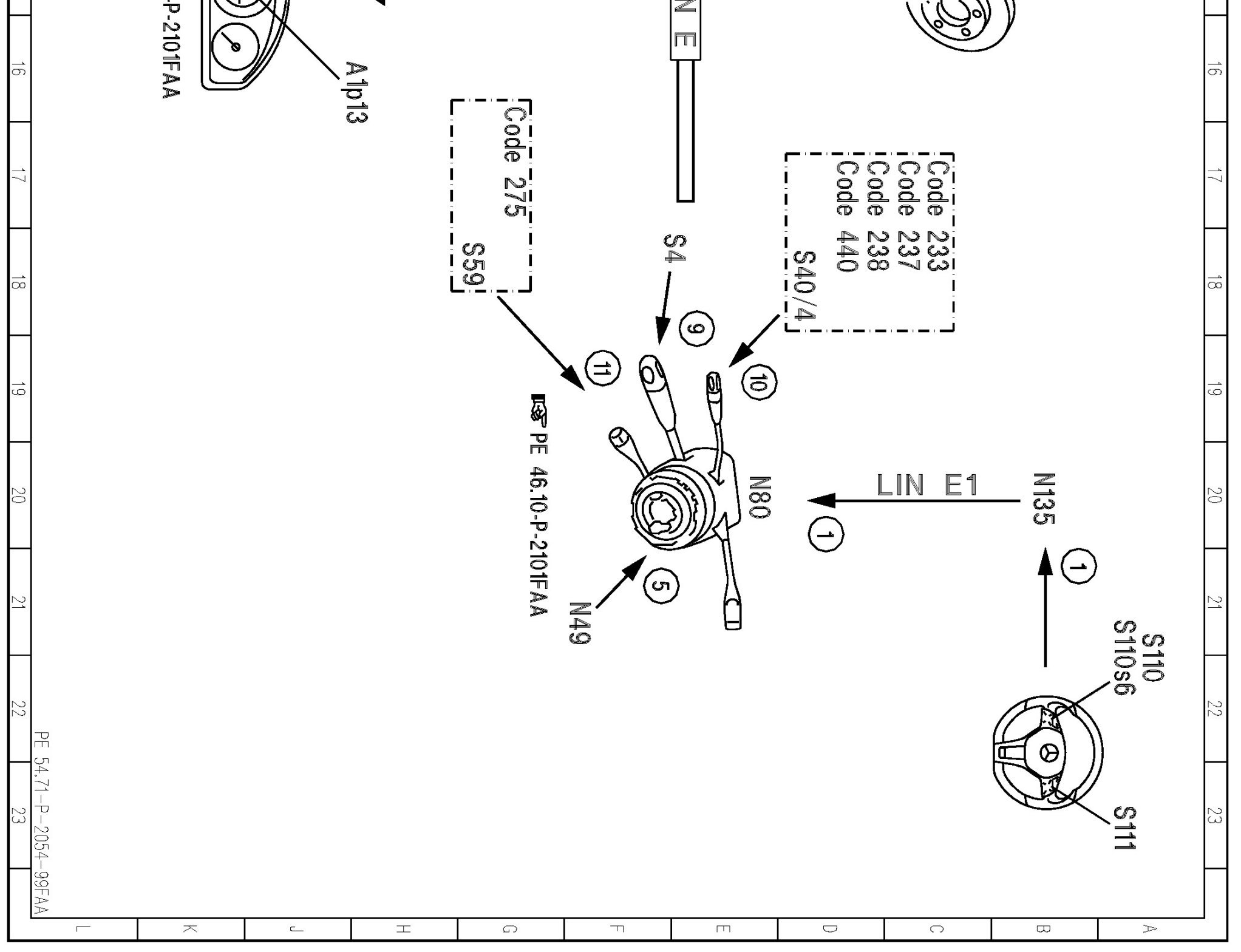

PE54.71-P-2054FAA Attention Assist Electrical Function Schematic

PE54.71-P-2054FAA Attention Assist Electrical Function Schematic

MODEL 204.0 /2
- with CODE (442) Comfort multifunction steering wheel
- as of model year 2012 /YoM 11 model refinement package

MODEL 204.3
- with CODE (442) Comfort multifunction steering wheel

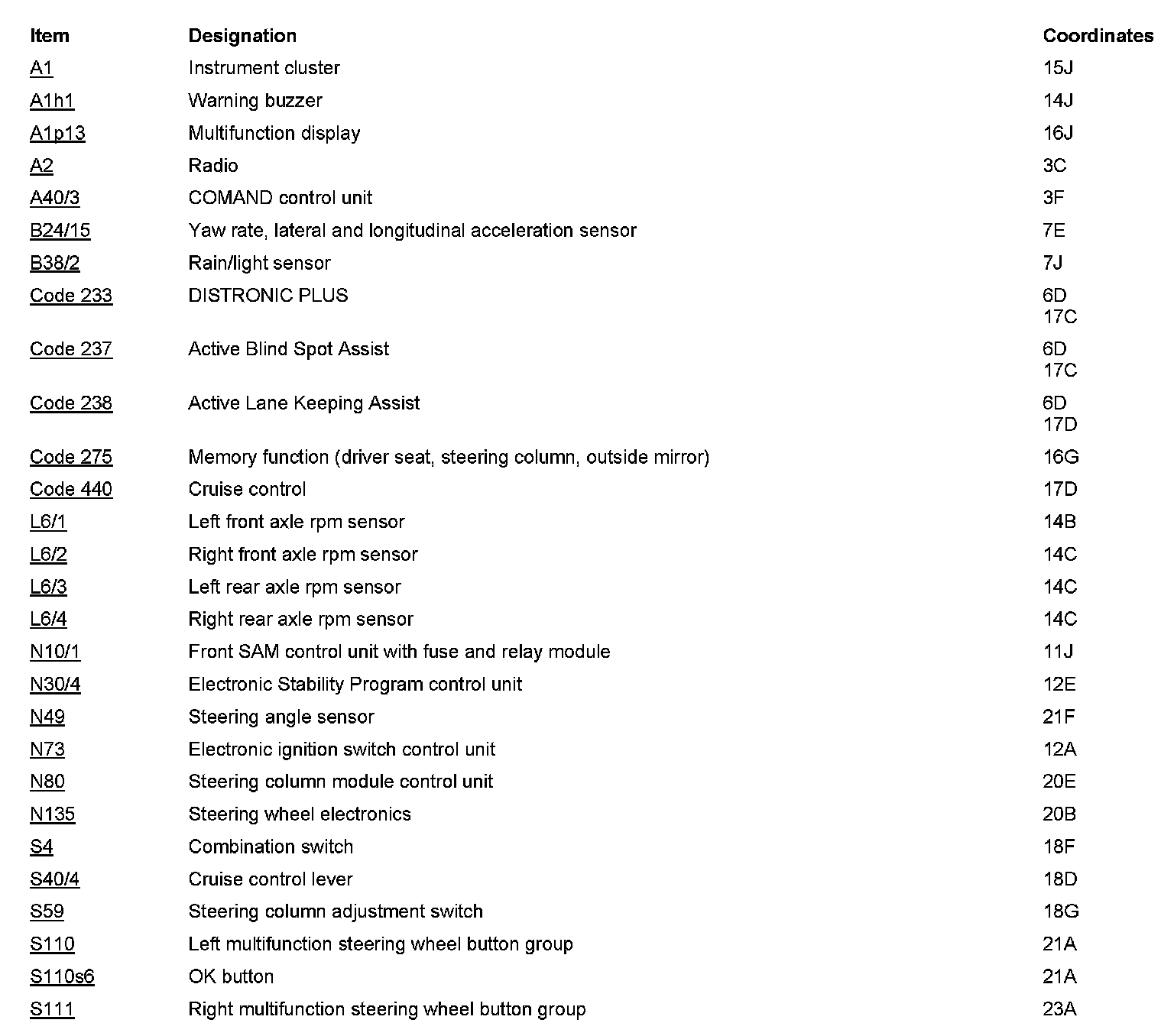

Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
