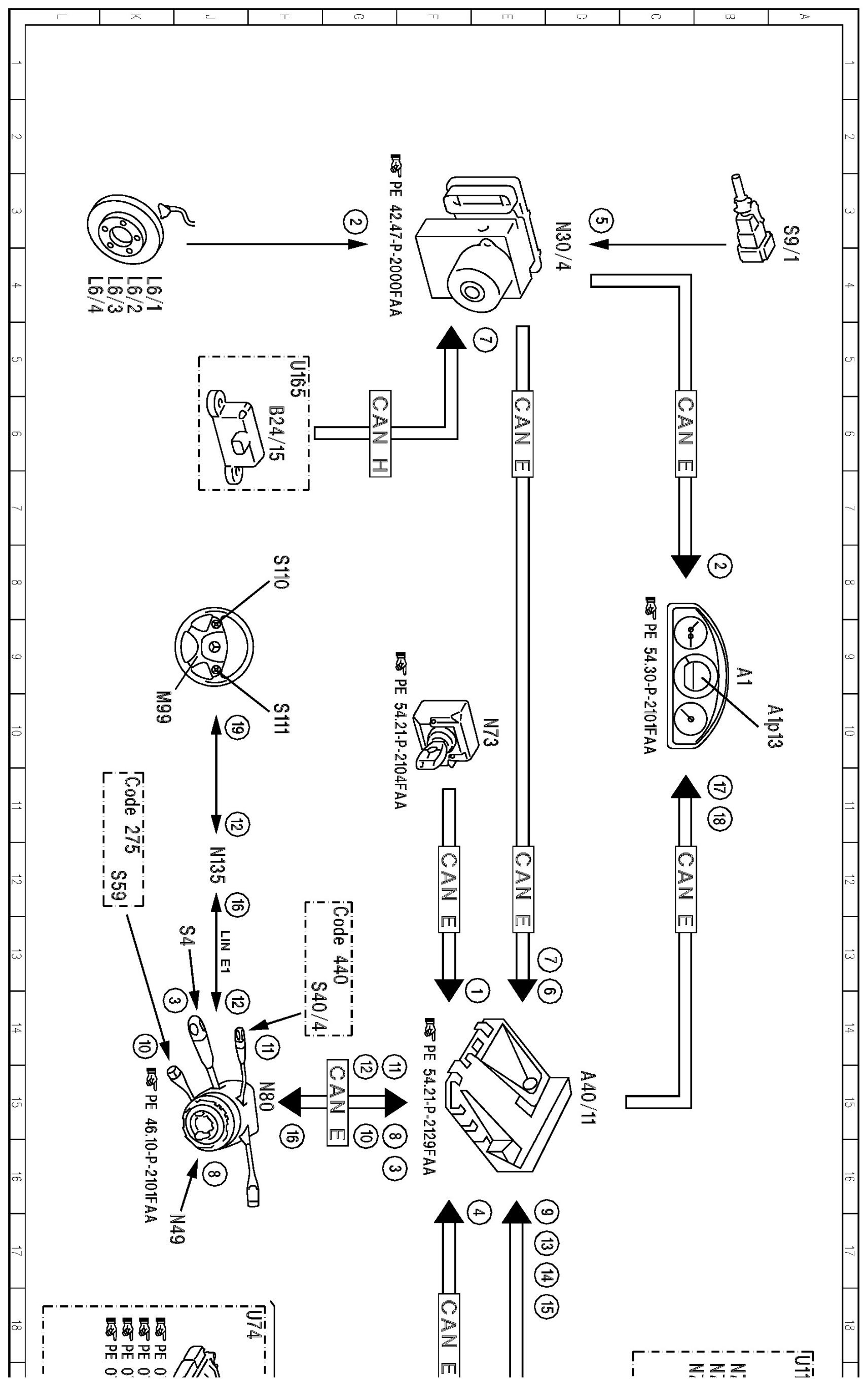

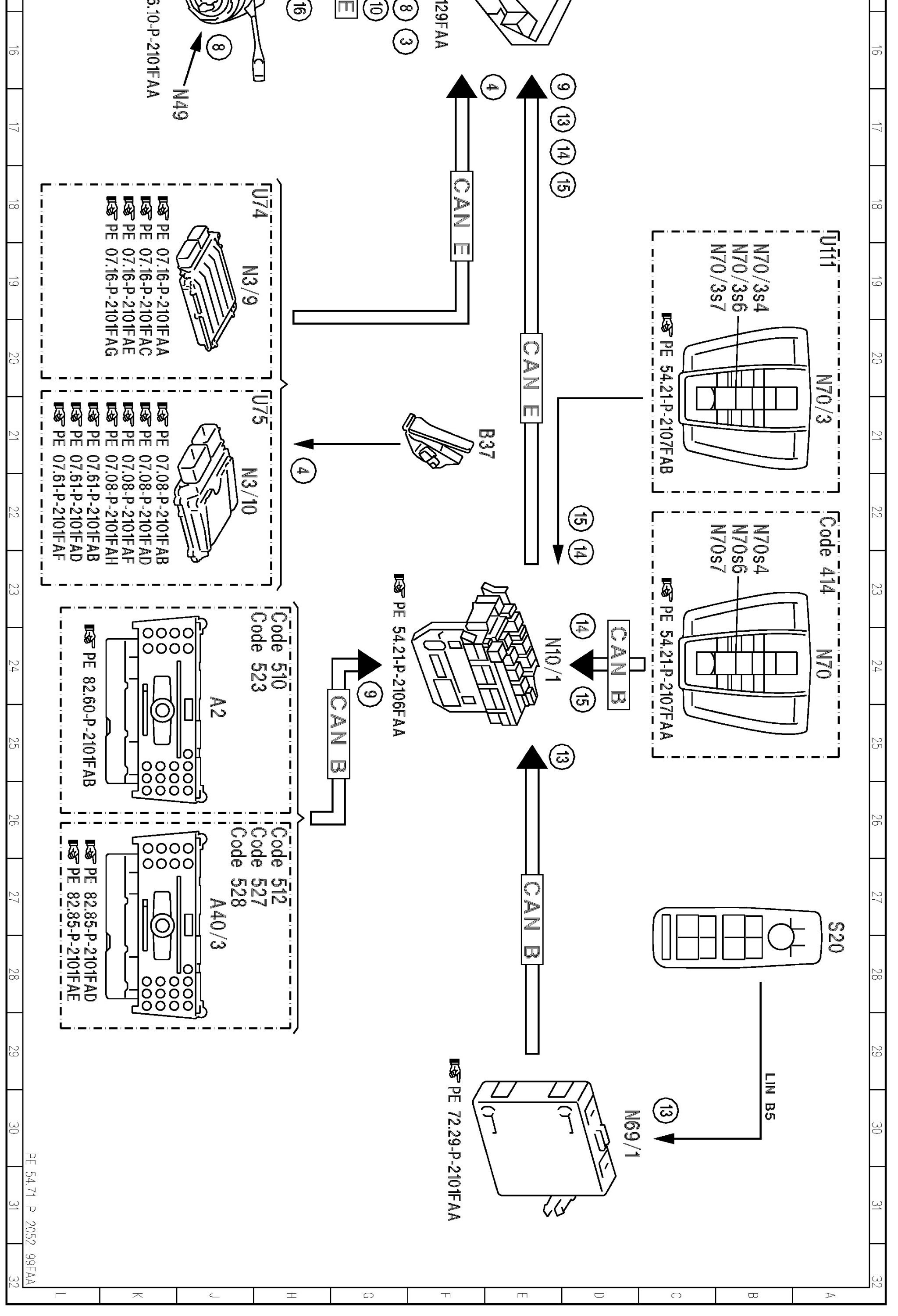

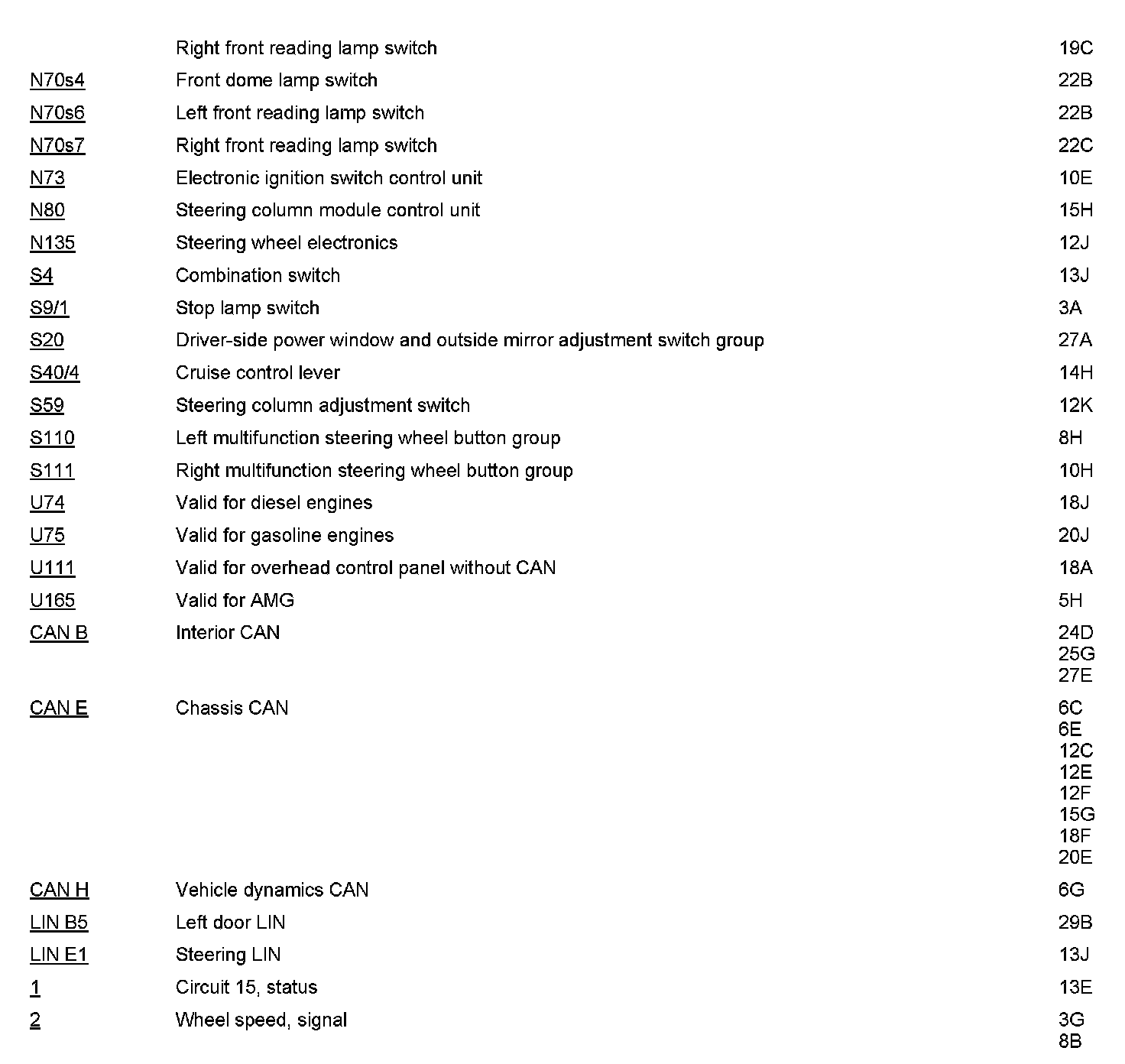

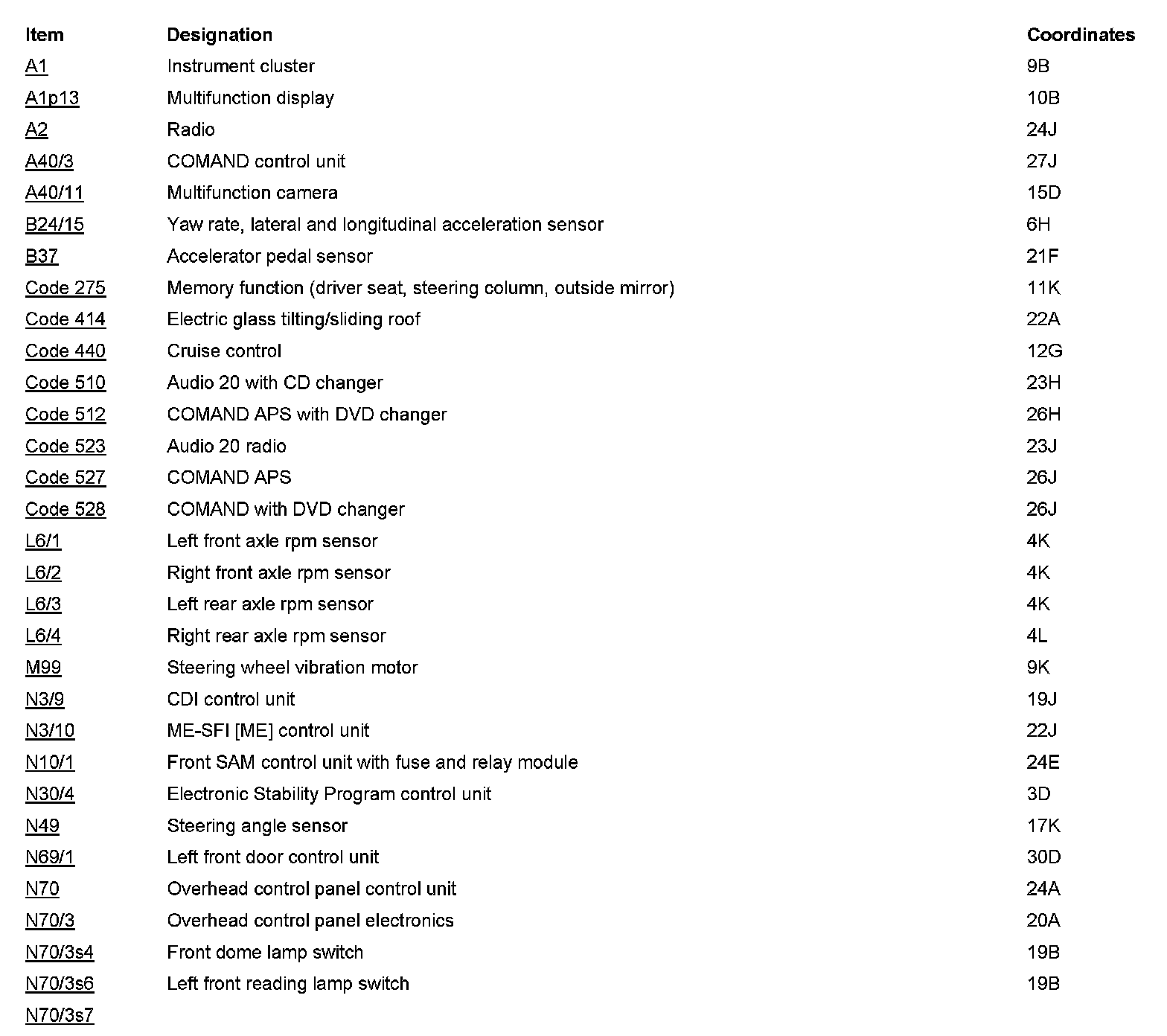

PE54.71-P-2052FAA Electrical Function Schematic For Automatic Lane Recognition

PE54.71-P-2052FAA Electrical Function Schematic For Automatic Lane Recognition

MODEL 204.0 /2
- with CODE (476) Automatic lane recognition
- as of model year 2012

MODEL 204.3
- with CODE (476) Automatic lane recognition















































































Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
