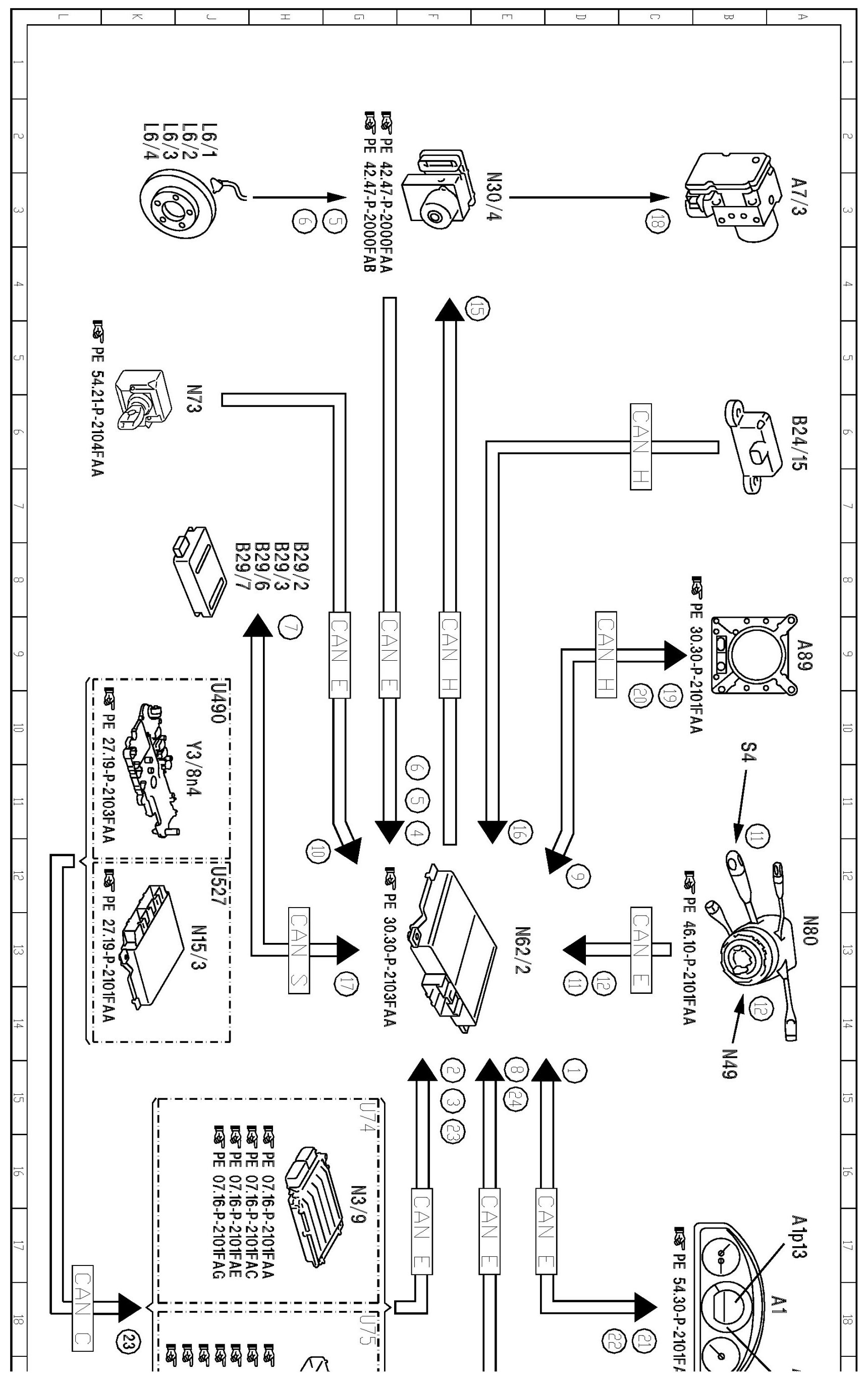

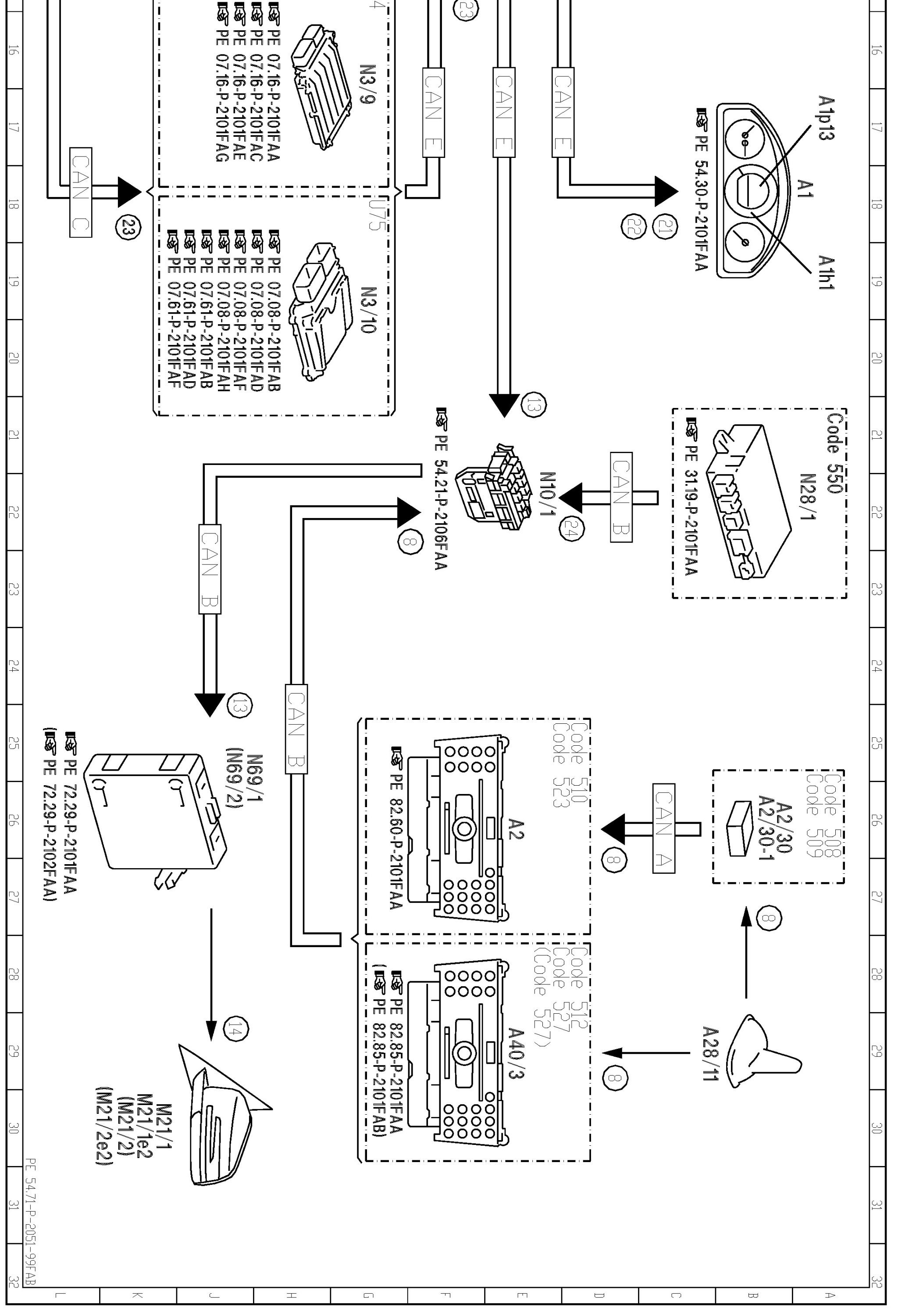

PE54.71-P-2051FAB Electrical Function Schematic, Blind Spot Assistant

PE54.71-P-2051FAB Electrical Function Schematic, Blind Spot Assistant

MODEL 204.0 /2
- with CODE (237) Active Blind Spot Assist
- as of model year 2012 /YoM 11 model refinement package

MODEL 204.3
- with CODE (237) Active Blind Spot Assist

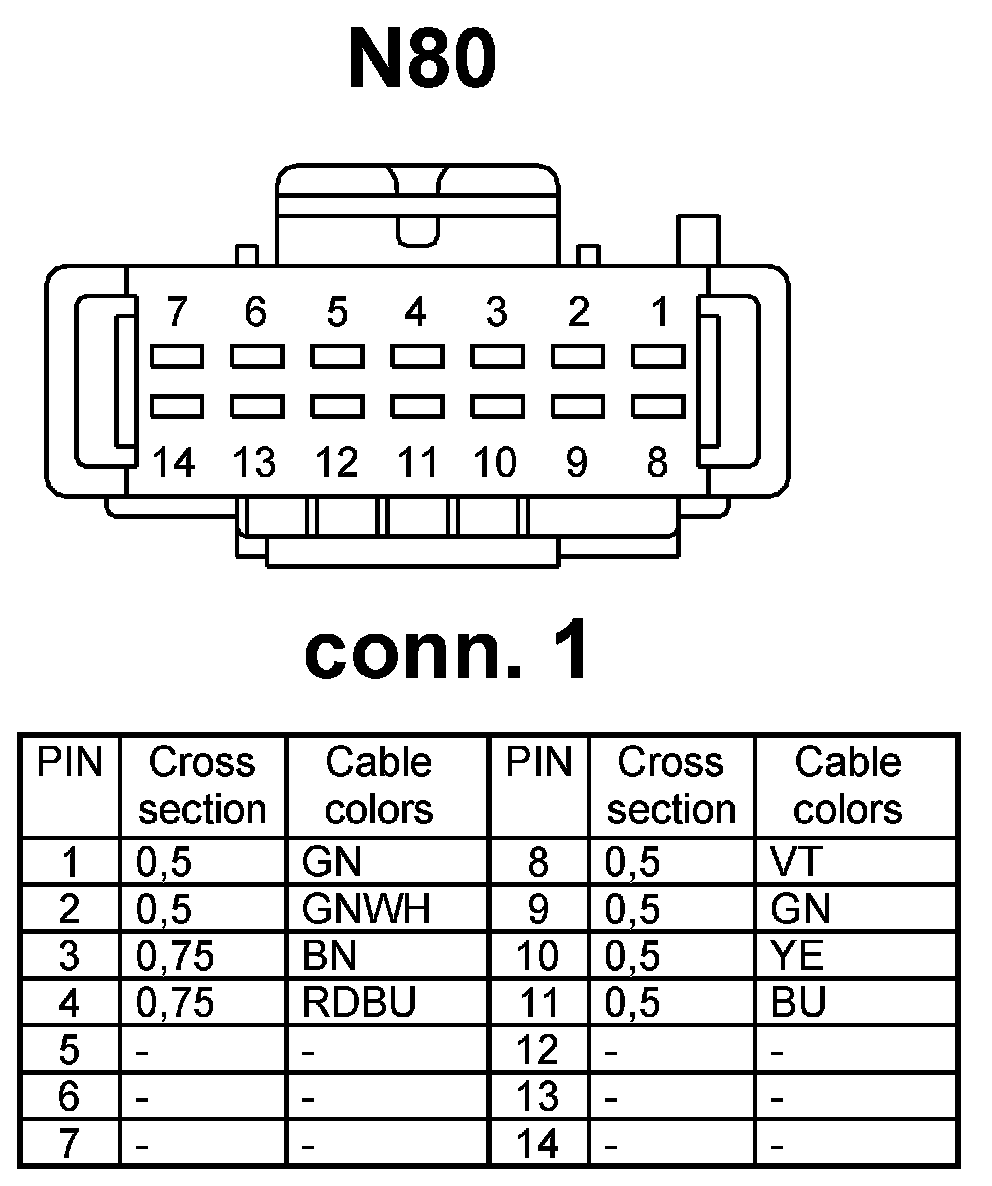

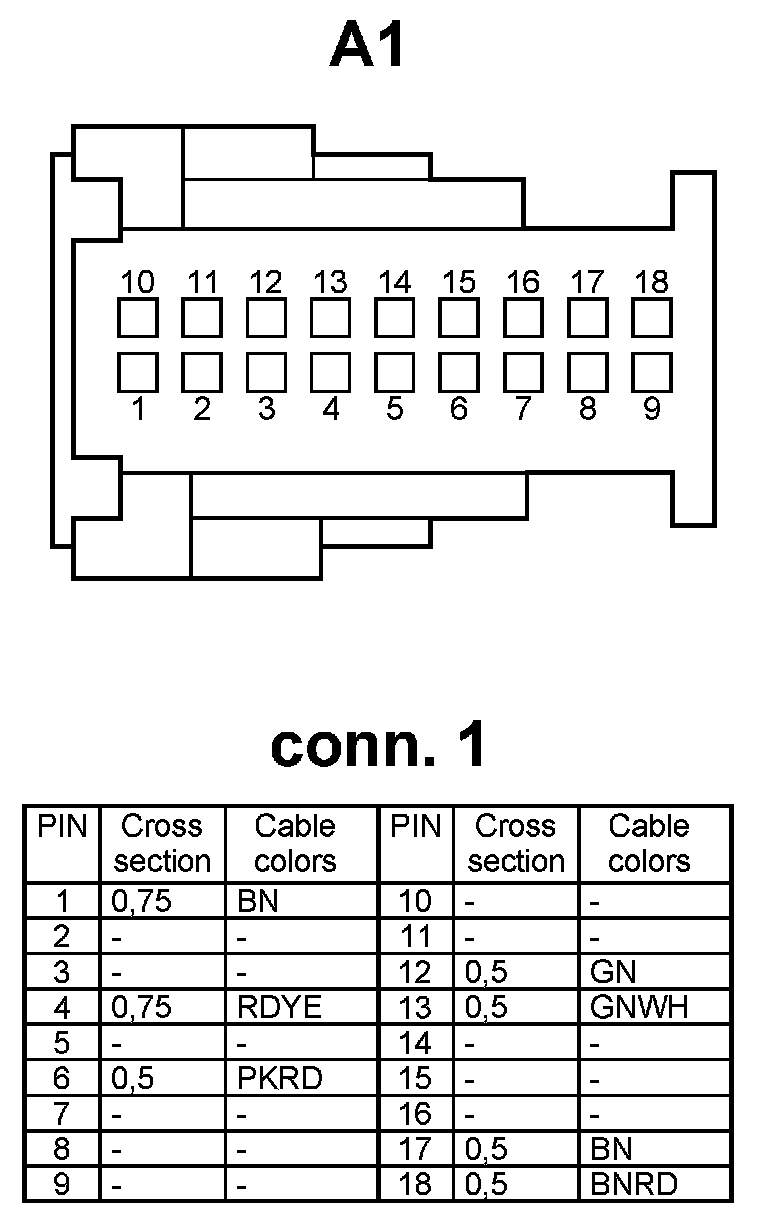

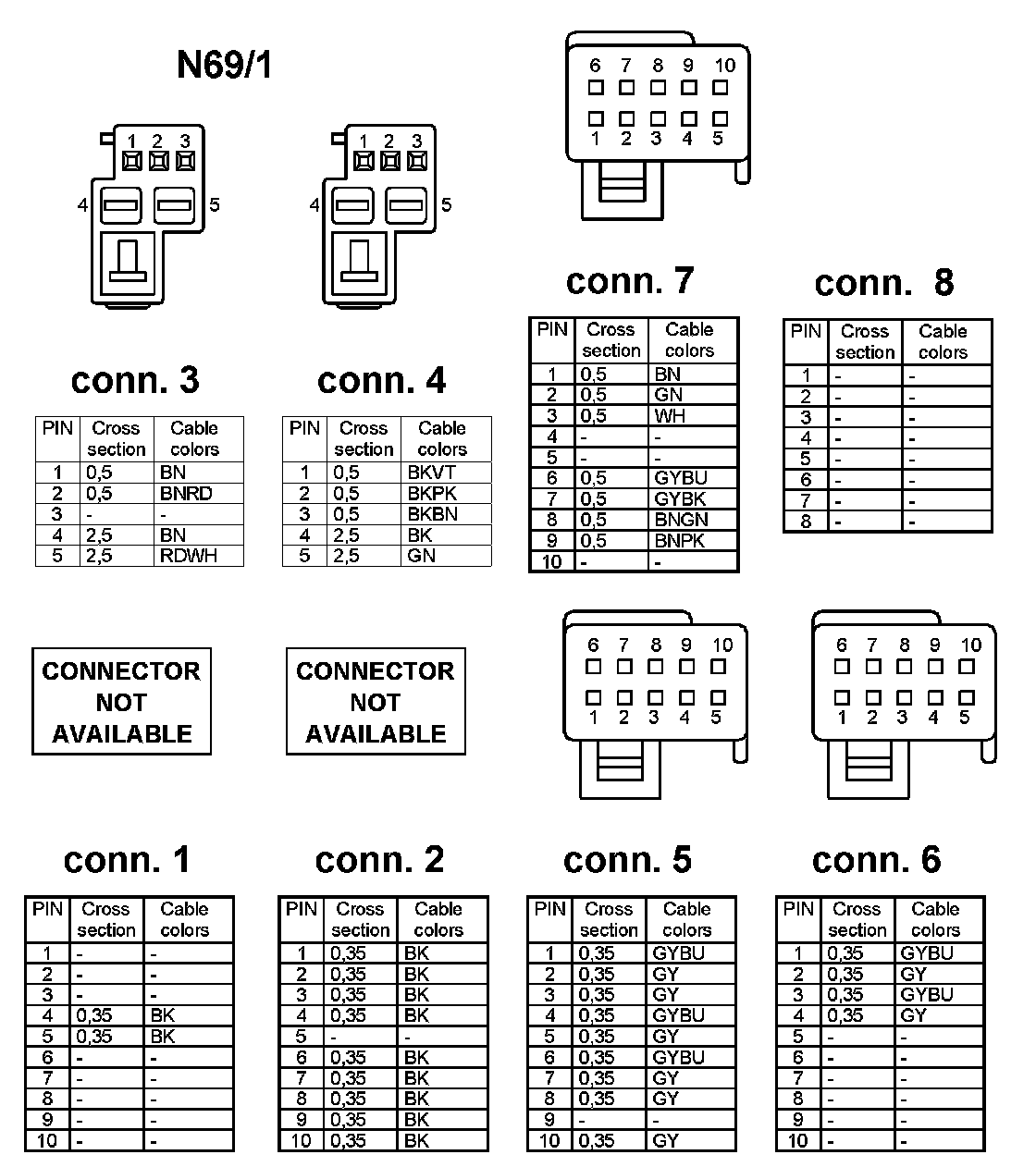

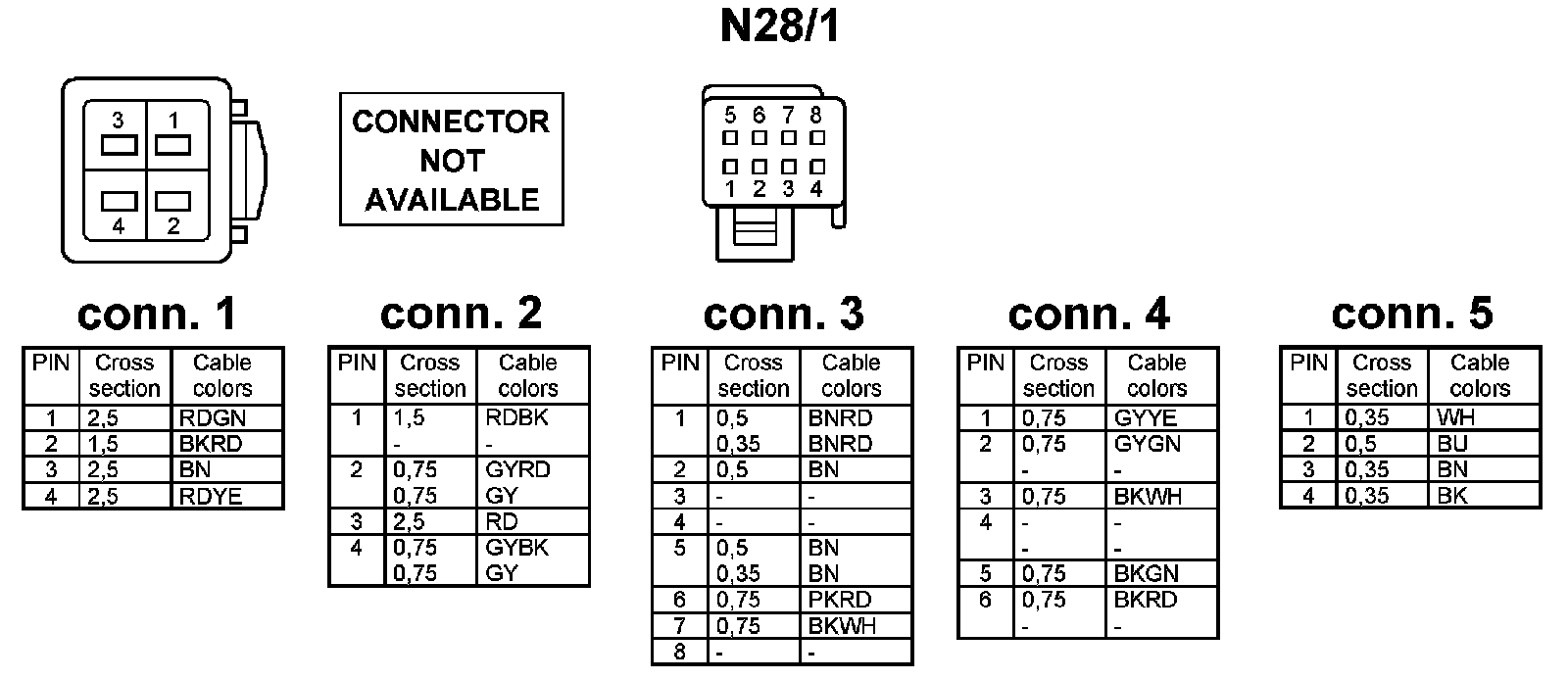

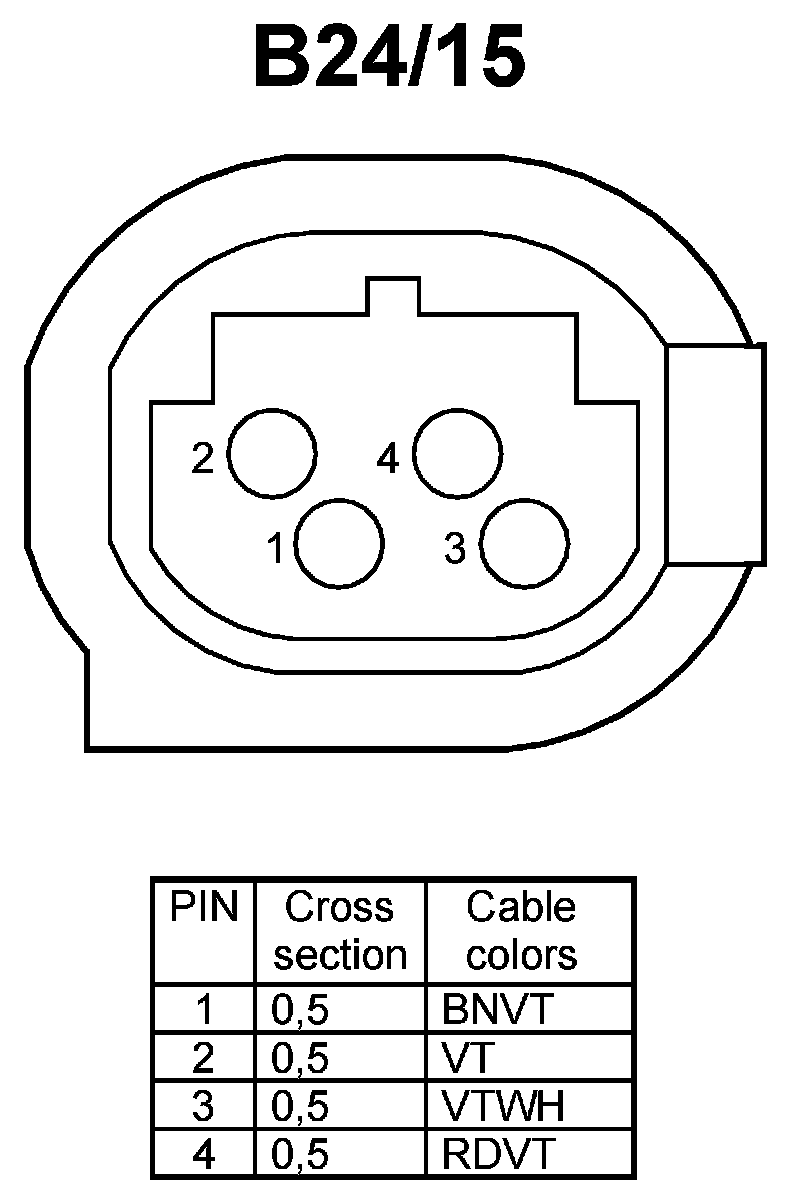

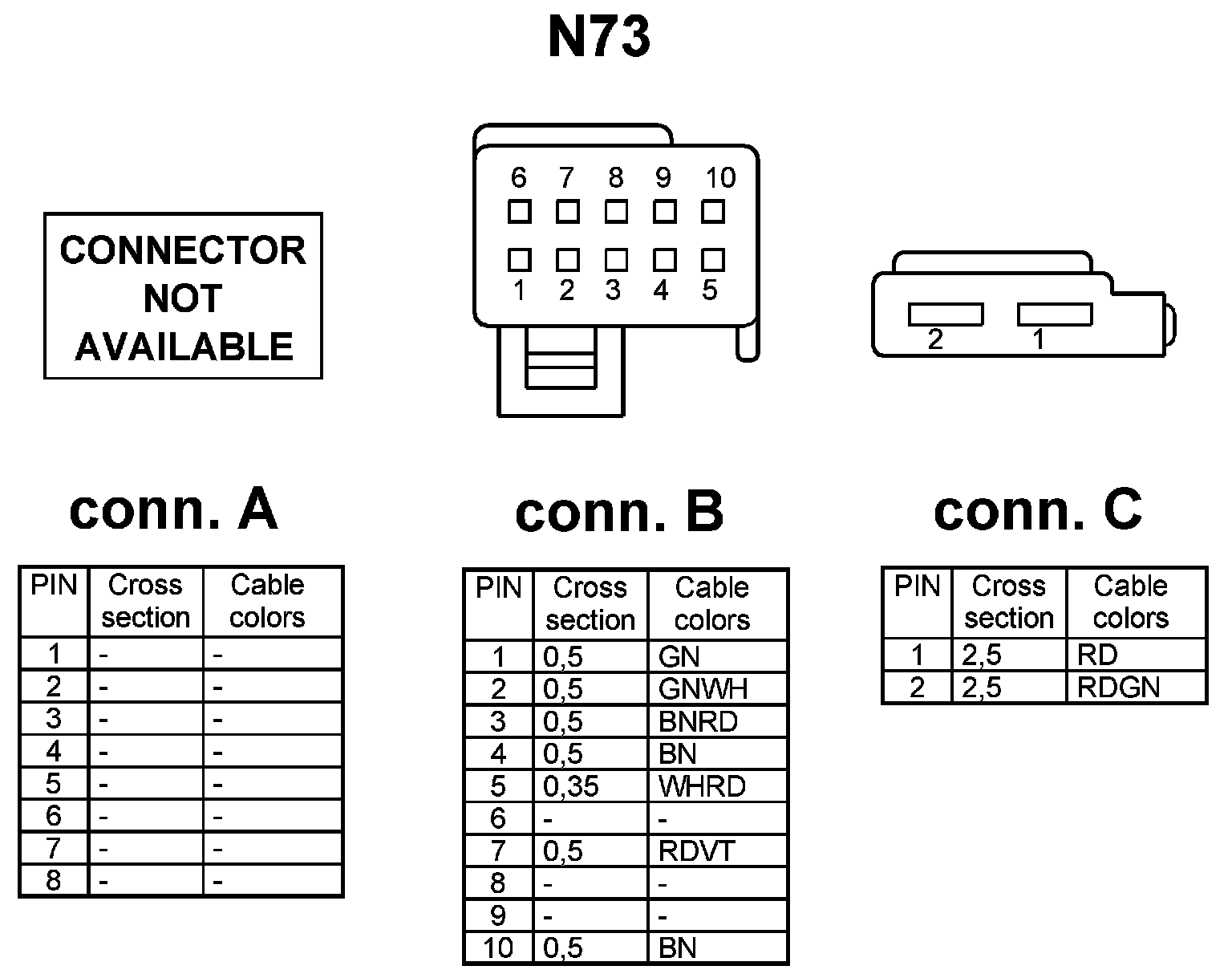

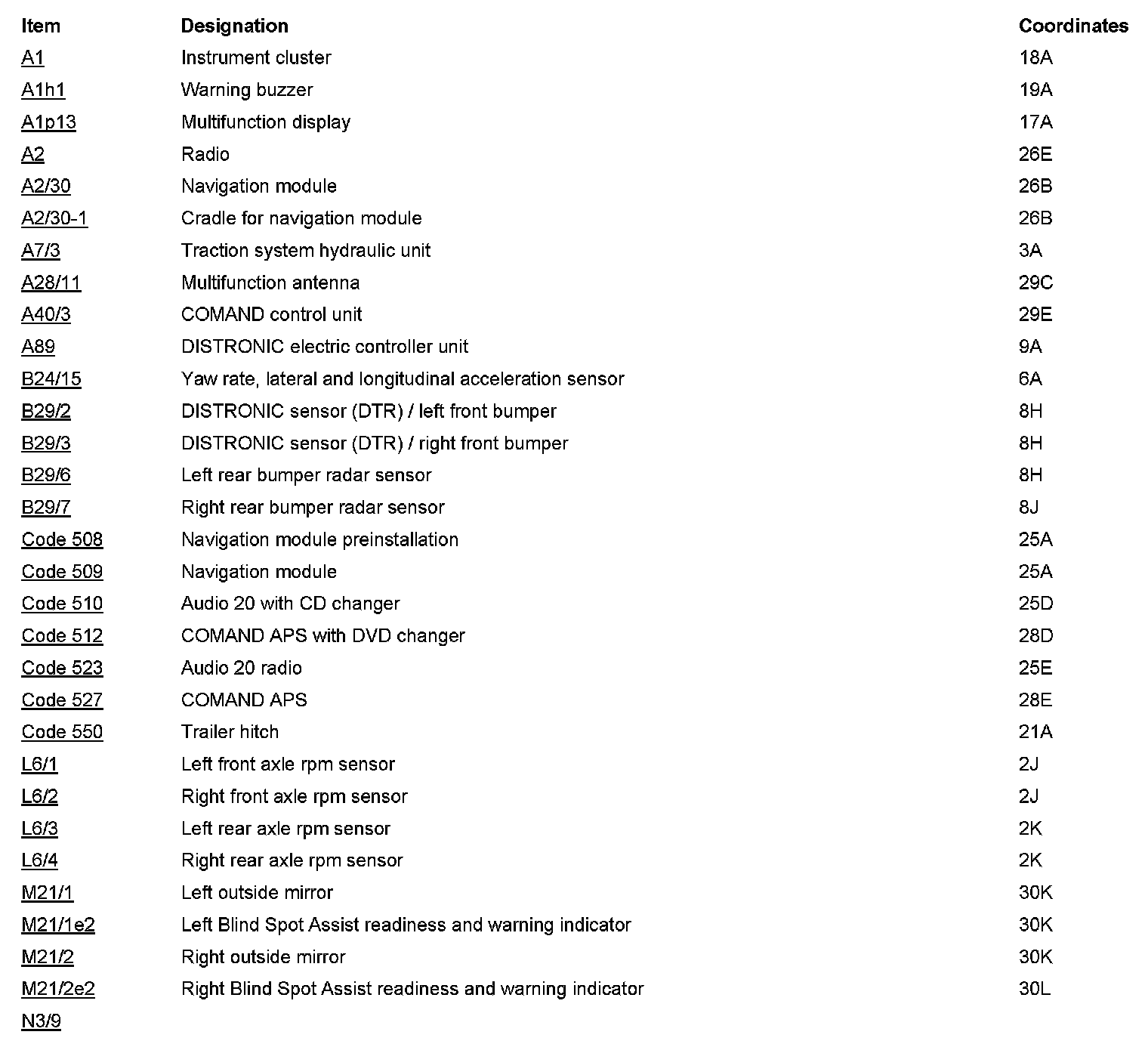

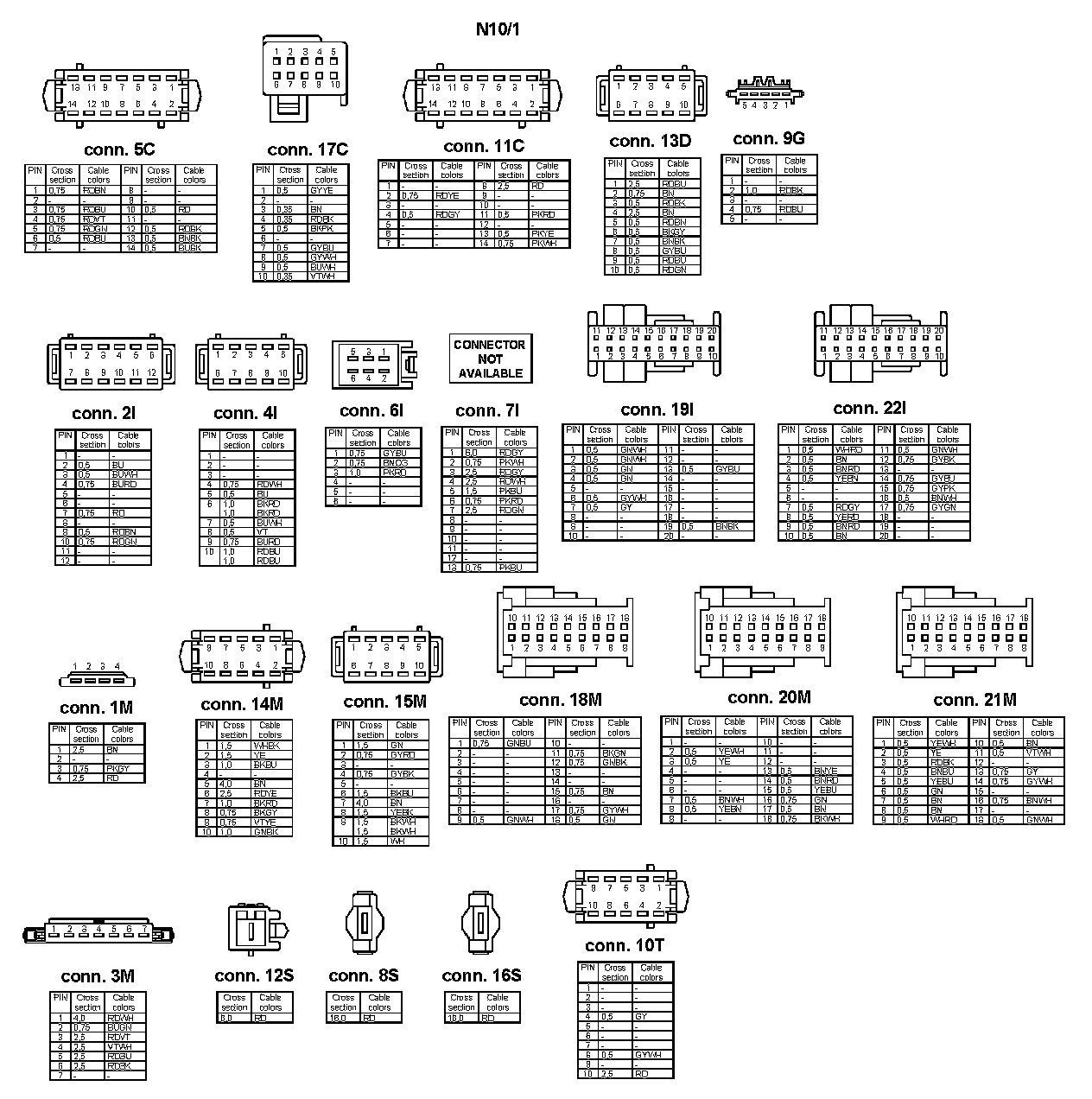

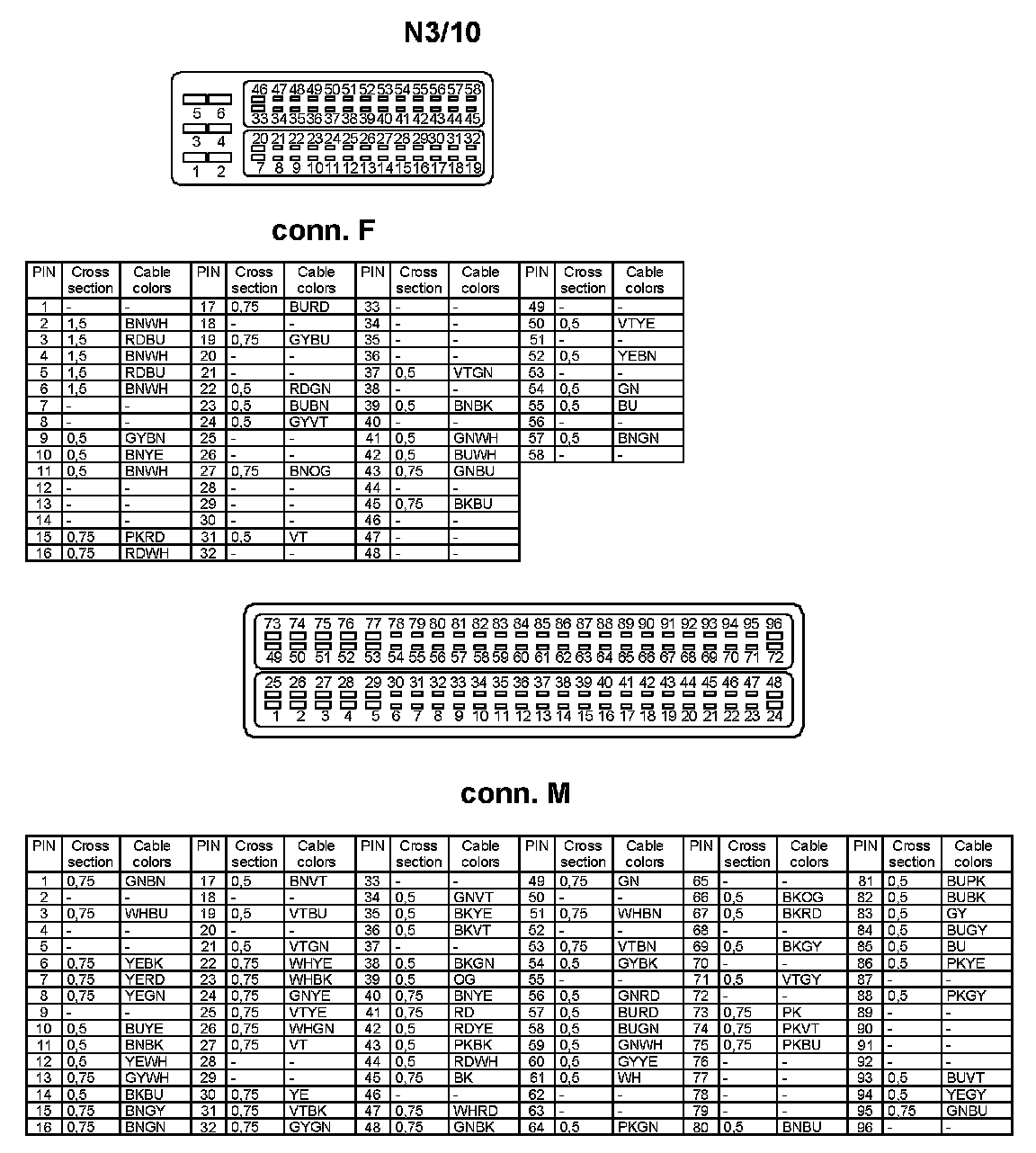

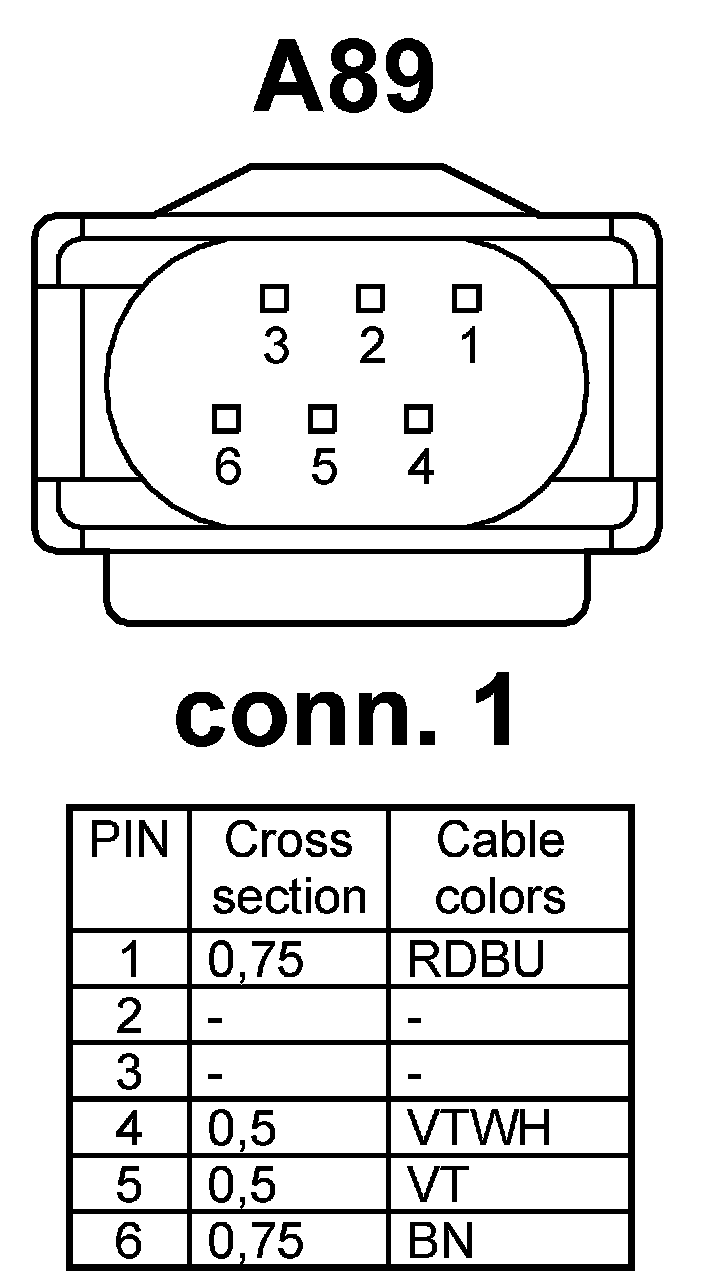

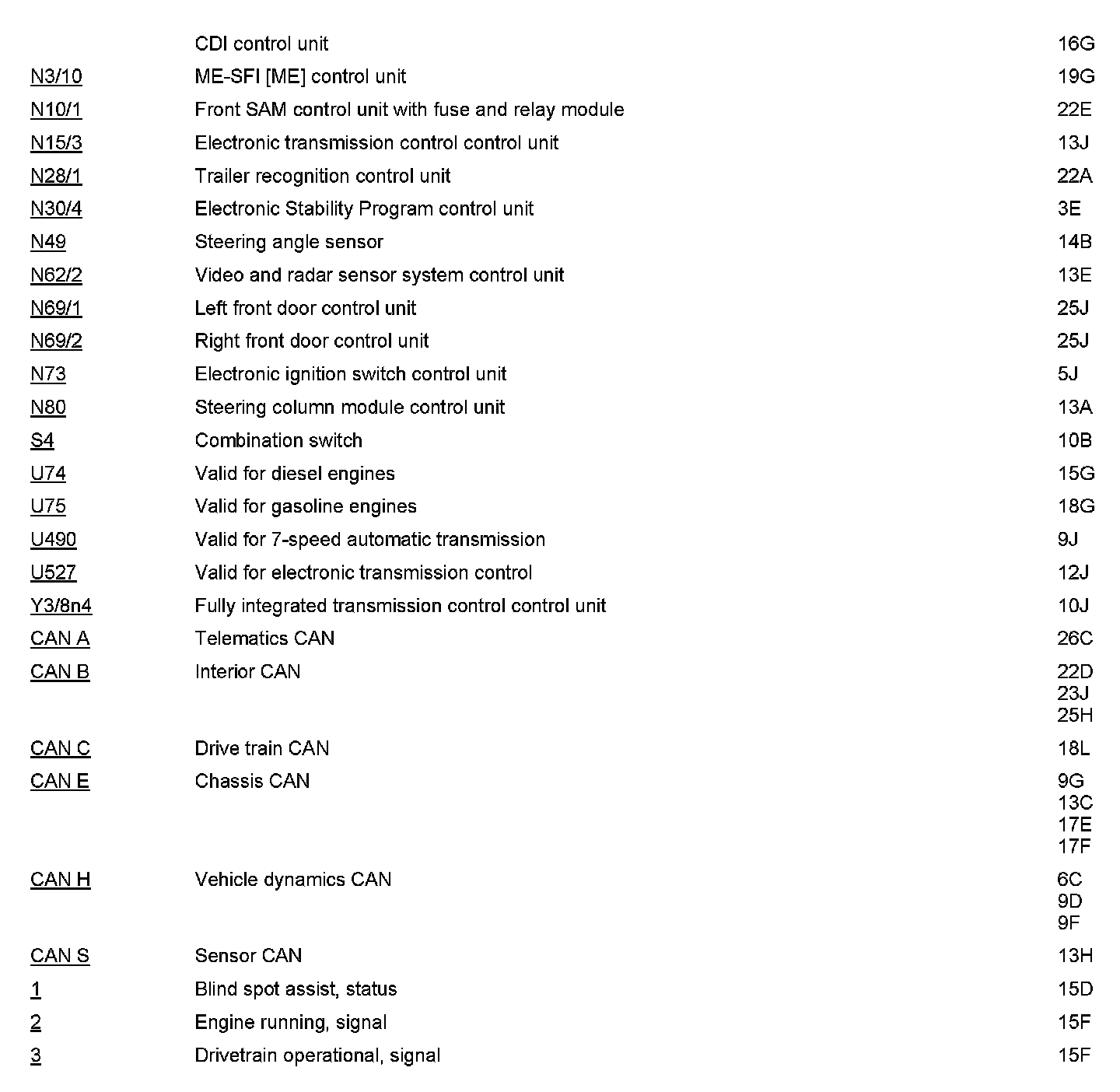

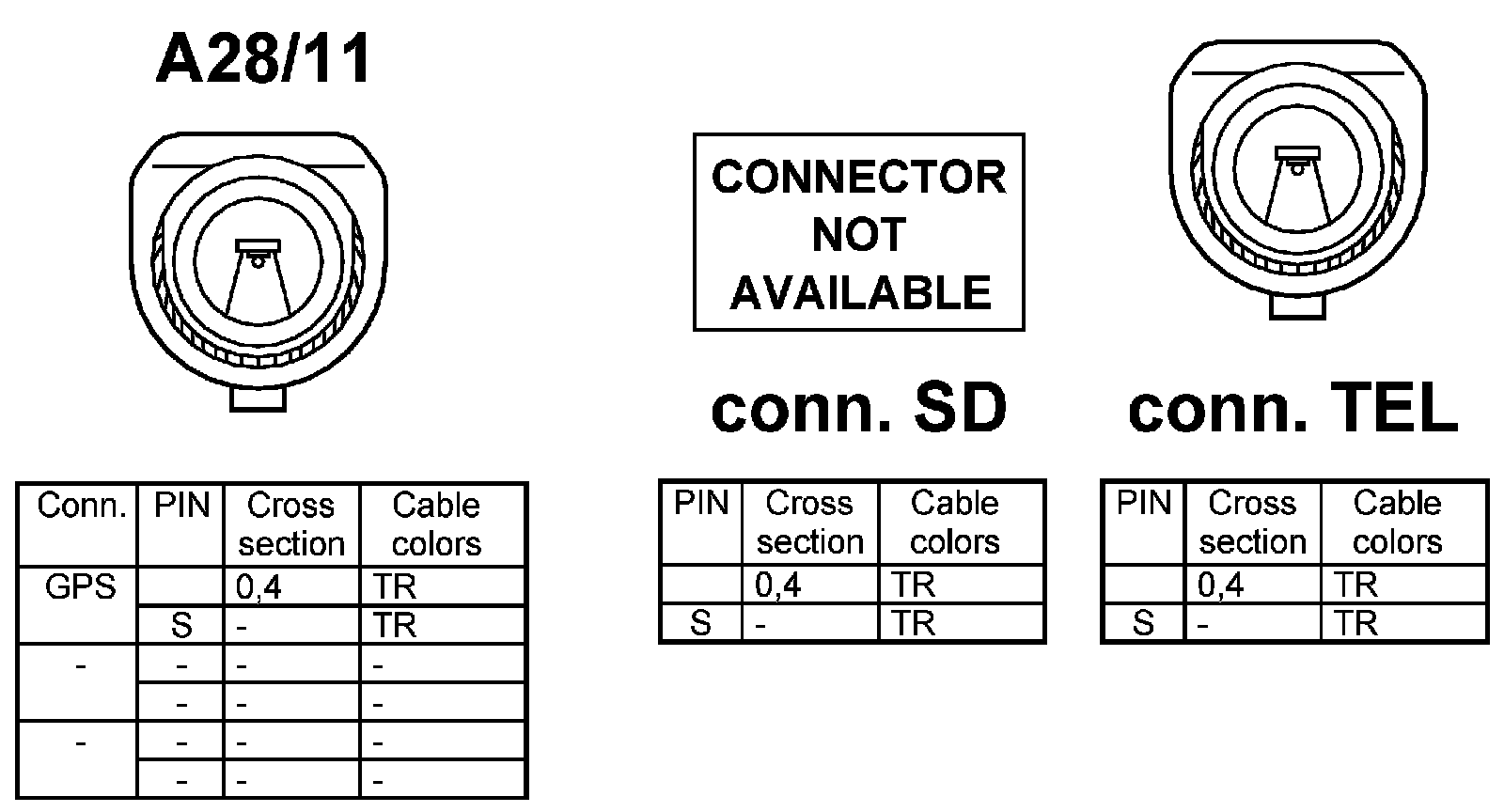

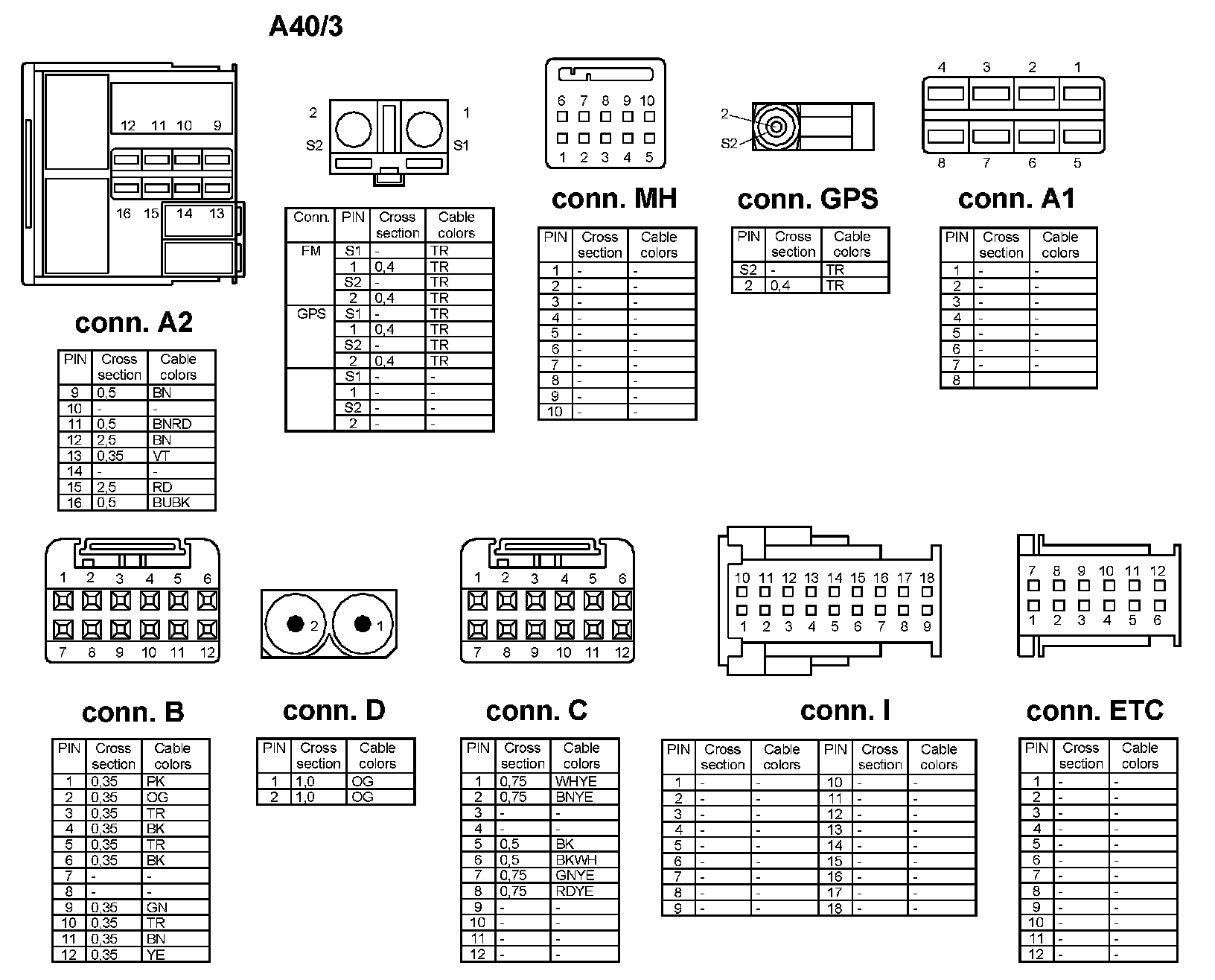

Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
